Low-Profile Truck Bed Cross Bars For Everyday Hauling
Carry a cargo basket, bikes, a low-profile rooftop tent or everyday cargo on 6" or 8" bars that keep gear low, fit under most tonneau covers and come off without leaving holes. Find your truck below.
XBRS Truck Bed Cross Bars For Your Truck
Filter by truck brand, then pick your truck to choose your year, bed, height (6" or 8") and mount.
Chevy Silverado & GMC Sierra 1500 Bed Bars
From $732.00Shop Now →

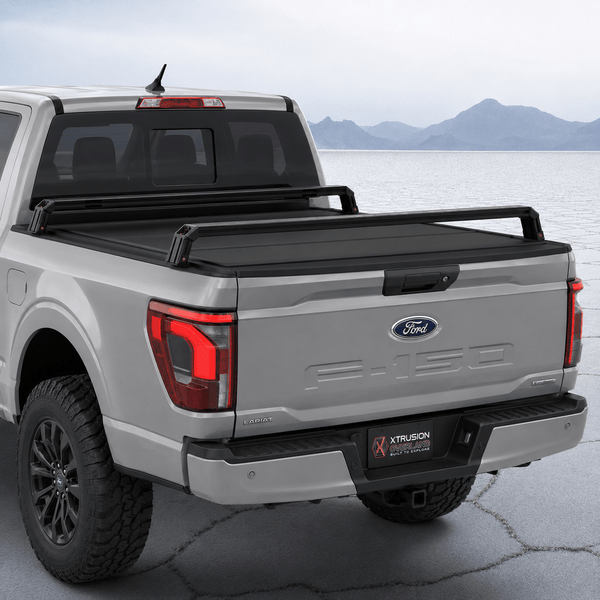

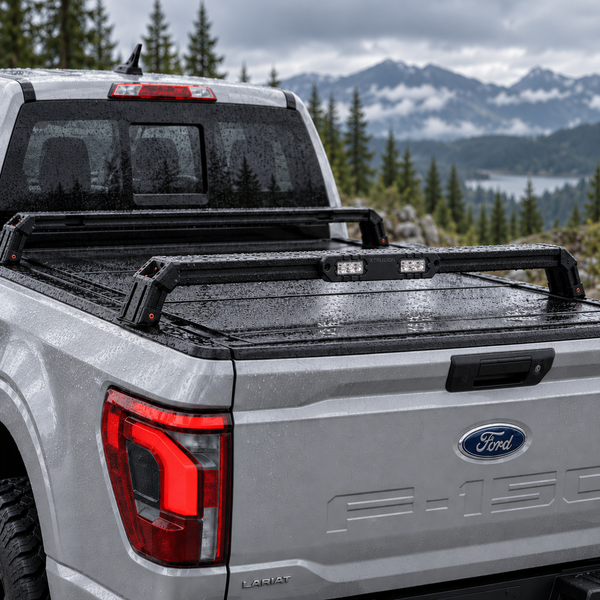

Ford F-150 Bed Bars
From $732.00Shop Now →

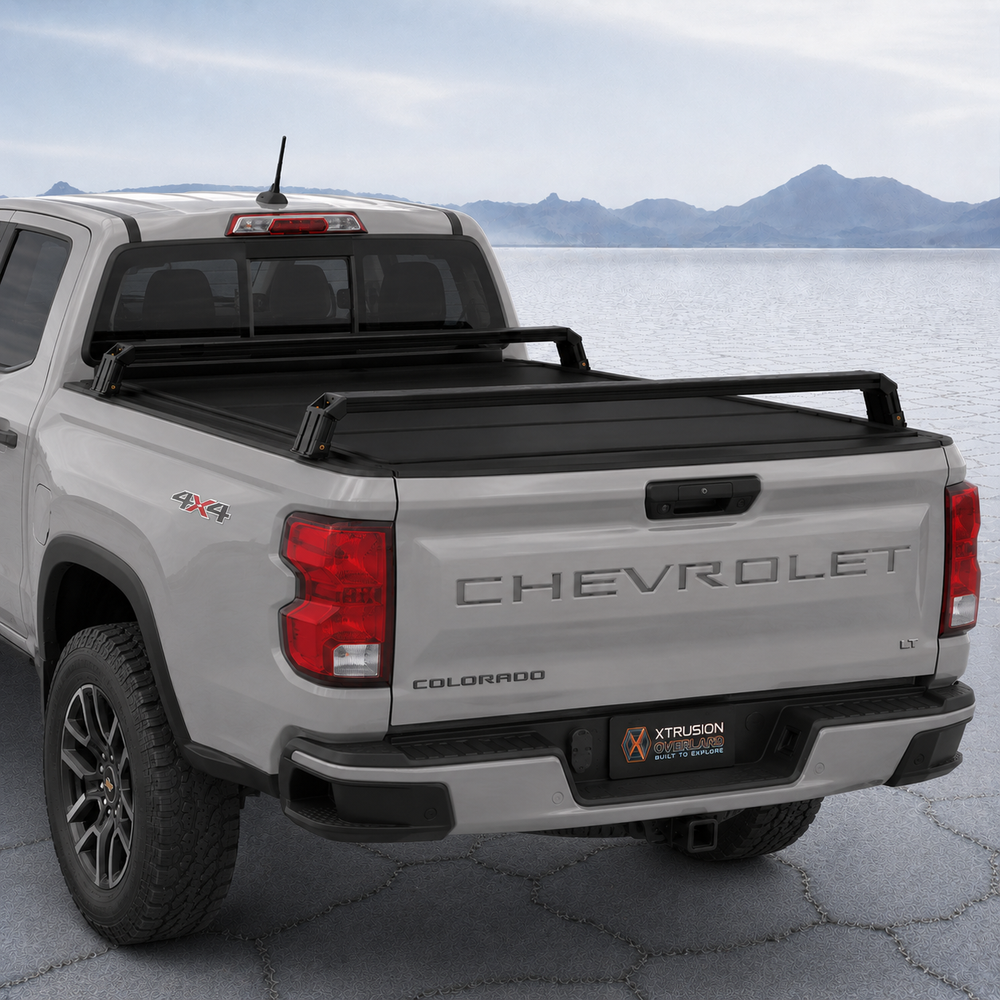

Chevy Colorado / GMC Canyon Bed Bars
From $732.00Shop Now →

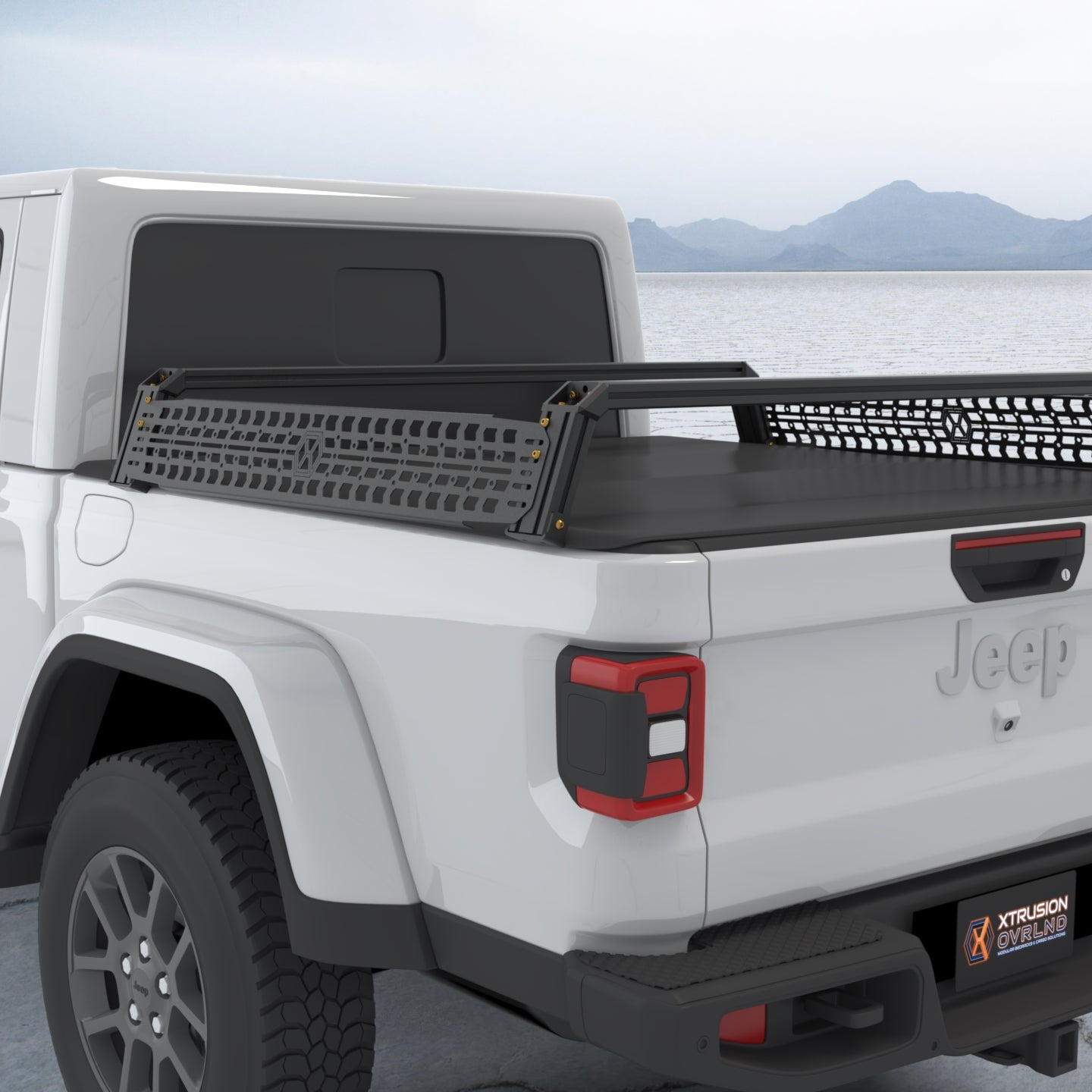

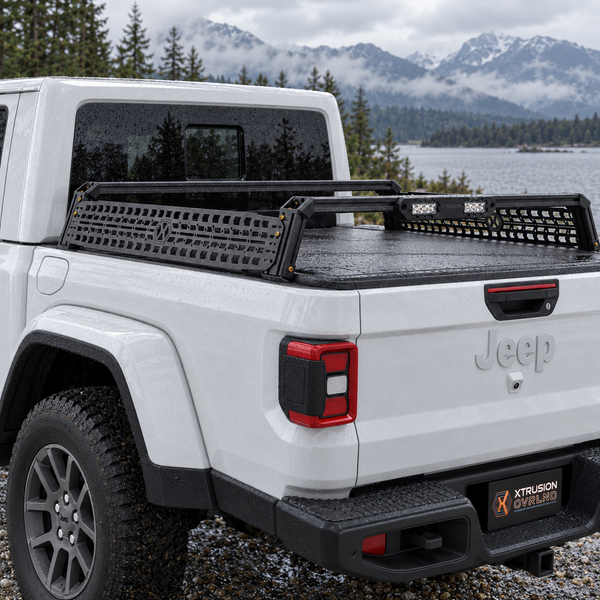

Jeep Gladiator Bed Bars
From $732.00Shop Now →

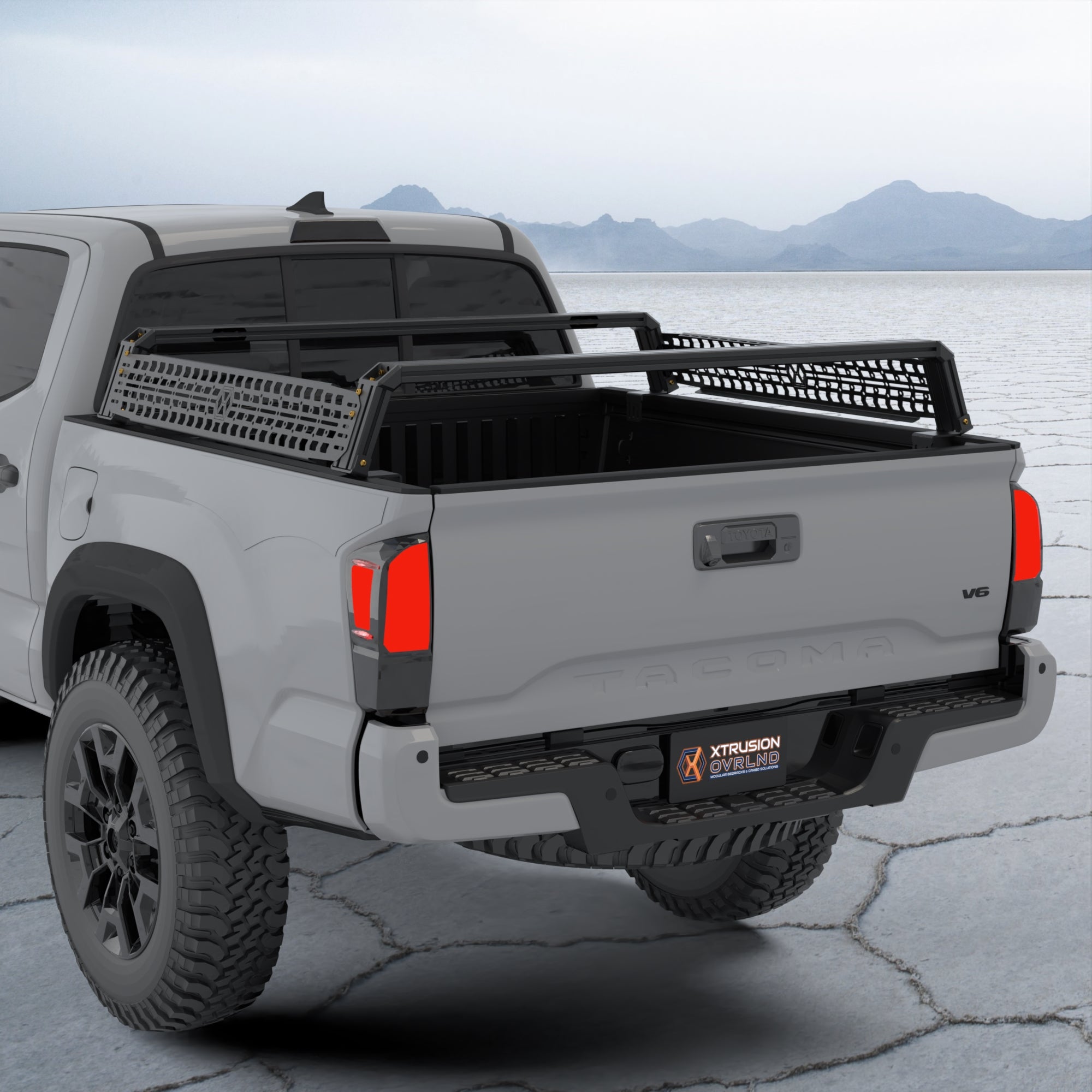

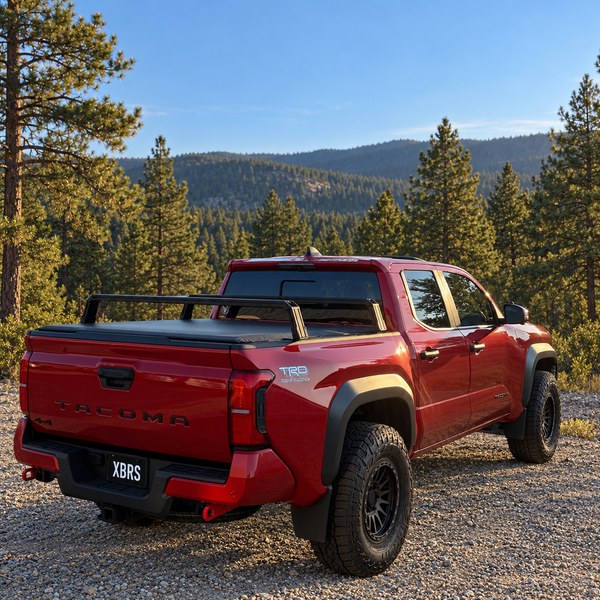

Toyota Tacoma Bed Bars
From $732.00Shop Now →
Dodge/Ram 1500 & Ram 2500/3500 Bed Bars – Straight Bed
From $732.00Shop Now →

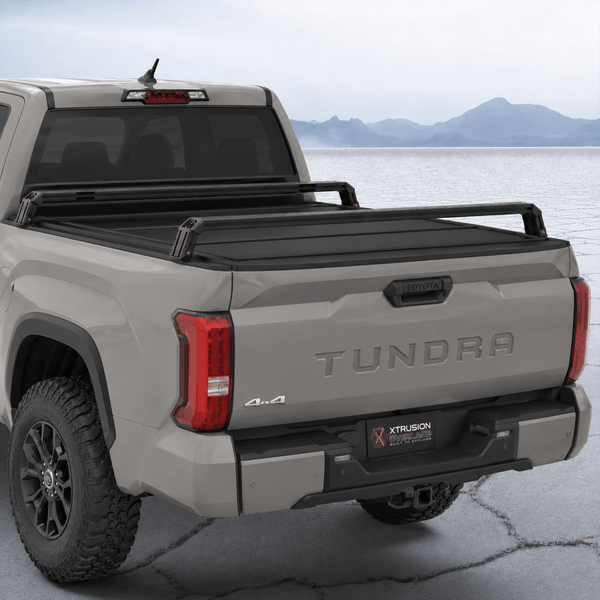

Toyota Tundra Bed Bars
From $732.00Shop Now →

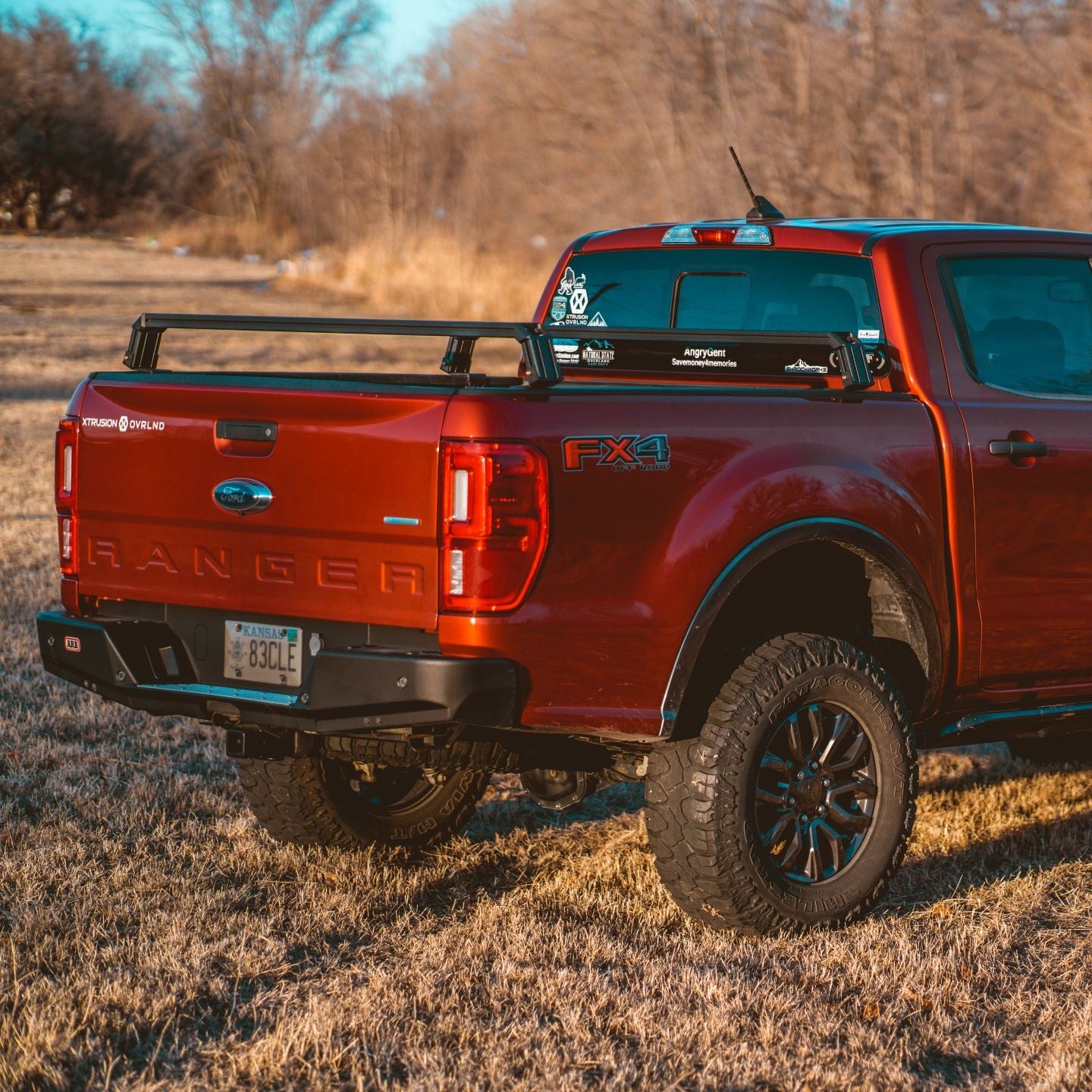

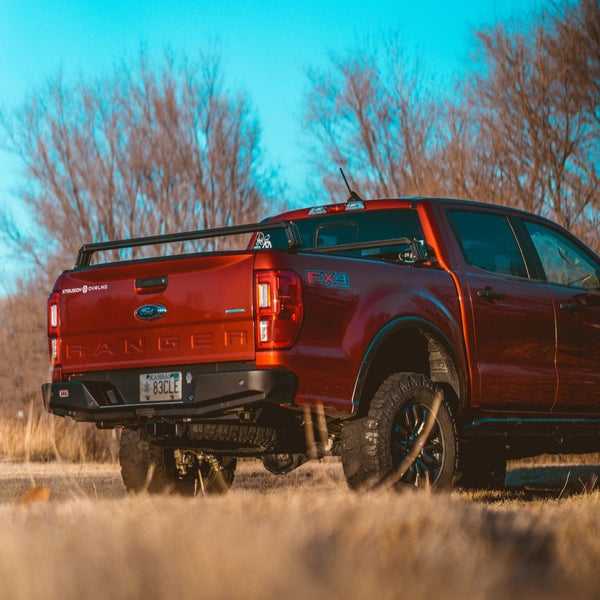

Ford Ranger Bed Bars
From $732.00Shop Now →
Chevy Silverado & GMC Sierra 2500/3500 HD Bed Bars
From $732.00Shop Now →

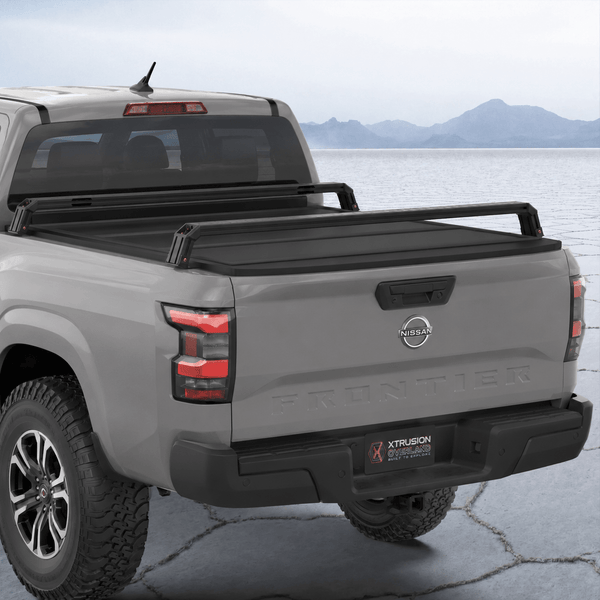

Nissan Frontier Bed Bars
From $732.00Shop Now →

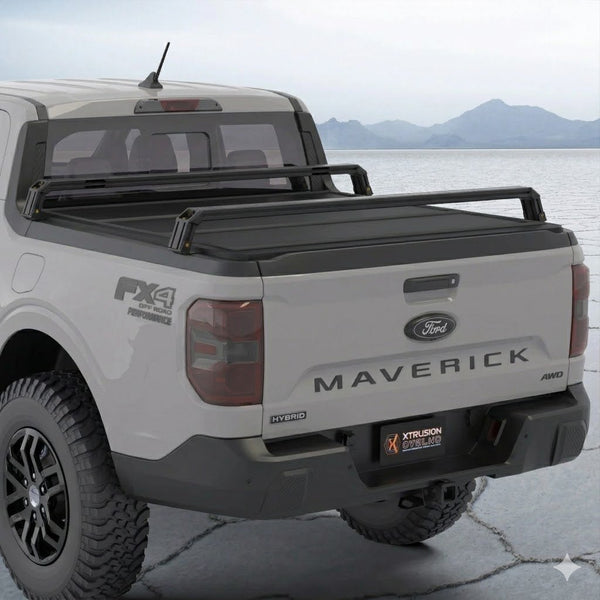

Ford Maverick Bed Cross Bars
From $732.00Shop Now →

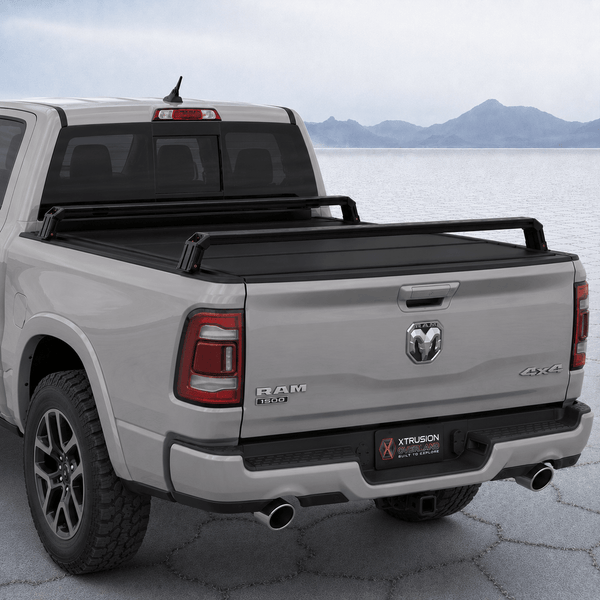

Dodge/Ram 1500 & Ram 2500/3500 Bed Bars – Tapered Bed
From $732.00Shop Now →

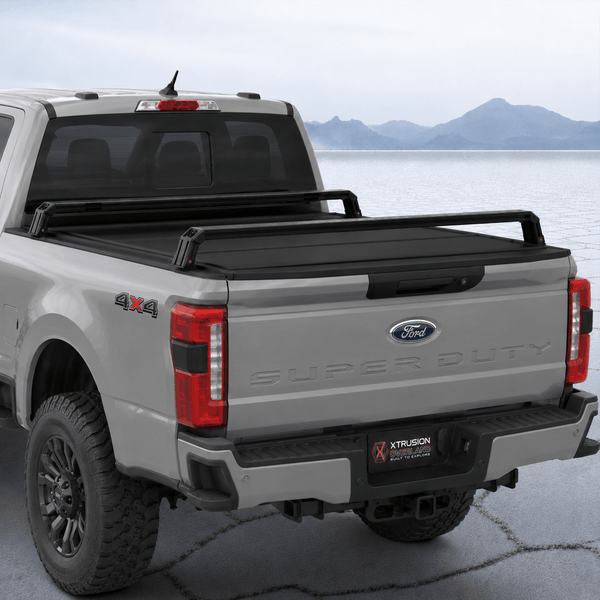

Ford F-250 / F-350 Super Duty Bed Bars
From $732.00Shop Now →

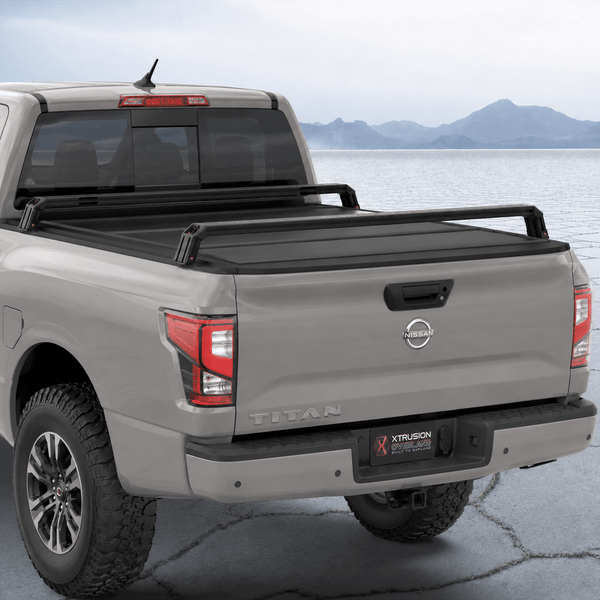

Nissan Titan Bed Bars
From $732.00Shop Now →Reasons To Choose XBRS
Best for bikes, kayaks, a rooftop tent, a cargo basket and everyday gear, with a sleek, minimal look that stays out of the wind.
Low Profile By Design
Two crossbars span your bed rails and sit just 6" or 8" above them, keeping gear low behind the cab for a low center of gravity.
More Capacity Than Typical Cross Bars
Many cross bars are rated around 150 to 300 lb while driving and flex under heavy loads. XBRS is rated 800 lb on-road, 400 lb off-road and 1,500 lb parked.
Works With Your Tonneau Cover
The Universal Mount leaves 3.3" of clearance, so most tonneau covers still open and close under the bars, including many roll-up and folding covers. A Retrax XR mount is available too.
Minimal Wind Drag
The bars sit below your cab roofline, tucked into the truck's natural wind shadow, so they add very little drag.
Little To No MPG Hit
Empty, low-profile bars typically cost 0 to 1 MPG. Loaded, your gear rides low behind the cab, so the impact stays minor.
Costs Less Than A Full Rack
Low-profile bars cost far less than a full-height bed rack, with financing through Snap Finance, Shop Pay and Synchrony.
Carry More Without Going Big
You don't need to be an overlander. XBRS gives your pickup a flat, strong platform for the gear you actually haul, without a tall rack or a hitch carrier.
Cargo Basket
Coolers, Duffels, FirewoodMount a basket to the bars and keep bulky, wet or dirty gear out of the cab and off the bed floor.

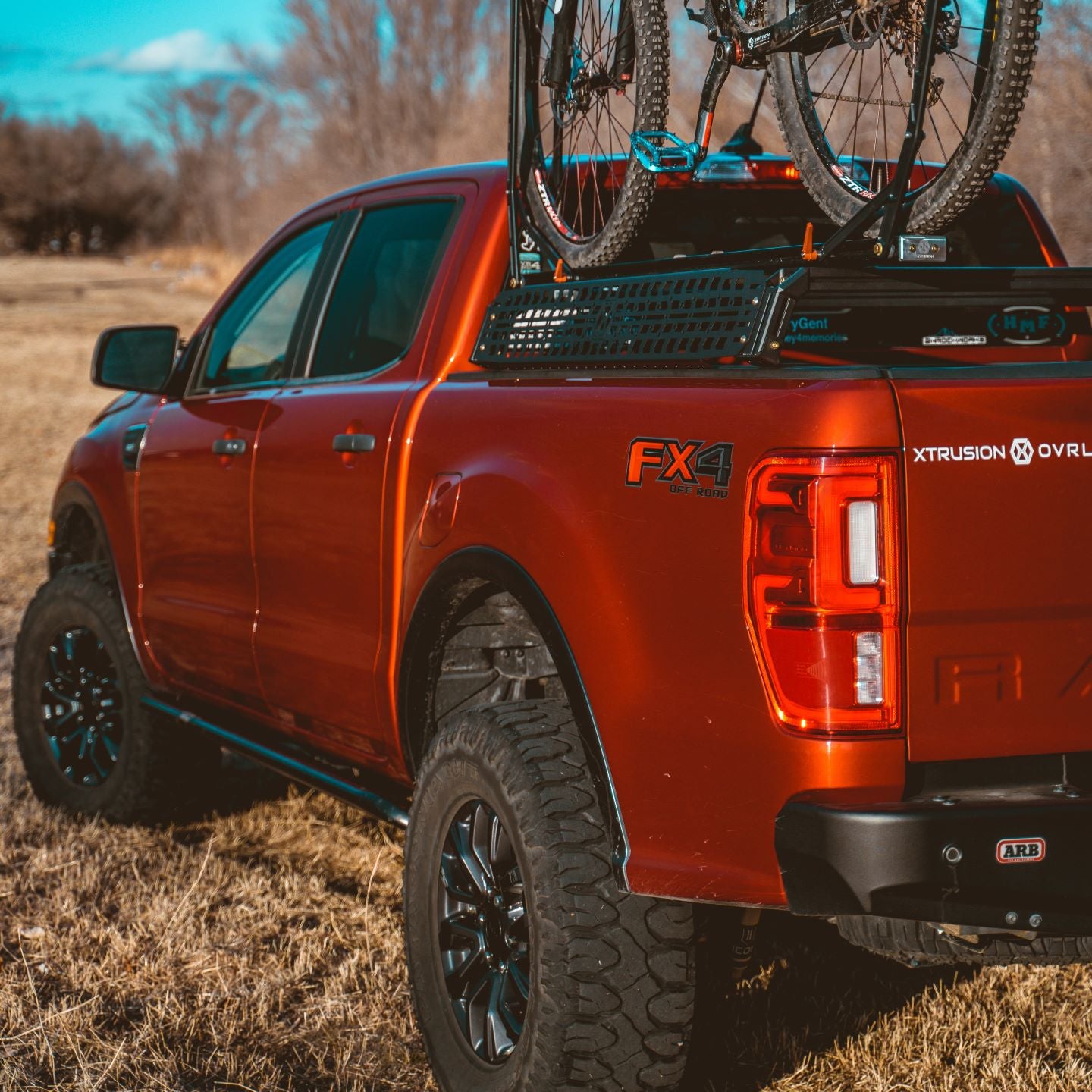

Bike Rack
Bikes Above The BedBike mounts slide into the full-length T-slots, so bikes ride up top without a hitch rack and the bed stays free.
Low-Profile Rooftop Tent
Camp Wherever You ParkKeep a rooftop tent low behind the cab. Rated 1,500 lb static for sleeping and 800 lb on-road for the drive.
Everyday Cargo
Kayaks, Lumber, LaddersStrap long loads across the bars while the bed underneath stays open for tools, groceries and everything else.
Fits Tacoma, Tundra, F-150, Super Duty, Ranger, Maverick, Gladiator, Silverado, Sierra, Colorado, Canyon, Ram, Frontier and Titan.

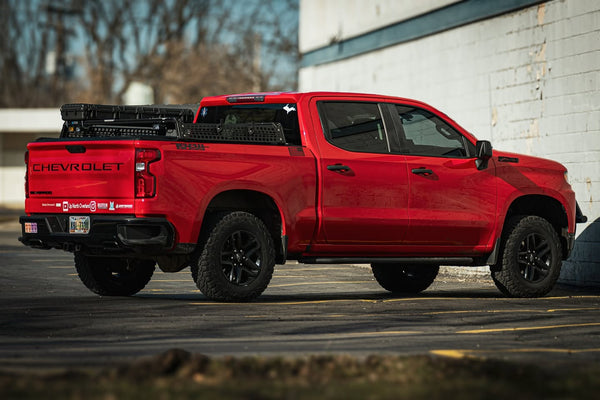

XBRS Bed Bars On Real Trucks
Tacoma, Silverado, Ranger, Gladiator, Colorado and more: the same low-profile T-slot crossbars, matched to each truck's bed.
Low Profile, Real Capability
The numbers that matter for an everyday cargo platform.
Trusted On & Off The Trail
"I recently received this rack, it is extremely stout and you can order whatever height or configuration you like." "Customer service is outstanding. Couldn't be happier. Everywhere I go I'm getting compliments and asking where to get it."
"I have had mine for a little over a year now and couldn't be happier. The adjustability, flexibility, and quality are all fantastic."
"First, I will say I love it. It was easy to assemble and put on the truck… It seems plenty rigid. It assembled quickly. I really think they have a hit on their hands with this product — the pricing is ridiculously good."
Optional: Upgrade To A Full Bed Rack Later
XBRS uses the same corner brackets as our XTR bed racks, so if you ever want a taller rack, those brackets and your bed rail brackets stay on the truck. Buy only the parts each step needs.
XBRS
Low-Profile Truck Bed Cross Bars6" or 8" tall crossbars on CNC corner brackets. Fits under most tonneau covers. Rated 1,500 lb static, 800 lb on-road, 400 lb off-road.
XTR1
Full-Height Bed Rack, 10" To 26"Add the XTR1 Alternate Height Kit, two XTR1 Side/Top Brace Sets and four XTR Off-Road Reinforcement Plates. The kit replaces the XBRS bars; your corner and bed rail brackets stay on. Rated 1,550 lb static, 850 lb on-road, 450 lb off-road.
See XTR1 bed racks →
XTR3
Third Crossbar And UprightsAdd the XTR1 to XTR3 Conversion (a third crossbar, two uprights, two corner brackets and bed rail hardware) and four more plates. Reuse your XTR1 braces cut and tapped to fit, or add XTR3 brace sets. Rated 1,750 lb static, 850 lb on-road, 500 lb off-road.
See XTR3 bed racks →Every XBRS product page lists the exact upgrade parts for that truck, and each part is sold on its own.
Truck Bed Cross Bar Questions, Answered
Straight answers to what truck owners ask most about bed bars, tonneau covers, rooftop tents, weight and gas mileage.
What are truck bed cross bars?+
Truck bed cross bars, also called bed bars or a low-profile bed rack, are two horizontal bars that span your pickup bed from rail to rail, sitting just a few inches above it. They carry a cargo basket, bikes, a rooftop tent, kayaks or lumber on top of the bed while the bed floor stays free. XBRS is our version: 6" or 8" tall aluminum T-slot crossbars that fit under most tonneau covers.
What can I carry on XBRS?+
Most everyday loads: a cargo basket for coolers and duffels, bikes on T-slot bike mounts, a low-profile rooftop tent, kayaks, lumber, ladders and recovery boards. Lights, antennas and MOLLE panels mount anywhere along the full-length T-slots. Keep everything on the bars under 800 lb on-road or 400 lb off-road.
Will XBRS work with my tonneau cover?+
With most covers, yes. The Universal Mount gives 3.3" of clearance into the bed rail. Some tri-fold covers, and covers that reach farther into the rail, won't open fully. Have a Retrax XR? Choose the Retrax XR Bedcover Mount. Want both? Shop Retrax XR covers. Running a cover on a Jeep Gladiator? Contact us before ordering and we'll confirm it works with your cover.
How hard is XBRS to install and remove?+
Not hard. XBRS is a no-drill install, so it goes on without drilling into your truck and comes off without leaving holes when you want the full bed back. A Jeep Gladiator needs a Trail Rail, and 2022+ Nissan Frontiers need the Nissan Utili-track installed.
How much weight can XBRS carry, and will it hold a rooftop tent?+
XBRS is rated 800 lb on-road and 400 lb off-road while driving, and 1,500 lb static when parked. Many cross bars are rated around 150 to 300 lb while driving, so XBRS gives you far more headroom for a rooftop tent, a loaded basket or long cargo. With a tent, the 1,500 lb static rating covers you parked with people inside; keep the tent and everything else on the bars under the dynamic rating for how you drive.
Do truck bed cross bars affect gas mileage?+
Very little. XBRS sits below your cab roofline, in the truck's natural wind shadow, so empty low-profile bars typically cost 0 to 1 MPG. Loaded, your gear rides low behind the cab instead of up in the wind, so the impact stays minor compared with gear mounted higher.
Should I choose 6H or 8H?+
XBRS comes 6" tall (6H) or 8" tall (8H). Choose 8H if you want the XBRS Tread MOLLE Plate, which fits 8H only (not Chevy Silverado or GMC Sierra); choose 6H for the lowest profile. A full XTR1 bed rack runs 10" to 26".
Will XBRS fit my truck?+
XBRS fits the Toyota Tacoma and Tundra; Ford F-150, F-250/F-350 Super Duty, Ranger and Maverick; Jeep Gladiator; Chevy Silverado and GMC Sierra 1500 and 2500/3500 HD; Chevy Colorado and GMC Canyon; Dodge/Ram 1500, 2500 and 3500 (straight or tapered bed); and Nissan Frontier and Titan. Pick your truck above to see its year ranges. Unsure which bed you have? Reach out and we'll confirm before you order.
What's included, and what isn't?+
You get the crossbar kit with CNC corner brackets and the mounts for your truck (Universal or Retrax XR on most trucks). It does not include MOLLE plates or top braces. Add the XBRS Tread MOLLE Plate (8H only, not for Chevy/GMC) or top braces when you need them. Other accessories that mount in the XBRS T-slots: XTR Quick Fist Riser Mounts, the XTR Grab Handle Kit and T-Slot Zip Clips.
How is it warrantied, and where is it made?+
The aluminum extrusions and CNC-machined parts carry a limited lifetime warranty for the original owner against defects in materials and workmanship; powder coat and supplied hardware are covered for two years. XBRS is made in the USA: designed, machined and finished in-house by Xtrusion Overland in Wichita, Kansas. See the full warranty for details.
What's the difference between bed bars and a bed rack?+
Bed bars like XBRS are two low crossbars that span the bed rails. They sit below the cab roofline, add little drag, work with most tonneau covers and cost less, which makes them the better fit for bikes, kayaks, a rooftop tent, a cargo basket and everyday cargo. A full bed rack adds taller uprights and side and top braces for awnings, MOLLE panels, lights and a higher tent, at a higher price and height.
Can I upgrade XBRS to a full bed rack later?+
Yes, if your needs change. Add the XTR1 Alternate Height Kit for your truck, two XTR1 Side/Top Brace Sets and four XTR Off-Road Reinforcement Plates (20°, or 9° for the Jeep Gladiator). The kit replaces the XBRS bars and sets the rack anywhere from 10" to 26" tall; your corner and bed rail brackets stay on. XBRS bar lengths vary, so we don't offer a part that reuses the old bars. An XTR1 can later convert to an XTR3. XBRS isn't made in 13°, so it can't convert to a 13° Soft Topper rack. 2000–2006 Tundra or an 8' long bed? Contact us before ordering upgrade parts.
Truck Bed Cross Bars: Low-Profile Bed Bars for Everyday Hauling
XBRS is Xtrusion Overland's low-profile truck bed cross bar kit: two 6" or 8" tall aluminum T-slot bars that span your bed rails and give your pickup a place to carry a cargo basket, bikes, a low-profile rooftop tent or everyday cargo.
They sit below your cab roofline for minimal wind drag, work with most tonneau covers, install without drilling and cost far less than a full bed rack. They're also rated for far more weight than many cross bars: 800 lb on-road, 400 lb off-road and 1,500 lb parked. XBRS is designed, machined and powder coated in Wichita, Kansas.
This guide covers what truck bed bars are, the reasons to choose XBRS, what you can carry, tonneau covers and rooftop tents, and which trucks XBRS fits.
What are truck bed cross bars?
Truck bed cross bars, also called bed bars, bed crossbars or a low-profile bed rack, are two horizontal bars that span the bed from rail to rail, sitting just a few inches above it. They give you a strong, flat platform for gear on top of the bed (a rooftop tent, kayaks, lumber, a cargo basket) while the bed floor stays free underneath.
They aren't the same as cargo bars, the ratcheting or spring-loaded bars that wedge between the bed walls to keep loads from sliding. Cargo bars brace loads inside the bed; cross bars carry loads above it.
Reasons to choose XBRS
Low profile by design
XBRS uses two horizontal crossbars that span your bed rails and sit just 6" or 8" above them. Gear stays low behind the cab, which keeps the center of gravity low and the look sleek and minimal.
More weight capacity than typical cross bars
Many cross bars are rated around 150 to 300 lb while the truck is moving. That covers bikes, kayaks or a lightweight rooftop tent, but lighter-duty bars can flex under heavy loads. XBRS is rated 800 lb on-road, 400 lb off-road and 1,500 lb static, so a loaded basket or a heavier tent is well within its limits.
Works with most tonneau covers
The Universal Mount leaves 3.3" of clearance into the bed rail, so most covers, including many roll-up and folding covers, still open and close under the bars. More on that below.
Minimal wind drag
The bars sit below your cab roofline, tucked into the truck's natural wind shadow, so they add very little drag. Gear on the bars rides low behind the cab instead of up in the airflow.
Do truck bed cross bars affect gas mileage?
Very little. Empty, low-profile bars typically cost 0 to 1 MPG. Loaded, the impact stays minor because your gear sits low behind the cab rather than above it.
Lower cost
Low-profile bars cost far less than a full-height bed rack, and XBRS is available with financing through Snap Finance, Shop Pay and Synchrony.
Easy on, easy off
No drilling, so XBRS comes off without leaving holes when you need the whole bed.
Made in the USA
Designed, CNC-machined, laser cut and powder coated in-house in Wichita, Kansas, and backed by a limited lifetime structural warranty for the original owner.
What you can carry on XBRS
You don't have to be an overlander to use truck bed bars. Here's what XBRS is built to carry:
- A cargo basket for coolers, duffels, firewood and wet or dirty gear you'd rather keep out of the cab.
- Bikes, on bike mounts that slide into the T-slots, so they ride above the bed without a hitch rack.
- A low-profile rooftop tent that sits low behind the cab and sets up wherever you park.
- Everyday cargo like kayaks, lumber, ladders and recovery boards, strapped across the bars while the bed stays open underneath.
Lights, antennas and MOLLE panels mount anywhere along the full-length T-slots too.

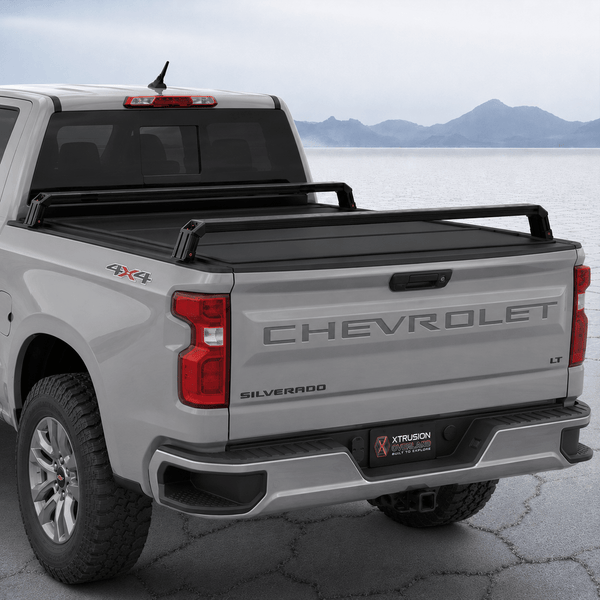

Truck bed cross bars with a tonneau cover
XBRS works with most tonneau covers. The Universal Mount brackets leave 3.3" of clearance into the bed rail, so most covers still open and close under the bars. Some tri-fold covers, and covers that reach farther into the rail, won't open fully. If you run a Retrax XR retractable cover, choose the Retrax XR Bedcover Mount, which is made for it. Want both? Shop Retrax XR covers. On a Jeep Gladiator, contact us first and we'll confirm XBRS works with your cover.
Can bed bars carry a rooftop tent?
Yes. XBRS is rated 1,500 lb static, the number that matters when you're parked with the tent open and people inside. When you're driving, the dynamic ratings apply: 800 lb on-road and 400 lb off-road. Add up the tent and everything else on the bars and stay under the dynamic rating for how you drive.
6" or 8": choosing your XBRS height
XBRS comes 6" tall (6H) or 8" tall (8H). Choose 6H for the lowest profile. Choose 8H if you want the XBRS Tread MOLLE Plate, which fits 8H only and isn't made for Chevy Silverado or GMC Sierra trucks. Need more height than that? A full XTR1 runs 10" to 26".
Bed bars vs. a full bed rack
Bed bars like XBRS are two low crossbars across the bed rails. They sit below the cab roofline, add little drag, work with most tonneau covers and cost less. For bikes, kayaks, a rooftop tent, a cargo basket and everyday cargo, they're the better fit for most trucks.
A full bed rack adds taller uprights and side and top braces. That height and bracing is what you want for an awning, MOLLE panels, fuel and water cans and lights, or for running a rooftop tent high with room for cargo underneath, and it comes at a higher price and a taller profile.
XBRS fitment: which trucks it fits
XBRS is a no-drill install. Pick your truck for the exact year ranges, bed options and mounts.
- Toyota Tacoma bed bars: 1995–2004, 2005–2023 and 2024+
- Toyota Tundra bed bars: 2000–2006, 2007–2021 and 2022–2026
- Ford F-150 bed bars: 2004–2008, 2009–2014, 2015–2020 and 2021+
- Ford F-250 / F-350 Super Duty bed bars: 1999–2016 and 2017+
- Ford Ranger bed bars: 2019–2023, 2024–2025 and 2026+
- Ford Maverick bed cross bars: 2022+
- Jeep Gladiator bed bars: Trail Rail required
- Chevy Silverado & GMC Sierra 1500 bed bars: 1999–2007, 2007.5–2013, 2014–2018 and 2019+ (2019 Silverado LD / Sierra 1500 Limited: choose 2014–2018)
- Chevy Silverado & GMC Sierra 2500/3500 HD bed bars: 2001–2007, 2007.5–2014, 2015–2019 and 2020+
- Chevy Colorado & GMC Canyon bed bars: 2013–2022 and 2023+
- Nissan Frontier bed bars: 1998–2004, 2005–2021 and 2022+ (2022+ needs the Nissan Utili-track)
- Nissan Titan bed bars: 2004–2008, 2009–2015 and 2016–2024
- Dodge/Ram 1500, 2500 & 3500 bed bars: straight bed (2002–2008, 2009–2018 and 2019+) or tapered bed. Measure the front and rear width of your bed: the same width means straight, different widths mean tapered.
Don't see your truck, or not sure which bed you have? Contact us and we'll confirm fitment before you order.
If you ever need a taller rack: upgrading XBRS (XBRS → XTR1 → XTR3)
Each step uses parts sold on their own, so you only buy what that step needs. Your XBRS corner brackets and bed rail brackets stay on the truck the whole way, and every XBRS product page walks through the parts for that truck.
Start: XBRS low-profile cross bars
Crossbars 6" (6H) or 8" (8H) tall on CNC-machined corner brackets, with Universal or Retrax XR mounts on most trucks. Rated 1,500 lb static, 800 lb on-road and 400 lb off-road.
Step 1: Upgrade XBRS to an XTR1 bed rack
- The XTR1 Alternate Height Kit for your truck. Choose the "XTR1 Alternate Height Kit" option, a rack height from 10" to 26", and Wide Width for the Universal Mount or Retrax for the Retrax XR mount.
- Two XTR1 Side/Top Brace Sets, sized to your bed length.
- Four XTR Off-Road Reinforcement Plates (20°, or 9° for the Jeep Gladiator).
The kit replaces all of the XBRS bars and raises the rack to your chosen height. XBRS bar lengths vary, so we don't offer a part that reuses the old bars. A standard XTR1 is rated 1,550 lb static, 850 lb on-road and 450 lb off-road.
2000–2006 Tundra or an 8' long bed? Contact us before ordering upgrade parts.
Step 2: Convert XTR1 to an XTR3
An XTR3 adds a third crossbar and a third upright on each side.
- The XTR1 to XTR3 Conversion option on the same kit page, with the same bracket type and rack height as your XTR1. It includes one crossbar, two uprights, two corner brackets and the bed rail hardware.
- Side/top braces: cut and tap your XTR1 braces to fit, or order XTR3 Side/Top Brace Sets in the same length.
- Four more XTR Off-Road Reinforcement Plates, since an XTR3 uses eight.
A standard XTR3 is rated 1,750 lb static, 850 lb on-road and 500 lb off-road. Compare finished racks in our XTR1 bed racks and XTR3 bed racks.
Want to go straight from XBRS to XTR3? Call (316)-330-0024 or email [email protected] and we'll put the parts together for your truck. XBRS isn't made in 13°, so it can't convert to a 13° Soft Topper rack.
Ready to build?
If you want a simple, low-profile way to carry a basket, bikes, a tent or everyday cargo without adding drag or giving up your tonneau cover, XBRS is built for it. Find your truck above, or call (316)-330-0024 and we'll help you choose. Financing is available through Snap Finance, Shop Pay and Synchrony.
