Description

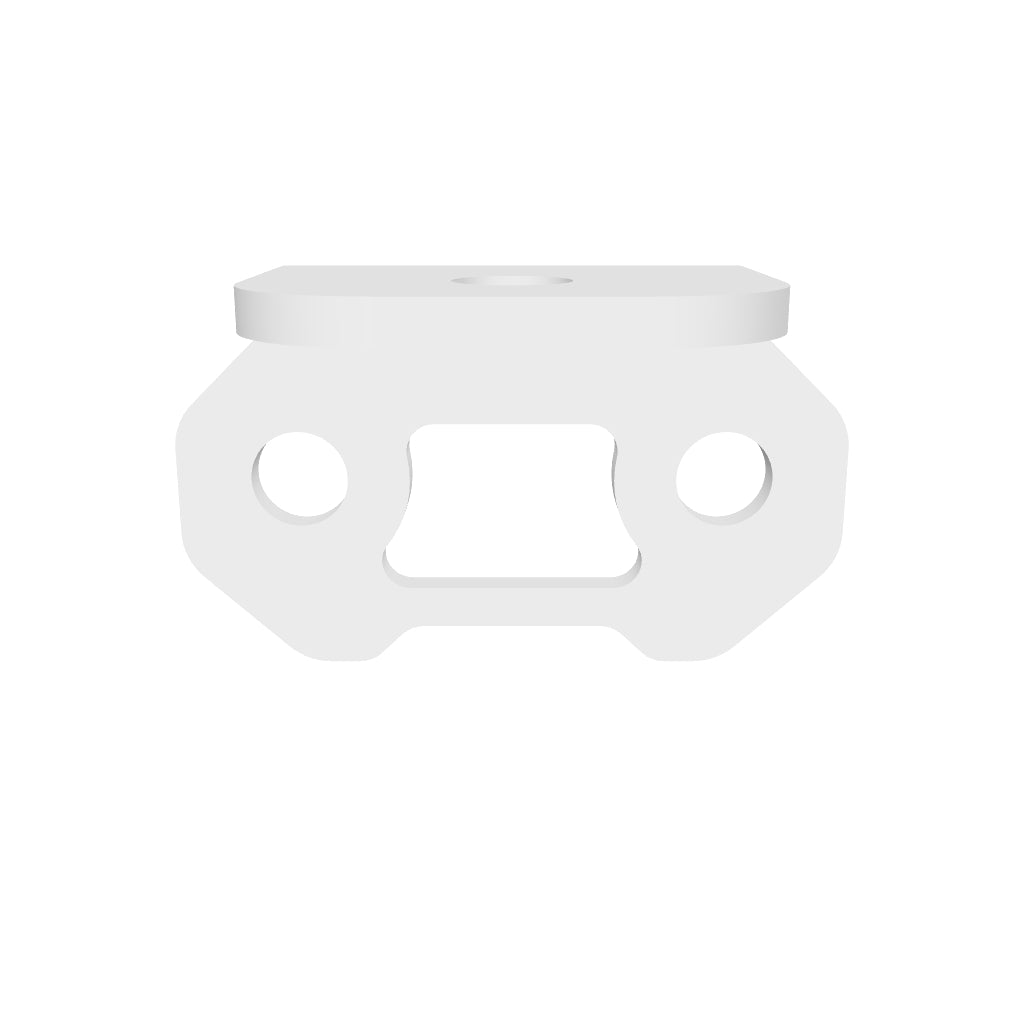

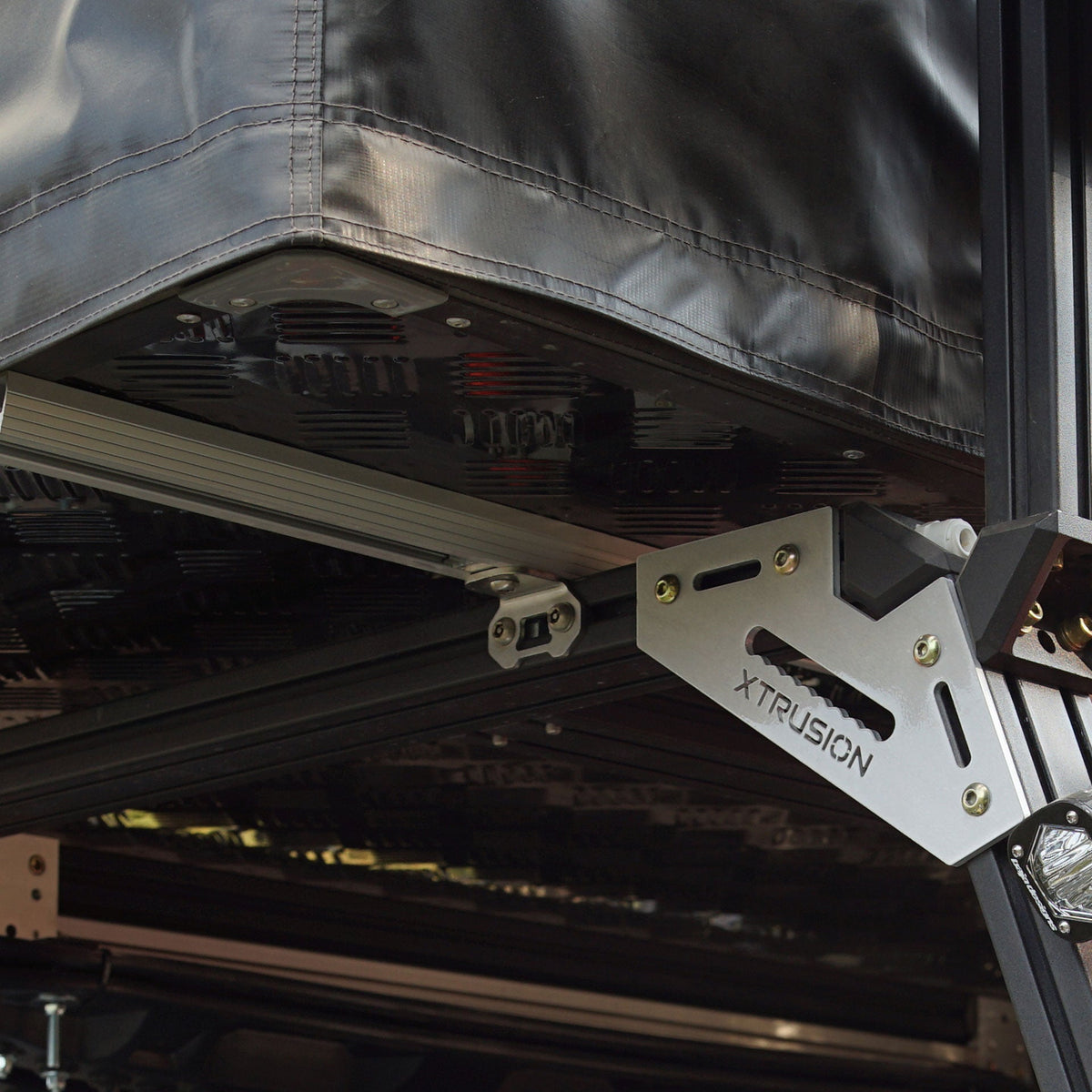

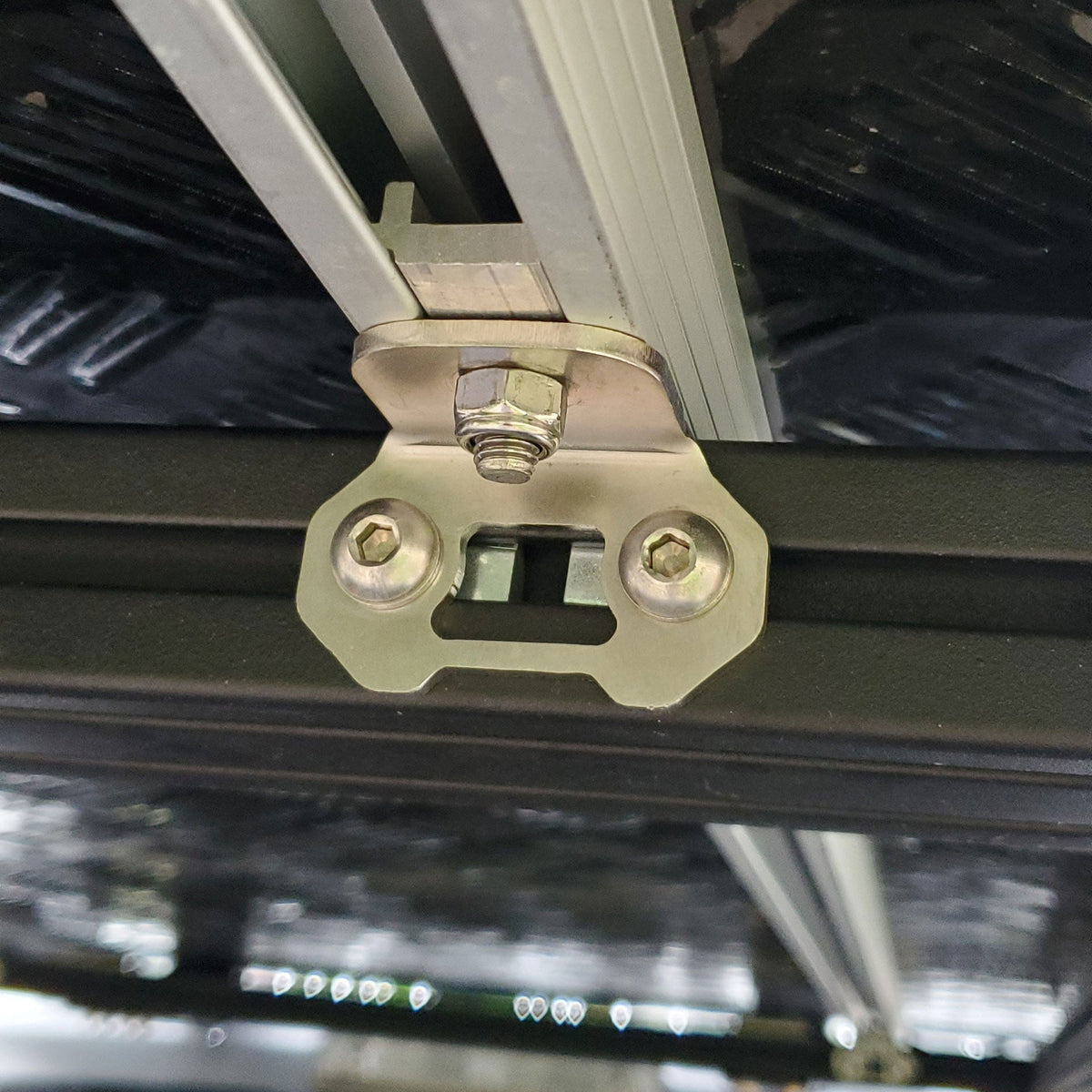

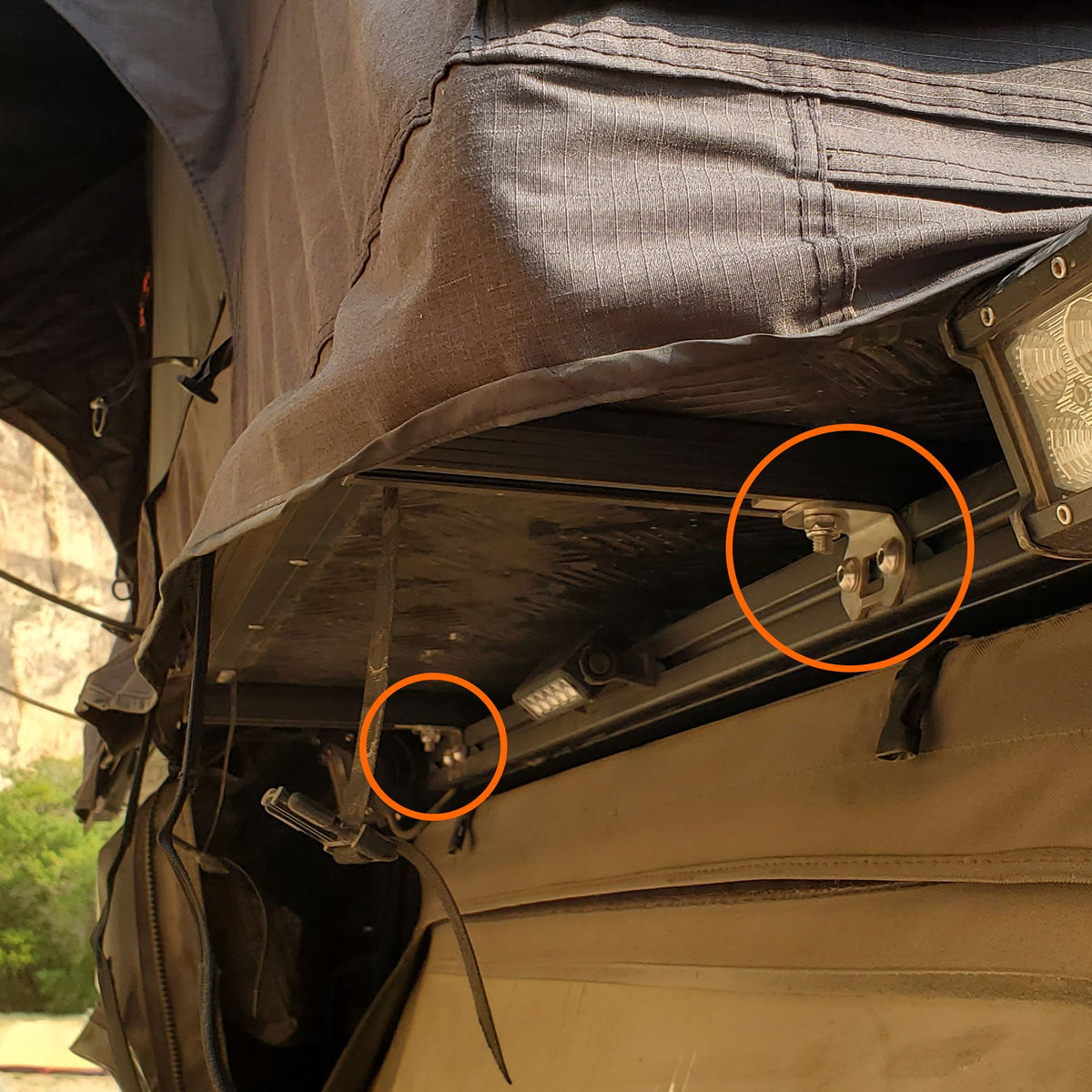

Mount your rooftop tent. These stainless steel rooftop tent brackets attach an RTT to your XTR bed rack — or any rack running 1530 extrusion, without needing to have a bulky protruding bolt past the crossbar. A big risk when climbing in and out under your rack with the OEM Tent mounts is hitting your head on one of those protruding bolts! These mounts include a shorter bolt so there is nothing going past the crossbar. A clean, corrosion-proof roof top tent mount and one of the most popular bed rack accessories for anyone sleeping up top.

Made from stainless steel so they shrug off weather and trail abuse, the brackets give you a secure, rattle-free connection between tent and rack. Choose the standard kit for everyday trail use, or the off-road kit with double the brackets for heavy off-road conditions.

Why the XTR Rooftop Tent Brackets

Gain internal cargo clearance — Gets rid of the bulky dangerous protruding bolts from your RTT manufacturer.
Stainless steel — corrosion-proof, built for years of weather and trail.
Fitment Options— available for options of [XTR1, XTR3 ot XBRS or any 15 series extrusion], or an XO.SKLTN version that mounts to the front or rear bar. Also we have the 10 series version for the XTR Roof Racks (any 10-series extrusion).
Standard or off-road kit — 4-piece for everyday trail, 8-piece for heavy off-road.
iKamper-ready — optional adapter plates for iKamper tents that use the 2.0 clamp.

Choose your kit

Standard Kit (4 brackets) — for everyday trail use.
Off-Road Kit (8 brackets) — for heavy off-road conditions (not required for everyday trail).
iKamper Adapter Plates — add-on option for iKamper tents (which ship with the 2.0 clamp instead of a slide-in backplate).
Select your rack platform at checkout — XTR1 / XTR3 / XBRS, XO.SKLTN, or XO.SKLTN Top Crossbar / Roof Racks (10-series).

What you’ll need to source separately

Tent slide-in backplate — most tents include this with their mounts. (Exception: iKamper ships a 2.0 clamp — order with the iKamper Adapter Plates.)
Nylon lock nut — 5/16-18 or M8 depending on your tent; normally included in your tent’s hardware kit.

What’s included

Standard Kit (4) — 1530 racks:

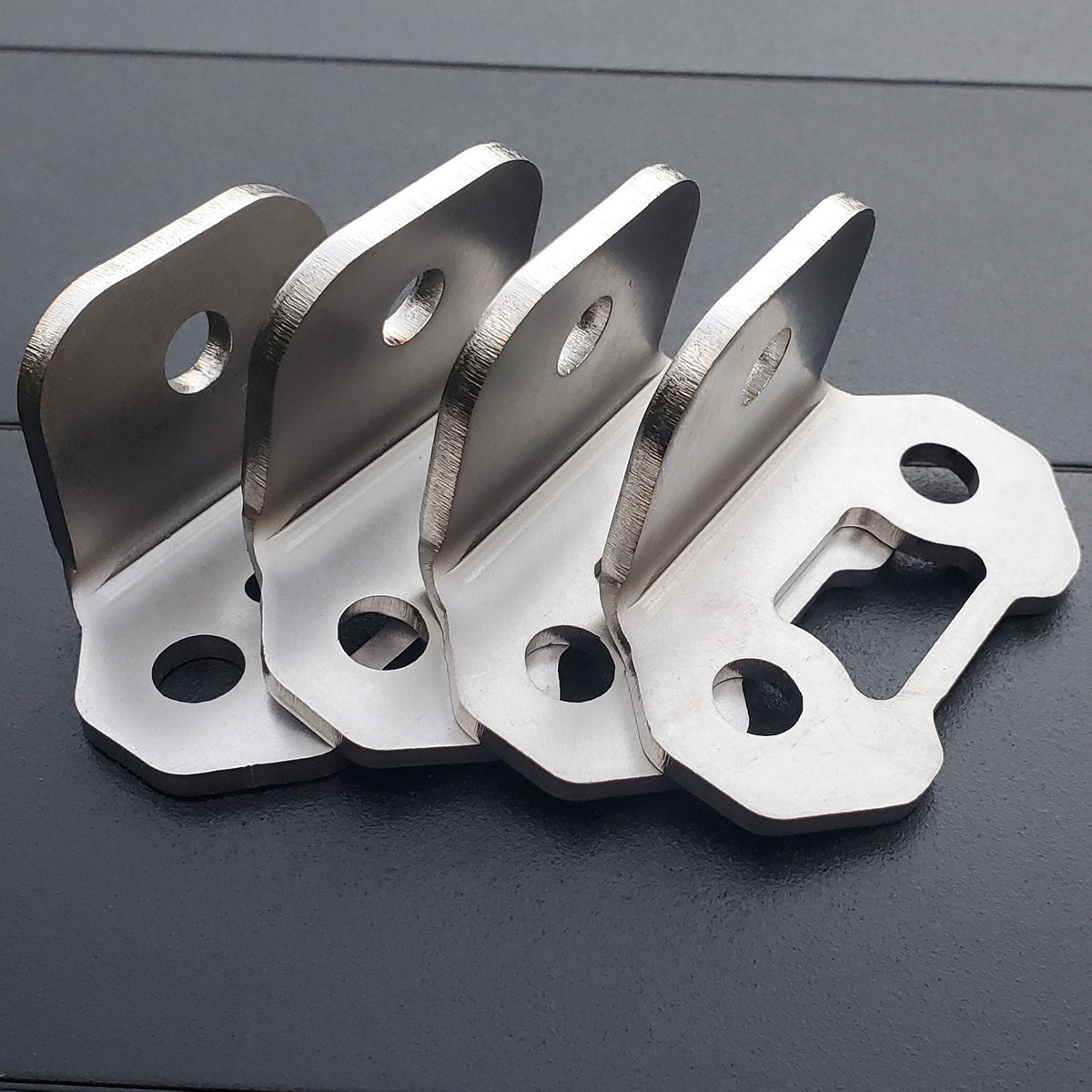

4 brackets in .0118" stainless steel
8 — 5/16-18 x 5/8 stainless socket head cap screws
8 — 5/16-18 drop-in T-nuts
4 — M8 x 18mm hex bolts (shorter replacement for your tent’s bolt)

Off-Road Kit (8) — 1530 racks: doubles the brackets (8), button-hex screws (16), and T-nuts (16), plus 8 M8 x 18mm hex bolts.

10-Series (XO.SKLTN Top Crossbars & XTR Roof Racks): same kits using 1/4-20 x .375 stainless screws + 1/4-20 drop-in T-nuts and M8-1.25 x 14mm hex bolts.

Rooftop tent is NOT included.

Build out your bed rack

These brackets fit any XTR1 bed rack or XTR3 bed rack. Outfit the rest of your sleep-up-top build with XTR Modular MOLLE Plates for gear, an XTR Rotopax Adapter Plate for fuel and water, and a XTR1 AXS Gate Kit (or XTR3 AXS Gate Kit) for easy access underneath.

Resources & support

Install reference video: XTR rack & accessory assembly
Fitment questions: FAQ or email [email protected]
