Truck Bed Slide Out Organizer | XTR Slide Out Kit

Name: Truck Bed Slide Out Organizer | XTR Slide Out Kit
Brand: Xtrusion Overland
SKU: X07-SDE-AA-FULL-48L
Availability: InStock
Rating: 4.67 (12 reviews)

$190.00 USD

Xtrusion Overland | SKU: X07-SDE-AA-FULL-48L

Lead Times

Current Lead Times:

Please Note That All Lead Times Are Estimations*

XO.SKLTN | 10-12 weeks
XTR1, XTR3 & XBRS Bed Racks | 4-7 weeks
Extrusion Sub-Structures | 3-4 weeks
Xtrusion Branded Accessories | 1-2 weeks

Our posted lead times are only estimations and rely on various factors, many times outside of our control. Historic challenging times within our industry have caused ripples in the supply chain world that have repercussions even on the smallest of components at times. As you would imagine, many companies in our industry are experiencing the same.

Our bed racks are super cool, with the ability to be customized. But this causes a series of challenges due to the thousands of possible combinations regarding compatibility, availability, etc. However, we are constantly aiming at improving our processes, hiring and training our people to achieve a reliable fulfillment process.

If you have additional questions about our lead times, please check our current estimations and reach out to our team if you need additional information. We thank you for your continued support and patience as we improve our processes.

While we would do our best to accommodate a specific need, please do not plan any trips or outings based on the estimated lead times.

THIRD PARTY PRODUCTS

Xtrusion Overland started supplying various brands that go hand in hand with our own products, to provide a complete service and help us grow. This includes products that are drop shipped. Please be advised that availability and lead times of those product are solely impacted by the third-party vendor's schedule. Many products are sold under an open inventory method, as the technology to sync inventories is limited, therefore please reach out if a specific product is needed by a specific date for us to double check with the supplier for you!

Any potential delay that occurs in the sourcing, processing, or drop shipment at the third party level will be communicated to the best of our ability to the customer.

ESTIMATED DATE | LEAD TIMES

The estimated lead time provided when you placed your order is JUST AN ESTIMATE. It is not a guarantee that the product will be shipped on that date. The estimated lead time gives you some sense of what the current times to source, cut, pack and ship takes. Many times the lead time can be shorter, but likewise it can extend, depending on factors such as previous demand and current supply. We manufacture many components in house, but extenuating circumstances such as down time for maintenance or unscheduled downtimes for repairs might impact dates as well as delays related to our sourced components. There is a constant flow of parts and shipments, and sometimes the visibility becomes a challenge to pinpoint exactly when your product will ship.

Feel free to check on your order at any time. Be aware that our customer service team may not be able to give you an exact date for completion but rest assured we are tracking your order and it will be built in the order that it was received.

Xtrusion Overland also reserves the right to cancel items from an order, offer an alternative substitution or issue refund accordingly when product is delayed at an unacceptable time frame or at the request of the customer.

Rack Angle Guide

Overland Rack Angle Compatibility

One Angle.
Every Build.

XTR bed racks use three rack angles — 9°, 13°, and 20° — each matched to specific vehicle setups and accessory families. Find the right angle for your build so every rail, crossbar, and mounting kit lines up perfectly.

Engineered quality

CNC billet strength

We didn't just join the strong extrusions with some sheet metal corner brackets — we put the aluminum where it makes a difference. Every angle variant uses the same 6061-T6 Aerospace grade billet, machined to precision to join all components with exact angular alignment.

✓ All three angles share the same billet standard
✓ 9°, 13°, and 20° brackets machined to exact specs
✓ No sheet metal corners — pure aerospace aluminum

CNC billet corner brackets for XTR bed racks — available in 9°, 13°, and 20° angles

Quick Reference

Angle Compatibility

Rack Angle	Product Line	Compatible Accessories
9°	Gladiator Series	All Gladiator bedracks, Gladiator mounting kits, Gladiator-specific crossbars, including Softopper versions on Gladiator.
13°	Soft Topper Series	Soft Topper bed racks for all truck models (except Gladiator).
20°	Universal / Crossbars	All XTR1, XTR3, XBRS Bed Racks, universal mounting rails, standard rack accessories (except Gladiator or Softopper)

9° angle

Gladiator Series

The 9° angle is dedicated to the Gladiator product line. This angle was engineered specifically for Gladiator rails and their mounting geometry, ensuring a flush, secure connection between your rails and any Xtrusion add-on accessories. This includes Softopper Gladiator Builds

Xo Skeleton Note: The XO.SKLTN Uses a complete different system not to be confused with Gladiator XTR 9 Degree components.

13° angle

Soft Topper Series

The 13° angle serves Soft Topper products. This intermediate angle provides the right compromise between load clearance and low profile when mounting accessories to Soft Topper rails and their compatible hardware.

Crossbars: XTR1 and XTR3 use 13° when mounted on Soft Topper setups.

20-degree universal rack crossbar — XTR universal and crossbar series

20° angle

Universal / Crossbars

The 20° angle is the default for all other Xtrusion products — universal mounting rails, standard crossbars, and general overland rack accessories. This is the most common angle in the industry and works with the widest range of roof rack and truck bed rack systems.

Exception: XBRS Crossbars use 9 Degree components, in case you decide to upgrade to full rack, so it remains compatible on joints.

Quick Reference

Xo Skeleton — Angle Breakdown

The Xo Skeleton uses two angles Gladiator Specific or Universal. However, some accessories might be compatible with both, because the top rail consolidates both angles into one. Crossbar mounts or awning mounts are compatible with both versions.

9° Angle

XOSKLTN Gladiator

Gladiator rail mounts
Gladiator-specific hardware
Gladiator crossbar slots

13° Angle

XOSKLTN

Soft Topper rail mounts
Soft Topper mounting kits
Soft Topper crossbar slots

Note: The Xo Skeleton never uses the 20° angle.

How To Choose

The Right Rack Angle,
Explained

Every XTR accessory — crossbars, mounting brackets, add-on hardware — is cut for one specific angle. The right angle depends on your primary rail system or vehicle setup. Choosing the matching angle ensures every component in your build aligns correctly and carries load as designed.

Identify your rail system. Gladiator = 9°, Soft Topper = 13°, universal = 20°.
Check your crossbar type. XTR1/XTR3 come in all three — order the one matching your rails.
Stick to one angle per build. Mixing angles creates misalignment and stress points.

What determines the rack angle I need? +

Your rack angle is determined by your primary rail system or vehicle setup. Gladiator rails use 9°, Soft Topper setups use 13°, and universal or standard rack accessories use 20°. Choosing the matching angle ensures every accessory — crossbars, mounting brackets, and add-ons — aligns correctly.

Can I use a 20° crossbar with a Gladiator rail? +

No. Gladiator rails are engineered for 9° accessories. Using a 20° crossbar on a Gladiator rail will result in misalignment and improper load transfer. Always match your crossbar angle to your rail system.

Do Soft Toppers and Gladiator rails use the same angle? +

No. Soft Toppers use a 13° angle while Gladiator rails use a 9° angle. These angles are not interchangeable. If you're building with both types, you'll need separate angle-specific accessory sets.

Are XTR1 and XTR3 crossbars angle-specific? +

XTR1 and XTR3 crossbars come in three angle variants — 9°, 13°, and 20° — to match each rack system. The 20° variant is the default and works with universal racks. The 13° variant is used when paired with Soft Topper setups. Order the angle that matches your primary rail system.

Why do overland racks use different angles? +

Different rack angles exist to accommodate varying vehicle roof geometries, rail profiles, and load requirements. The 9° angle works well with Gladiator-style tubular rails. The 13° angle provides a middle ground for Soft Topper mounting systems. The 20° angle is the industry standard for universal applications and offers maximum load clearance.

Description

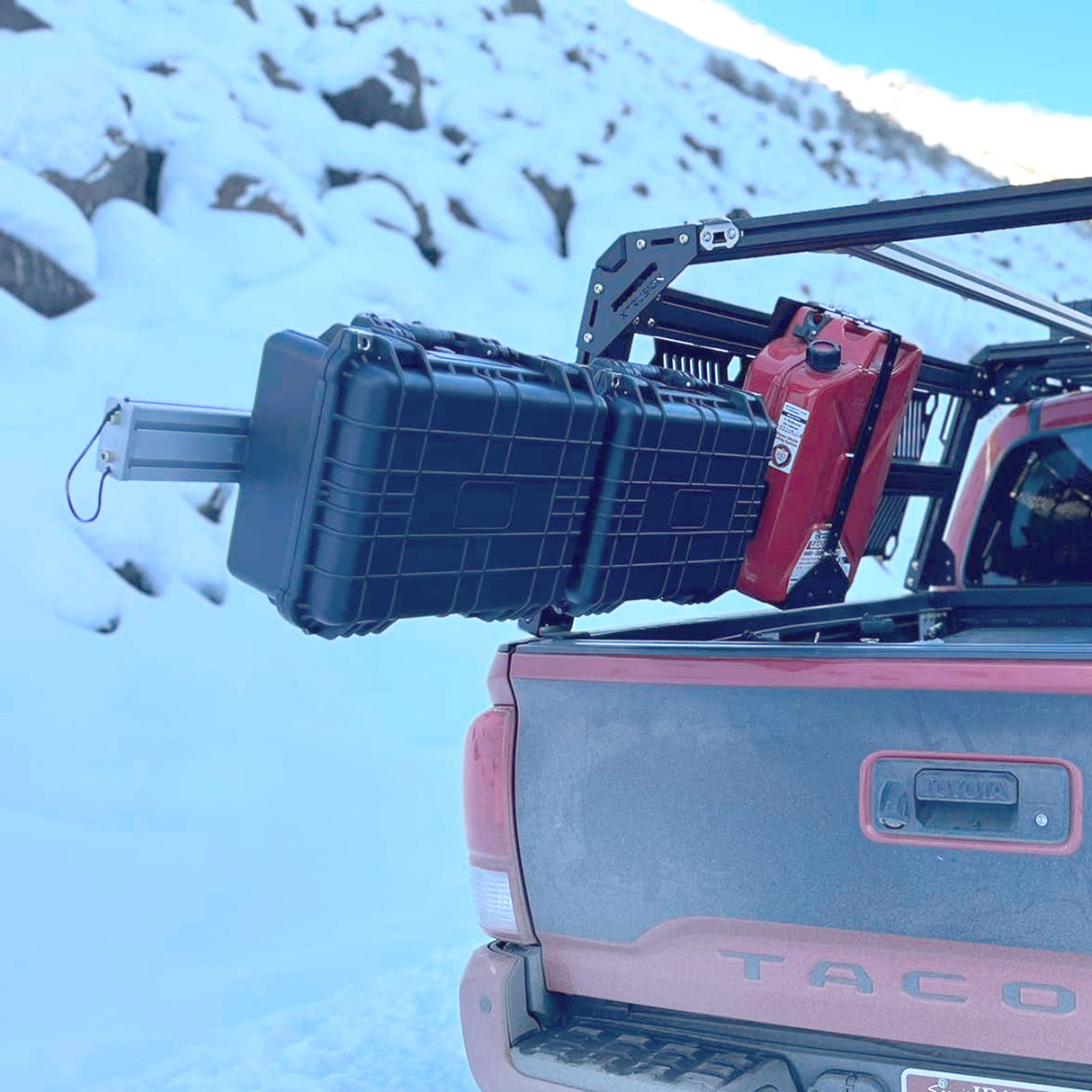

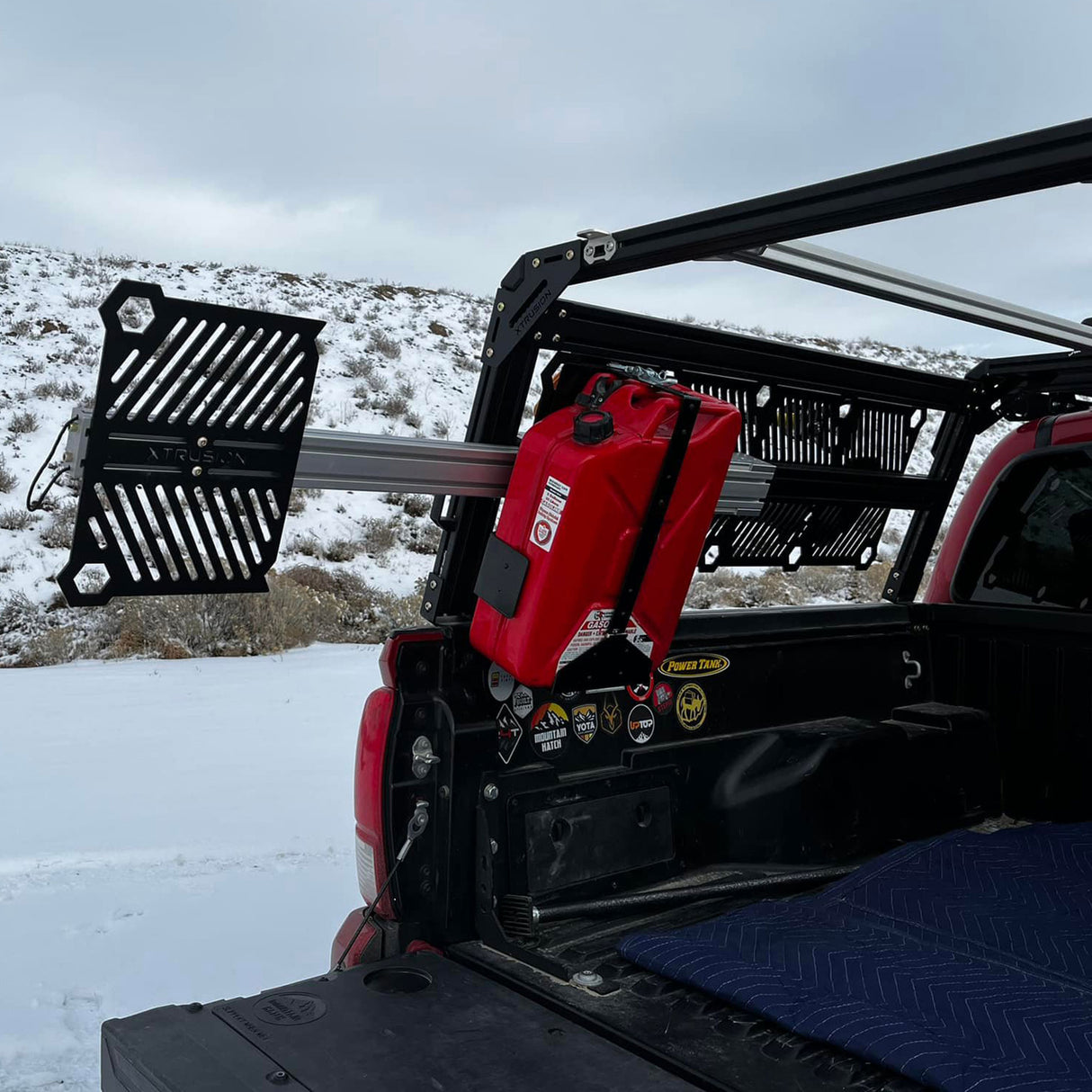

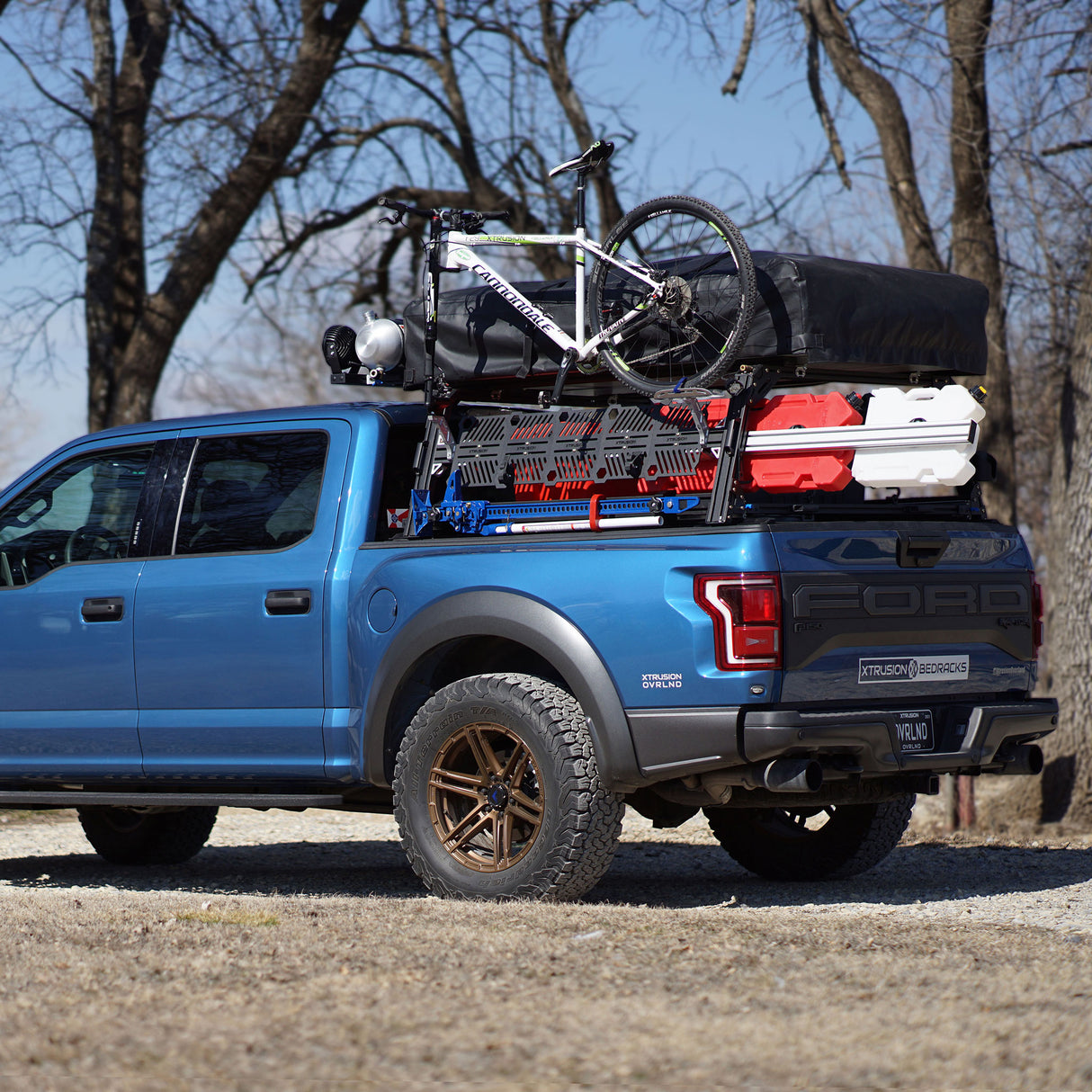

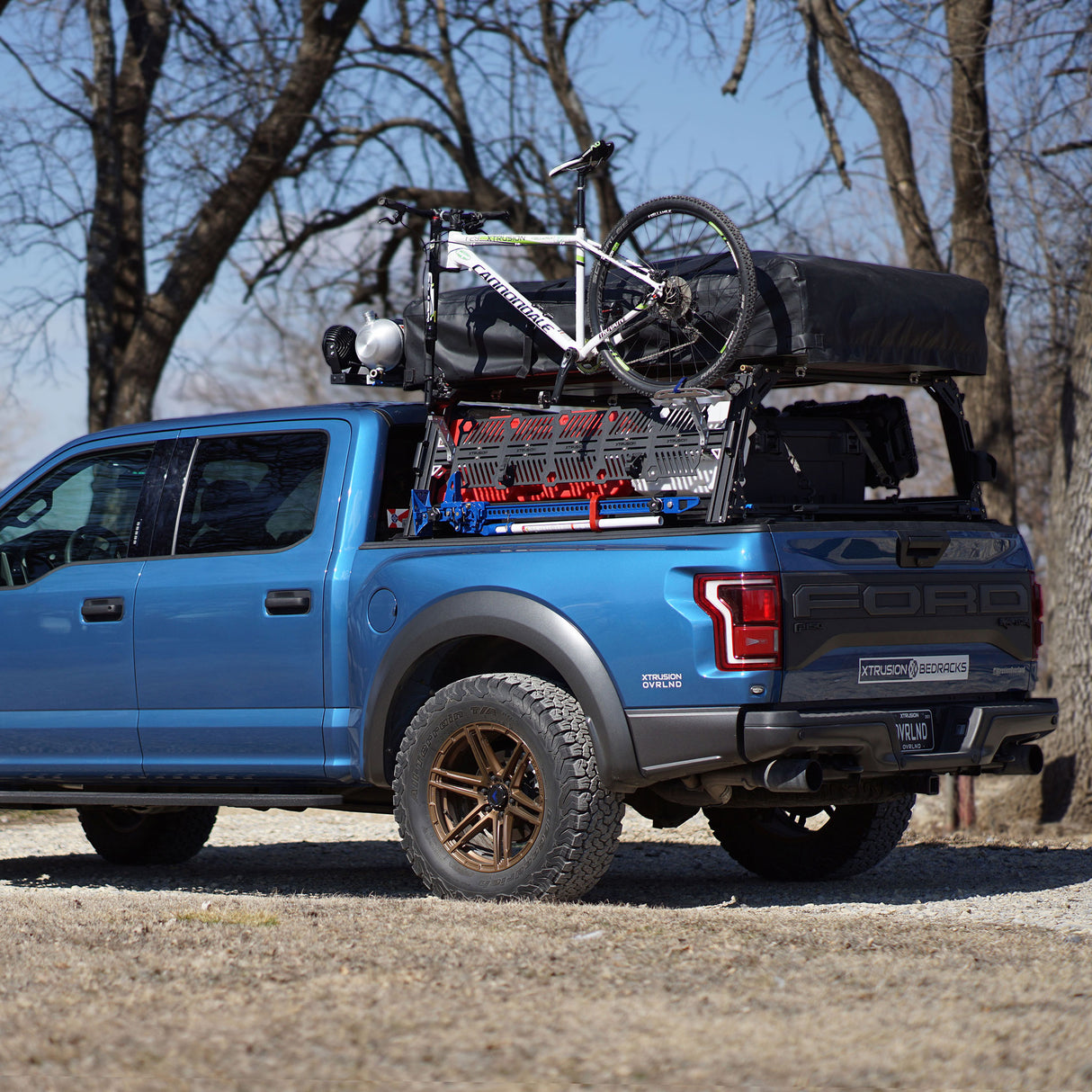

Pull your gear out instead of climbing in after it. The XTR Slide Out Kit mounts a length of Xtrusion to the inside of your bed rack — on the side brace or top brace — to create a sliding tray for your gear. It’s the easiest way to turn dead rack space into an organized, accessible truck bed organizer, and it’s one of the most practical bed rack accessories we make.

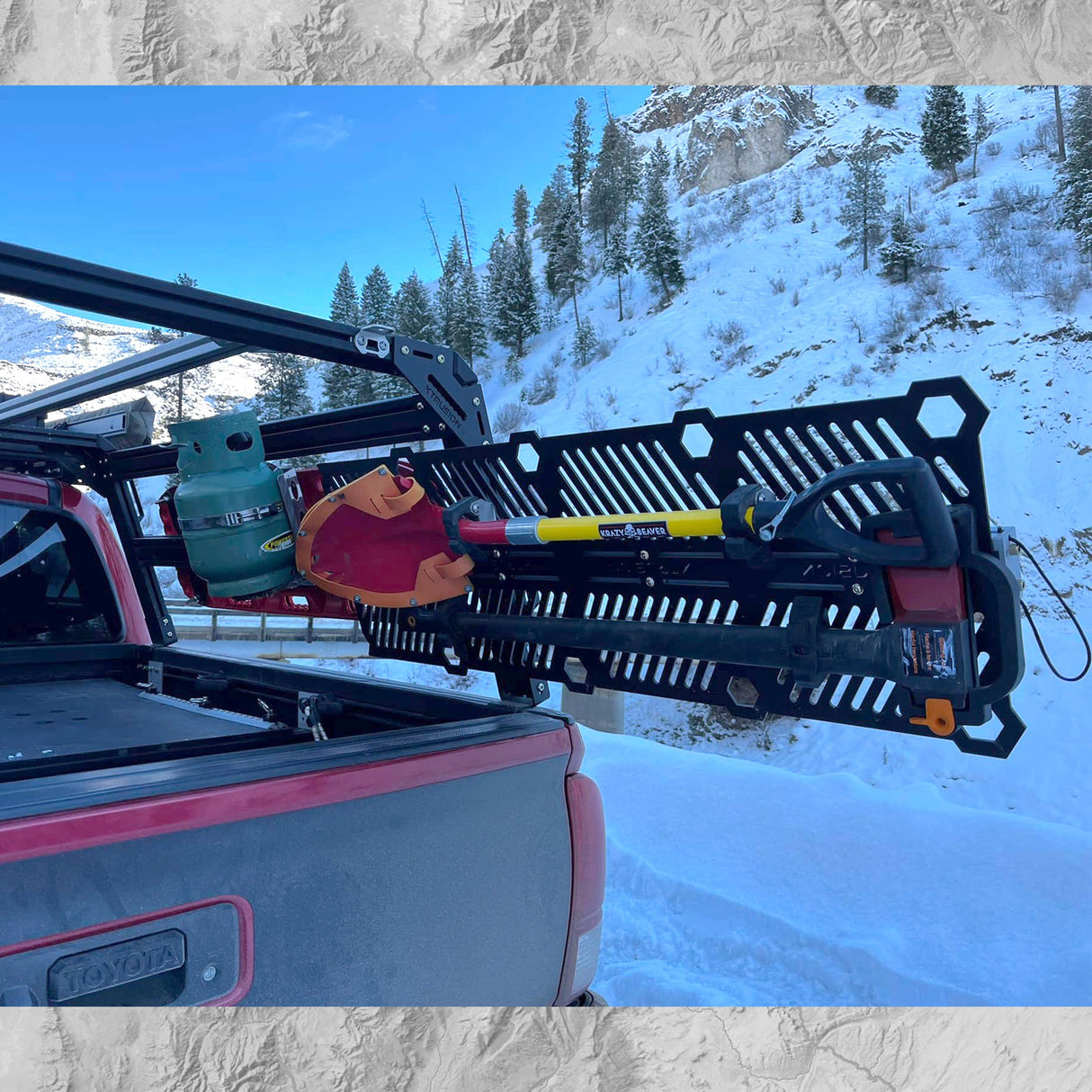

The kit uses linear bearings for a smooth, inexpensive truck bed slide out mechanism — perfect for the heavy or awkward gear you don’t want to reach over a tailgate for: Rotopax, shovels, propane and water tanks, recovery boards, and tool kits. Slide it out, grab what you need, lock it back in. Overland kit on the weekend, jobsite gear during the week — it’s built for both.

Why the XTR Slide Out Kit

Easy gear access — slides your loadout out to you instead of making you climb into the bed.
Linear-bearing slide — smooth travel with a locking lever to hold it shut on the trail or the highway.
Mounts inside the rack — attaches to the side brace or top brace; keeps your bed floor clear.
Built for real gear — Rotopax, shovels, propane tanks, traction boards, tool cases.
Dual-market — overland recovery and camp gear; jobsite tools and equipment.

Choose your length — and full vs. half slide

Select your bed rack length at checkout (the slide bar is cut to match). One important fitment note:

Full-length slide — XTR1 racks (no center upright). The full slide runs the length of the rack.
Half-length slide — XTR3 racks. The XTR3 center upright can interfere with a full-length slide, so a half-length slide is recommended. Still choose your full rack length — the slide bar is sized automatically (e.g. a 60" rack gets a 28.5" half slide bar).

Slide bar length by rack length

Rack length	Full slide bar	Half slide bar (XTR3)
46"	45.7"	21.5"
48"	47.7"	22.5"
50"	49.7"	23.5"
51"	50.7"	24"
52"	51.7"	24.5"
53"	52.7"	25"
54"	53.7"	25.5"
56"	55.7"	26.5"
58"	57.7"	27.5"
60"	59.7"	28.5"
61"	60.7"	29"
62"	61.7"	29.5"
66"	65.7"	31.5"
71"	70.7"	34"
72"	71.7"	34.5"
74.4"	74.1"	35.7"
75"	74.7"	36"
78"	77.7"	37.5"
84"	83.7"	40.5"

Estimated lead time: 1-2 weeks (built to your rack length).

What’s included

(1) Slide bar cut to match your bed rack length.
(4–8) Linear slide bearings with hardware — quantity scales with slide length.
(1) End cap.
(1) Locking lever mechanism for the linear slide.

Build out your bed rack

The Slide Out Kit installs on any XTR1 bed rack or XTR3 bed rack. Pair it with the XTR Modular MOLLE Plates for a full gear wall, add a XTR1 AXS Gate Kit (or XTR3 AXS Gate Kit) for swing-down access, and mount a XTR Rotopax Adapter Plate right onto the slide for fuel and water.

Truck bed slide out FAQ

What does a bed rack slide out do?
It mounts a sliding tray inside your bed rack so heavy or hard-to-reach gear pulls out to you, then locks back in for travel — turning your rack into an accessible truck bed organizer.

Will it fit an XTR1 or XTR3 rack?
Both. Use a full-length slide on XTR1 racks (no center upright) and a half-length slide on XTR3 racks (the center upright interferes with a full slide). Choose your full rack length either way; the slide bar is sized automatically.

What can I mount on it?
Anything you want quick access to — Rotopax fuel/water, shovels, propane tanks, recovery boards, tool cases. Use 5/16-18 screws and T-nuts to attach accessories.

How long does it take to ship?
Each slide is cut to your rack length, so estimated lead time is 4–5 weeks.

Resources & support

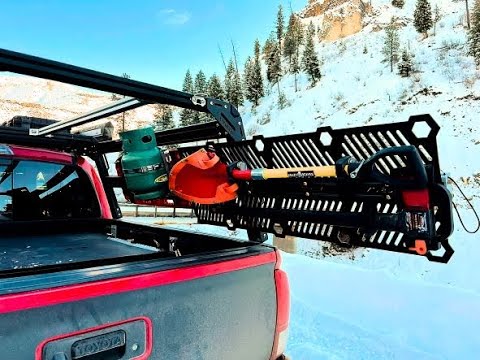

Install reference video: XTR rack & accessory assembly
Fitment questions: FAQ or email [email protected]
