Awning Mount Upright Sub-structure

Awning Mount Upright Sub-structure

Regular price $145.00

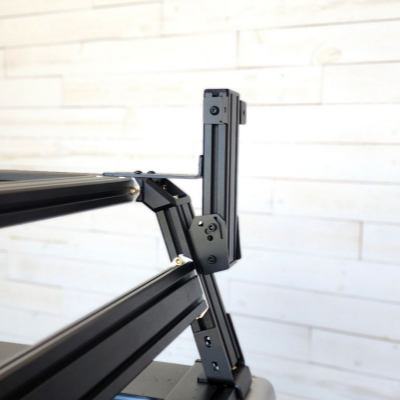

This kit will allow you to mount any awning with their provided hardware directly into the uprights of XTR1 bedrack at different heights and with adjustability.

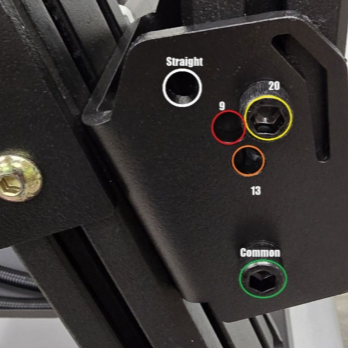

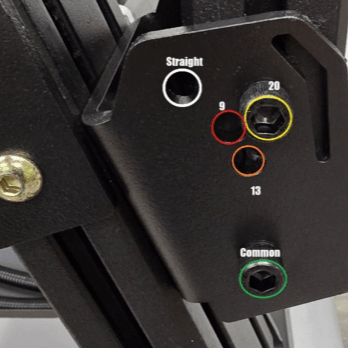

Includes 2 Corner Brackets (need to select according to your bedrack version of 9D for Gladiators, 13.3D for Softoppers and 20D for standard bedracks)

2 sections of 1530H Extrusion powdercoated black. Select between 8" and 12" in height.

4 corner gussets that allow you to mount the awning straight into the extrusion T-Slot's

2 caps for the extrusion top ends.

All required hardware.

Supports up to 60 lbs when mounted on uprights directly with High Torque Slide-in T-nuts.


The 270 bracket will add additional support for the heavier 270 type of awnings. Weight limit of 100lbs with added brace.
