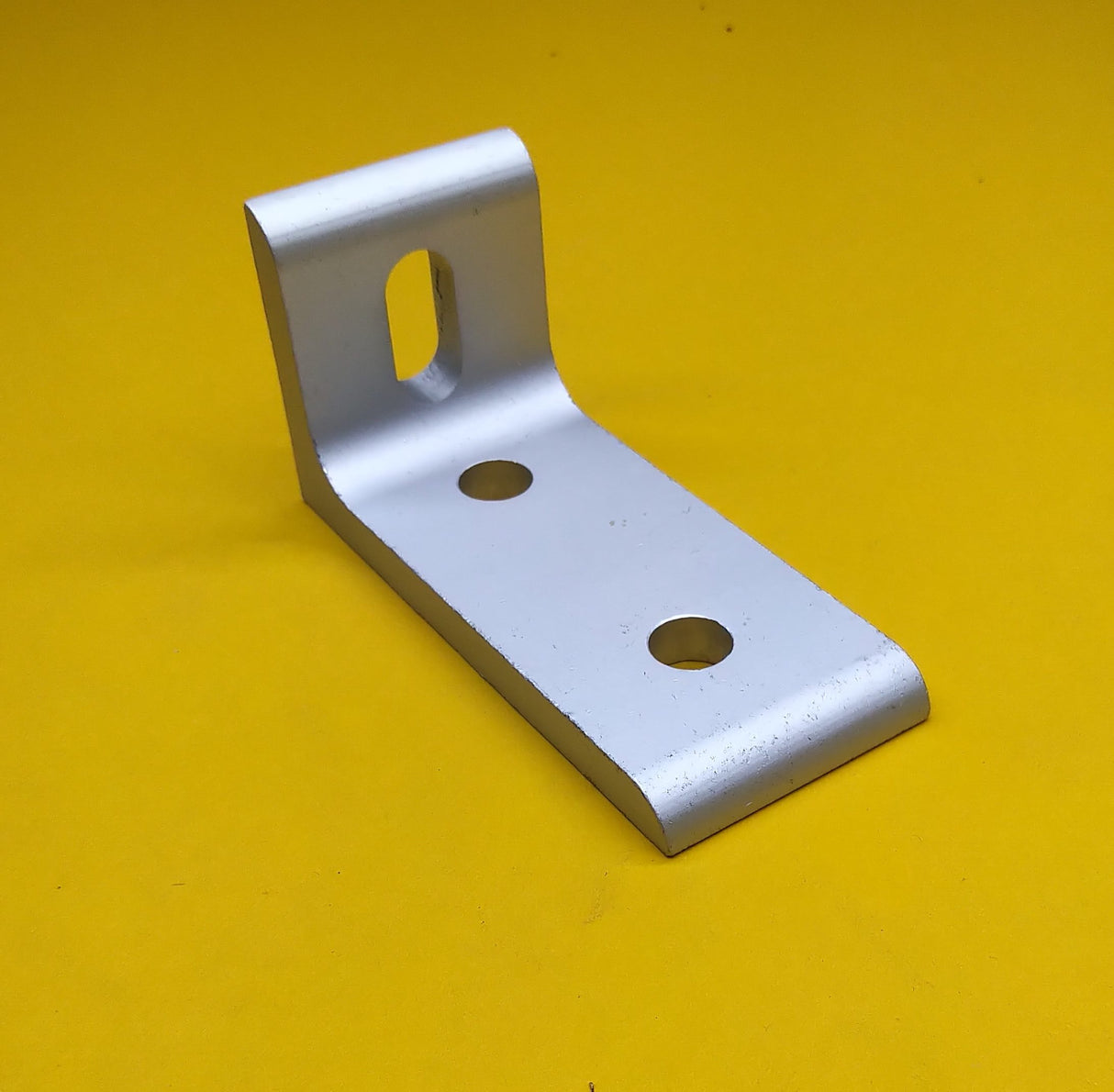

3 Hole Slotted Inside Corner Bracket

3 Hole Slotted Inside Corner Bracket


These brackets will fit in the 15 Series (1.5″) extrusions.  The dimensions are 1.313″ x 1.5″ x 3″, and have a wall thickness of .250″ (1/4″). The holes are Ø0.328, and the slot is 1/2″ long, and each bracket is individually wrapped in paper to prevent rubbing during transport.

  • Made of 6105-T5 Aluminum and have a clear anodize finish.
  • They will fit 15 Series or 8mm T-Slotted Extrusions.

When purchasing a bed rack from us, you will receive two packages with separate tracking numbers (one contains the extrusion bars, and the other contains various components and hardware).

Shipping will be determined by weight and your region.

Regular price$7.46
