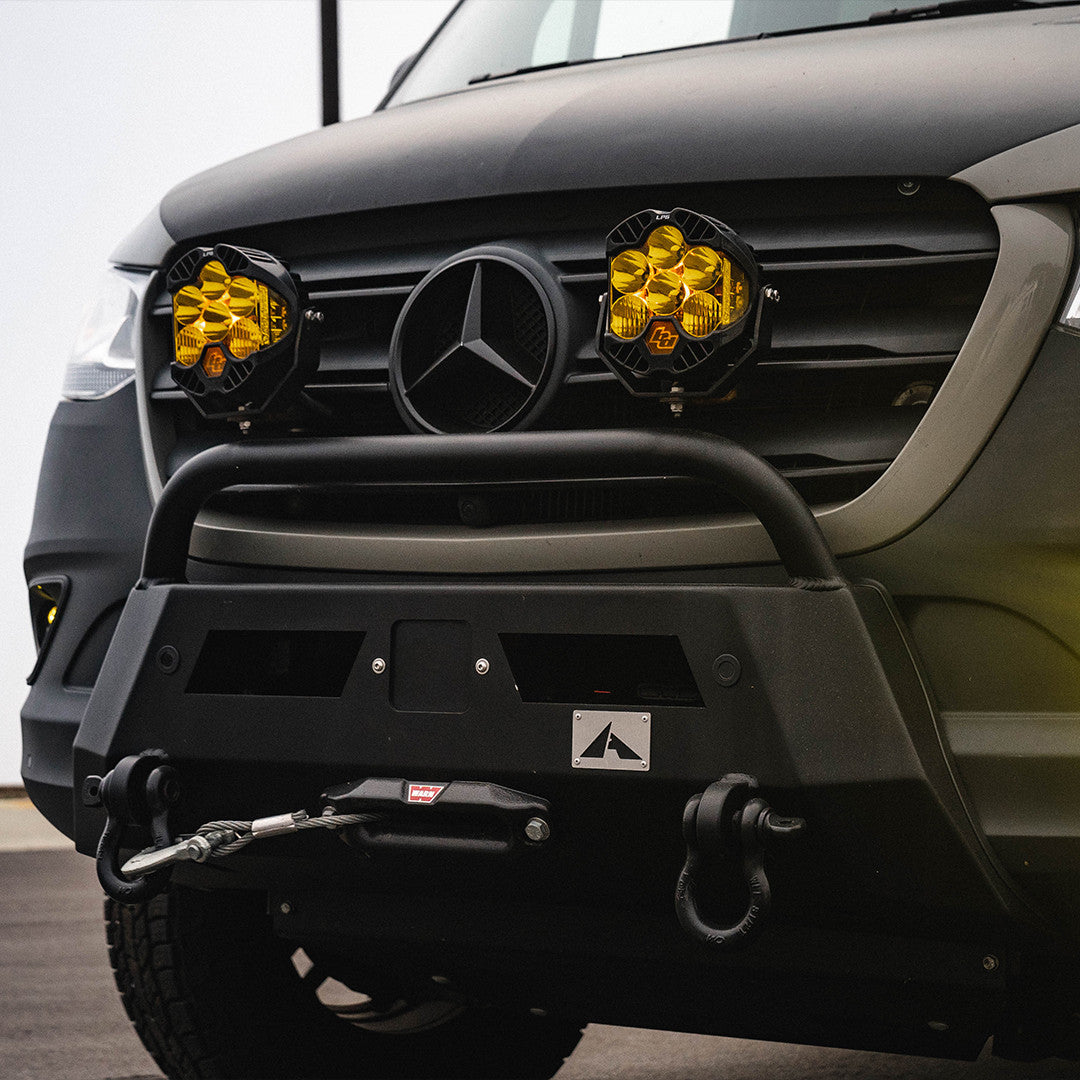

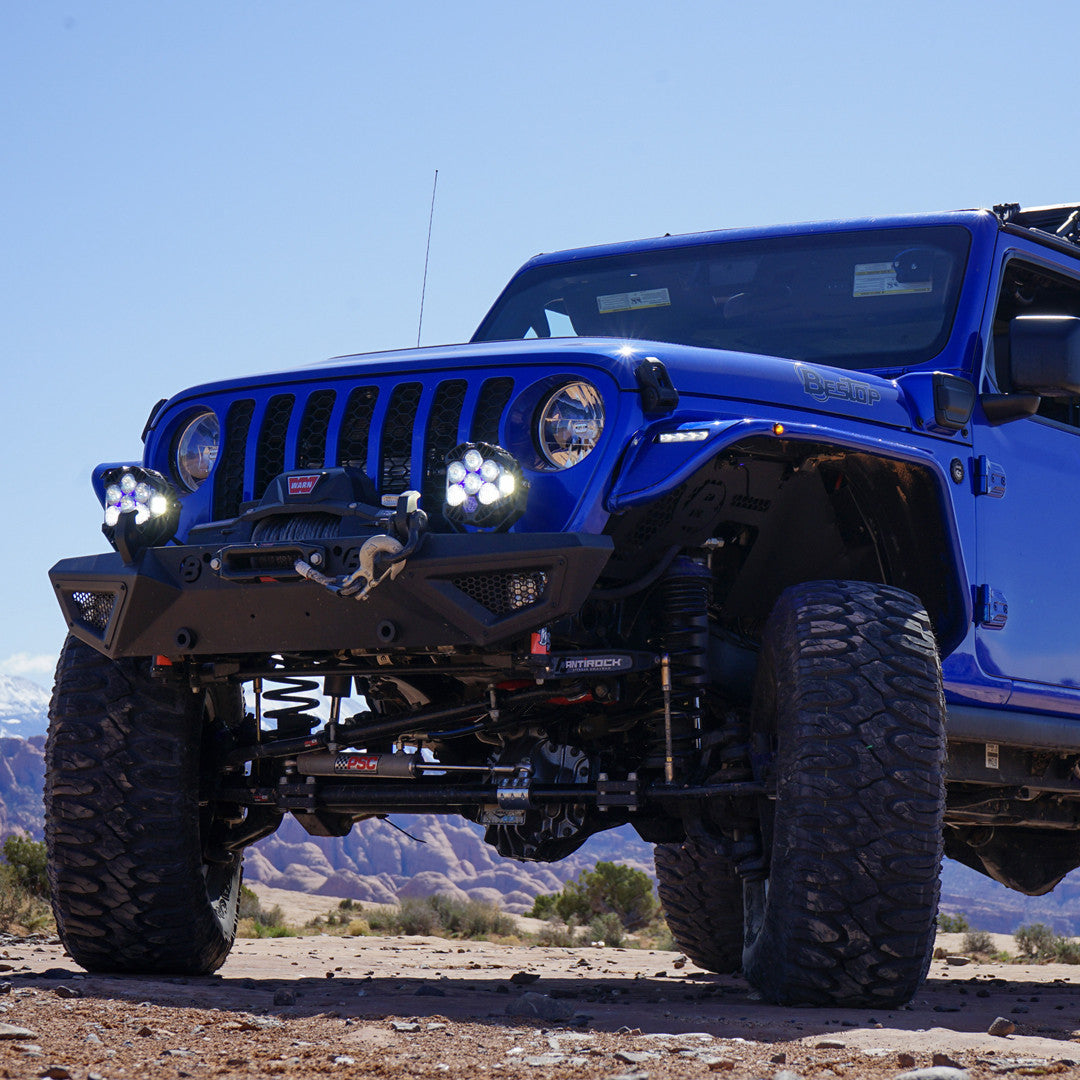

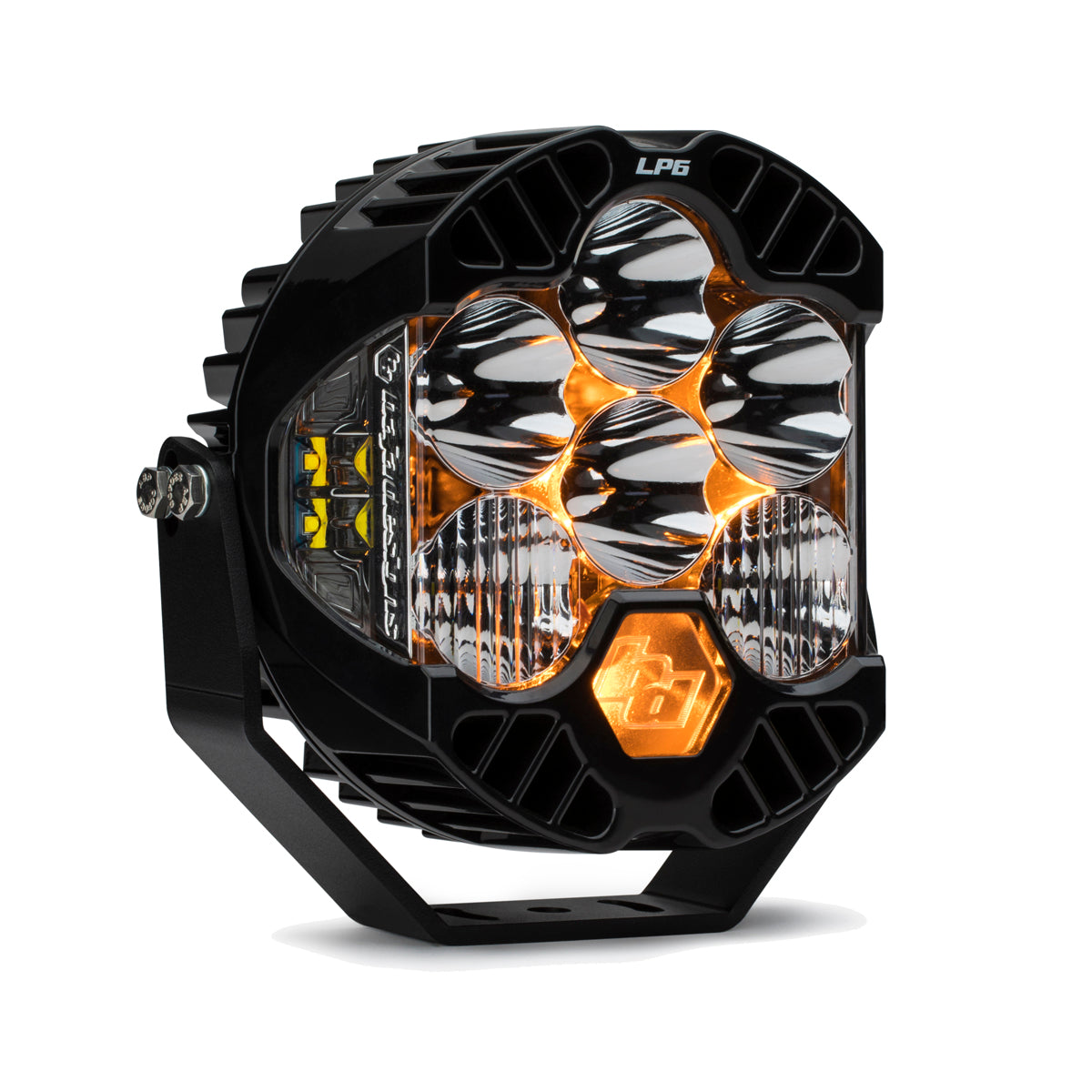

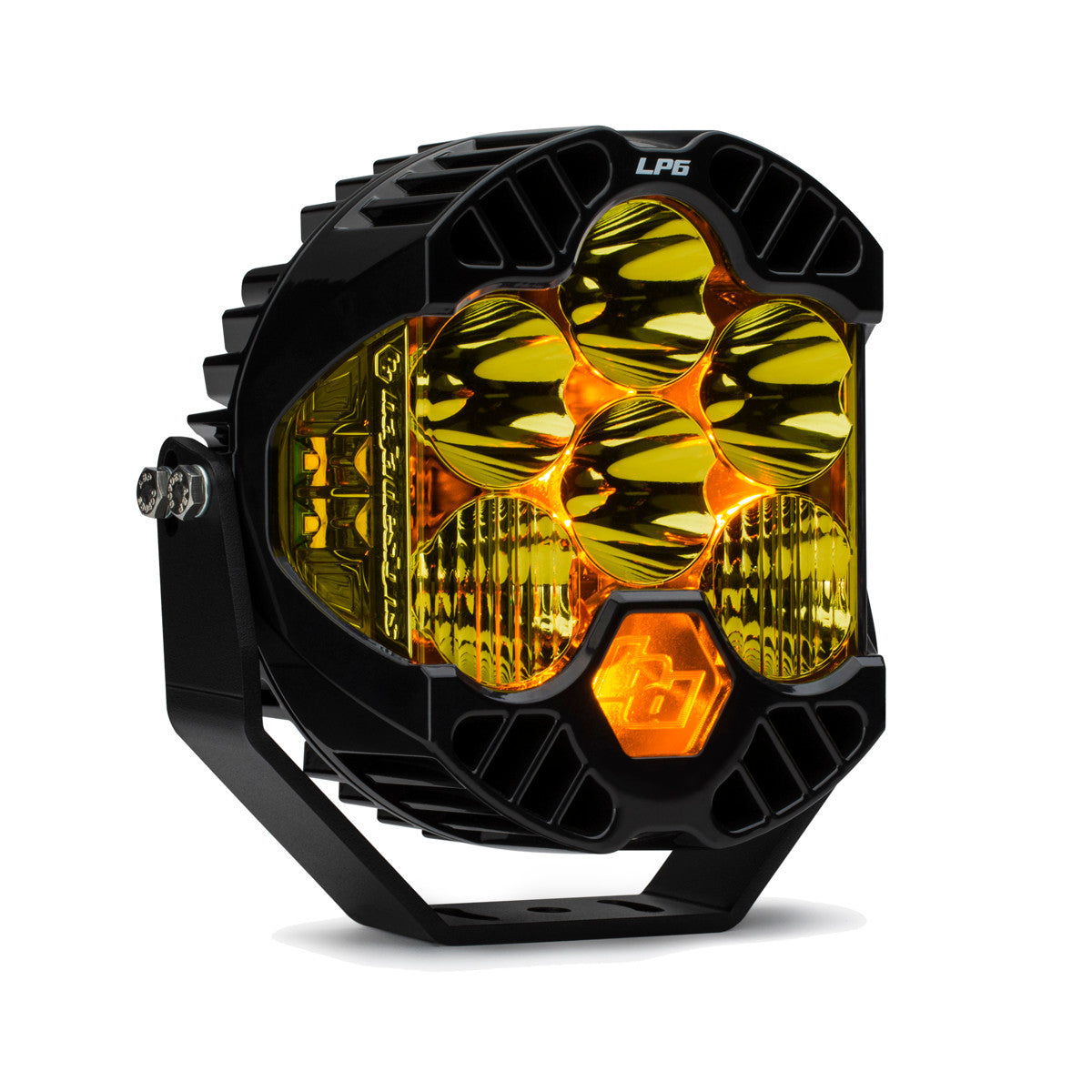

Baja Designs LP6 Pro LED Auxiliary Light Pod - Universal
- Estimated Lead Times: 4-6 Weeks on Bed Racks
Baja Designs LED products are experiencing 4-6 week average lead times, with the exception of RTL and SAE models experiencing 8-10 weeks average lead times. Please be patient as we are shipping orders as quickly as possible.
Description
The LP6 Pro is a 6-inch powerhouse featuring a total of 11,225 total lumens and of 200-degree spread of usable LED light thanks to the dedicated peripheral lighting of our patented Integrated Peripheral Technology (IPT). To keep your light performing at its highest potential, the LP6 integrates our proprietary Direct Ducted Cooling (DDC) technology. This feature allows air to travel through the front of the housing, over the rear heat sinks – drastically improving cooling capacity and performance. With an amber daytime running light, low power, and high power mode, the LP6 easily fulfills all your lighting needs. Choose from a variety of patterns to suit your needs: Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42 degrees) and spot (8 degrees) optics to provide you with a smooth blend of light for both near-field applications and distance (Lighting Zone 3). Spot: A longer and narrower 8-degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5).
Satisfaction Guarantee – 30-Day Money Back Guarantee
Limited Lifetime Warranty – Complete Purchase Protection
uService – Replaceable Lenses And Optics
ClearView – All The Light, Right Where You Need It
MoistureBlock – Waterproof, Rain Proof, Submersible
CopperDrive – Only LED Driven At 100 Percent
5000K Daylight – Less Driver Fatigue, Natural Color
SKU: 270003
Dimensions
Depth (in.) | 3.200 |
Height (in.) | 6.500 |
Length (in.) | 6.500 |
Weight (lbs.) | 4.200 |
Specifications
Amperage Rating (A) | 7.500 |
Average Rated Life (hr.) | 49,930 |
Backlight Amperage Rating (A) | 0.300 |
Backlight Wattage (W) | 4.140 |
Beam Pattern | Driving/Combo |
Bezel Material | Billet Machined Aluminum |
Brightness (Lumens) | 11225 |
Description | Driving/Combo; Clear |
Housing Color | Black |
Housing Material | Hard Anodized Machined Aluminum |
Lens Color | Clear |
Lens Material | Hardcoated Polycarbonate |
Light Quantity | 1 |
Lighting Modes | High Beam/Low Beam/Day-Time Running Backlighting |
Lighting Quantity | 6 |
Lighting Technology | LED |
Lighting Type | Forward Projecting |
Mounting Hardware Included | Yes |
Mounting Hardware Material | Stainless Steel |
Overvoltage Protection | Built-In |
Product Type | LP6 Pro LED Light Pod |
Secondary Amperage Rating (A) | 1.000 |
Secondary Brightness (Lumens) | 1972 |
Secondary Light Quantity | 4 LEDs |
Secondary Lighting Technology | LED |
Secondary Lighting Type | Integrated Peripheral Technology (IPT) |
Secondary Wattage (W) | 15 |
Terminal Connector | DT06-4S Deutsch |
Terminal Type | Mating Connector |
Universal or Specific | Universal |
Wattage (W) | 103.500 |
Wiring Harness Included | No |
Standards & Compliance
Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
