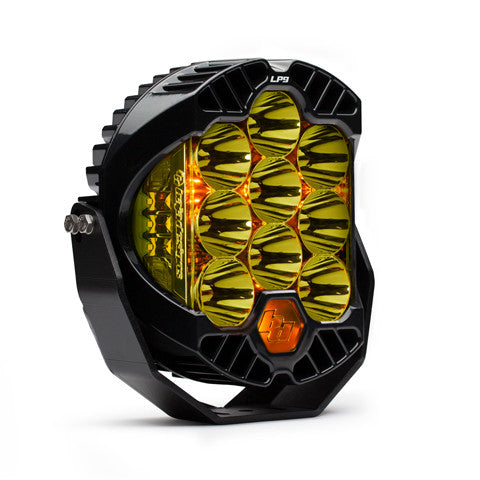

Baja Designs LP9 Racer Edition LED Auxiliary Light Pod - Universal

Name: Baja Designs LP9 Racer Edition LED Auxiliary Light Pod - Universal
Brand: Baja Designs
Price: 669.95 USD
Availability: InStock

$669.95 USD

Light Pattern

Color: Clear

Clear Amber

Baja Designs | SKU: 330001

Limited Life Time Warranty

We stand behind our products. Because of this, we now offer a limited lifetime warranty against manufacturing defects, to give you peace of mind. *Check Terms and Conditions.

Third Party Lead Times

THIRD PARTY PRODUCTS

Xtrusion Overland started supplying various brands that go hand in hand with our own products, to provide a complete service and help us grow. This includes products that are drop shipped. Please be advised that availability and lead times of those product are solely impacted by the third-party vendor's schedule. Many products are sold under an open inventory method, as the technology to sync inventories is limited, therefore please reach out if a specific product is needed by a specific date for us to double check with the supplier for you!

Any potential delay that occurs in the sourcing, processing, or drop shipment at the third party level will be communicated to the best of our ability to the customer.

ESTIMATED DATE | LEAD TIMES

The estimated lead time provided when you placed your order is JUST AN ESTIMATE. It is not a guarantee that the product will be shipped on that date. The estimated lead time gives you some sense of what the current times to source, cut, pack and ship takes. Many times the lead time can be shorter, but likewise it can extend, depending on factors such as previous demand and current supply. We manufacture many components in house, but extenuating circumstances such as down time for maintenance or unscheduled downtimes for repairs might impact dates as well as delays related to our sourced components. There is a constant flow of parts and shipments, and sometimes the visibility becomes a challenge to pinpoint exactly when your product will ship.

Feel free to check on your order at any time. Be aware that our customer service team may not be able to give you an exact date for completion but rest assured we are tracking your order and it will be built in the order that it was received.

Xtrusion Overland also reserves the right to cancel items from an order, offer an alternative substitution or issue refund accordingly when product is delayed at an unacceptable time frame or at the request of the customer.

Description

A design that was inspired by Baja Designs’ legendary 8 inch La Paz HID; The LP9 features modern styling and performance, with some of the most advanced LED technologies available today. The LP9 utilizes 9 forward projecting LEDS to produce 11,025 Lumens at 105 watts, and 6 LEDs for Integrated Peripheral Technology (IPT) which produce 1,140 lumens at 10.5 watts per side. The IPT provides an incredible 200 degree spread of usable light. The housing was designed to provide exceptional heat dispersion by using Direct Ducted Cooling, which allows air to travel from the front of the housing to the rear. With a day-time running light, low, and high power mode, the LP9 will fulfill all your lighting needs. Available in a standard model that is perfect for a wide range of off-road use, as well as a Racer Edition configuration that is designed for the demands of high speed driving. The Racer Edition has similar power draw, but produces a much tighter pattern, providing higher visibility at greater distances. Both models feature uService technology, which allows customers to change the lens pattern and color depending on driving conditions, or simply when they want to refresh the lens.

Satisfaction Guarantee – 30-Day Money Back Guarantee

Limited Lifetime Warranty – Complete Purchase Protection

uService – Replaceable Lenses And Optics

ClearView – All The Light, Right Where You Need It

MoistureBlock – Waterproof, Rain Proof, Submersible

CopperDrive – Only LED Driven At 100 Percent

5000K Daylight – Less Driver Fatigue, Natural Color

Detailed Specs

SKU: 330001

Dimensions

Depth (in.)	3.250
Height (in.)	8
Length (in.)	8
Weight (lbs.)	6.500

Specifications

Amperage Rating (A)	9.600
Average Rated Life (hr.)	49,930
Backlight Amperage Rating (A)	0.200
Backlight Wattage (W)	2.800
Beam Pattern	Racer Edition Spot
Bezel Material	Billet Machined Aluminum
Brightness (Lumens)	8374
Description	Racer Edition Spot; Clear
Housing Color	Black
Housing Material	Hard Anodized Machined Aluminum
Lens Color	Clear
Lens Material	Hardcoated Polycarbonate
Light Quantity	1
Lighting Modes	High Beam/Low Beam/Day-Time Running Backlighting
Lighting Quantity	9
Lighting Technology	LED
Lighting Type	Forward Projecting
Mounting Hardware Included	Yes
Mounting Hardware Material	Stainless Steel
Overvoltage Protection	Built-In
Product Type	LP9 Racer Edition LED Light Pod
Secondary Amperage Rating (A)	1.520
Secondary Brightness (Lumens)	2302
Secondary Light Quantity	6 LEDs
Secondary Lighting Technology	LED
Secondary Lighting Type	Integrated Peripheral Technology (IPT)
Secondary Wattage (W)	21
Terminal Connector	DT06-4S Deutsch
Terminal Type	Mating Connector
Universal or Specific	Universal
Wattage (W)	132.480
Wiring Harness Included	No

Standards & Compliance

Patent No.	5,504,603
Standards/Compliance (Durability)	Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Impact Resistance)	IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Water Resistance)	IP69K (Waterproof up to 9ft & Pressure Washable)

SKU: 330011

Dimensions

Depth (in.)	3.250
Height (in.)	8
Length (in.)	8
Weight (lbs.)	6.500

Specifications

Amperage Rating (A)	9.600
Average Rated Life (hr.)	49,930
Backlight Amperage Rating (A)	0.200
Backlight Wattage (W)	2.800
Beam Pattern	Racer Edition Spot
Bezel Material	Billet Machined Aluminum
Brightness (Lumens)	8374
Description	Racer Edition Spot; Amber
Housing Color	Black
Housing Material	Hard Anodized Machined Aluminum
Lens Color	Amber
Lens Material	Hardcoated Polycarbonate
Light Quantity	1
Lighting Modes	High Beam/Low Beam/Day-Time Running Backlighting
Lighting Quantity	9
Lighting Technology	LED
Lighting Type	Forward Projecting
Mounting Hardware Included	Yes
Mounting Hardware Material	Stainless Steel
Overvoltage Protection	Built-In
Product Type	LP9 Racer Edition LED Light Pod
Secondary Amperage Rating (A)	1.520
Secondary Brightness (Lumens)	2302
Secondary Light Quantity	6 LEDs
Secondary Lighting Technology	LED
Secondary Lighting Type	Integrated Peripheral Technology (IPT)
Secondary Wattage (W)	21
Terminal Connector	DT06-4S Deutsch
Terminal Type	Mating Connector
Universal or Specific	Universal
Wattage (W)	132.480
Wiring Harness Included	No

Standards & Compliance

Patent No.	5,504,603
Standards/Compliance (Durability)	Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Impact Resistance)	IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Water Resistance)	IP69K (Waterproof up to 9ft & Pressure Washable)

Disclaimer

Buyer is responsible for ensuring that it uses the products (and its vehicle) in accordance with all applicable laws, regulations, guidelines, and standards of care. Buyer acknowledges that some products may only be used when off-roading, and Buyer will comply with all vehicle and road safety guidelines. Buyer is solely responsible for (and will indemnify and hold Bestop harmless for) any claims, losses, damages, fines, fees, costs, or other amounts arising out of Buyer’s non-compliance with these provisions.
