Baja Designs OnX6 Arc LED Light Bar - Universal
Regular price
$1,338.95 USD
Unit price
Baja Designs | SKU:
523001
Limited Life Time Warranty
Limited Life Time Warranty
We stand behind our products. Because of this, we now offer a limited lifetime warranty against manufacturing defects, to give you peace of mind. *Check Terms and Conditions.
Third Party Lead Times
Third Party Lead Times
THIRD PARTY PRODUCTS
Xtrusion Overland started supplying various brands that go hand in hand with our own products, to provide a complete service and help us grow. This includes products that are drop shipped. Please be advised that availability and lead times of those product are solely impacted by the third-party vendor's schedule. Many products are sold under an open inventory method, as the technology to sync inventories is limited, therefore please reach out if a specific product is needed by a specific date for us to double check with the supplier for you!
Any potential delay that occurs in the sourcing, processing, or drop shipment at the third party level will be communicated to the best of our ability to the customer.
ESTIMATED DATE | LEAD TIMES
The estimated lead time provided when you placed your order is JUST AN ESTIMATE. It is not a guarantee that the product will be shipped on that date. The estimated lead time gives you some sense of what the current times to source, cut, pack and ship takes. Many times the lead time can be shorter, but likewise it can extend, depending on factors such as previous demand and current supply. We manufacture many components in house, but extenuating circumstances such as down time for maintenance or unscheduled downtimes for repairs might impact dates as well as delays related to our sourced components. There is a constant flow of parts and shipments, and sometimes the visibility becomes a challenge to pinpoint exactly when your product will ship.
Feel free to check on your order at any time. Be aware that our customer service team may not be able to give you an exact date for completion but rest assured we are tracking your order and it will be built in the order that it was received.
Xtrusion Overland also reserves the right to cancel items from an order, offer an alternative substitution or issue refund accordingly when product is delayed at an unacceptable time frame or at the request of the customer.
Description
Description
Description
The OnX6+ Arc Series is the perfect combination of performance and aesthetics. The latest generation of the OnX6+ series is the most elite LED light bar utilizing high-speed spot reflectors for increased performance and versatility. We use next-generation LEDs that provide 37% greater distance over that last up to 50,000 hours and have a 5000K light temperature; this mimics natural daylight for better trail recognition and less eye fatigue. Beautifully arched to fit the contour of your bumper or windshield, the Arc Series redefines the capabilities of the standard/traditional LED light bar.
Satisfaction Guarantee – 30-Day Money Back Guarantee
Limited Lifetime Warranty – Complete Purchase Protection
uService® – Replaceable Lenses And Optics
ClearView® – All The Light, Right Where You Need It
MoistureBlock® – Waterproof, Rain Proof, Submersible
CopperDrive® – Safely Driving LEDs at 100%
5000K Daylight – Less Driver Fatigue, Natural Color
NOTE: This bar does not come with a wiring harness. You will need PN:640119 (Hi-Power w/Mode Switch 2-light max wiring harness)
Detailed Specs
SKU: 525001
Dimensions
| Depth (in.) | 4.29 |
| Height (in.) | 2.69 |
| Length (in.) | 50 |
| Weight (lbs.) | 18.65 |
Specifications
| Amperage Rating (A) | 28.2 (High) |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Spot |
| Bezel Material | Billet Machined Aluminum |
| Brightness (Lumens) | 39,910 (High) |
| Description | Arc; Spot; Clear |
| Housing Color | Black |
| Housing Material | Aircraft Grade Aluminum with Mil-Spec Hard Anodize |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | High Beam |
| Lighting Quantity | 30 |
| Lighting Technology | LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Description | Mounting Brackets |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | OnX6+ 50 Inch Arc LED Light Bar |
| Universal or Specific | Universal |
| Wattage (W) | 346 (High) |
| Wiring Harness Included | No |
Standards & Compliance
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
SKU: 523001
Dimensions
| Depth (in.) | 4.29 |
| Height (in.) | 2.69 |
| Length (in.) | 30 |
| Weight (lbs.) | 11.45 |
Specifications
| Amperage Rating (A) | 21.7 (High); 17.1 (Low) |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Spot |
| Bezel Material | Billet Machined Aluminum |
| Brightness (Lumens) | 32,070 (High); 25,610 (Low) |
| Description | Arc; Spot; Clear |
| Housing Color | Black |
| Housing Material | Aircraft Grade Aluminum with Mil-Spec Hard Anodize |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | High Beam/Low Beam |
| Lighting Quantity | 18 |
| Lighting Technology | LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Description | Mounting Brackets |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |

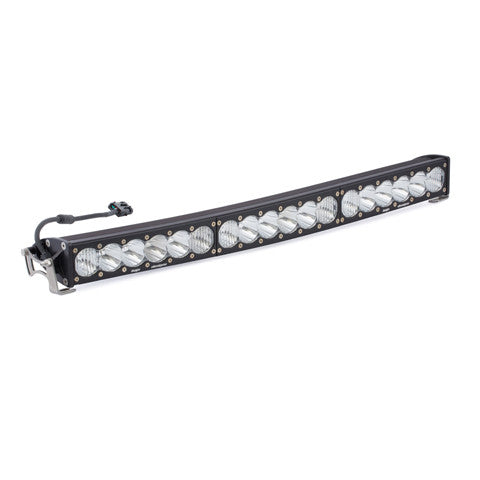

| Product Type | OnX6+ 30 Inch Arc LED Light Bar |
| Universal or Specific | Universal |
| Wattage (W) | 278 (High); 222 (Low) |
| Wiring Harness Description | Hi-Low Dongle |
| Wiring Harness Included | No |
Standards & Compliance
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
SKU: 523003
Dimensions
| Depth (in.) | 4.29 |
| Height (in.) | 2.69 |
| Length (in.) | 30 |
| Weight (lbs.) | 11.45 |
Specifications
| Amperage Rating (A) | 21.7 (High); 17.1 (Low) |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Driving/Combo |
| Bezel Material | Billet Machined Aluminum |
| Brightness (Lumens) | 32,070 (High); 25,610 (Low) |
| Description | Arc; Driving/Combo; Clear |
| Housing Color | Black |
| Housing Material | Aircraft Grade Aluminum with Mil-Spec Hard Anodize |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | High Beam/Low Beam |
| Lighting Quantity | 18 |
| Lighting Technology | LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Description | Mounting Brackets |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | OnX6+ 30 Inch Arc LED Light Bar |
| Universal or Specific | Universal |
| Wattage (W) | 278 (High); 222 (Low) |
| Wiring Harness Description | Hi-Low Dongle |
| Wiring Harness Included | No |
Standards & Compliance
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
SKU: 523004
Dimensions
| Depth (in.) | 4.29 |
| Height (in.) | 2.69 |
| Length (in.) | 30 |
| Weight (lbs.) | 11.45 |
Specifications
| Amperage Rating (A) | 21.7 (High); 17.1 (Low) |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Wide Cornering |
| Bezel Material | Billet Machined Aluminum |
| Brightness (Lumens) | 32,070 (High); 25,610 (Low) |
| Description | Arc; Wide Cornering; Clear |
| Housing Color | Black |
| Housing Material | Aircraft Grade Aluminum with Mil-Spec Hard Anodize |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | High Beam/Low Beam |
| Lighting Quantity | 18 |
| Lighting Technology | LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Description | Mounting Brackets |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | OnX6+ 30 Inch Arc LED Light Bar |
| Universal or Specific | Universal |
| Wattage (W) | 278 (High); 222 (Low) |
| Wiring Harness Description | Hi-Low Dongle |
| Wiring Harness Included | No |
Standards & Compliance
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
SKU: 524001
Dimensions
| Depth (in.) | 4.29 |
| Height (in.) | 2.69 |
| Length (in.) | 40 |
| Weight (lbs.) | 15.05 |
Specifications
| Amperage Rating (A) | 26.8 (High); 22.4 (Low) |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Spot |
| Bezel Material | Billet Machined Aluminum |
| Brightness (Lumens) | 39,220 (High); 32,760 (Low) |
| Description | Arc; Spot; Clear |
| Housing Color | Black |
| Housing Material | Aircraft Grade Aluminum with Mil-Spec Hard Anodize |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | High Beam/Low Beam |
| Lighting Quantity | 24 |
| Lighting Technology | LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Description | Mounting Brackets |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |

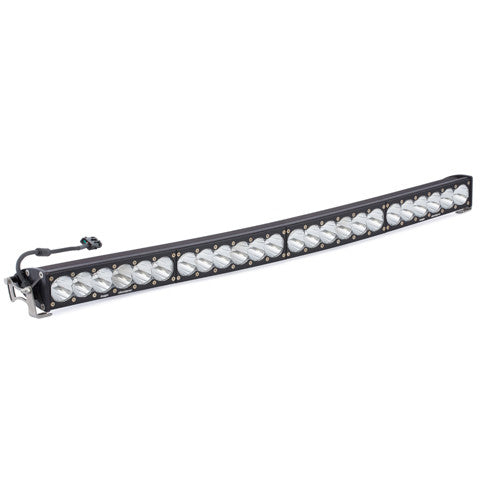

| Product Type | OnX6+ 40 Inch Arc LED Light Bar |
| Universal or Specific | Universal |
| Wattage (W) | 340 (High); 284 (Low) |
| Wiring Harness Description | Hi-Low Dongle |
| Wiring Harness Included | No |
Standards & Compliance
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
SKU: 524003
Dimensions
| Depth (in.) | 4.29 |
| Height (in.) | 2.69 |
| Length (in.) | 40 |
| Weight (lbs.) | 15.05 |
Specifications
| Amperage Rating (A) | 26.8 (High); 22.4 (Low) |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Driving/Combo |
| Bezel Material | Billet Machined Aluminum |
| Brightness (Lumens) | 39,220 (High); 32,760 (Low) |
| Description | Arc; Driving/Combo; Clear |
| Housing Color | Black |
| Housing Material | Aircraft Grade Aluminum with Mil-Spec Hard Anodize |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | High Beam/Low Beam |
| Lighting Quantity | 24 |
| Lighting Technology | LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Description | Mounting Brackets |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | OnX6+ 40 Inch Arc LED Light Bar |
| Universal or Specific | Universal |
| Wattage (W) | 340 (High); 284 (Low) |
| Wiring Harness Description | Hi-Low Dongle |
| Wiring Harness Included | No |
Standards & Compliance
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
SKU: 524004
Dimensions
| Depth (in.) | 4.29 |
| Height (in.) | 2.69 |
| Length (in.) | 40 |
| Weight (lbs.) | 15.05 |
Specifications
| Amperage Rating (A) | 26.8 (High); 22.4 (Low) |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Wide Cornering |
| Bezel Material | Billet Machined Aluminum |
| Brightness (Lumens) | 39,220 (High); 32,760 (Low) |
| Description | Arc; Wide Cornering; Clear |
| Housing Color | Black |
| Housing Material | Aircraft Grade Aluminum with Mil-Spec Hard Anodize |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | High Beam/Low Beam |
| Lighting Quantity | 24 |
| Lighting Technology | LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Description | Mounting Brackets |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | OnX6+ 40 Inch Arc LED Light Bar |
| Universal or Specific | Universal |
| Wattage (W) | 340 (High); 284 (Low) |
| Wiring Harness Description | Hi-Low Dongle |
| Wiring Harness Included | No |
Standards & Compliance
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
SKU: 525003
Dimensions
| Depth (in.) | 4.29 |
| Height (in.) | 2.69 |
| Length (in.) | 50 |
| Weight (lbs.) | 18.65 |
Specifications
| Amperage Rating (A) | 28.2 (High) |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Driving/Combo |
| Bezel Material | Billet Machined Aluminum |
| Brightness (Lumens) | 39,910 (High) |
| Description | Arc; Driving/Combo; Clear |
| Housing Color | Black |
| Housing Material | Aircraft Grade Aluminum with Mil-Spec Hard Anodize |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | High Beam |
| Lighting Quantity | 30 |
| Lighting Technology | LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Description | Mounting Brackets |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | OnX6+ 50 Inch Arc LED Light Bar |
| Universal or Specific | Universal |
| Wattage (W) | 346 (High) |
| Wiring Harness Included | No |
Standards & Compliance
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
SKU: 525004
Dimensions
| Depth (in.) | 4.29 |
| Height (in.) | 2.69 |
| Length (in.) | 50 |
| Weight (lbs.) | 18.65 |
Specifications
| Amperage Rating (A) | 28.2 (High) |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Wide Cornering |
| Bezel Material | Billet Machined Aluminum |
| Brightness (Lumens) | 39,910 (High) |
| Description | Arc; Wide Cornering; Clear |
| Housing Color | Black |
| Housing Material | Aircraft Grade Aluminum with Mil-Spec Hard Anodize |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | High Beam |
| Lighting Quantity | 30 |
| Lighting Technology | LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Description | Mounting Brackets |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | OnX6+ 50 Inch Arc LED Light Bar |
| Universal or Specific | Universal |
| Wattage (W) | 346 (High) |
| Wiring Harness Included | No |
Standards & Compliance
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
SKU: 526001
Dimensions
| Depth (in.) | 4.29 |
| Height (in.) | 2.69 |
| Length (in.) | 60 |
| Weight (lbs.) | 22.25 |
Specifications
| Amperage Rating (A) | 30 (High) |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Spot |
| Bezel Material | Billet Machined Aluminum |
| Brightness (Lumens) | 44,100 (High) |
| Description | Arc; Spot; Clear |
| Housing Color | Black |
| Housing Material | Aircraft Grade Aluminum with Mil-Spec Hard Anodize |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | High Beam |
| Lighting Quantity | 36 |
| Lighting Technology | LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Description | Mounting Brackets |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | OnX6+ 60 Inch Arc LED Light Bar |
| Universal or Specific | Universal |
| Wattage (W) | 351 (High) |
| Wiring Harness Included | No |
Standards & Compliance
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
SKU: 526003
Dimensions
| Depth (in.) | 4.29 |
| Height (in.) | 2.69 |
| Length (in.) | 60 |
| Weight (lbs.) | 22.25 |
Specifications
| Amperage Rating (A) | 30 (High) |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Driving/Combo |
| Bezel Material | Billet Machined Aluminum |
| Brightness (Lumens) | 44,100 (High) |
| Description | Arc; Driving/Combo; Clear |
| Housing Color | Black |
| Housing Material | Aircraft Grade Aluminum with Mil-Spec Hard Anodize |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | High Beam |
| Lighting Quantity | 36 |
| Lighting Technology | LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Description | Mounting Brackets |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | OnX6+ 60 Inch Arc LED Light Bar |
| Universal or Specific | Universal |
| Wattage (W) | 351 (High) |
| Wiring Harness Included | No |
Standards & Compliance
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
Disclaimer
Buyer is responsible for ensuring that it uses the products (and its vehicle) in accordance with all applicable laws, regulations, guidelines, and standards of care. Buyer acknowledges that some products may only be used when off-roading, and Buyer will comply with all vehicle and road safety guidelines. Buyer is solely responsible for (and will indemnify and hold Bestop harmless for) any claims, losses, damages, fines, fees, costs, or other amounts arising out of Buyer’s non-compliance with these provisions.
Baja Designs California Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
