Baja Designs OnX6 Straight Racer Edition LED Light Bar - Universal
- ESTIMATED LEAD TIME ON ALL BED RACKS AND XBRS: AROUND 4-6 WEEKS
Description
The biggest in our Racer Edition line, the 50-inch OnX6 Racer Edition Light Bar also packs the hardest punch. If you have enough room to mount it, the 50-inch OnX6 Racer Edition Light Bar delivers all the power you need for high-speed nighttime driving, either on-road or off. The 50-inch OnX6 Racer Edition Light Bar was engineered for speeds of 110 plus MPH, and it comes with our industry-first 30-day Satisfaction Guarantee and Limited Lifetime Warranty. The OnX6 Racer Edition LED Light Bar is BRIGHTER, BOLDER, BETTER.
Satisfaction Guarantee – 30-Day Money Back Guarantee
Limited Lifetime Warranty – Complete Purchase Protection
uService – Replaceable Lenses And Optics
ClearView – All The Light, Right Where You Need It
MoistureBlock – Waterproof, Rain Proof, Submersible
CopperDrive – Only LED Driven At 100 Percent
5000K Daylight – Less Driver Fatigue, Natural Color

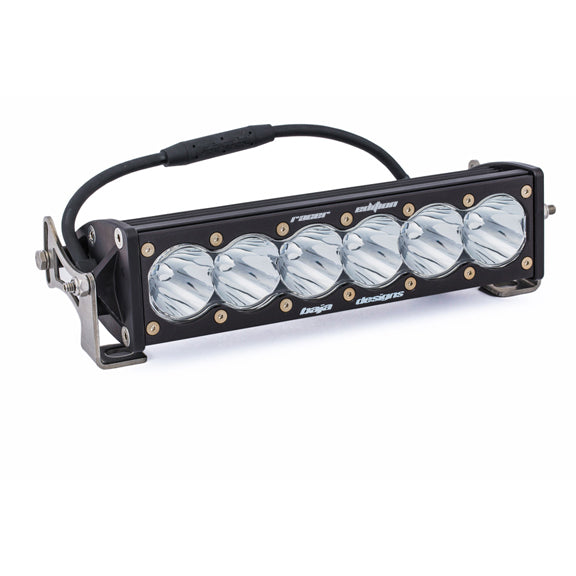

SKU: 411002
Dimensions
Depth (in.) | 4.29 |
Height (in.) | 2.69 |
Length (in.) | 10 |
Weight (lbs.) | 4.25 |
Specifications
Amperage Rating (A) | 5.25 |
Average Rated Life (hr.) | 49,930 |
Beam Pattern | Racer Spot |
Bezel Material | Billet Machined Aluminum |
Description | Straight; Racer Spot; Clear |
Housing Color | Black |
Housing Material | Aircraft Grade Aluminum with Mil-Spec Hard Anodize |
Lens Color | Clear |
Lens Material | Hardcoated Polycarbonate |
Light Quantity | 1 |
Lighting Modes | Beam |
Lighting Quantity | 6 |
Lighting Technology | LED |
Lighting Type | Forward Projecting |
Mounting Hardware Description | Mounting Brackets |
Mounting Hardware Included | Yes |
Mounting Hardware Material | Stainless Steel |
Overvoltage Protection | Built-In |
Product Type | OnX6+ 10 Inch Racer Edition LED Light Bar |
Universal or Specific | Universal |
Wattage (W) | 63 |
Wiring Harness Included | No |
Standards & Compliance
Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
SKU: 412002
Dimensions
Depth (in.) | 4.29 |
Height (in.) | 2.69 |
Length (in.) | 20 |
Weight (lbs.) | 7.85 |
Specifications
Amperage Rating (A) | 10.5 |
Average Rated Life (hr.) | 49,930 |
Beam Pattern | Racer Spot |
Bezel Material | Billet Machined Aluminum |
Description | Straight; Racer Spot; Clear |
Housing Color | Black |
Housing Material | Aircraft Grade Aluminum with Mil-Spec Hard Anodize |
Lens Color | Clear |
Lens Material | Hardcoated Polycarbonate |
Light Quantity | 1 |
Lighting Modes | Beam |
Lighting Quantity | 12 |
Lighting Technology | LED |
Lighting Type | Forward Projecting |
Mounting Hardware Description | Mounting Brackets |
Mounting Hardware Included | Yes |
Mounting Hardware Material | Stainless Steel |
Overvoltage Protection | Built-In |
Product Type | OnX6+ 20 Inch Racer Edition LED Light Bar |
Universal or Specific | Universal |
Wattage (W) | 126 |
Wiring Harness Included | No |
Standards & Compliance
Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |

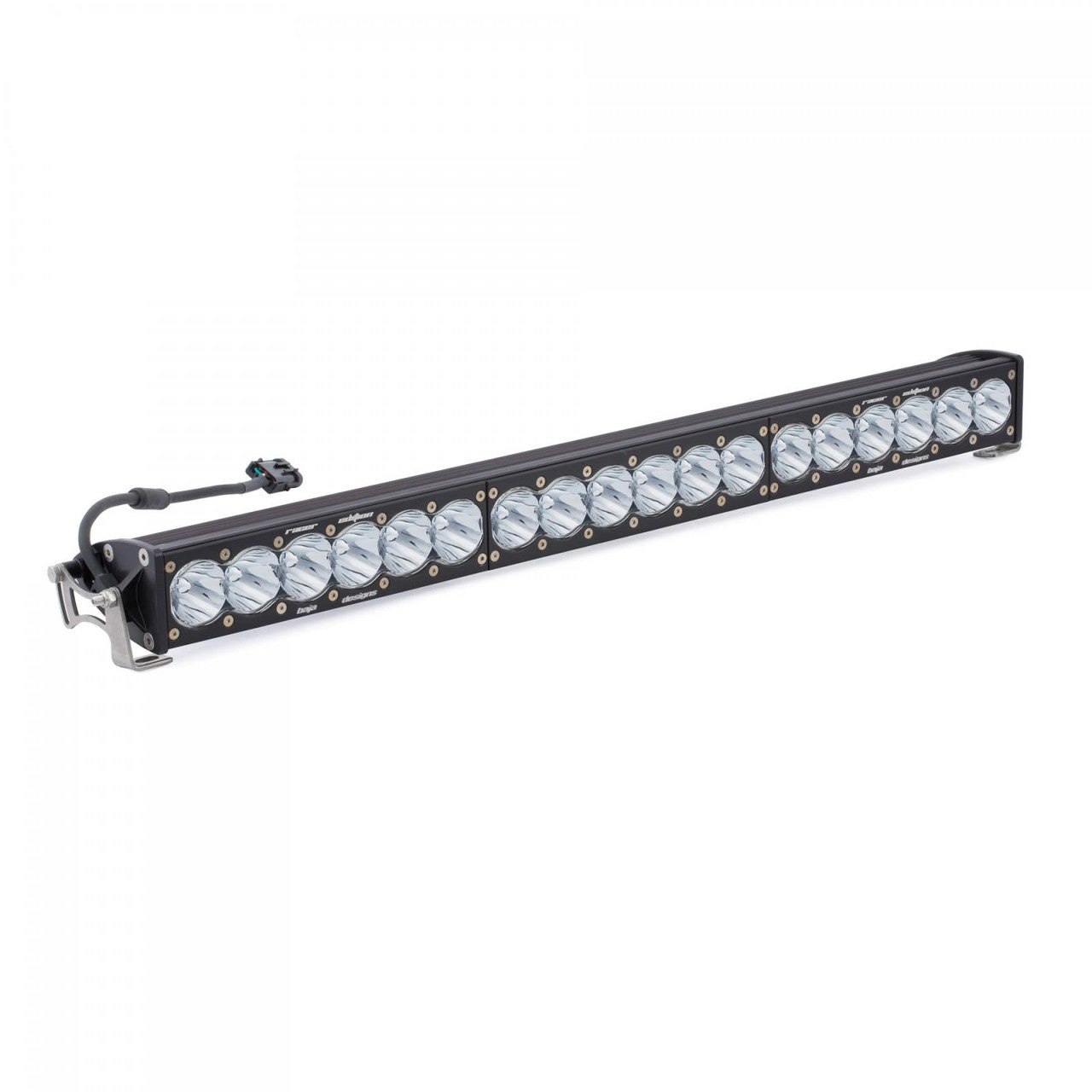

SKU: 413002
Dimensions
Depth (in.) | 4.29 |
Height (in.) | 2.69 |
Length (in.) | 30 |
Weight (lbs.) | 11.45 |
Specifications
Amperage Rating (A) | 15.75 |
Average Rated Life (hr.) | 49,930 |
Beam Pattern | Racer Spot |
Bezel Material | Billet Machined Aluminum |
Description | Straight; Racer Spot; Clear |
Housing Color | Black |
Housing Material | Aircraft Grade Aluminum with Mil-Spec Hard Anodize |
Lens Color | Clear |
Lens Material | Hardcoated Polycarbonate |
Light Quantity | 1 |
Lighting Modes | Beam |
Lighting Quantity | 18 |
Lighting Technology | LED |
Lighting Type | Forward Projecting |
Mounting Hardware Description | Mounting Brackets |
Mounting Hardware Included | Yes |
Mounting Hardware Material | Stainless Steel |
Overvoltage Protection | Built-In |
Product Type | OnX6+ 30 Inch Racer Edition LED Light Bar |
Universal or Specific | Universal |
Wattage (W) | 189 |
Wiring Harness Included | No |
Standards & Compliance
Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |

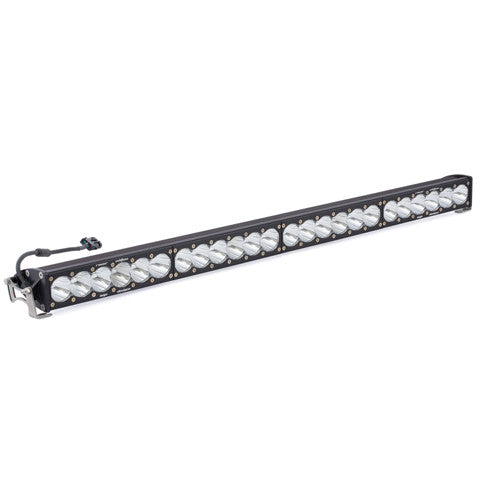

SKU: 414002
Dimensions
Depth (in.) | 4.29 |
Height (in.) | 2.69 |
Length (in.) | 40 |
Weight (lbs.) | 15.05 |
Specifications
Amperage Rating (A) | 21 |
Average Rated Life (hr.) | 49,930 |
Beam Pattern | Racer Spot |
Bezel Material | Billet Machined Aluminum |
Description | Straight; Racer Spot; Clear |
Housing Color | Black |
Housing Material | Aircraft Grade Aluminum with Mil-Spec Hard Anodize |
Lens Color | Clear |
Lens Material | Hardcoated Polycarbonate |
Light Quantity | 1 |
Lighting Modes | Beam |
Lighting Quantity | 24 |
Lighting Technology | LED |
Lighting Type | Forward Projecting |
Mounting Hardware Description | Mounting Brackets |
Mounting Hardware Included | Yes |
Mounting Hardware Material | Stainless Steel |
Overvoltage Protection | Built-In |
Product Type | OnX6+ 40 Inch Racer Edition LED Light Bar |
Universal or Specific | Universal |
Wattage (W) | 252 |
Wiring Harness Included | No |
Standards & Compliance
Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |

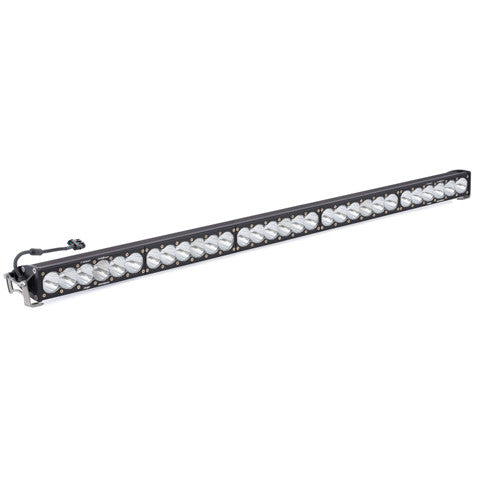

SKU: 415002
Dimensions
Depth (in.) | 4.29 |
Height (in.) | 2.69 |
Length (in.) | 50 |
Weight (lbs.) | 18.65 |
Specifications
Amperage Rating (A) | 26.25 |
Average Rated Life (hr.) | 49,930 |
Beam Pattern | Racer Spot |
Bezel Material | Billet Machined Aluminum |
Description | Straight; Racer Spot; Clear |
Housing Color | Black |
Housing Material | Aircraft Grade Aluminum with Mil-Spec Hard Anodize |
Lens Color | Clear |
Lens Material | Hardcoated Polycarbonate |
Light Quantity | 1 |
Lighting Modes | Beam |
Lighting Quantity | 30 |
Lighting Technology | LED |
Lighting Type | Forward Projecting |
Mounting Hardware Description | Mounting Brackets |
Mounting Hardware Included | Yes |
Mounting Hardware Material | Stainless Steel |
Overvoltage Protection | Built-In |
Product Type | OnX6+ 50 Inch Racer Edition LED Light Bar |
Universal or Specific | Universal |
Wattage (W) | 315 |
Wiring Harness Included | No |
Standards & Compliance
Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
