Baja Designs S1 Black Flush Mount LED Light Pod Reverse Kit - Universal

  • ESTIMATED LEAD TIMES: BED RACKS & XBRS: 6-8 WEEKS | AXS GATE & SUB STRUCTURE KITS: 2-3 WEEKS
Regular price$354.95
/

Baja Designs LED products are experiencing 4-6 week average lead times, with the exception of RTL and SAE models experiencing 8-10 weeks average lead times. Please be patient as we are shipping orders as quickly as possible.

Description

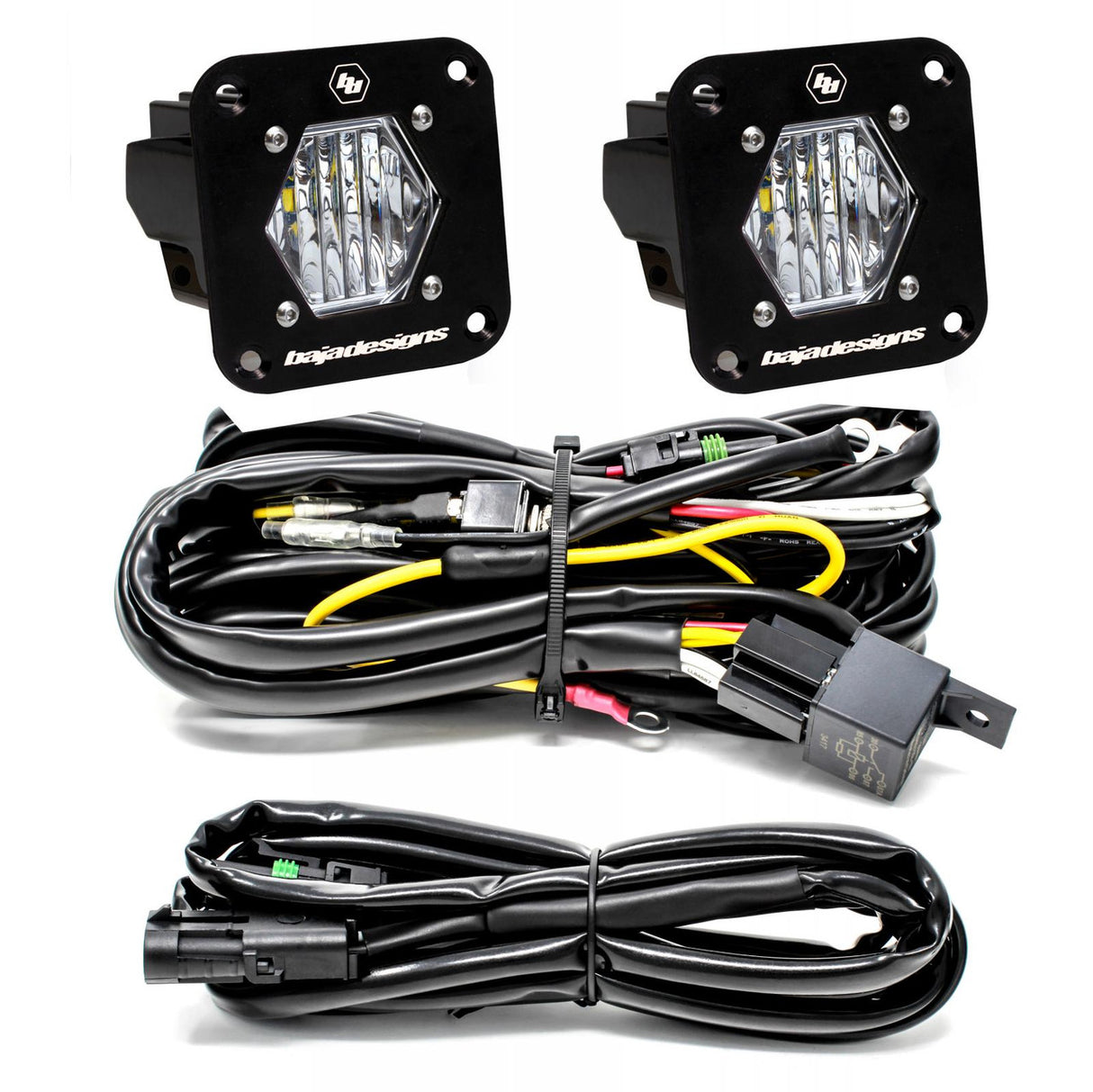

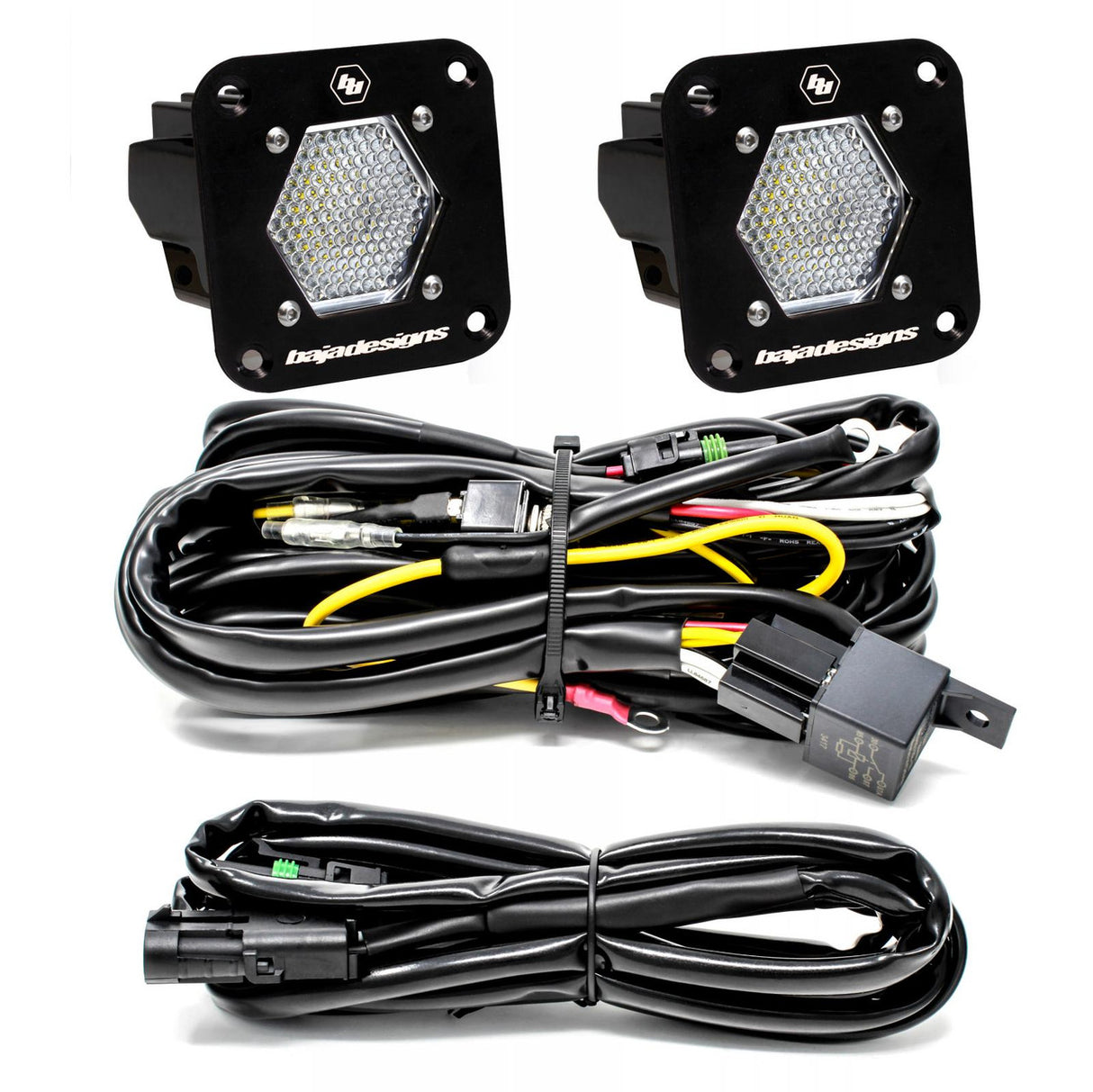

Designed from the ground up our new S1 fills the shoes of a large light in a small package! The S1 utilizes a highly specialized reflector and LED combination to outshine the competition. With the 2.1 inch length, width, and height the S1 is highly versatile for any application that is in need of light. Whether you're looking for a light to drive off of, or something to light up a campsite the S1 will exceed your expectations! One of the key features that makes our S1 Flush Mounts unique is that the hole to mount them can be made by a 2.5 inch hole saw. Another benefit to this kit is that it allows for the user to take the guess work out of the wiring. Included is a relay harness with extensions, this makes for an extremely easy install! US Patent Number 11273751.

Satisfaction Guarantee – 30-Day Money Back Guarantee

Limited Lifetime Warranty – Complete Purchase Protection

uService – Replaceable Lenses And Optics

ClearView – All The Light, Right Where You Need It

MoistureBlock – Waterproof, Rain Proof, Submersible

CopperDrive – Only LED Driven At 100 Percent

5000K Daylight – Less Driver Fatigue, Natural Color

Detailed Specs

SKU: 387808

Dimensions

Depth (in.) 2.100
Height (in.) 2.100
Length (in.) 2.100
Weight (lbs.) 0.400

Specifications

Amperage Rating (A) 1.420
Average Rated Life (hr.) 49,930
Beam Pattern Wide Cornering
Bezel Material Billet Machined Aluminum
Brightness (Lumens) 2320
Description Flush Mount; Wide Cornering; Clear; Pair
Housing Color Black
Housing Material Hard Anodized and Powder Coated Cast Aluminum
Lens Color Clear
Lens Material Hardcoated Polycarbonate
Light Quantity 2
Lighting Modes Beam
Lighting Quantity 1
Lighting Technology LED
Lighting Type Forward Projecting
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type S1 Flush Mount LED Reverse Light Pod Pair w/ Wiring Harness
Voltage 9-28
Wattage (W) 19.596
Wiring Harness Included Yes

Standards & Compliance

Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)

SKU: 387809

Dimensions

Depth (in.) 2.100
Height (in.) 2.100
Length (in.) 2.100
Weight (lbs.) 0.400

Specifications

Amperage Rating (A) 1.420
Average Rated Life (hr.) 49,930
Beam Pattern Work/Scene
Bezel Material Billet Machined Aluminum
Brightness (Lumens) 2320
Description Flush Mount; Work/Scene; Clear; Pair
Housing Color Black
Housing Material Hard Anodized and Powder Coated Cast Aluminum
Lens Color Clear
Lens Material Hardcoated Polycarbonate
Light Quantity 2
Lighting Modes Beam
Lighting Quantity 1
Lighting Technology LED
Lighting Type Forward Projecting
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type S1 Flush Mount LED Reverse Light Pod Pair w/ Wiring Harness
Voltage 9-28
Wattage (W) 19.596
Wiring Harness Included Yes

Standards & Compliance

Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)


Disclaimer

Buyer is responsible for ensuring that it uses the products (and its vehicle) in accordance with all applicable laws, regulations, guidelines, and standards of care. Buyer acknowledges that some products may only be used when off-roading, and Buyer will comply with all vehicle and road safety guidelines. Buyer is solely responsible for (and will indemnify and hold Bestop harmless for) any claims, losses, damages, fines, fees, costs, or other amounts arising out of Buyer’s non-compliance with these provisions.

Baja Designs California Proposition 65

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.



When purchasing a bed rack from us, you will receive two packages with separate tracking numbers (one contains the extrusion bars, and the other contains various components and hardware).

Shipping will be determined by weight and your region.
