Baja Designs S8 Straight LED Light Bar - Universal

Baja Designs LED products are experiencing 4-6 week average lead times, with the exception of RTL and SAE models experiencing 8-10 weeks average lead times. Please be patient as we are shipping orders as quickly as possible.

Description

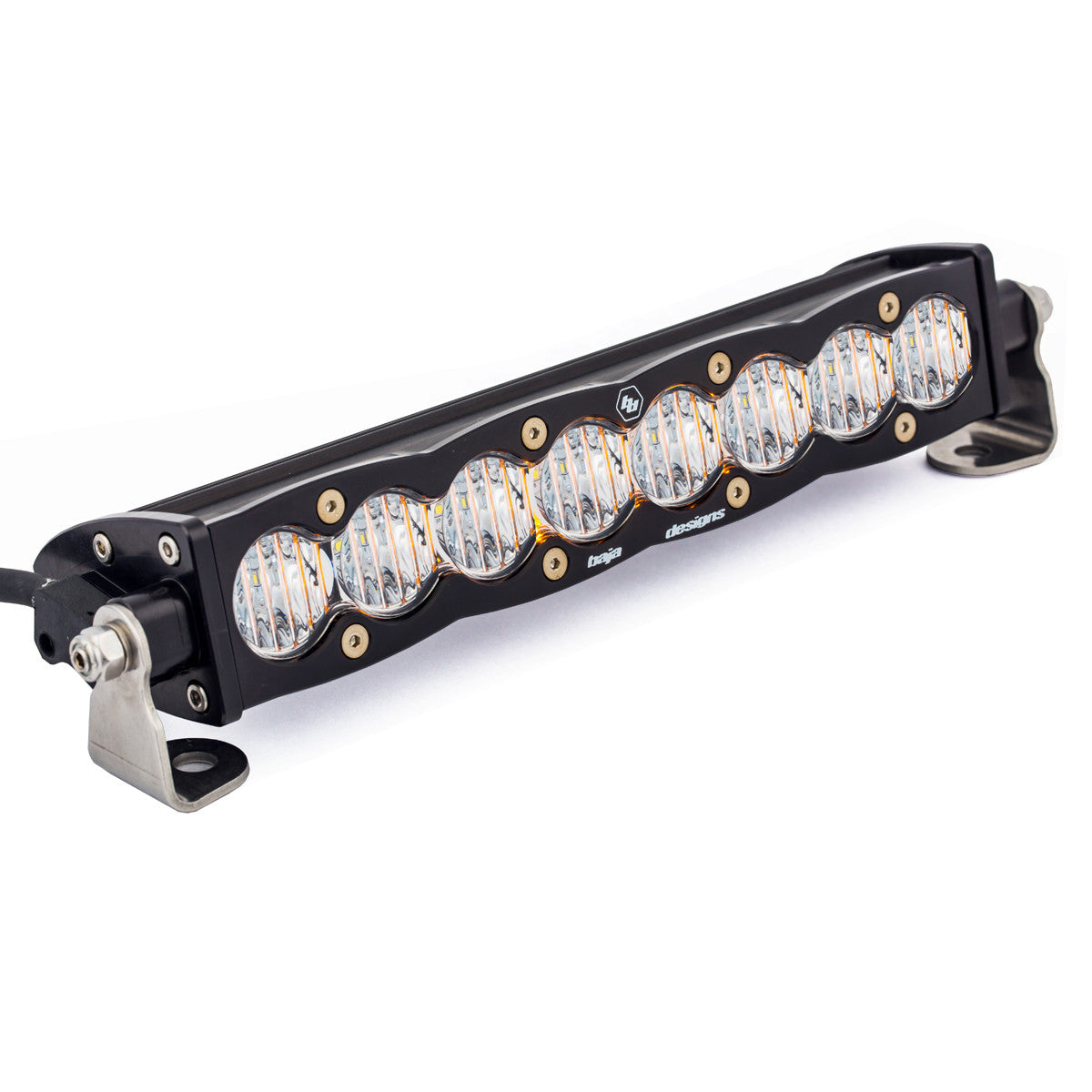

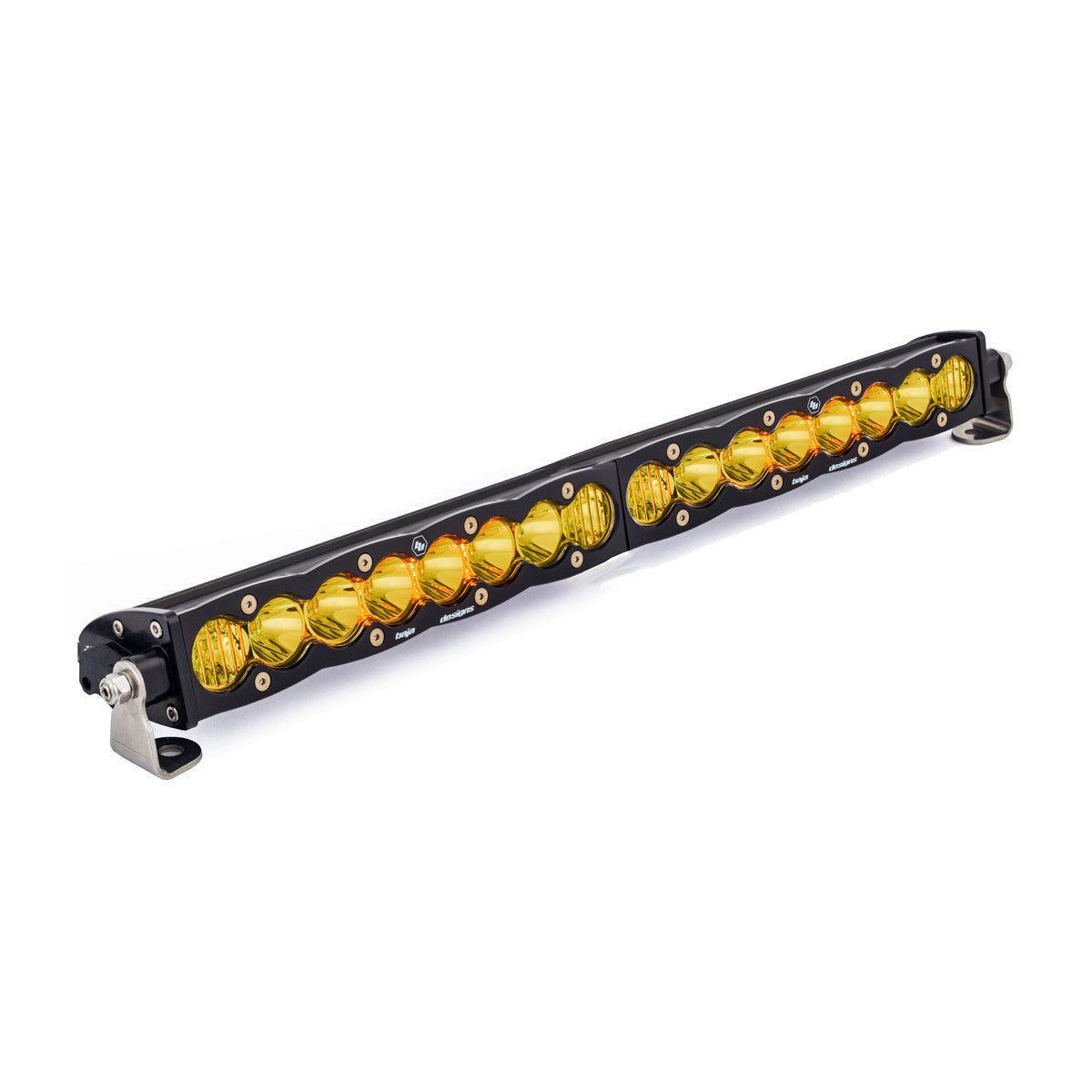

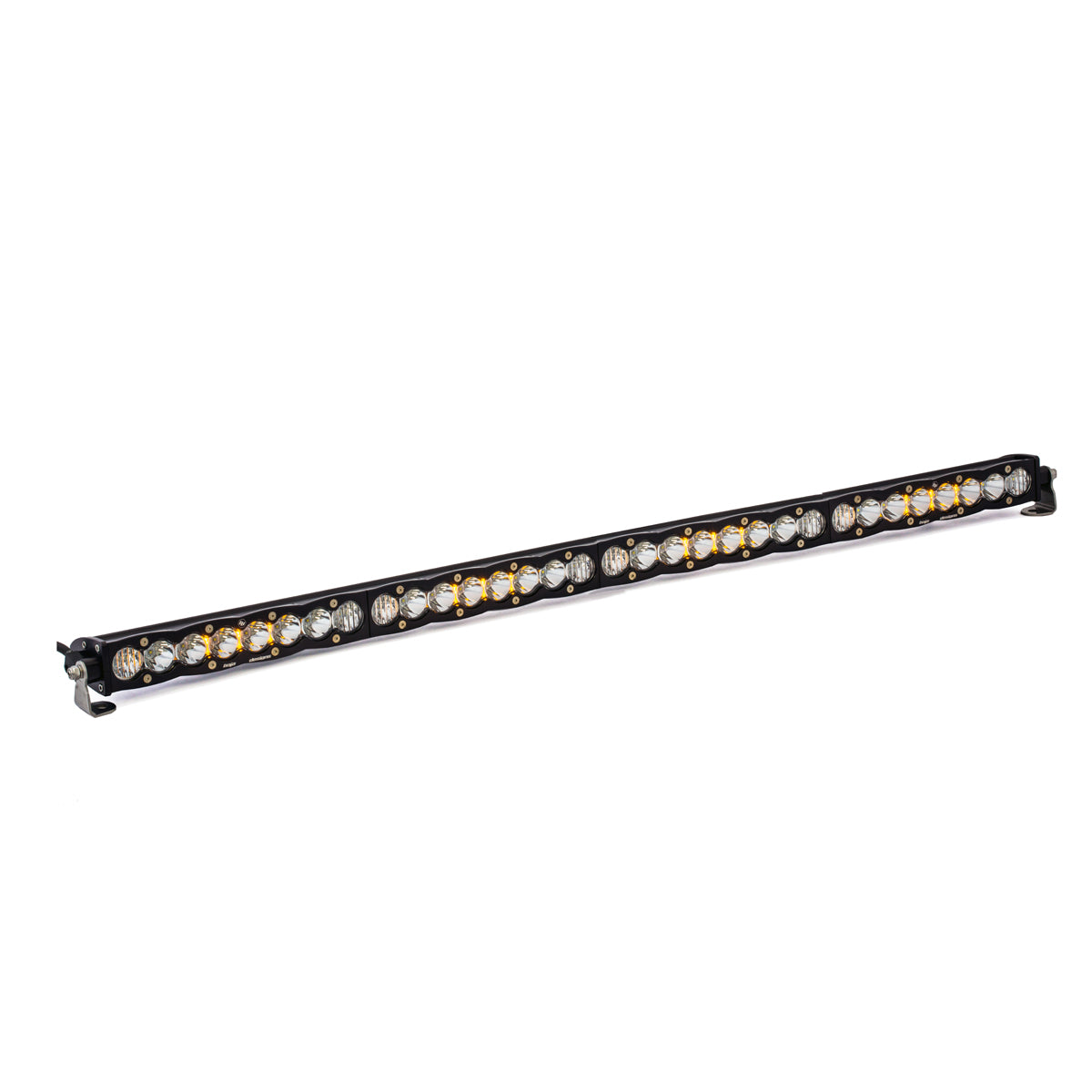

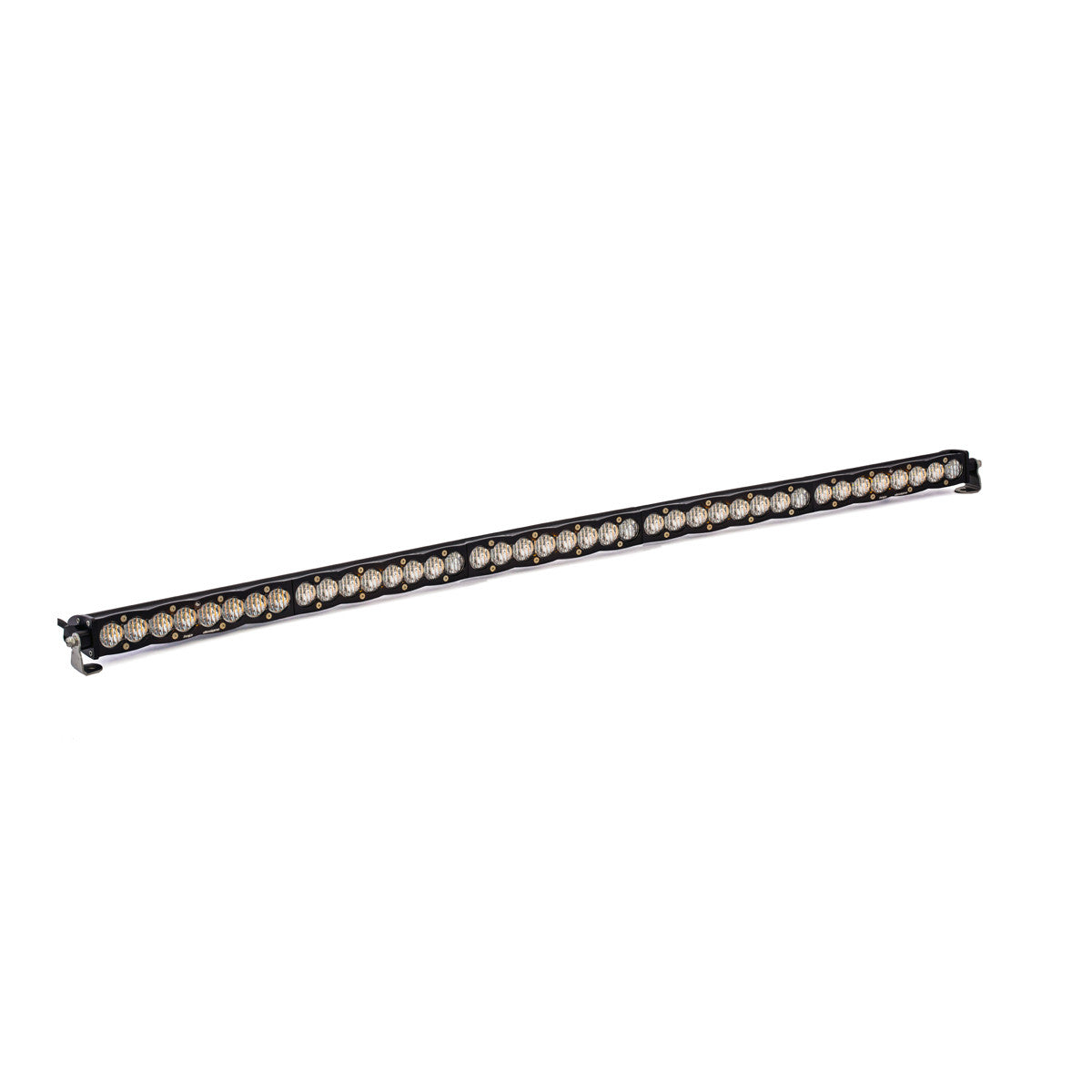

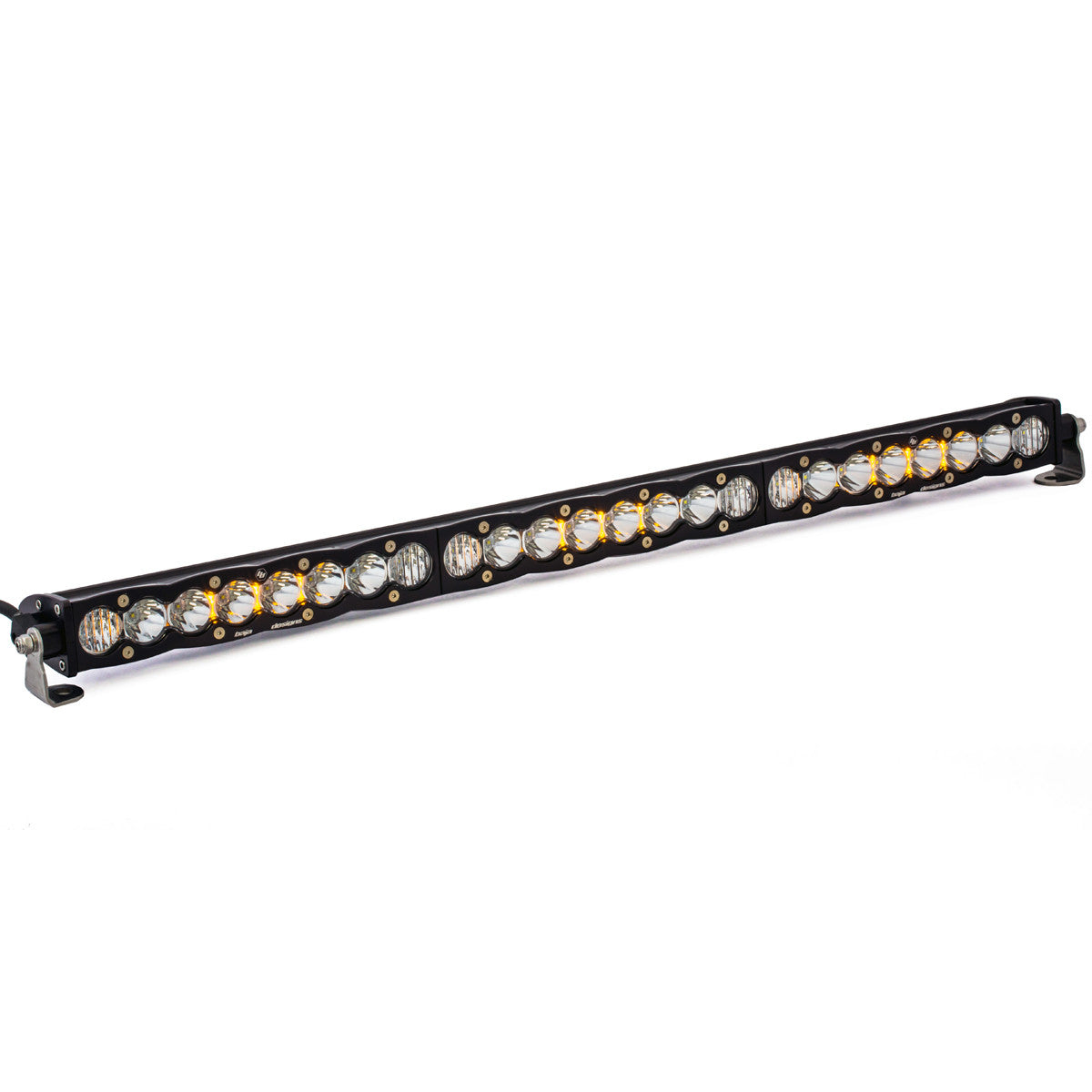

The S8 offers a slim and sleek design utilizing eight LEDs per 10-inch section. Lumens start at 6,324 for 10" section, the S8 is available from 10" to 50" and also features high-performance reflectors, and an amber backlit feature. The S8 is backed by our 30-day Satisfaction Guarantee and Limited Lifetime Warranty giving you the ultimate in-purchase protection! Please note that this light does NOT include a harness and the applicable harness to this light is 640122.

Satisfaction Guarantee – 30-Day Money Back Guarantee

Limited Lifetime Warranty – Complete Purchase Protection

uService – Replaceable Lenses And Optics

ClearView – All The Light, Right Where You Need It

MoistureBlock – Waterproof, Rain Proof, Submersible

CopperDrive – Only LED Driven At 100 Percent

5000K Daylight – Less Driver Fatigue, Natural Color

Please note that this light does NOT include a harness and the applicable harness to this light is 640122.

Detailed Specs

SKU: 704003

Dimensions

Depth (in.)	3
Height (in.)	1.6
Length (in.)	40
Weight (lbs.)	8.65

Specifications

Amperage Rating (A)	16.0
Average Rated Life (hr.)	49,930
Beam Pattern	Driving/Combo
Bezel Material	Billet Machined Aluminum
Brightness (Lumens)	25,400
Description	Driving/Combo; Clear
Housing Color	Black
Housing Material	Aircraft Grade Aluminum with Mil-Spec Hard Anodize
Lens Color	Clear
Lighting Modes	Hardcoated Polycarbonate
Light Quantity	1
Lens Material	Beam/Amber Backlit Feature
Lighting Quantity	32
Lighting Type	Cree LED
Lighting Technology	Forward Projecting
Mounting Hardware Description	Mounting Brackets
Mounting Hardware Included	Yes
Mounting Hardware Material	Stainless Steel
Overvoltage Protection	Built-In
Product Type	S8 40 Inch LED Light Bar
Universal or Specific	Universal
Wattage (W)	240
Wiring Harness Included	No

Standards & Compliance

Patent No.	D780,964
Standards/Compliance (Durability)	Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Water Resistance)	IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Impact Resistance)	IP69K (Waterproof up to 9ft & Pressure Washable)
