Baja Designs XL-R Sport LED Auxiliary Light Pod - Universal

  • ESTIMATED LEAD TIMES: BED RACKS & XBRS: 6-8 WEEKS | AXS GATE & SUB STRUCTURE KITS: 2-3 WEEKS
Regular price$199.95
/

Description

The XL-R Sport makes it easy to light up your world in style, with the perfect combination of affordability and performance. The XL-R Sport LED light utilizes our trademarked High Speed Spot reflectors providing for a longer beam pattern. The XL-R Sport provides the same top of the line performance and aesthetics you expect from BD in an affordable solution. All Baja Designs LEDs are backed by a 30 Day Satisfaction Guarantee and Limited Lifetime Warranty for the ultimate in purchase protection.

Satisfaction Guarantee – 30-Day Money Back Guarantee

Limited Lifetime Warranty – Complete Purchase Protection

uService – Replaceable Lenses And Optics

ClearView – All The Light, Right Where You Need It

MoistureBlock – Waterproof, Rain Proof, Submersible

CopperDrive – Only LED Driven At 100 Percent

5000K Daylight – Less Driver Fatigue, Natural Color

A Skene dimmer must be purchased separately to enable the high/low feature.



Detailed Specs

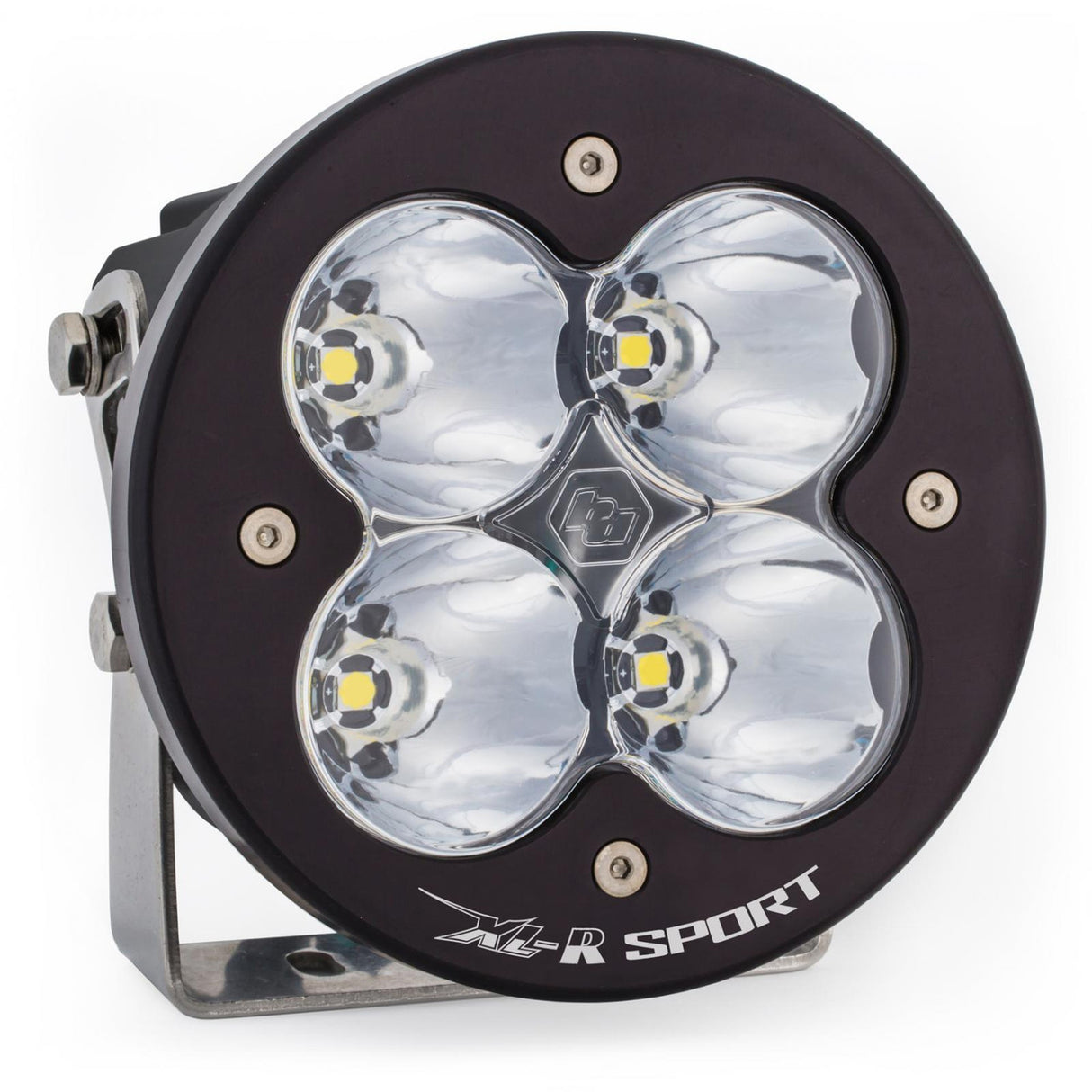

SKU: 570001

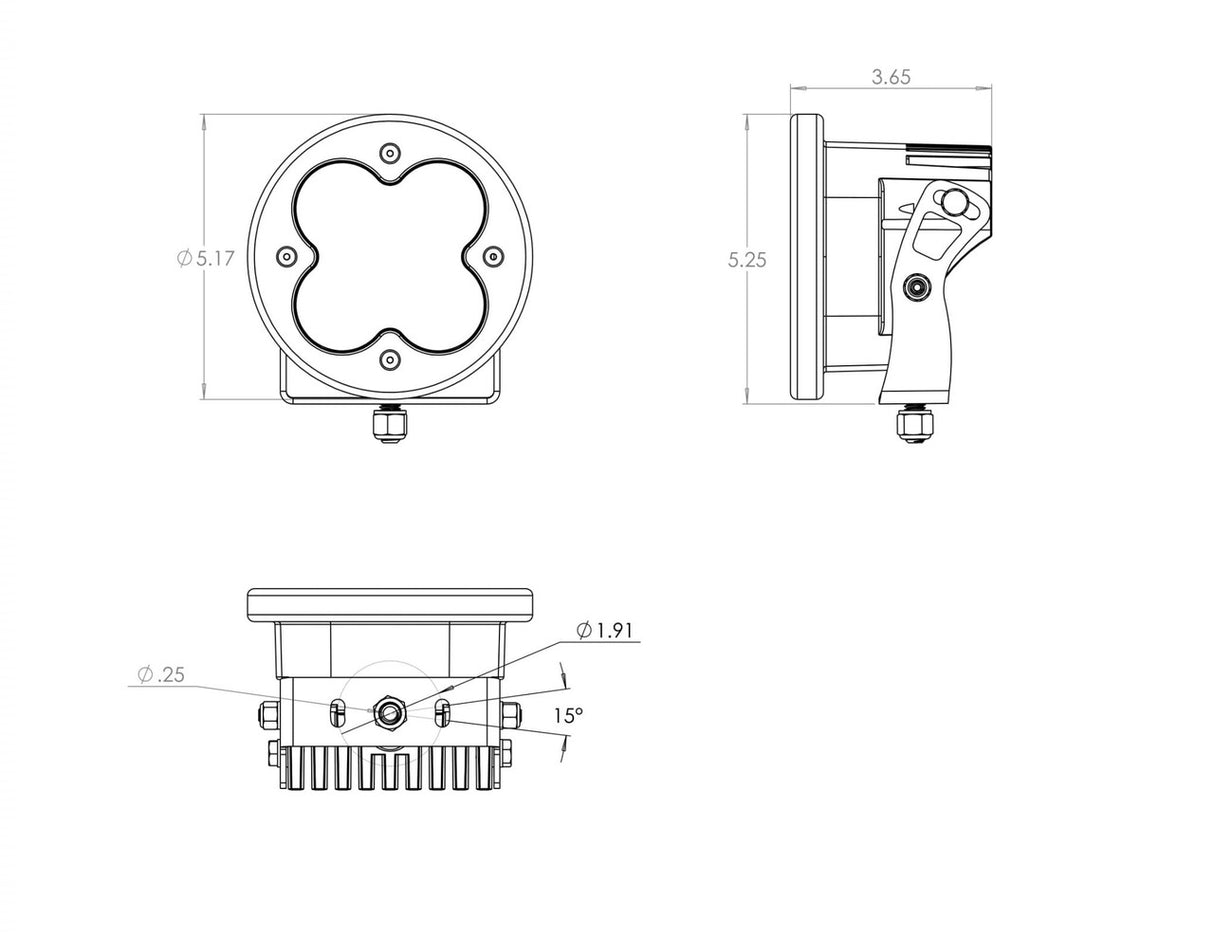

Dimensions

Depth (in.) 3.65
Height (in.) 5.24
Length (in.) 5.24
Weight (lbs.) 2.45

Specifications

Amperage Rating (A) 2
Average Rated Life (hr.) 49,930
Beam Pattern Spot
Bezel Material Billet Machined Aluminum
Brightness (Lumens) 3,150
Description Round; Spot; Clear
Housing Color Black
Housing Material Powder Coated Cast Aluminum
Lens Color Clear
Lens Material Hardcoated Polycarbonate
Light Quantity 1
Lighting Modes High Beam/Dimmer Sold Seperately to Enable High/Low Feature
Lighting Quantity 4
Lighting Technology LED
Lighting Type Forward Projecting
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type XL-R Sport LED Light Pod
Universal or Specific Universal
Wattage (W) 26
Wiring Harness Included No

Standards & Compliance

Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)

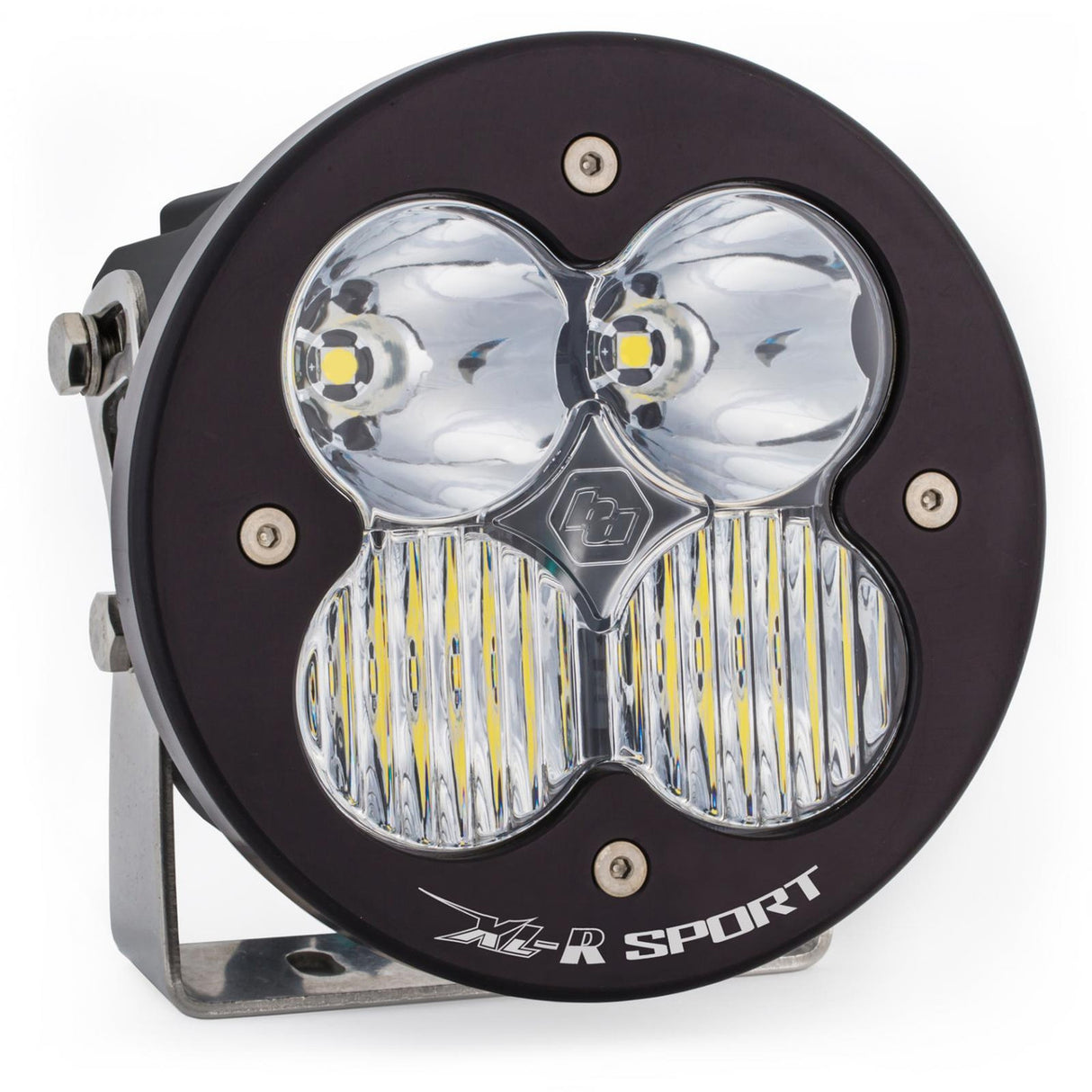

SKU: 570003

Dimensions

Depth (in.) 3.65
Height (in.) 5.24
Length (in.) 5.24
Weight (lbs.) 2.45

Specifications

Amperage Rating (A) 2
Average Rated Life (hr.) 49,930
Beam Pattern Driving/Combo
Bezel Material Billet Machined Aluminum
Brightness (Lumens) 3,150
Description Round; Driving/Combo; Clear
Housing Color Black
Housing Material Powder Coated Cast Aluminum
Lens Color Clear
Lens Material Hardcoated Polycarbonate
Light Quantity 1
Lighting Modes High Beam/Dimmer Sold Seperately to Enable High/Low Feature
Lighting Quantity 4
Lighting Technology LED
Lighting Type Forward Projecting
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type XL-R Sport LED Light Pod
Universal or Specific Universal
Wattage (W) 26
Wiring Harness Included No

Standards & Compliance

Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)

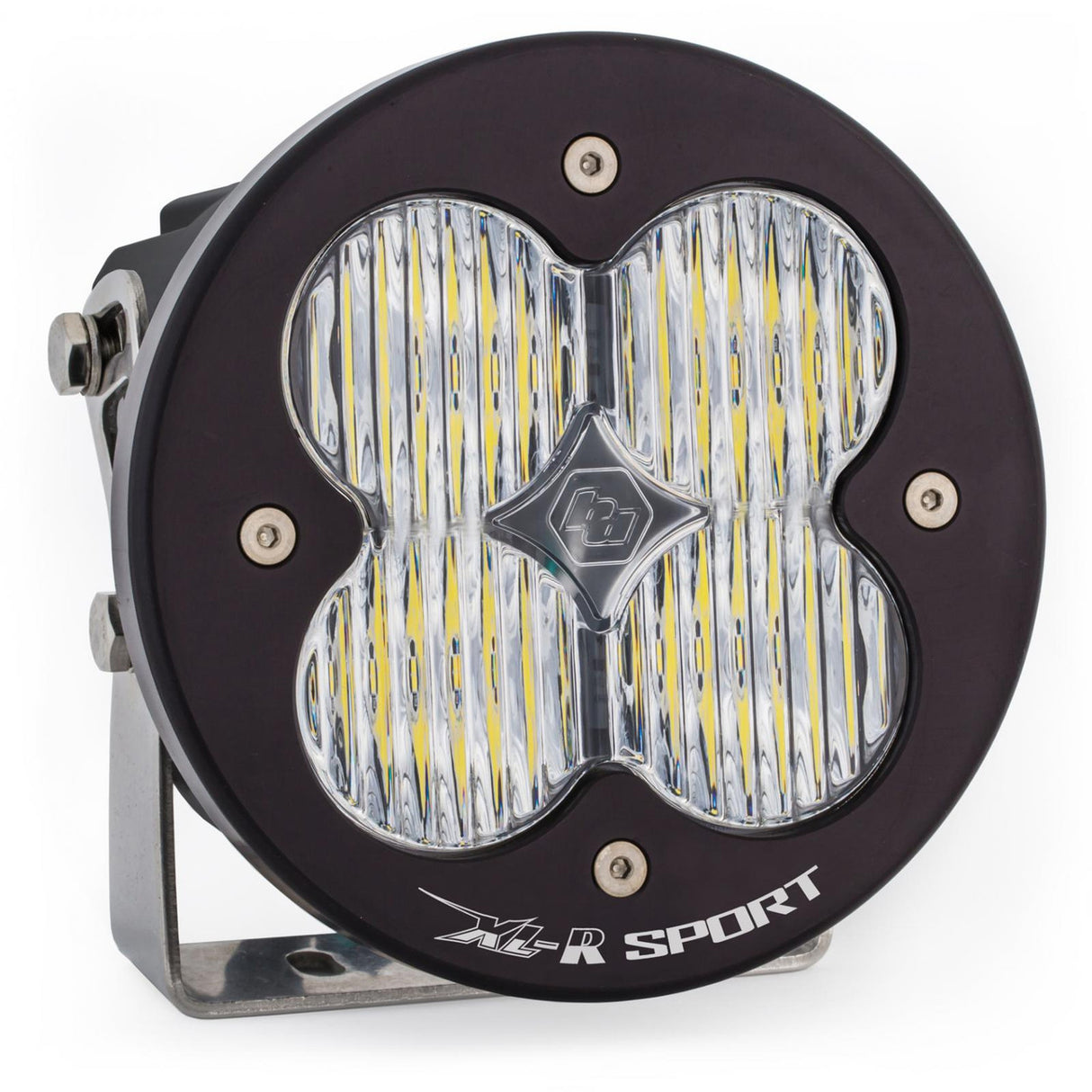

SKU: 570005

Dimensions

Depth (in.) 3.65
Height (in.) 5.24
Length (in.) 5.24
Weight (lbs.) 2.45

Specifications

Amperage Rating (A) 2
Average Rated Life (hr.) 49,930
Beam Pattern Wide Cornering
Bezel Material Billet Machined Aluminum
Brightness (Lumens) 3,150
Description Round; Wide Cornering; Clear
Housing Color Black
Housing Material Powder Coated Cast Aluminum
Lens Color Clear
Lens Material Hardcoated Polycarbonate
Light Quantity 1
Lighting Modes High Beam/Dimmer Sold Seperately to Enable High/Low Feature
Lighting Quantity 4
Lighting Technology LED
Lighting Type Forward Projecting
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type XL-R Sport LED Light Pod
Universal or Specific Universal
Wattage (W) 26
Wiring Harness Included No

Standards & Compliance

Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)

SKU: 570013

Dimensions

Depth (in.) 3.65
Height (in.) 5.24
Length (in.) 5.24
Weight (lbs.) 2.45

Specifications

Amperage Rating (A) 2
Average Rated Life (hr.) 49,930
Beam Pattern Driving/Combo
Bezel Material Billet Machined Aluminum
Brightness (Lumens) 3,150
Description Round; Driving/Combo; Amber
Housing Color Black
Housing Material Powder Coated Cast Aluminum
Lens Color Amber
Lens Material Hardcoated Polycarbonate
Light Quantity 1
Lighting Modes High Beam/Dimmer Sold Seperately to Enable High/Low Feature
Lighting Quantity 4
Lighting Technology LED
Lighting Type Forward Projecting
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type XL-R Sport LED Light Pod
Universal or Specific Universal
Wattage (W) 26
Wiring Harness Included No

Standards & Compliance

Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)

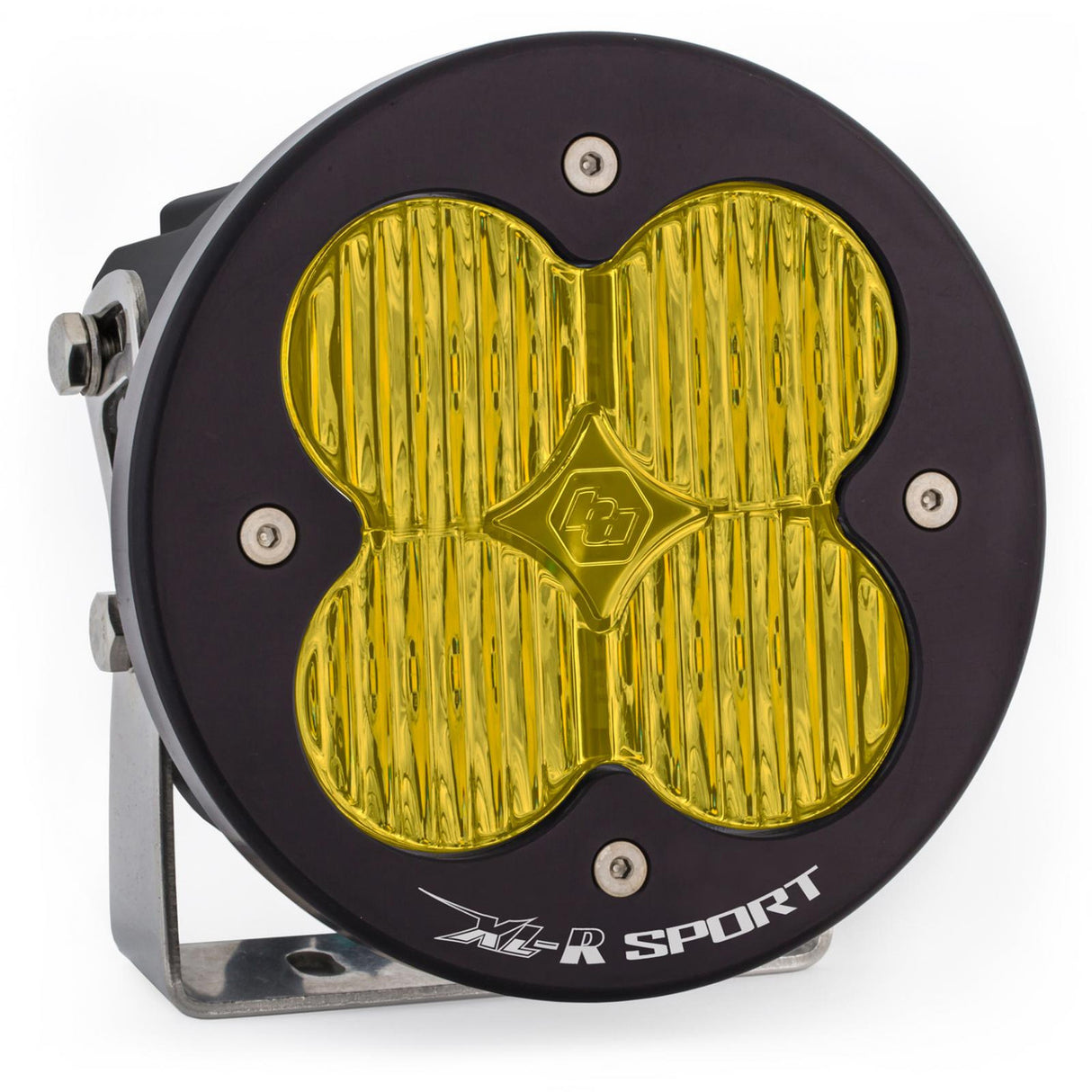

SKU: 570015

Dimensions

Depth (in.) 3.65
Height (in.) 5.24
Length (in.) 5.24
Weight (lbs.) 2.45

Specifications

Amperage Rating (A) 2
Average Rated Life (hr.) 49,930
Beam Pattern Wide Cornering
Bezel Material Billet Machined Aluminum
Brightness (Lumens) 3,150
Description Round; Wide Cornering; Amber
Housing Color Black
Housing Material Powder Coated Cast Aluminum
Lens Color Amber
Lens Material Hardcoated Polycarbonate
Light Quantity 1
Lighting Modes High Beam/Dimmer Sold Seperately to Enable High/Low Feature
Lighting Quantity 4
Lighting Technology LED
Lighting Type Forward Projecting
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type XL-R Sport LED Light Pod
Universal or Specific Universal
Wattage (W) 26
Wiring Harness Included No

Standards & Compliance

Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
