Shackle Adapter Sleeves

Regular price$7.00
/
  • Estimated Lead Times: 4-6 Weeks on Bed Racks

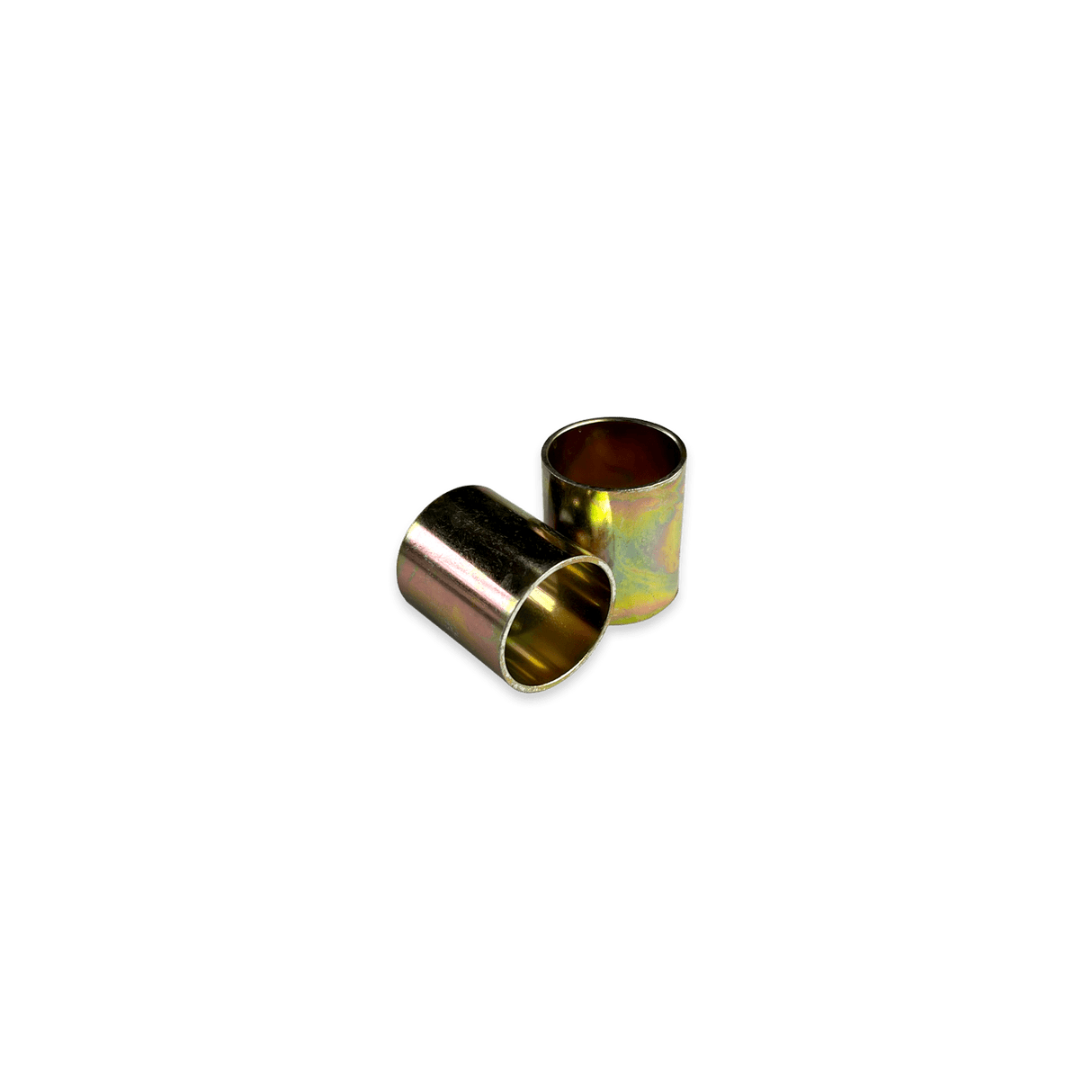

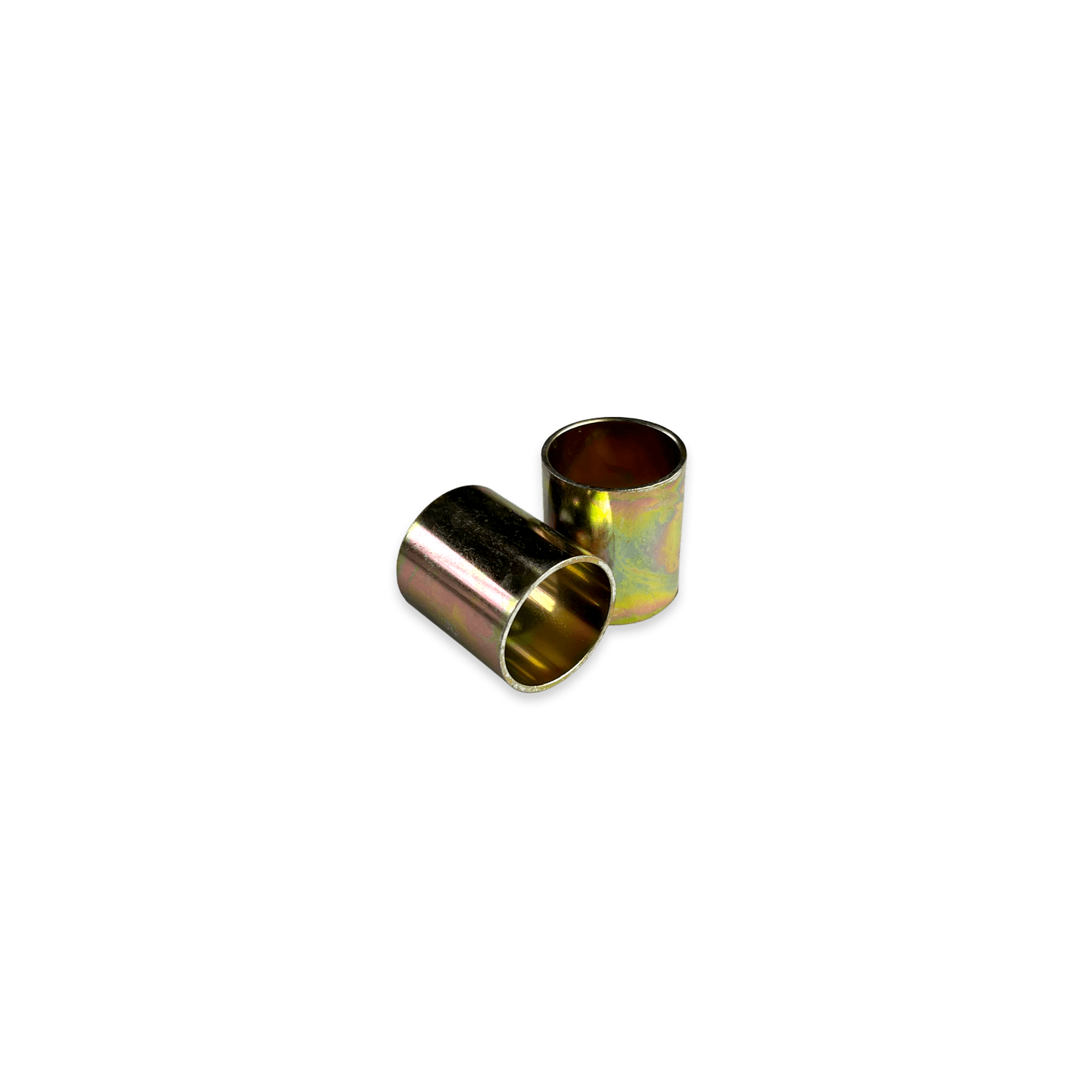

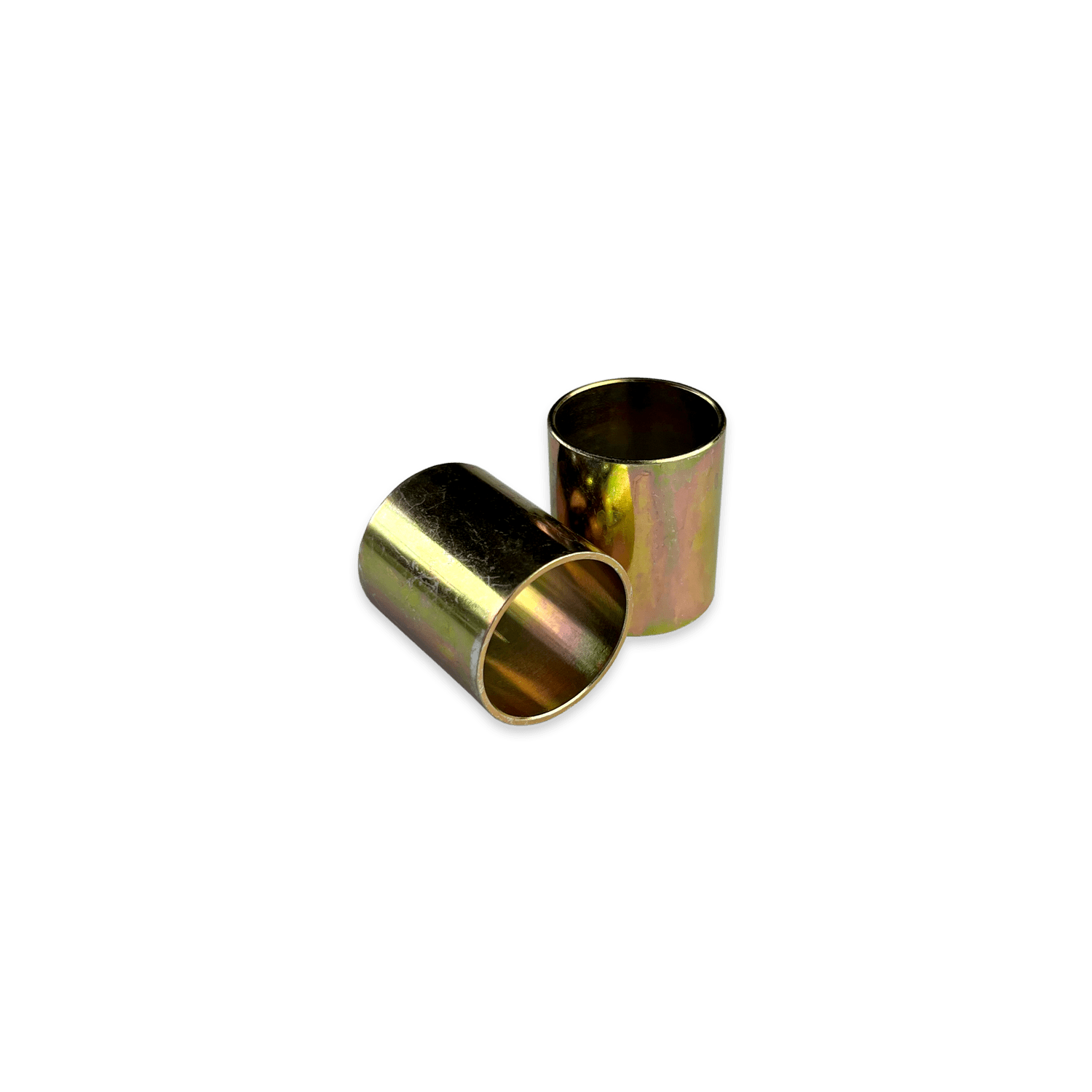

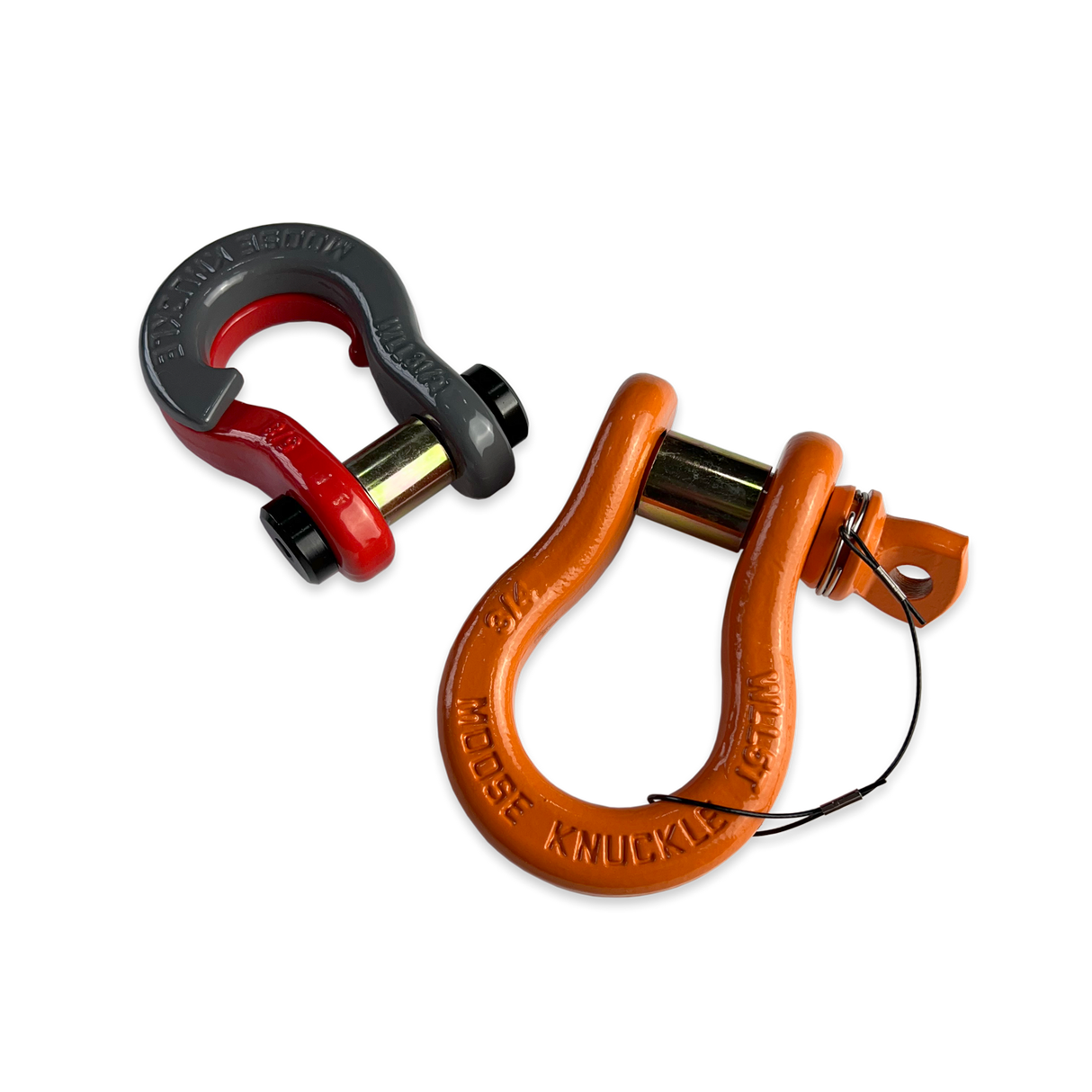

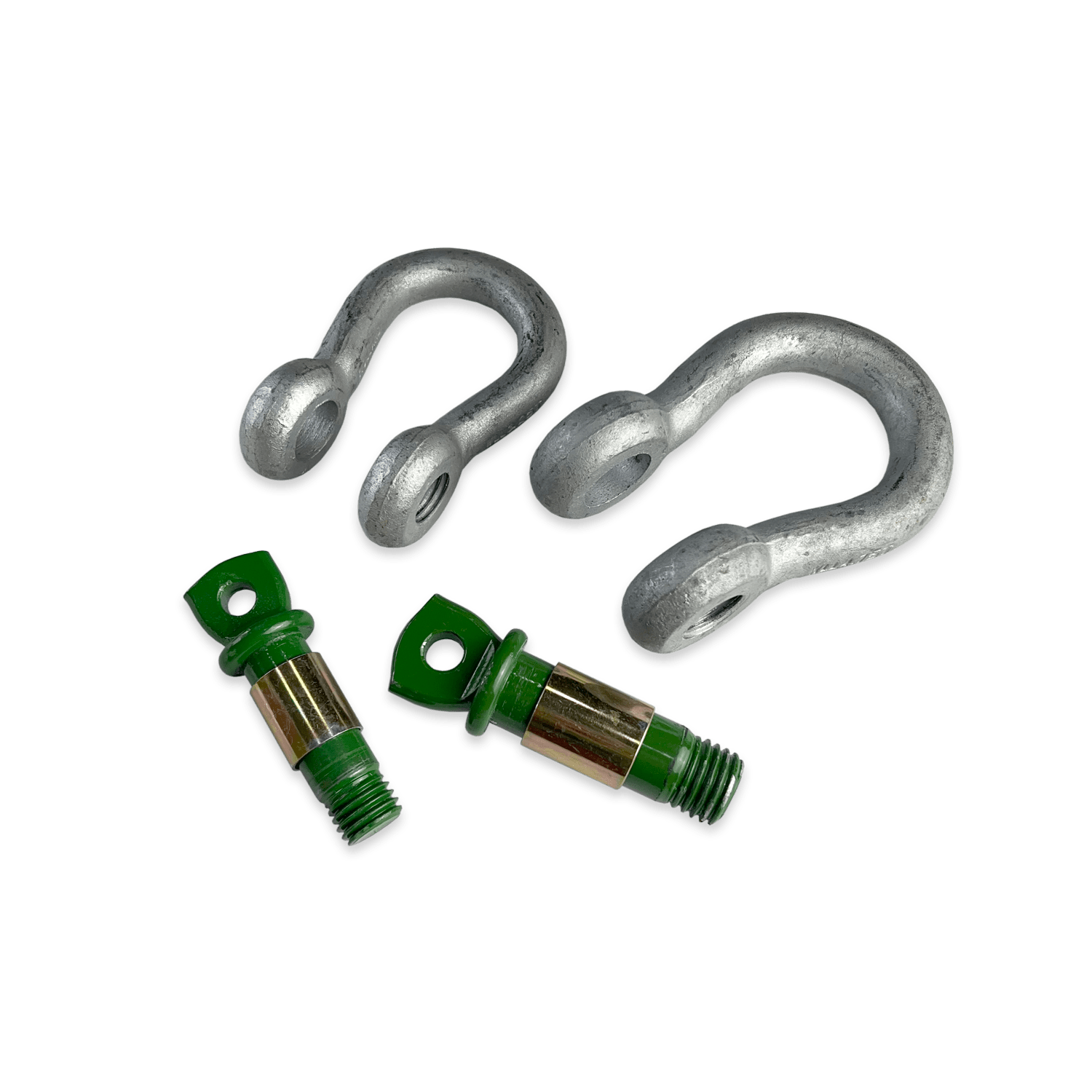

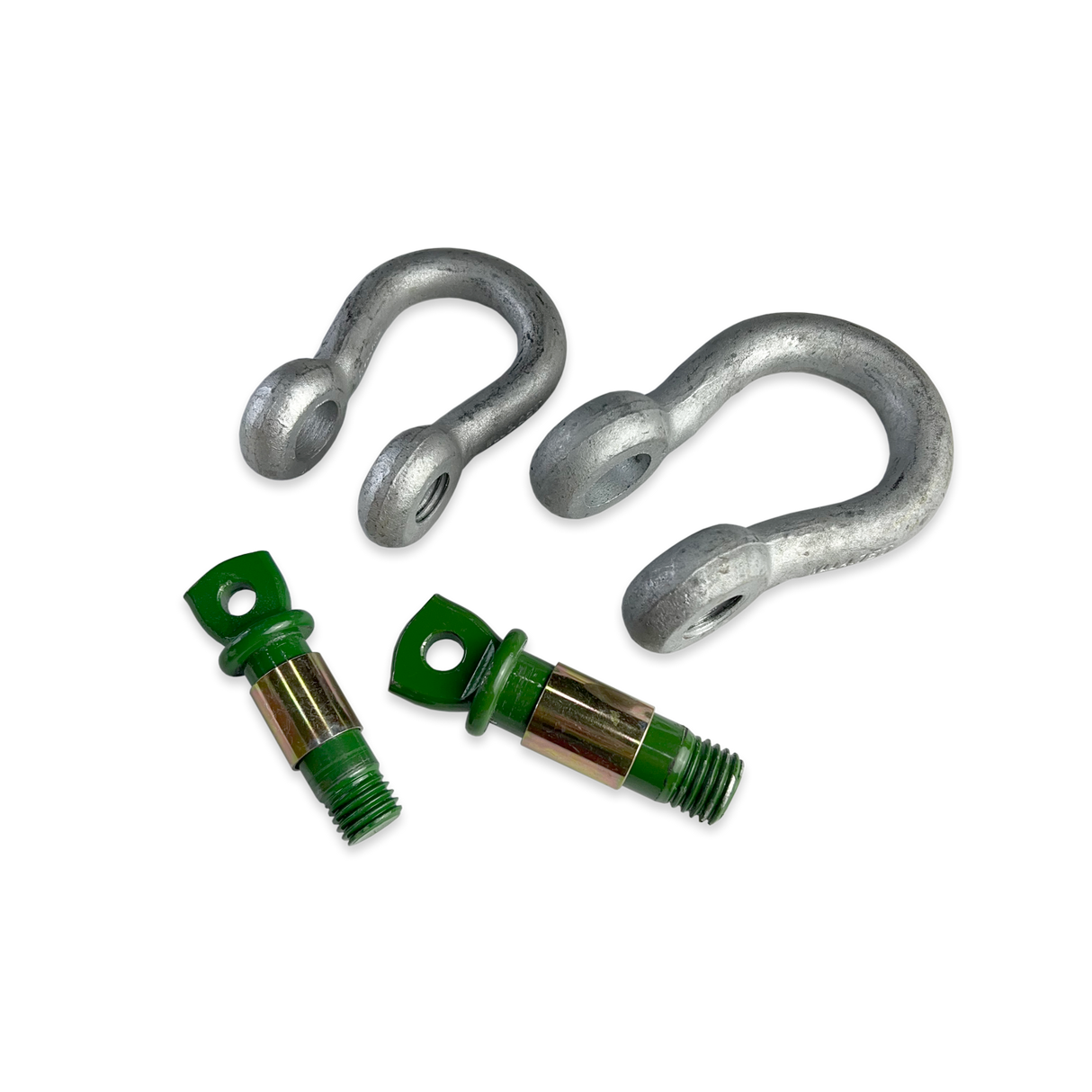

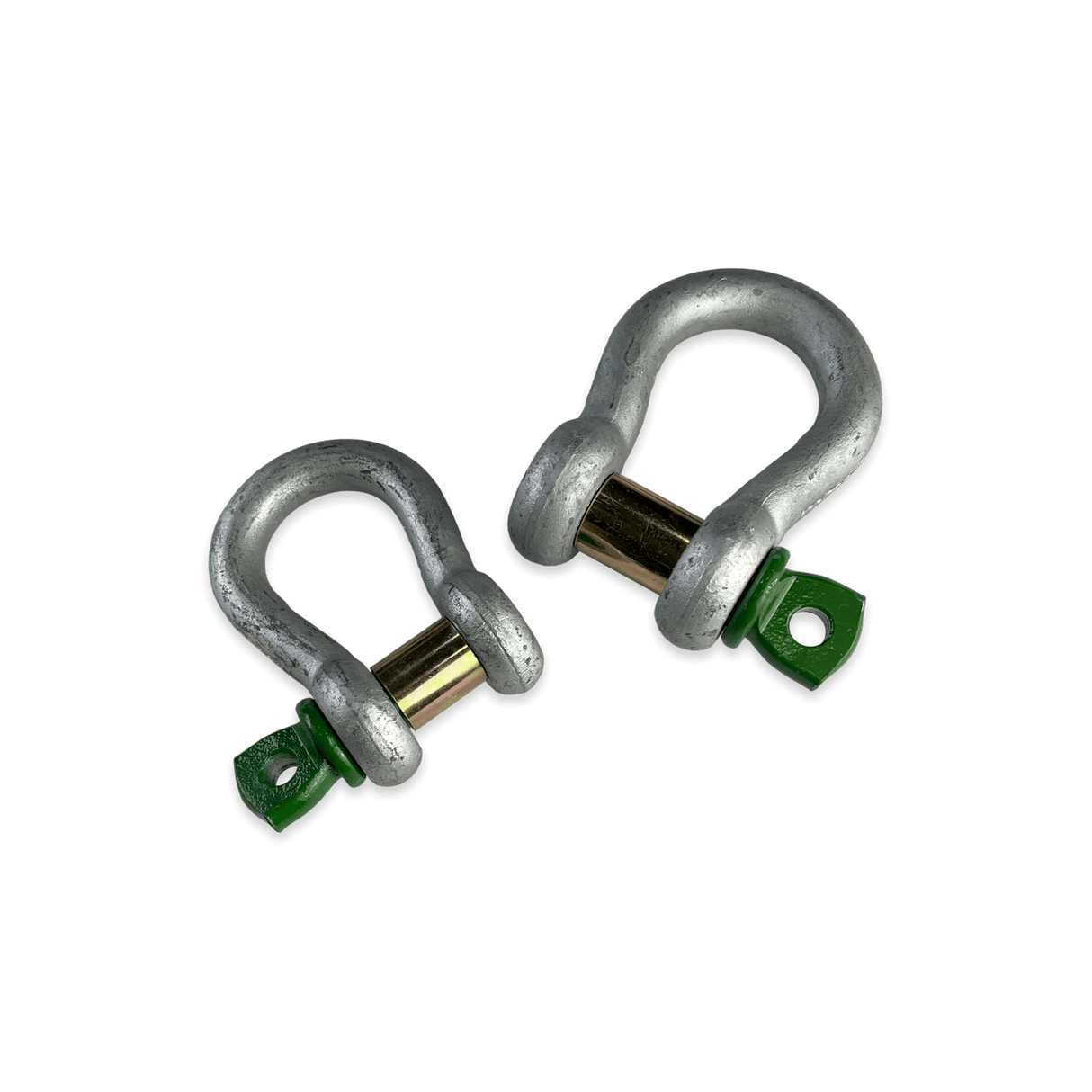

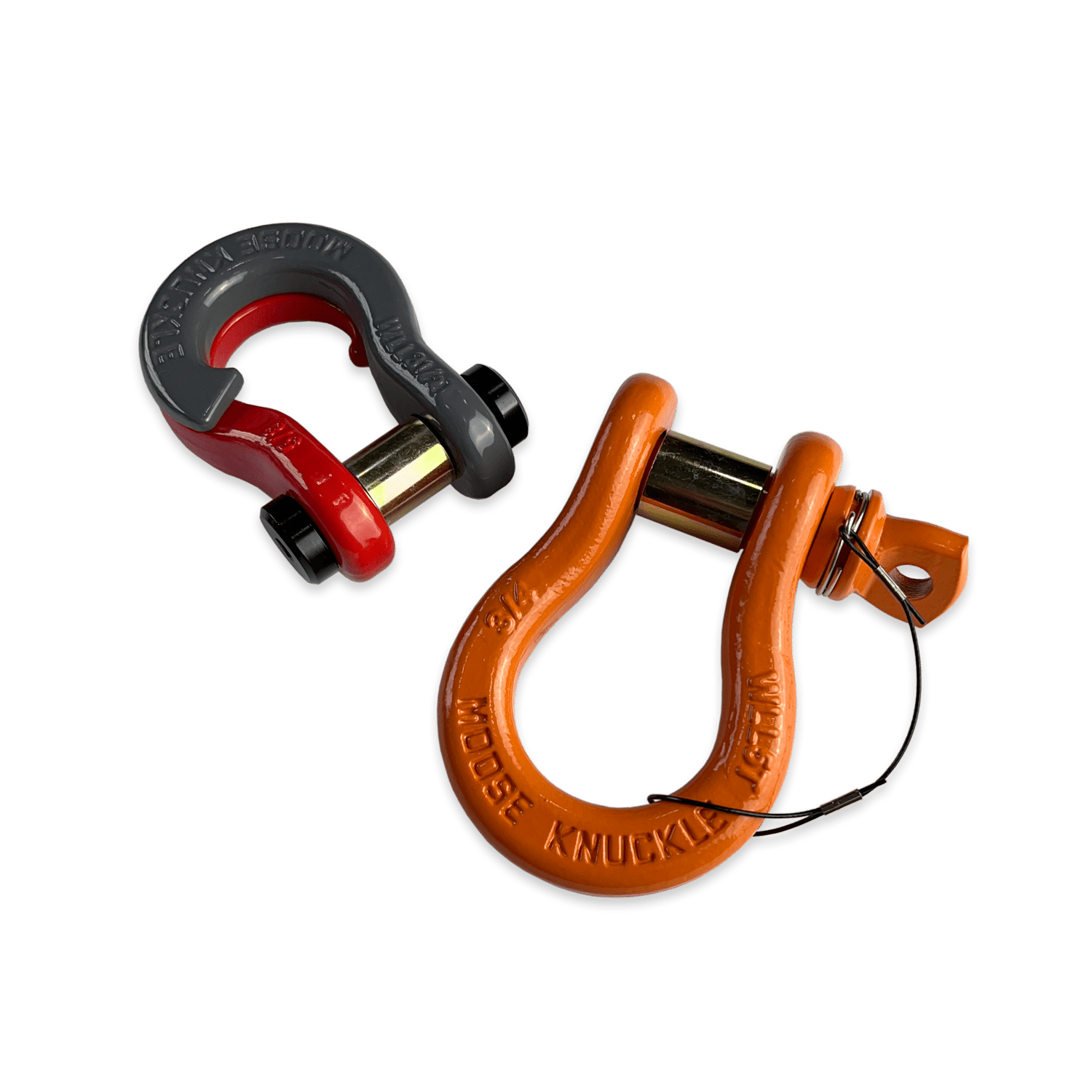

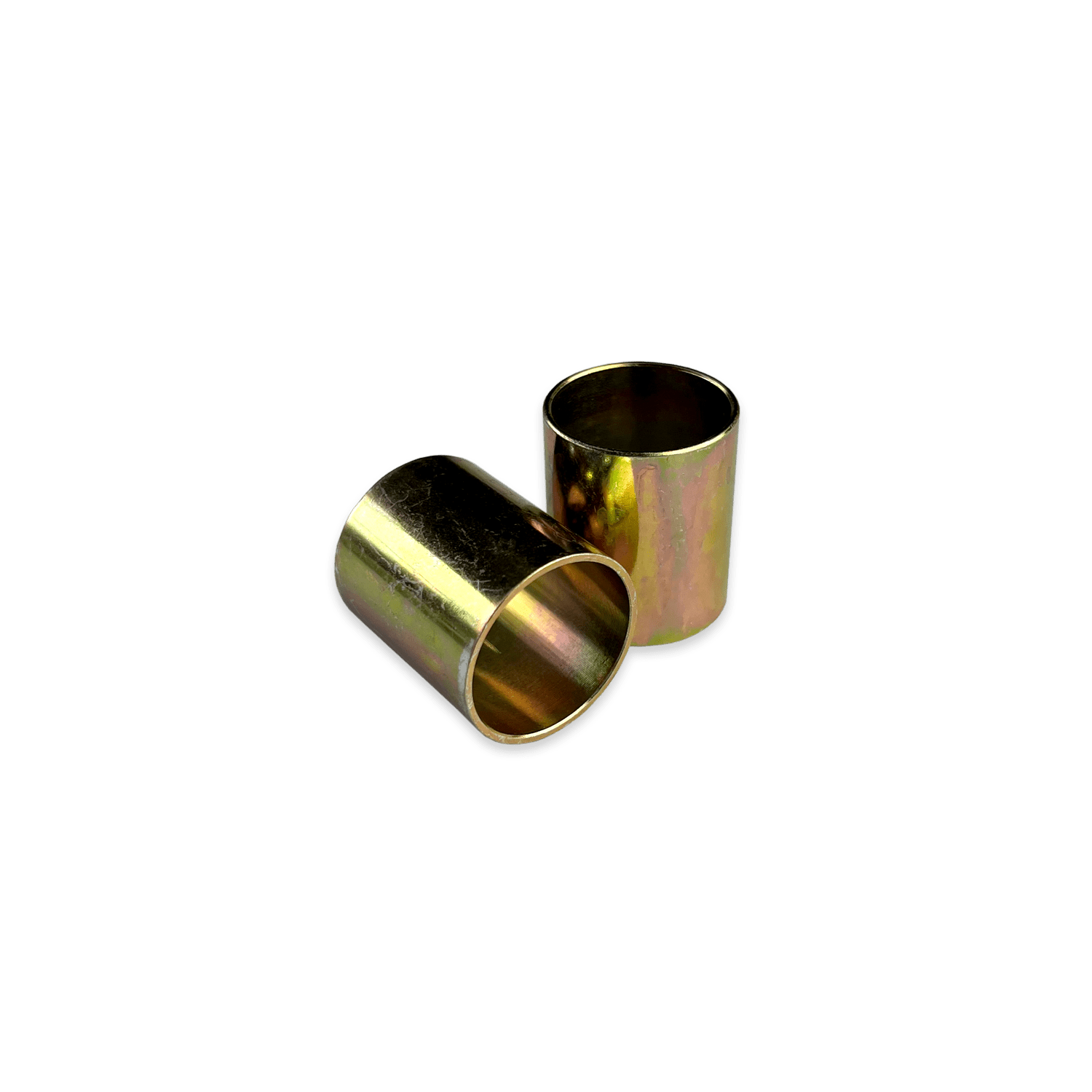

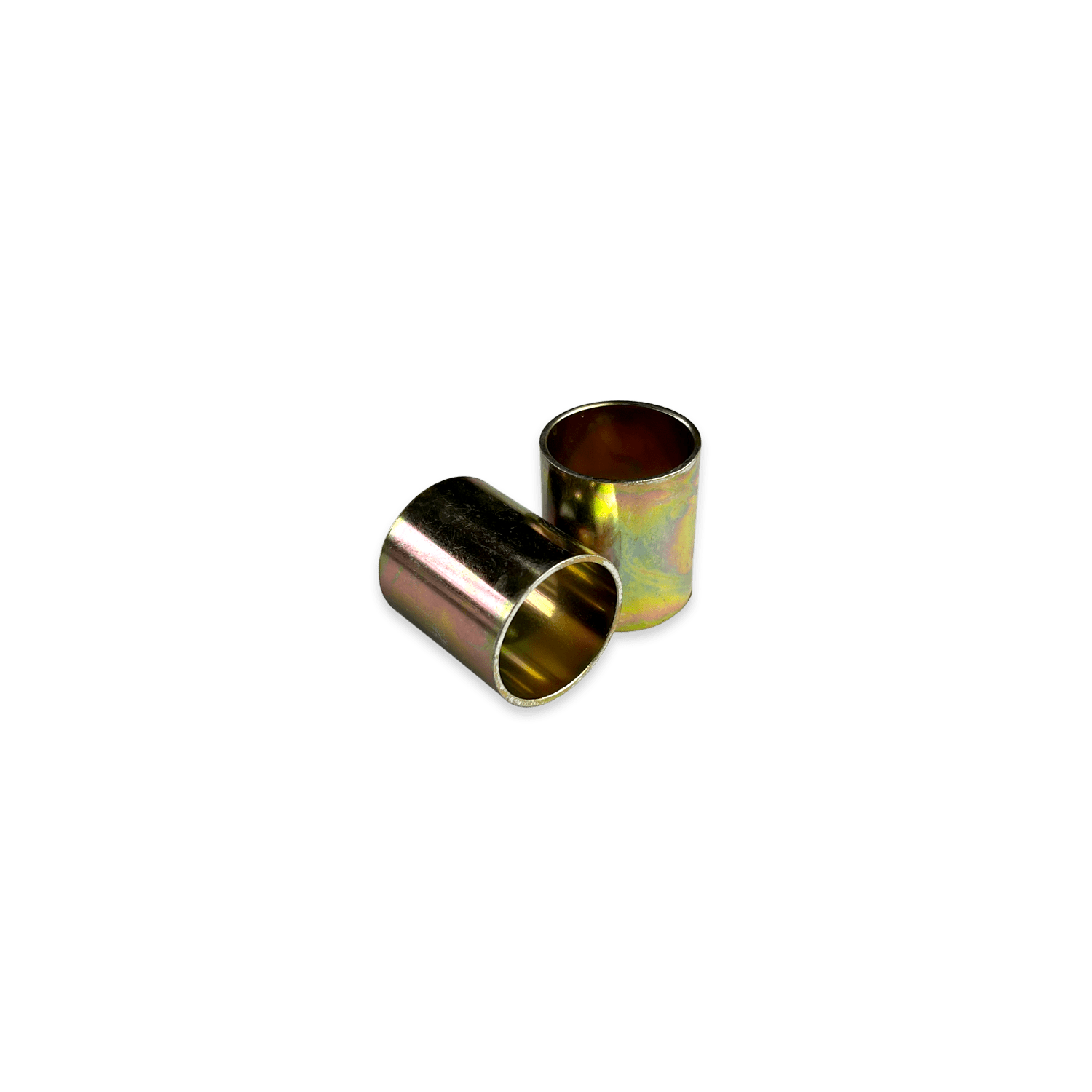

Do you have mounting holes that are too big for your smaller shackles? Well, we've got you covered with our robust metal shackle adapter sleeves. Engineered for durability, these sleeves enable you to effortlessly mount a smaller shackle on a larger shackle pin hole or bumper mount. Crafted from high-quality Grade 8 steel, these adapters ensure strength and reliability in every offroading, overlanding or towing situation.

Need help help choosing your size? Here is some information that will help you out...

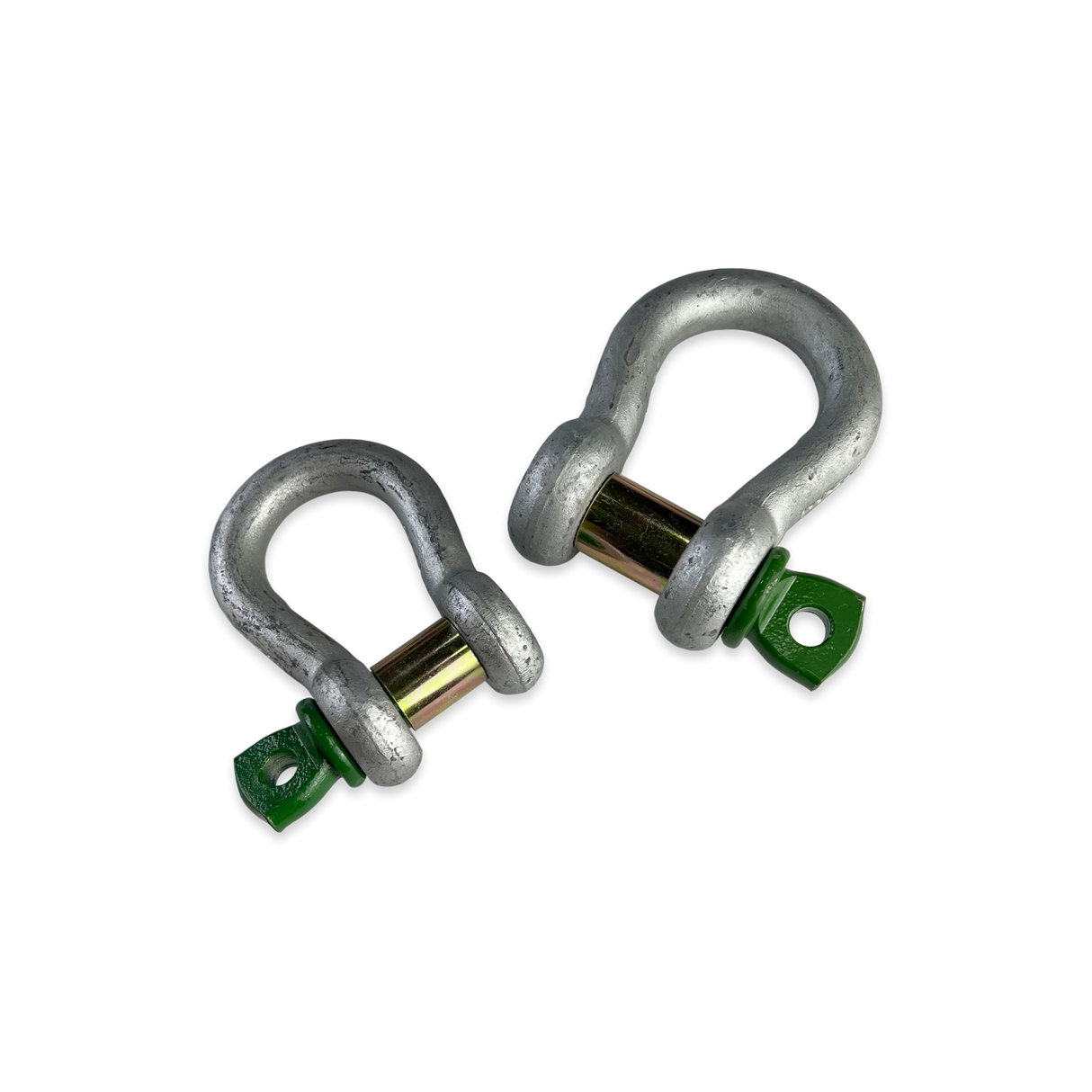

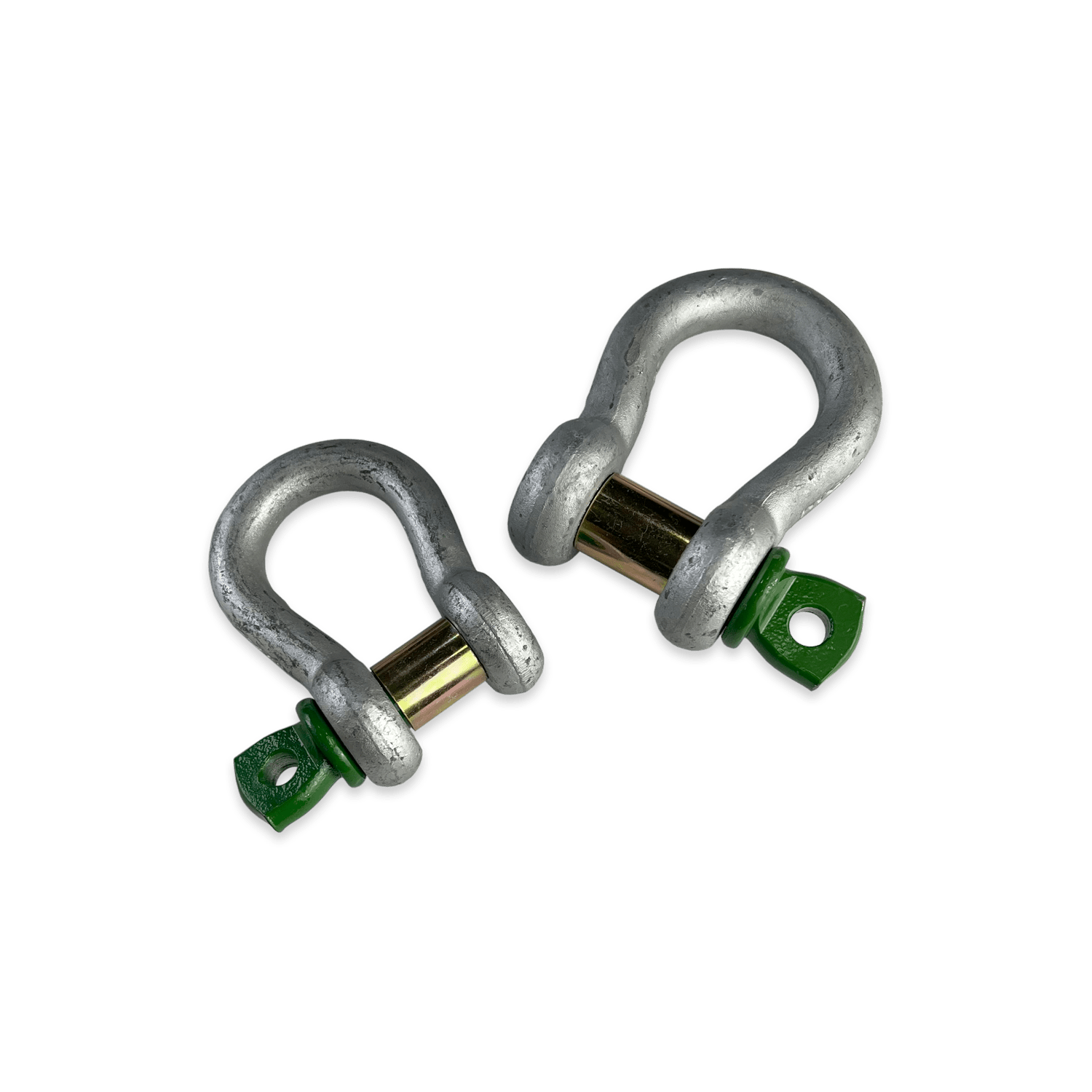

Most shackles have a larger pin diameter compared to the "nominal" shackle size or shackle body size classification. In most cases the shackle pin is 1/8 inch larger in diameter compared to the shackle nominal size designation. For example, the most common size shackle for midsize trucks, jeeps and SUVs is a 3/4 inch shackle that has a pin diameter of 7/8 inch so that the shear strength of the pin matches or exceeds the strength of the shackle body size. Here is a short list of common shackles sizes used for offroading and vehicle recovery so you can get familiar with their corresponding pins sizes.

1/2 inch nominal shackle size - 5/8 inch diameter pin

5/8 inch nominal shackle size - 3/4 inch diameter pin

3/4 inch nominal shackle size - 7/8 inch diameter pin

7/8 inch nominal shackle size - 1.0 inch diameter pin

1.0 inch nominal shackle size - 1.125 inch diameter pin

Each product pack comes with two shackle adapter sleeves so you can mount a pair of shackle to your bumper.

*Shackles not included

Shackle Adapter Sleeve Specs:

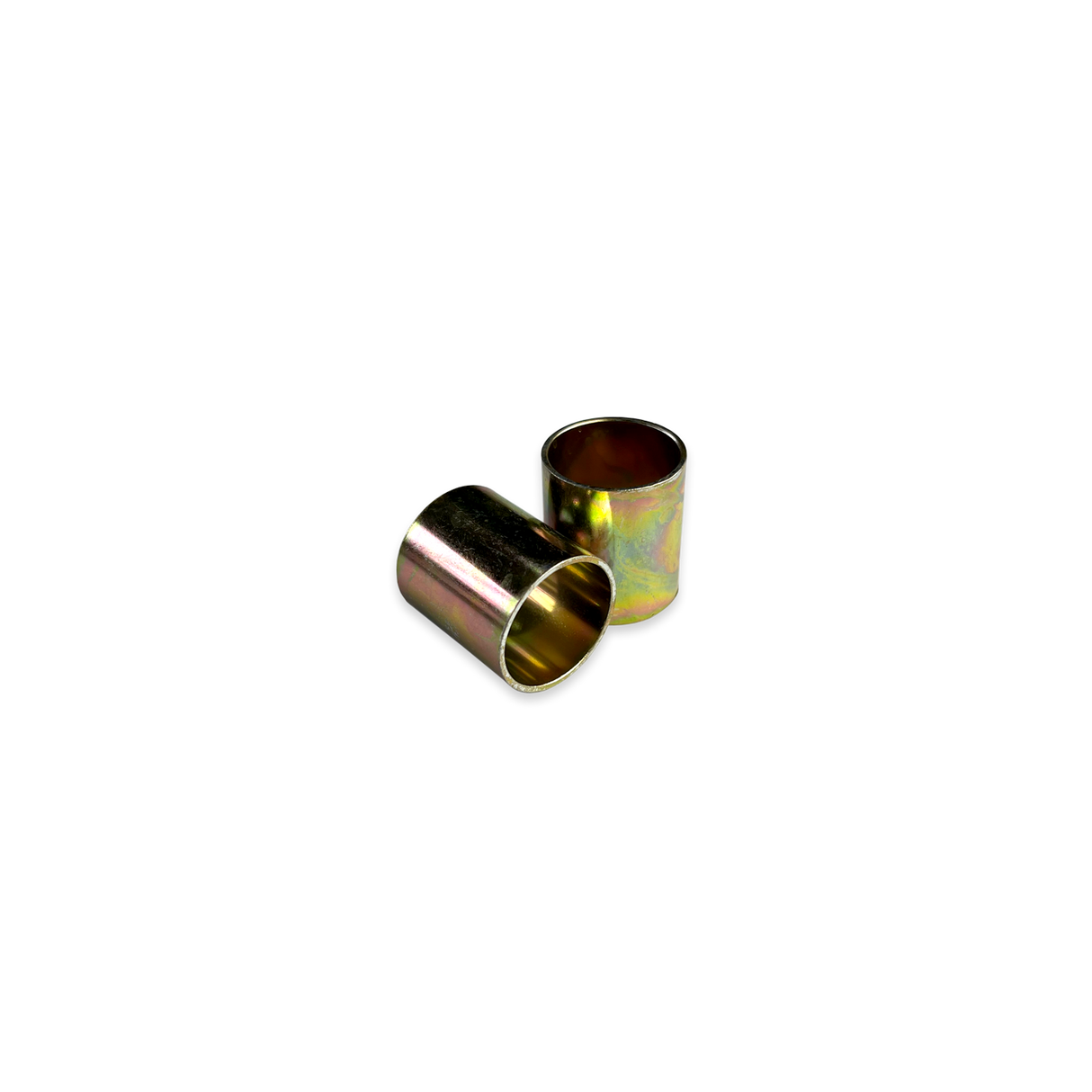

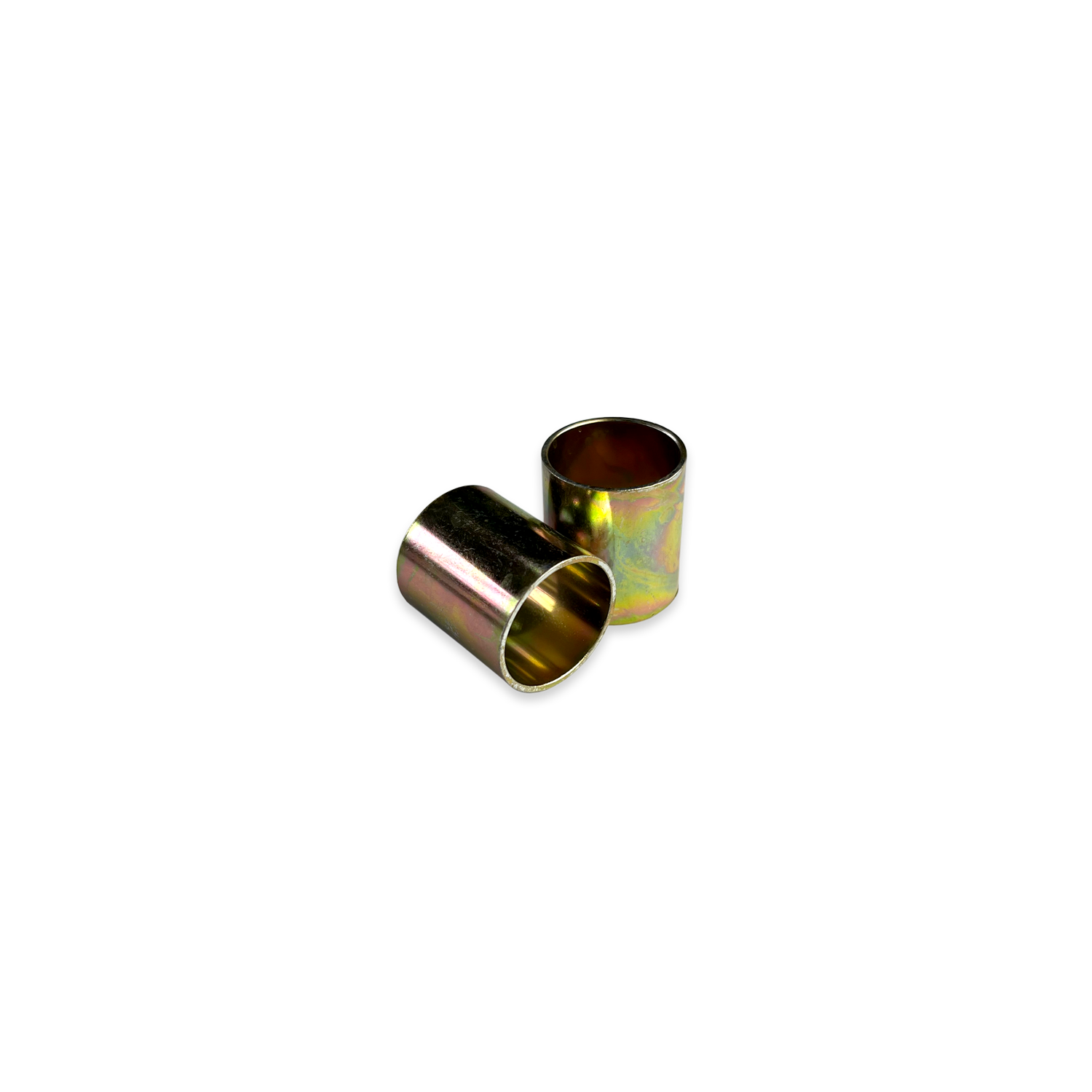

  • 1/2 Shackle Adapter - Sleeve inside diameter fits 5/8 inch pin | Sleeve outside diameter fits 3/4" mounting Hole

Sleeve Dimensions: 0.75" (19.05mm) OD x 0.66" (16.88mm) ID x 0.73" (18.58mm) W

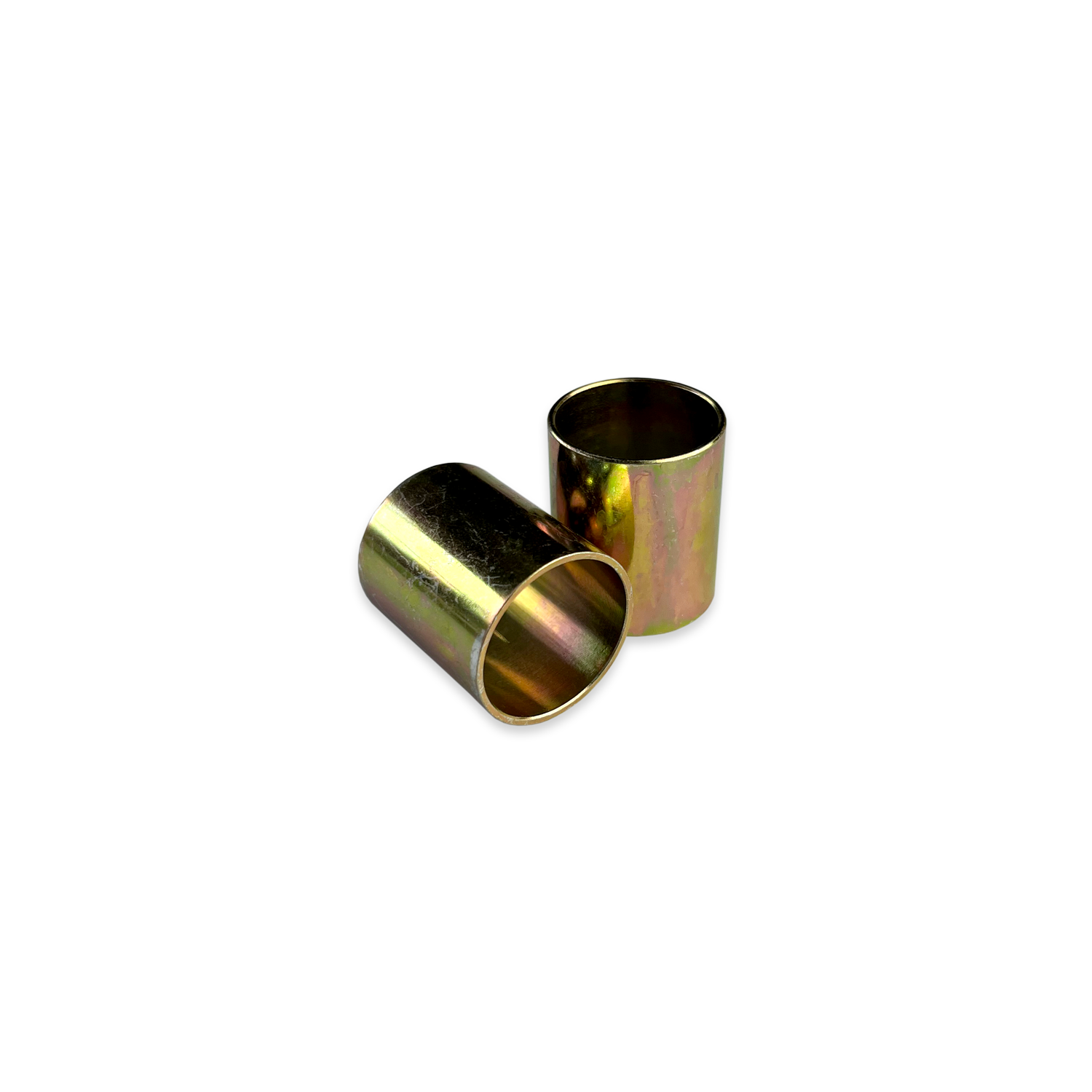

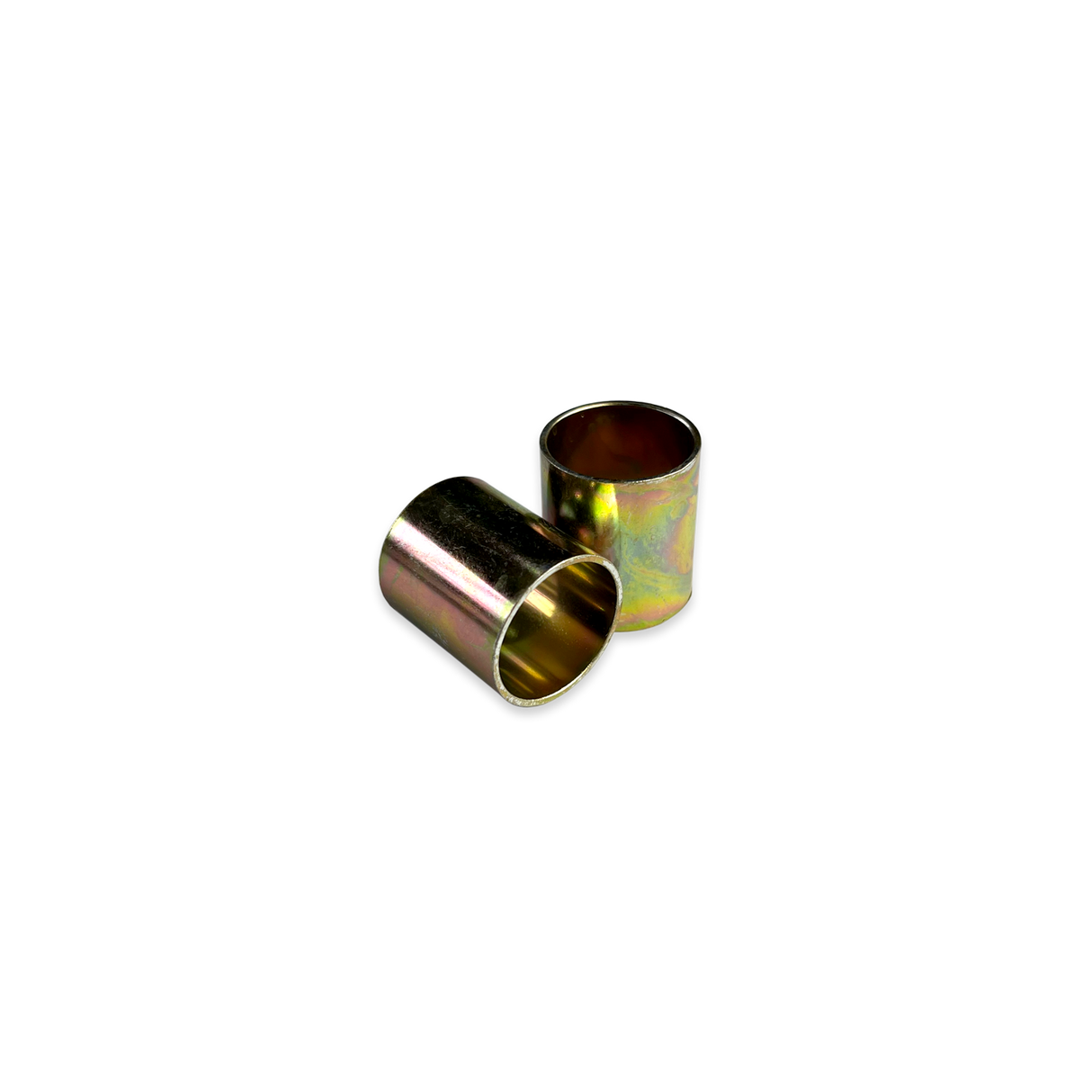

  • 5/8 Shackle Adapter - Sleeve inside diameter fits 3/4 inch pin | Sleeve outside diameter fits 7/8" mounting Hole

Sleeve Dimensions: 0.875" (22.23mm) OD x 0.79" (20.05mm) ID x 0.98" (24.92mm) W

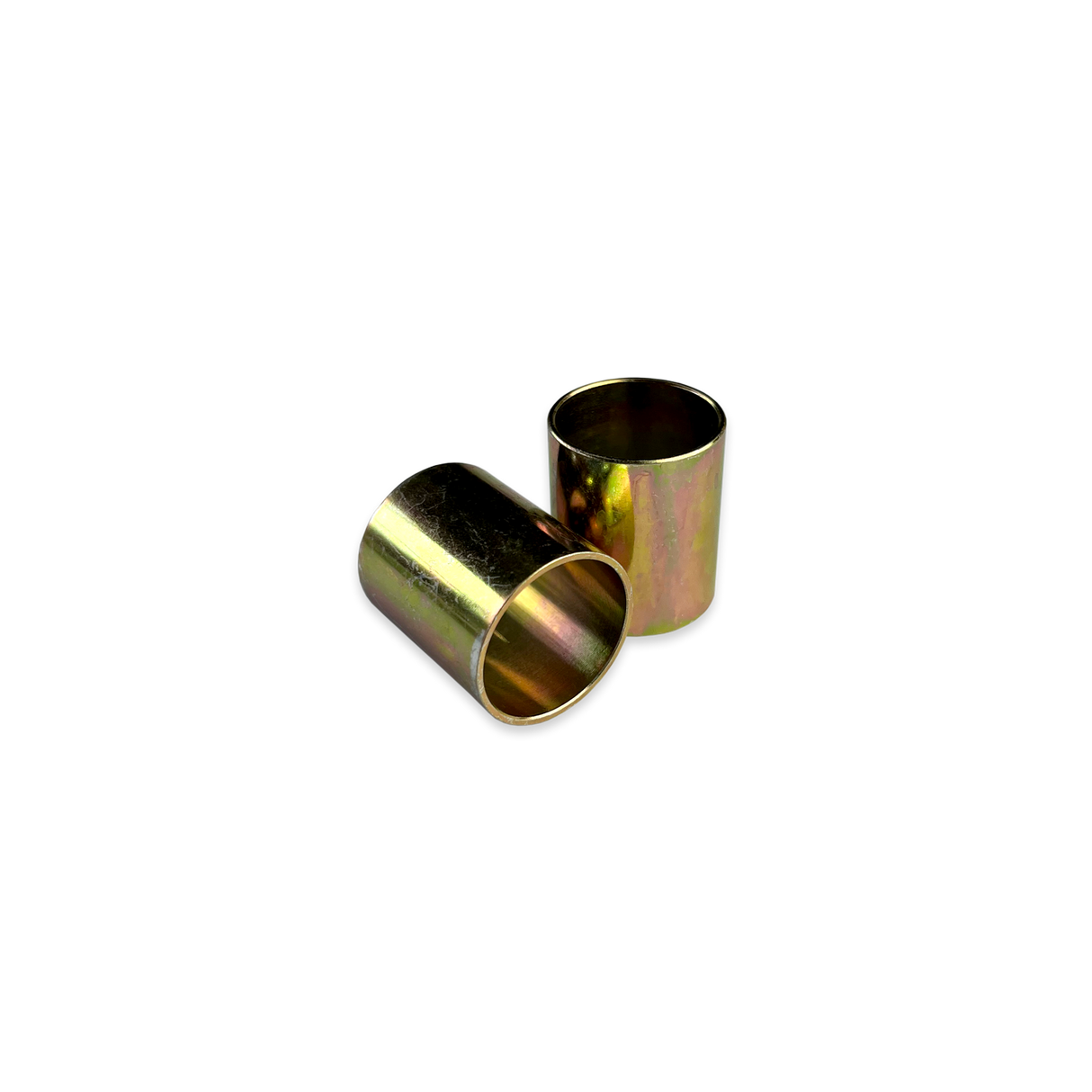

  • 3/4 Shackle Adapter - Sleeve inside diameter fits 7/8 inch pin | Sleeve outside diameter fits 1.0" mounting Hole

Sleeve Dimensions: 1.0" (25.40mm) OD x 0.91" (23.23mm) ID x 1.17" (29.75mm) W

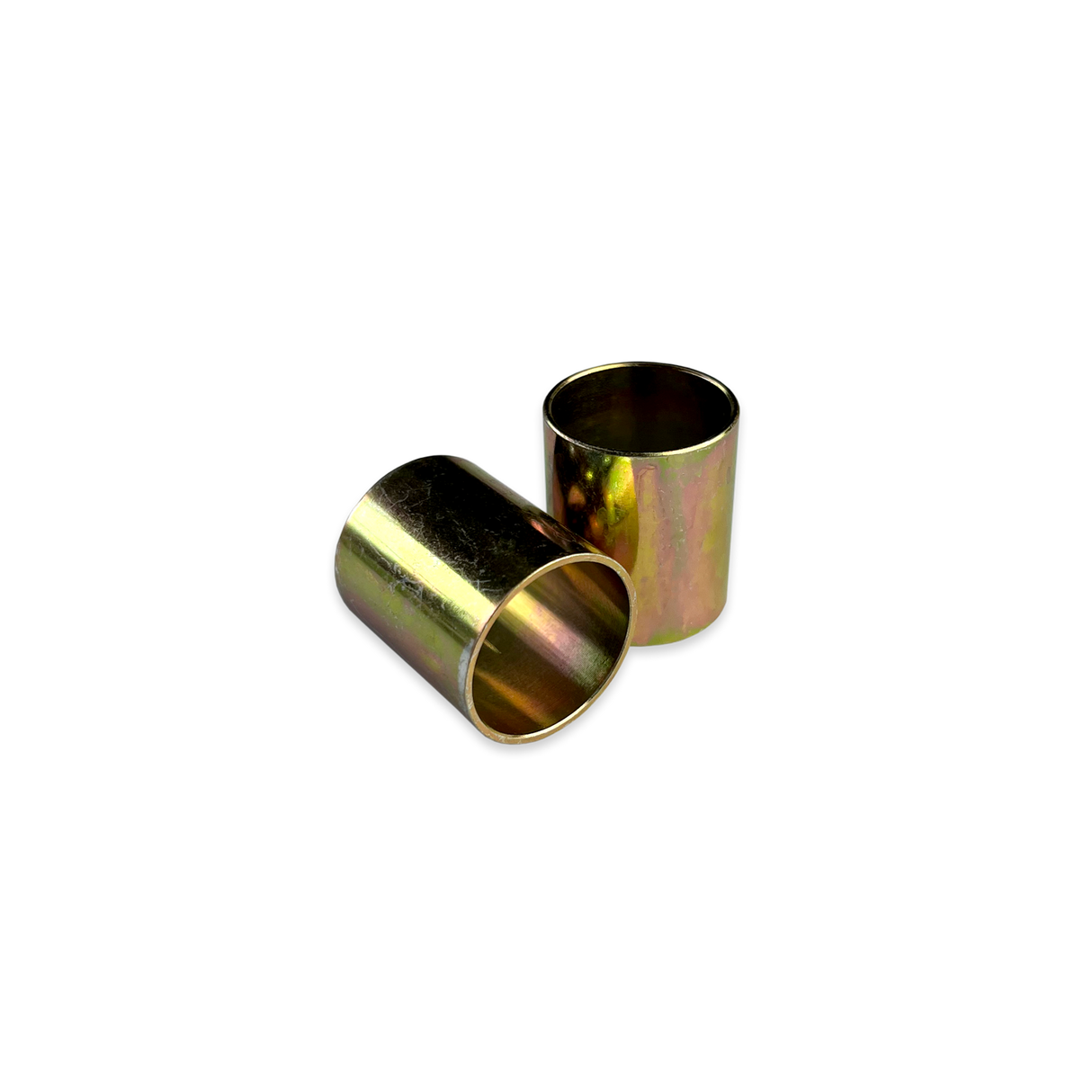

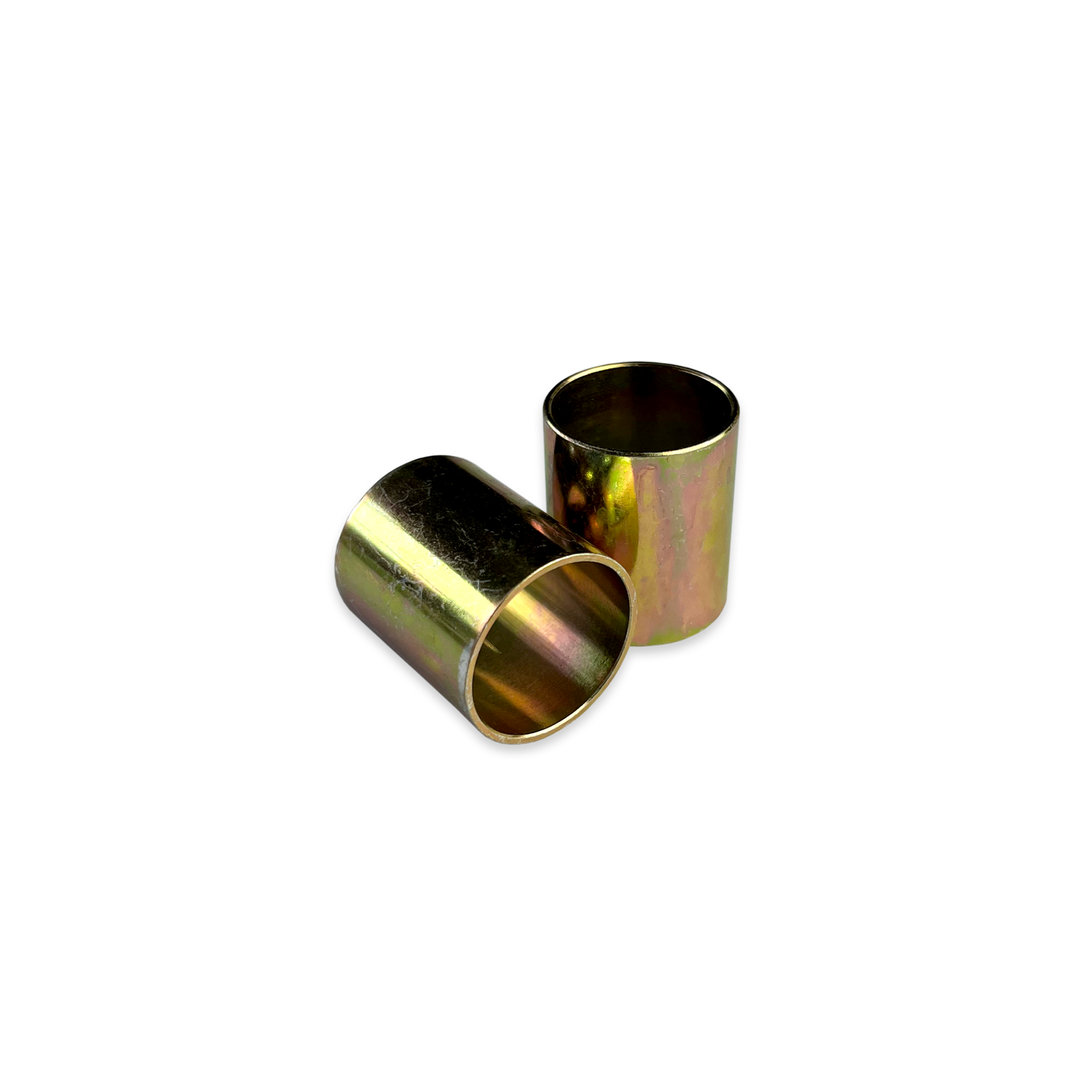

  • 7/8 Shackle Adapter - Sleeve inside diameter fits 1.0 inch pin | Sleeve outside diameter fits 1.125" Hole

Sleeve Dimensions: 1.125" (28.58mm) OD x 1.04" (26.40mm) ID x 1.36" (34.58mm) W
