Description

Heavy-Duty Swing Out Hinge Kit – CNC Machined with Uniball Design

Build your own swing-out tire carrier or rear bumper system with our complete swing out hinge kit, engineered for strength, smooth operation, and long-lasting reliability. Unlike cheap trailer bearing kits, our design uses COM16 uniballs and O-ring sealing to deliver low-maintenance performance built to handle real off-road abuse.

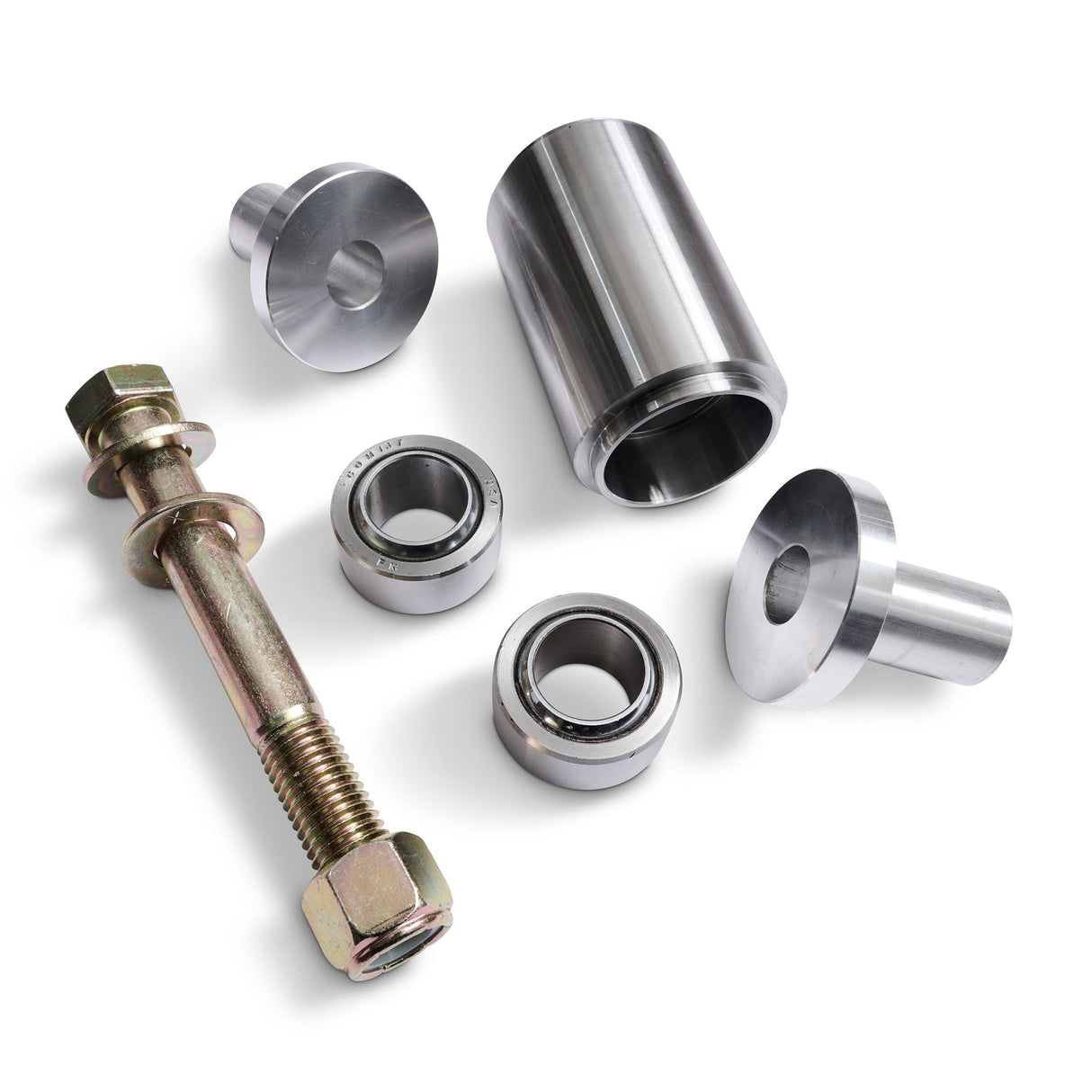

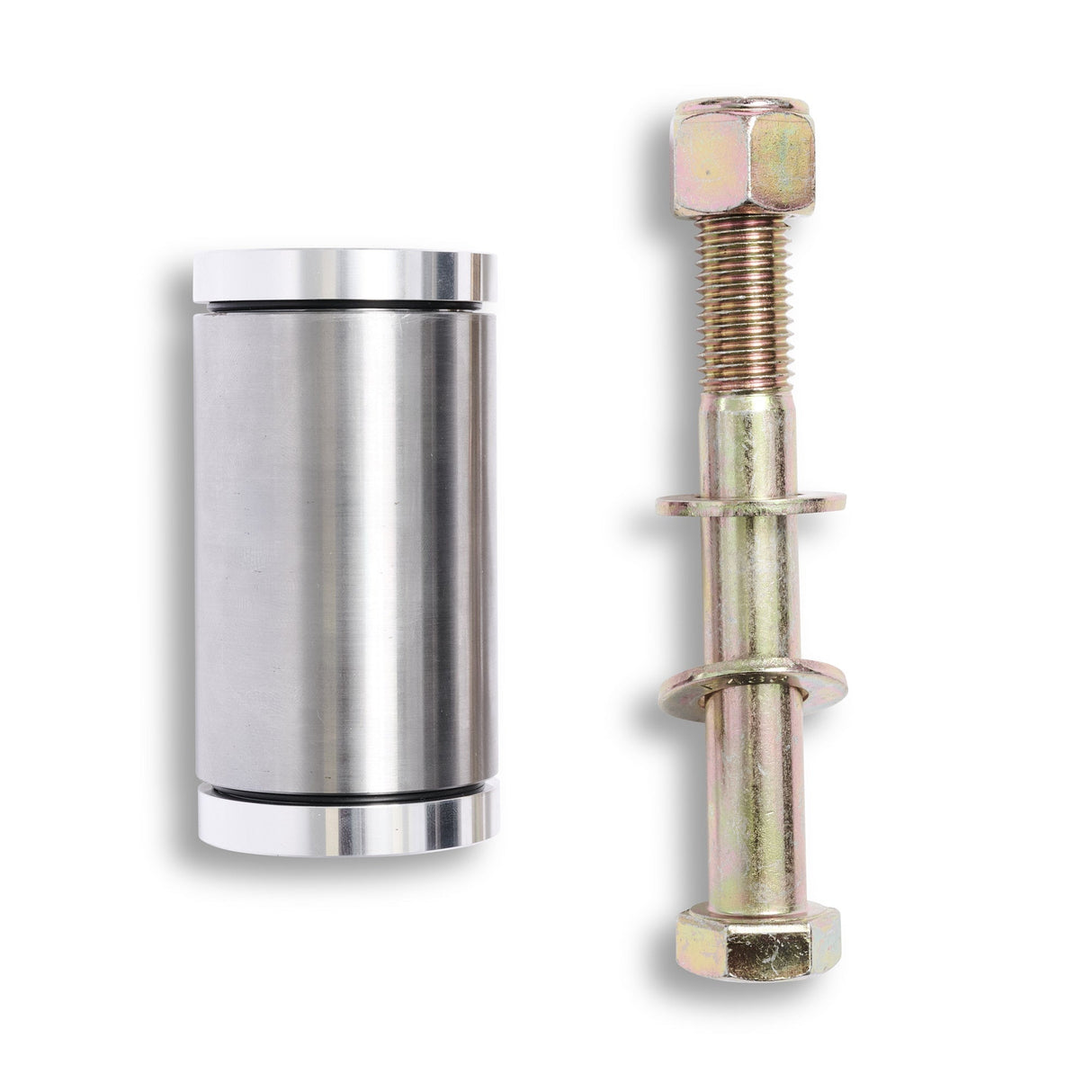

Complete Kit Includes

(1) CNC-machined steel hinge barrel
(2) Aluminum misalign spacers
(2) COM16 uniballs
(2) O-rings
(1) Set of ¾” Grade 8 hardware

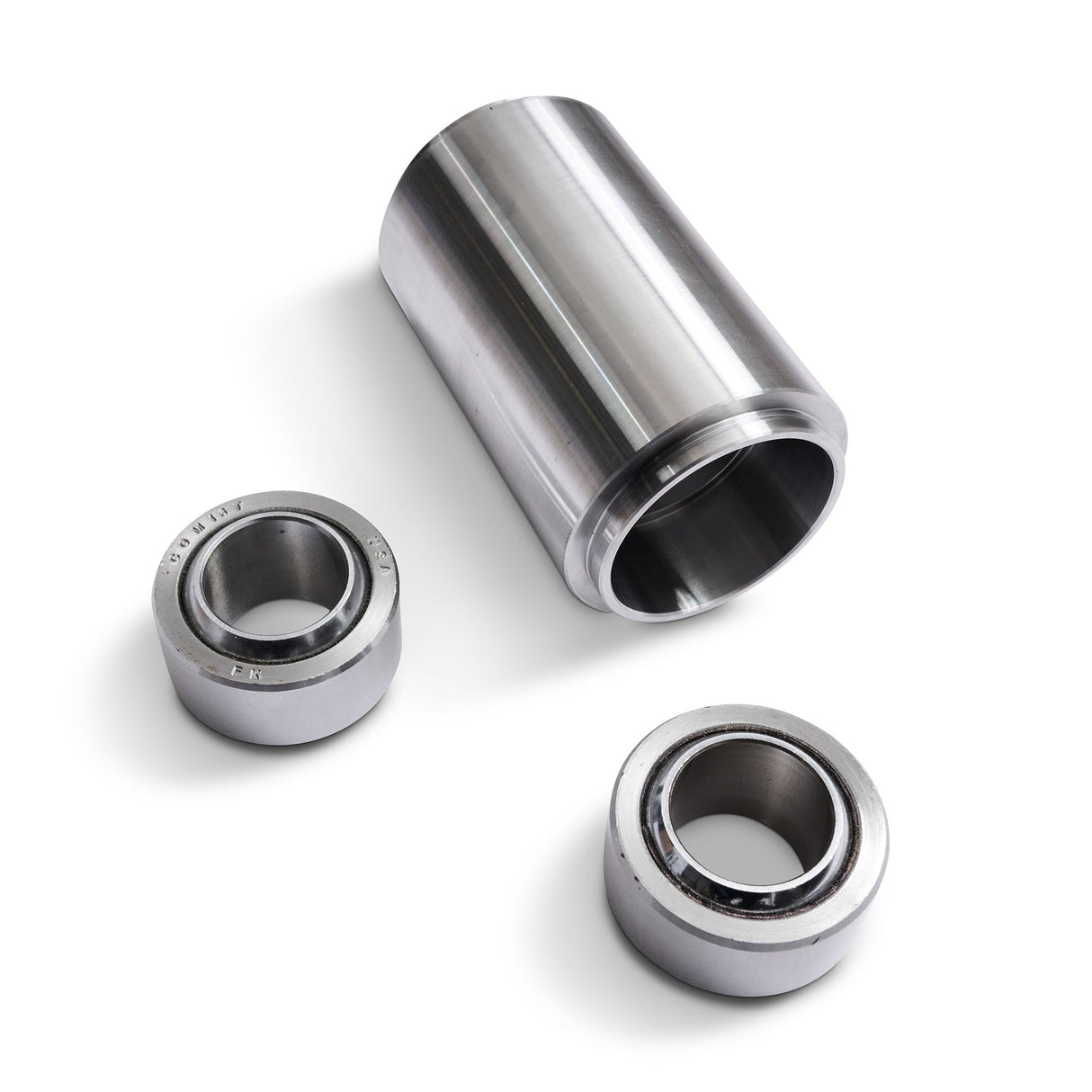

Rebuild Kit Includes

(2) COM16 uniballs
(2) O-rings

Technical Specs

Overall height: ~4.5”
Outside diameter: 2.25”
Low-maintenance design with sealed uniballs and O-ring protection

Why Our Hinge Kit?

Uniball-Based Design – Stronger and smoother than trailer bearing alternatives.

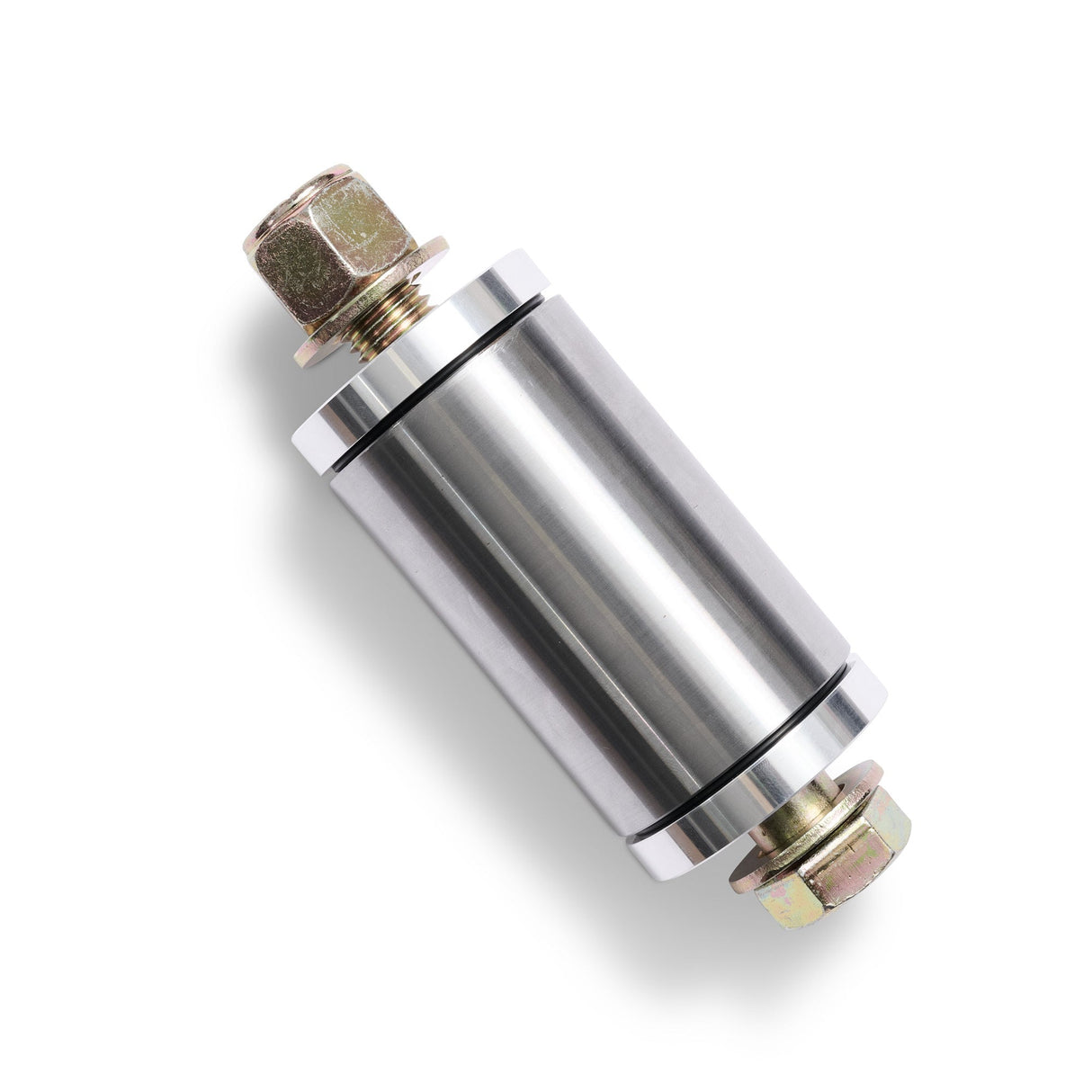

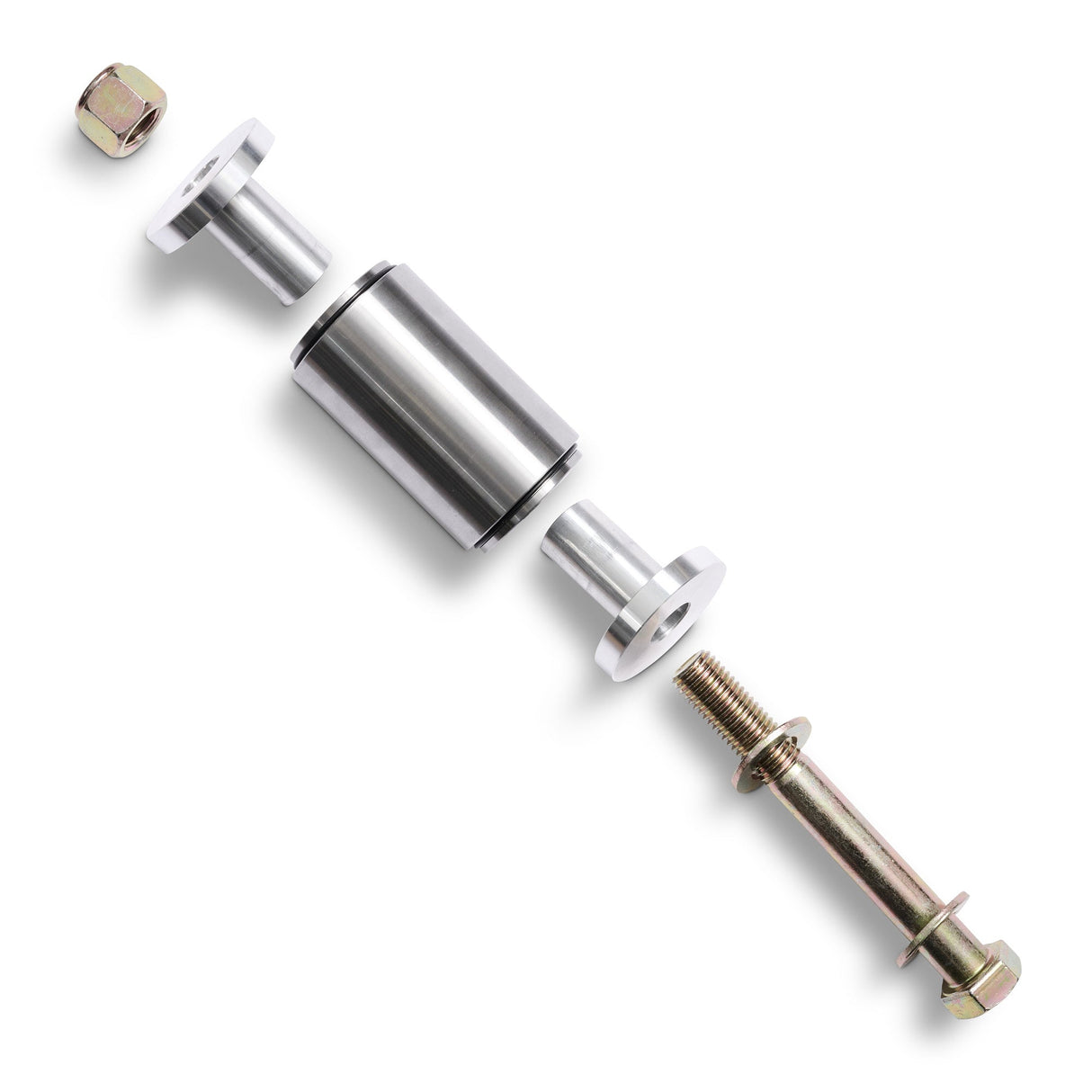

Weather Sealed – O-rings are sandwiched between the steel housing and aluminum spacers, keeping out water, dirt, and grime.
Smooth Operation – A light coat of grease along the O-rings ensures quiet, reliable movement over time.
DIY Friendly – Perfect for fabricators building custom swing-out bumpers or carriers.

This hinge kit is the ultimate solution for swing-out bumper builds, giving you strength, durability, and maintenance-free performance where it matters most.
