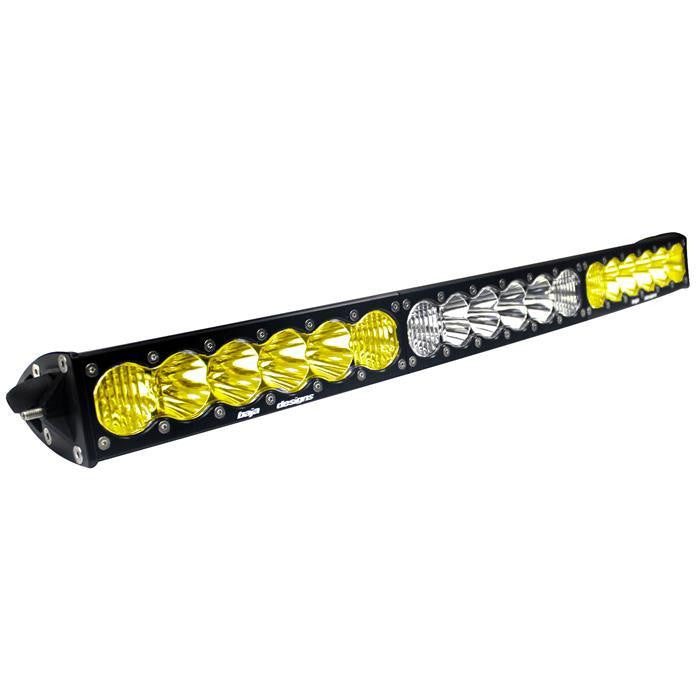

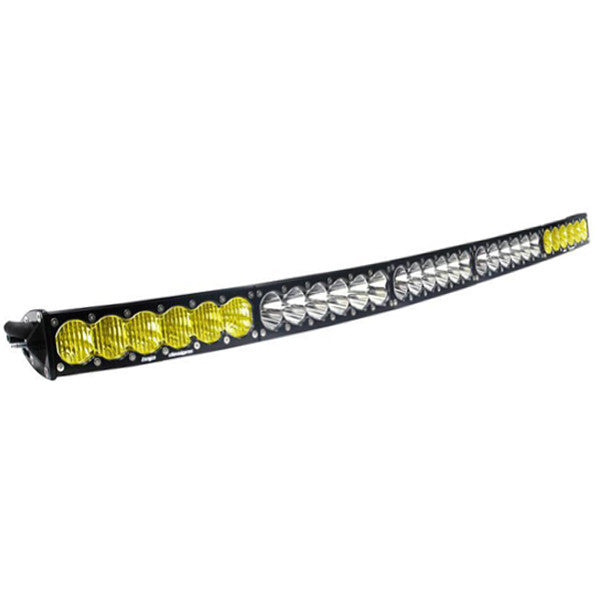

Baja Designs OnX6 Arc Dual Control LED Light Bar - Universal

  • ESTIMATED LEAD TIMES: BED RACKS & XBRS: 6-8 WEEKS | AXS GATE & SUB STRUCTURE KITS: 2-3 WEEKS
Regular price$1,349.95
/

Description

Now you can have the best of both worlds with the OnX6 Dual Control LED Light Bar. With the addition of another power cord and switch, you have the ability to control the inner and outer sections individually. This configuration provides a versatile package by allowing you to have one light bar with both amber and white light. An industry first 30 Day Satisfaction Guarantee and Limited Lifetime Warranty is included for the ultimate in purchase protection. The OnX6 Arc Dual Control LED Light Bar LED Light Bar is BRIGHTER, BOLDER, BETTER.

Satisfaction Guarantee – 30-Day Money Back Guarantee

Limited Lifetime Warranty – Complete Purchase Protection

uService – Replaceable Lenses And Optics

ClearView – All The Light, Right Where You Need It

MoistureBlock – Waterproof, Rain Proof, Submersible

CopperDrive – Only LED Driven At 100 Percent

5000K Daylight – Less Driver Fatigue, Natural Color

Please note that this light does NOT include a harness and the applicable harness to this light is 640119.

Detailed Specs

SKU: 523003DC

Dimensions

Depth (in.) 4.290
Height (in.) 2.690
Length (in.) 30
Weight (lbs.) 11.450

Specifications

Average Rated Life (hr.) 49,930
Beam Pattern Driving/Combo
Bezel Material Billet Machined Aluminum
Brightness (Lumens) 28,938 (High); 23,150 (Low)
Description Arc; Driving/Combo; Amber/Clear
Housing Color Black
Housing Material Aircraft Grade Aluminum with Mil-Spec Hard Anodize
Lens Color Amber/Clear
Lens Material Hardcoated Polycarbonate
Light Quantity 1
Lighting Modes High Beam/Low Beam
Lighting Quantity 18
Lighting Technology LED
Lighting Type Forward Projecting
Mounting Hardware Description Mounting Brackets
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type OnX6+ 30 Inch Arc Dual Control LED Light Bar
Universal or Specific Universal
Wiring Harness Description Hi-Low Dongle
Wiring Harness Included No

Standards & Compliance

Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)

SKU: 524003DC

Dimensions

Depth (in.) 4.29
Height (in.) 2.69
Length (in.) 40
Weight (lbs.) 15.05

Specifications

Amperage Rating (A) 26.8 (High); 22.4 (Low)
Average Rated Life (hr.) 49,930
Beam Pattern Driving/Combo
Bezel Material Billet Machined Aluminum
Brightness (Lumens) 39,220 (high); 32,760 (Low)
Description Arc; Driving/Combo; Amber/Clear
Housing Color Black
Housing Material Aircraft Grade Aluminum with Mil-Spec Hard Anodize
Lens Color Amber/Clear
Lens Material Hardcoated Polycarbonate
Light Quantity 1
Lighting Modes High Beam/Low Beam
Lighting Quantity 24
Lighting Technology LED
Lighting Type Forward Projecting
Mounting Hardware Description Mounting Brackets
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type OnX6+ 40 Inch Arc Dual Control LED Light Bar
Universal or Specific Universal
Wattage (W) 340 (High); 284 (Low)
Wiring Harness Description Hi-Low Dongle
Wiring Harness Included No

Standards & Compliance

Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)

SKU: 525003DC

Dimensions

Depth (in.) 4.29
Height (in.) 2.69
Length (in.) 50
Weight (lbs.) 18.65

Specifications

Amperage Rating (A) 28.2 (High)
Average Rated Life (hr.) 49,930
Beam Pattern Driving/Combo
Bezel Material Billet Machined Aluminum
Brightness (Lumens) 39,910 (high)
Description Arc; Driving/Combo; Amber/Clear
Housing Color Black
Housing Material Aircraft Grade Aluminum with Mil-Spec Hard Anodize
Lens Color Amber/Clear
Lens Material Hardcoated Polycarbonate
Light Quantity 1
Lighting Modes High Beam
Lighting Quantity 30
Lighting Technology LED
Lighting Type Forward Projecting
Mounting Hardware Description Mounting Brackets
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type OnX6+ 50 Inch Arc Dual Control LED Light Bar
Universal or Specific Universal
Wattage (W) 346 (High)
Wiring Harness Included No

Standards & Compliance

Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)

SKU: 526003DC

Dimensions

Depth (in.) 4.29
Height (in.) 2.69
Length (in.) 60
Weight (lbs.) 22.25

Specifications

Amperage Rating (A) 30 (High)
Average Rated Life (hr.) 49,930
Beam Pattern Driving/Combo
Bezel Material Billet Machined Aluminum
Brightness (Lumens) 44,100 (high)
Description Arc; Driving/Combo; Amber/Clear
Housing Color Black
Housing Material Aircraft Grade Aluminum with Mil-Spec Hard Anodize
Lens Color Amber/Clear
Lens Material Hardcoated Polycarbonate
Light Quantity 1
Lighting Modes High Beam
Lighting Quantity 36
Lighting Technology LED
Lighting Type Forward Projecting
Mounting Hardware Description Mounting Brackets
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type OnX6+ 60 Inch Arc Dual Control LED Light Bar
Universal or Specific Universal
Wattage (W) 351 (High)
Wiring Harness Included No

Standards & Compliance

Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
