Bed Racks - Nissan Titan - Xtrusion Overland

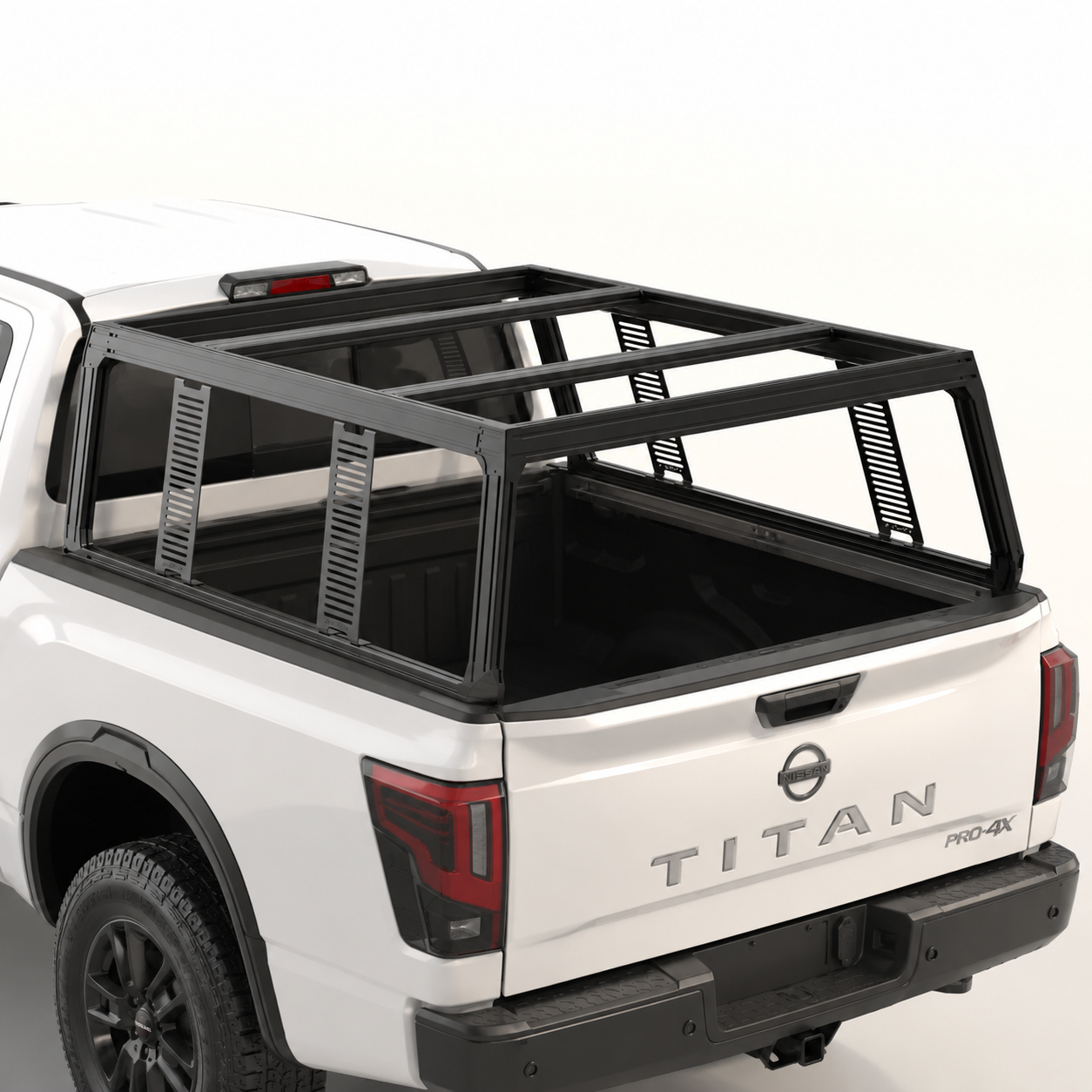

Nissan Titan Bed Racks

(10 products)

Bed racks for the Nissan Titan, both the 2004–2015 first generation and the 2016–2024 second. Titan racks come for the short bed and the longer bed, in open, Retrax XR and soft topper styles, all made in Wichita, Kansas. XTR1 and XTR3 racks are built to order, to your height requirements, with T-slot profile construction, and they mount without drilling.

Nissan Titan bed racks by type

Rack Heights Load rating* Beds offered
XTR1 Pre-configured 17" mid or 23" cab 450 / 850 / 1,550 lb Short or regular, both generations
XTR3 Pre-configured 17" mid or 23" cab 500 / 850 / 1,750 lb 2016–2024 short or regular; 2004–2015 short; 2004–2008 regular
XTR1 Custom Height 10" to 26" 450 / 850 / 1,550 lb Short or regular, both generations
XTR3 Custom Height 10" to 26" 500 / 850 / 1,750 lb Short or regular, both generations
XTR1 for Retrax XR 17" mid or 23" cab 450 / 850 / 1,550 lb 2016–2024 short or regular; 2004–2015 short; 2004–2008 regular
XTR3 for Retrax XR 17" mid or 23" cab 500 / 850 / 1,750 lb 2016–2024 short or regular; 2004–2015 short; 2004–2008 regular
XTR1 Soft Topper 21" to 24" 450 / 850 / 1,550 lb 5'6" or 6'6", both generations
XTR3 Soft Topper 21" to 24" 500 / 850 / 1,750 lb 5'6" or 6'6", both generations
XBRS Bed Bars 6" or 8" 400 / 800 / 1,500 lb 2004–2008, 2009–2015, 2016–2024
XO.SKLTN Topper System Mid or full height 1,550 lb static Short or medium, both generations

*Off-road / on-road / parked, for an evenly spread load. If the truck's rails are rated lower, their number is the limit.

Picking the right Titan version

  • Generation: 2016–2024 trucks pick the "2016+" or "2016–2024" option; 2004–2015 trucks pick "2004–2015". XBRS splits the first generation into 2004–2008 and 2009–2015.
  • Bed: "Short" is the 5'6" bed and "Regular" or "Long" is the 6'6" bed, as the soft topper menus spell out.
  • 2009–2015 with the longer bed: the XTR3 Pre-configured and both Retrax XR menus list that bed only for 2004–2008. Email us with your year before ordering one of those.
  • Titan XD: the XD isn't listed in our Titan menus. Send us your year and bed length first.

On a Titan with Utili-Track channels in the bed rails, the racks fasten into them with channel nuts packed with the rack, so the bed isn't drilled. Spare hardware comes as the XTR Bed Rack Mounting Kit. No Utili-Track on your truck? Contact us first.

Covers that work under a Titan rack

A rack lets you keep a bed cover and still carry a ladder, a kayak or a tent up top. Pair them like this:

  • Soft or roll-up tonneau: Wide Width brackets, standard on most racks, sit the rack 3" above the rails so the cover can still open. Custom Height racks can use the 1.35" Standard Width bracket instead.
  • Retrax XR: choose the Retrax XR build of the XTR1 or XTR3, which mounts on the cover's own rails, or XBRS with the Retrax XR mount. A Retrax EQ needs Custom Height on its Retrax bracket.
  • Soft topper (Softopper, Fas-Top, Bestop): the Soft Topper racks stand 21" to 24" tall with uprights angled 13.3° along the topper.
  • Covers with other T-slot rails: check with us before you order.

See Nissan Titan bed covers if you still need one.

17" or 23" on a Titan, and tents over the cab

The 17" mid height keeps a lower profile behind the cab and puts the crossbars closer to hand. Pick 23" ("cab height" on the menus) for more clearance under the bars. For a tent that extends over the cab, find the gap between the bed rail and the top of the cab or its roof rack, then go at least 1" taller with Custom Height.

How the three ratings apply

Off-road covers trail and washboard driving, on-road covers highway speed, and static covers the truck parked, which includes a tent with people in it. The full build counts against the payload on the Titan's door-jamb sticker. See our payload guide for the math.

Nissan Titan bed rack questions

XTR1 or XTR3 for a full-size Titan bed?

The XTR3 has three uprights a side and three crossbars where the XTR1 has two of each, so ladders, lumber or a tent are supported at more points and the off-road rating goes from 450 lb to 500 lb. The XTR1 is lighter and costs less.

Will a rooftop tent work on a Titan rack?

Yes, mounted on the crossbars with our stainless Rooftop Tent Brackets. Parked, the tent plus the people inside it stay under the static rating; on the move, everything on the rack stays under the on-road rating.

Open rack or the XO.SKLTN?

The open rack gives side access to the bed and room for a tent. The XO.SKLTN closes into a locking topper once its panels are on, ordered with Stage 2A or 2B, or added afterward with the Titan Topper Panel Add-On Kit.

Can the rack's height change after purchase?

Yes. The Titan Alternate Height and Conversion Kit provides uprights from 10" to 26", with separate Retrax brackets for 2004–2015 and 2016–2024 trucks, and can convert an XTR1 to an XTR3. New side and top braces are ordered separately.

Keep building your Titan

Our Lifetime Warranty covers every XTR1 and XTR3. Fit questions go to support@xtrusion-overland.com or (316) 330-0024. Proudly made in the USA.
