Toyota Tacoma bed racks for your overland build.
Four modular T-slot aluminum systems — XTR1, XTR3, XBRS and XO.SKLTN — plus the roof rack that pairs with them all.
Why the Tacoma is the ultimate overland platform
Ask anyone at a trailhead why they built their Tacoma overland rig and you'll hear the same answers: it's the mid-size truck that survives. Two decades of Tacoma generations have earned a reputation for mechanical reliability, legendary resale value, and an aftermarket deeper than any other truck in its class.
The 5-foot and 6-foot beds ship with a factory rail system our racks bolt straight into — no drilling, no welding. A Toyota Tacoma bed rack is usually the first structural upgrade in any build: it turns the bed into a gear garage, keeps weight low between the axles, and leaves the bed floor free.
XTR1 vs XTR3 vs XBRS vs XO.SKLTN
Same T-slot aluminum DNA, four very different silhouettes.

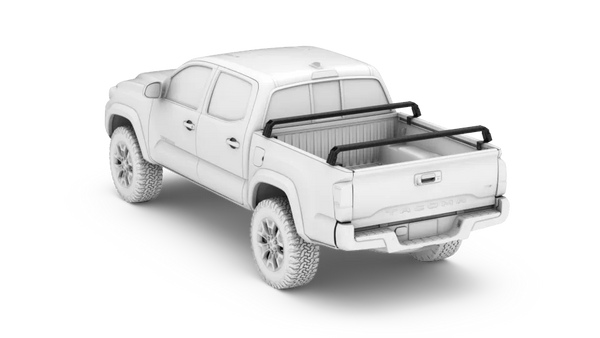

XBRS Bed Bars
Tacoma bed bars for cargo at tonneau height — the lightest way to carry an RTT or boards.
- 6" or 8" bar height
- Universal or Retrax XR mount
- Full T-slot accessory grid

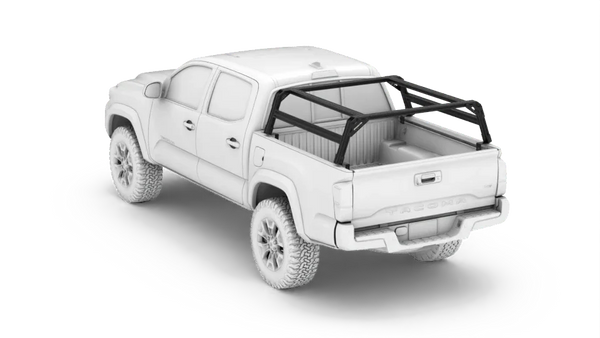

XTR1
The classic open-architecture bed rack. Four uprights, unobstructed bed access, the perfect RTT foundation.
- 400 lb dynamic / 1,200 lb static
- Heights 10" to 22" + custom
- Lightest full-frame rack

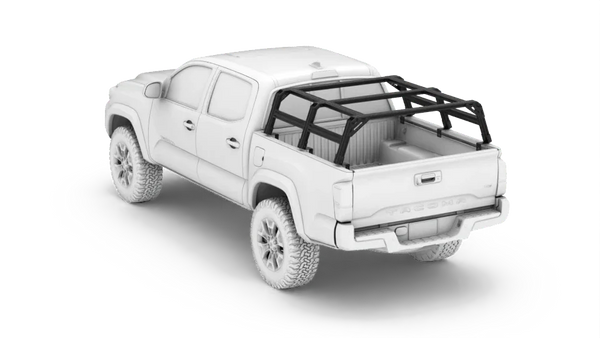

XTR3
Six uprights split each side into four independent quadrants — build no-drill gear walls.
- 450 off-road / 850 on-road / 1,550 static
- Stages: +8 MOLLE, AXS gates, slide-outs
- Reinforcement plates & handles included

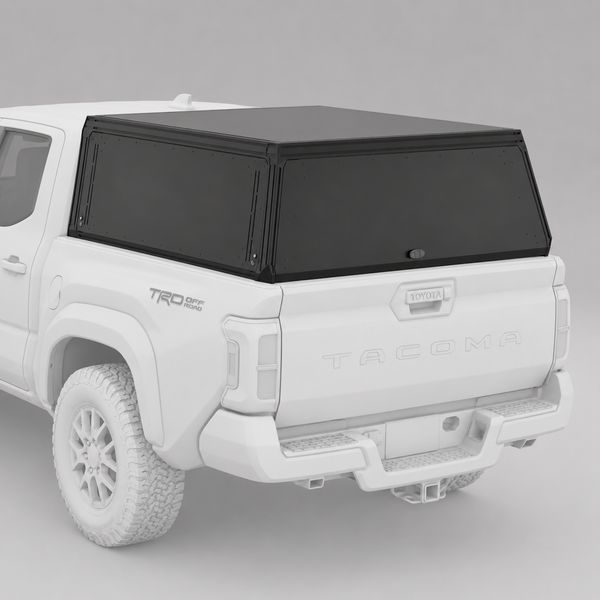

XO.SKLTN
Start as an open rack, add full-access topper shell panels — and an XO RTT platform arriving late 2026.
- 450 off-road / 850 on-road / 1,550 static
- Mid 16" or Full 23" height
- Rack → topper → RTT platform stages
Every Tacoma overland rack, one place.
Pick your system, then pick the variant that matches your bed cover.
XTR1 Bed RacksThe streamlined performer — from $1,549.99

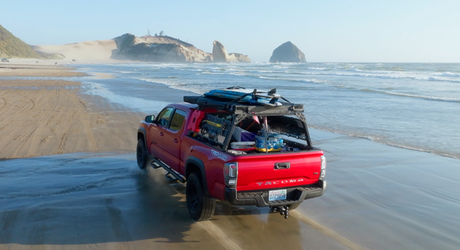

XTR1 Bed Rack for Tacoma

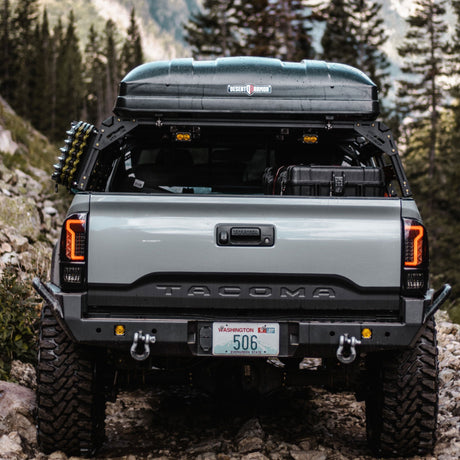

XTR1 for Retrax XR Covers

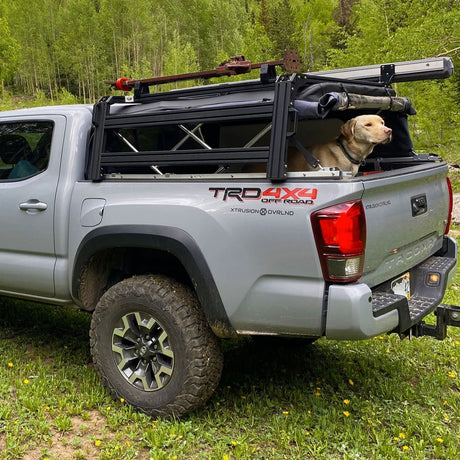

XTR1 for Softopper Covers

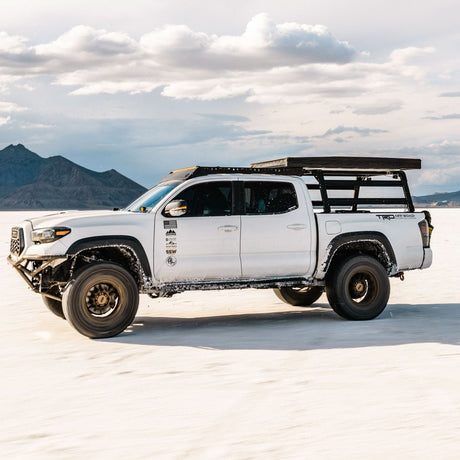

XTR1 Custom Height
XTR3 Bed RacksMission control — from $2,049.99 with bundled Stages
Systems & Bed BarsLow-profile to fully enclosed
Pair your bed rack with the Tacoma roof rack.
XTR Offroad Roof Rack — 2016–2023 Tacoma
A bed rack carries camp; the roof rack carries the rest. Running both puts a continuous cargo deck from windshield to tailgate.
- Load rating400 lb dynamic / 650 lb static
- Footprint62" × 48", 6 crossbars
- Rack weight50 lb aluminum
- Wind noiseFairing-quiet up to 80 mph
- Light barOptional 40" cutout
Pro pairing: match a low-profile (10") XTR1 or XBRS bars with the roof rack for a slim silhouette.
AXS Gate — turn the side wall into a drop-down gate.
Gas-strut assisted, MOLLE-ready, fits XTR1, XTR3 and XO.SKLTN.
Reach the bed without climbing in
The AXS Gate Kit converts an existing side brace into a gas-strut, drop-down gate — the MOLLE wall that carries your gear swings out of the way. XTR3 Stage 3A & 3B builds ship with AXS Gates included.
- XTR1 AXS GateFrom $249.99
- XTR3 AXS GateFrom $239.99
- XO.SKLTN AXS GateFrom $309.00
Accessories That Move With Your BuildEvery part drops into the same T-slot grid
Tacoma rack FAQ & specifications
What are the load ratings for each system?
XTR1: 400 lb dynamic / 1,200 lb static. XTR3 & XO.SKLTN: 450 lb dynamic off-road, 850 lb on-road, 1,550 lb static. Roof rack: 400 lb dynamic / 650 lb static. All ratings assume evenly distributed loads, limited by OEM bed rail capacity.
What heights can I get for my Tacoma?
XTR1: 10", 15", 21.5", 22" soft-top — or custom in 1" increments. XTR3: low, mid, full, soft-top + custom. XO.SKLTN: Mid 16" or Full 23". XBRS: 6" or 8" bars.
Do I need to drill into my Tacoma?
No. Racks bolt into the factory bed rail system or clamp to the inner bed lip. A socket set and Allen wrenches install it in an afternoon.
Will it work with my tonneau cover or soft topper?
Yes — dedicated Retrax XR, Softopper and T-slot cover compatible builds are available for XTR1 and XTR3, and the standard Wide Width bracket adds 1.65" of clearance for most roll-up covers.
What's included, and what's the warranty?
All brackets, screws and hardware ship in the box. Everything is covered by a limited lifetime warranty against manufacturing defects. Typical lead times: XTR1/XTR3/XBRS 4–7 weeks; XO.SKLTN 10–12 weeks.
Start your Tacoma overland build with the rack it deserves.
Modular T-slot aluminum, no-drill install, made in Wichita, Kansas.
Build Your XTR Bed Rack
Toyota Tacoma overland build — the complete guide.
From bed racks and water systems to power and recovery gear — everything you need to build the ultimate overland Tacoma.
Why the Tacoma Is the Ultimate Overland PlatformThe Goldilocks truck for trail and camp
Among overlanders, the Tacoma isn't just a vehicle — it's a canvas. The 3rd gen (2016–2023) and new 4th gen offer exceptional reliability, a proven suspension platform, and payload that rewards thoughtful build planning: big enough for serious gear, small enough for technical terrain.
With the right bed rack, water system, power setup and a few key accessories, your Tacoma overland build can handle everything from coastal camping to multi-day backcountry expeditions — no fabricator required.
Bed Racks: The FoundationPick the rack first — design everything else around it
Every overland Tacoma build starts in the bed. Xtrusion racks are bolted T-slot aluminum extrusion — no welds, no fixed hole patterns — so the rack you buy today reconfigures for the build you want next year.
Complete Build PackagesTypical investment by build level
Installing a Tacoma Bed RackAn afternoon in the driveway — no welding, no drilling
Start with the rack, then plan systems around it. Its mounting points determine where the tent, lights and gear go.
Level and position the rack. Assemble finger-tight, set it on the bed rails, square it front to back before torquing.
Torque all bolts to spec. Overland gear vibrates — use thread-locker and re-check fasteners after the first trip.
Test-load before the trip. Mount your heaviest gear, check for flex, and distribute weight evenly.
Build Guide FAQThe questions every Tacoma builder asks
What is the best bed rack for a 3rd gen Tacoma?
For maximum gear-mounting real estate, the XTR3 with four independent side quadrants is the expedition choice. For a lighter build focused on a rooftop tent and clean bed access, the 4-upright XTR1 is ideal — and XBRS bed bars are the budget-friendly low-profile option.
How much does a full Tacoma overland build cost?
From roughly $2,500 for a basic weekend setup to $12,000+ for a fully equipped expedition rig. Start with the rack and expand as your trips get more ambitious.
What is the weight capacity of Tacoma bed racks?
XTR1: 400 lb dynamic / 1,200 lb static. XTR3 & XO.SKLTN: 450 lb off-road, 850 lb on-road, 1,550 lb static — always limited by OEM bed rail and payload capacity.
