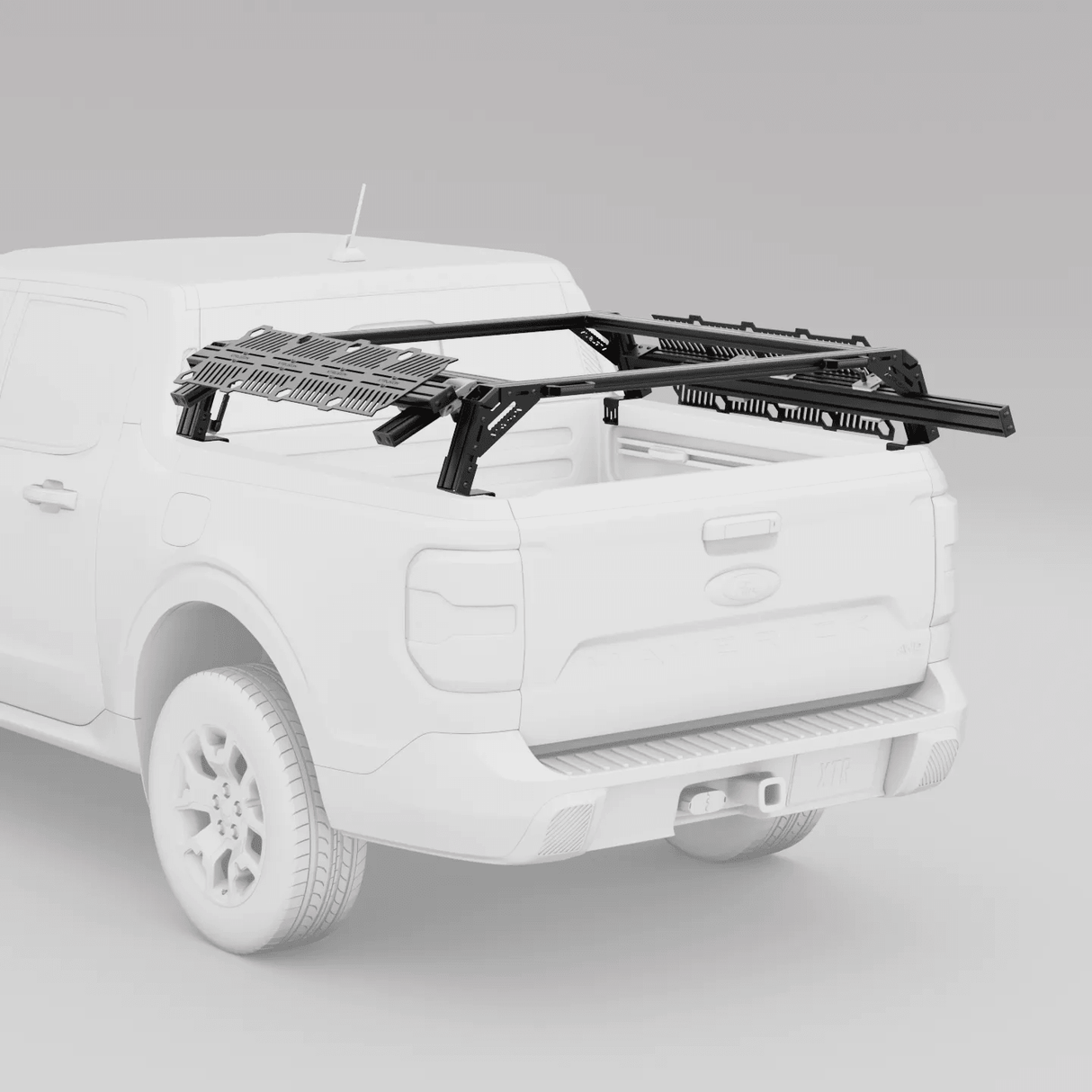

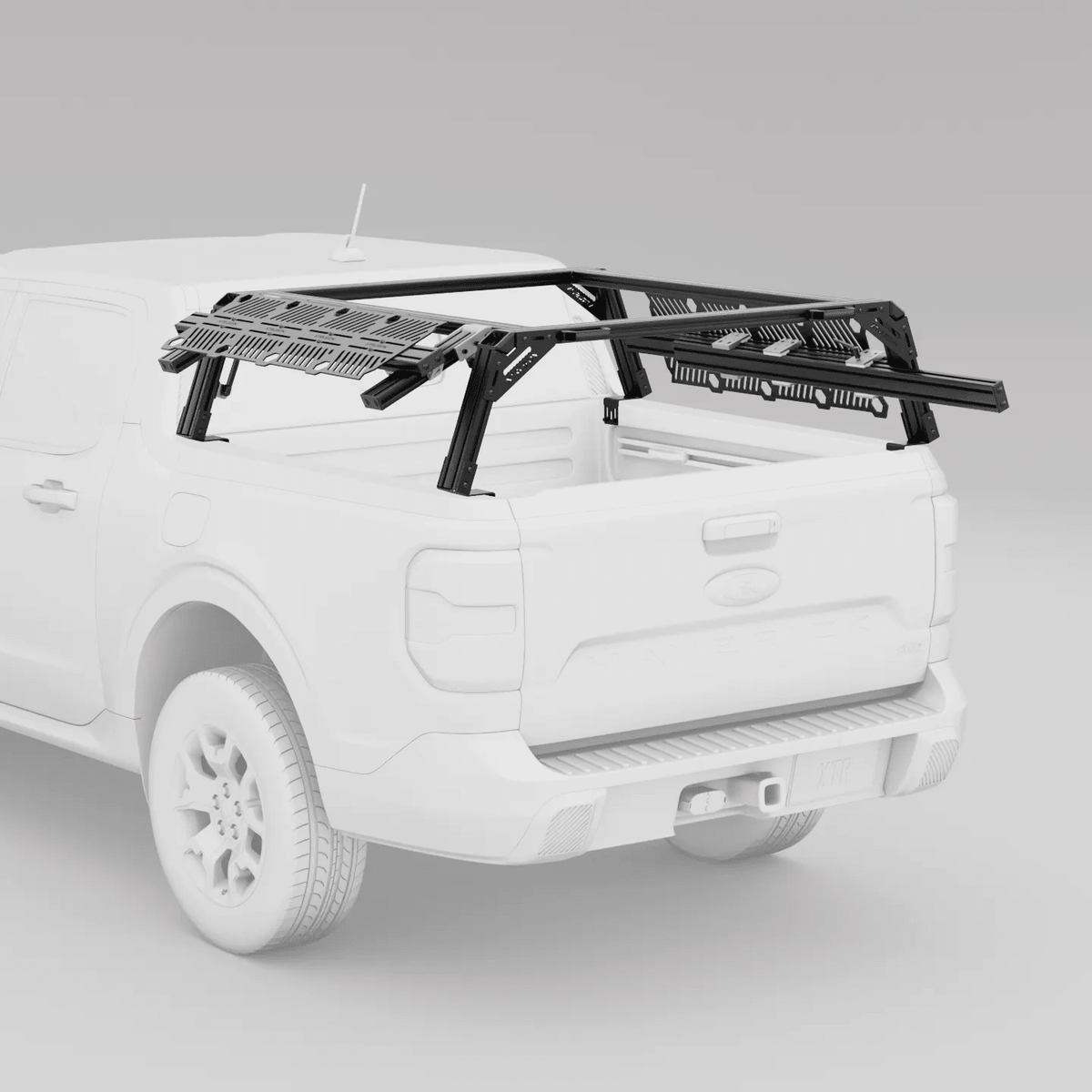

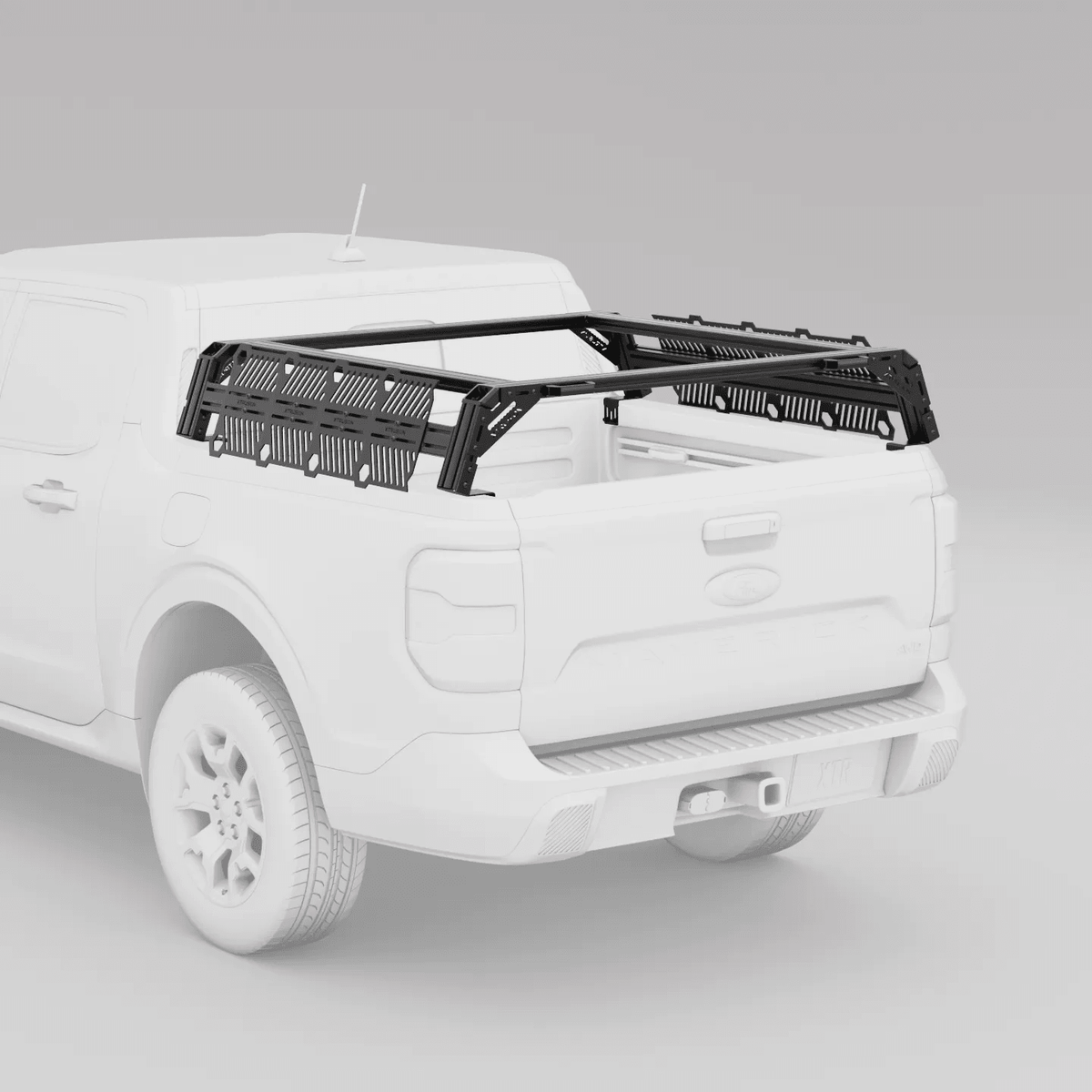

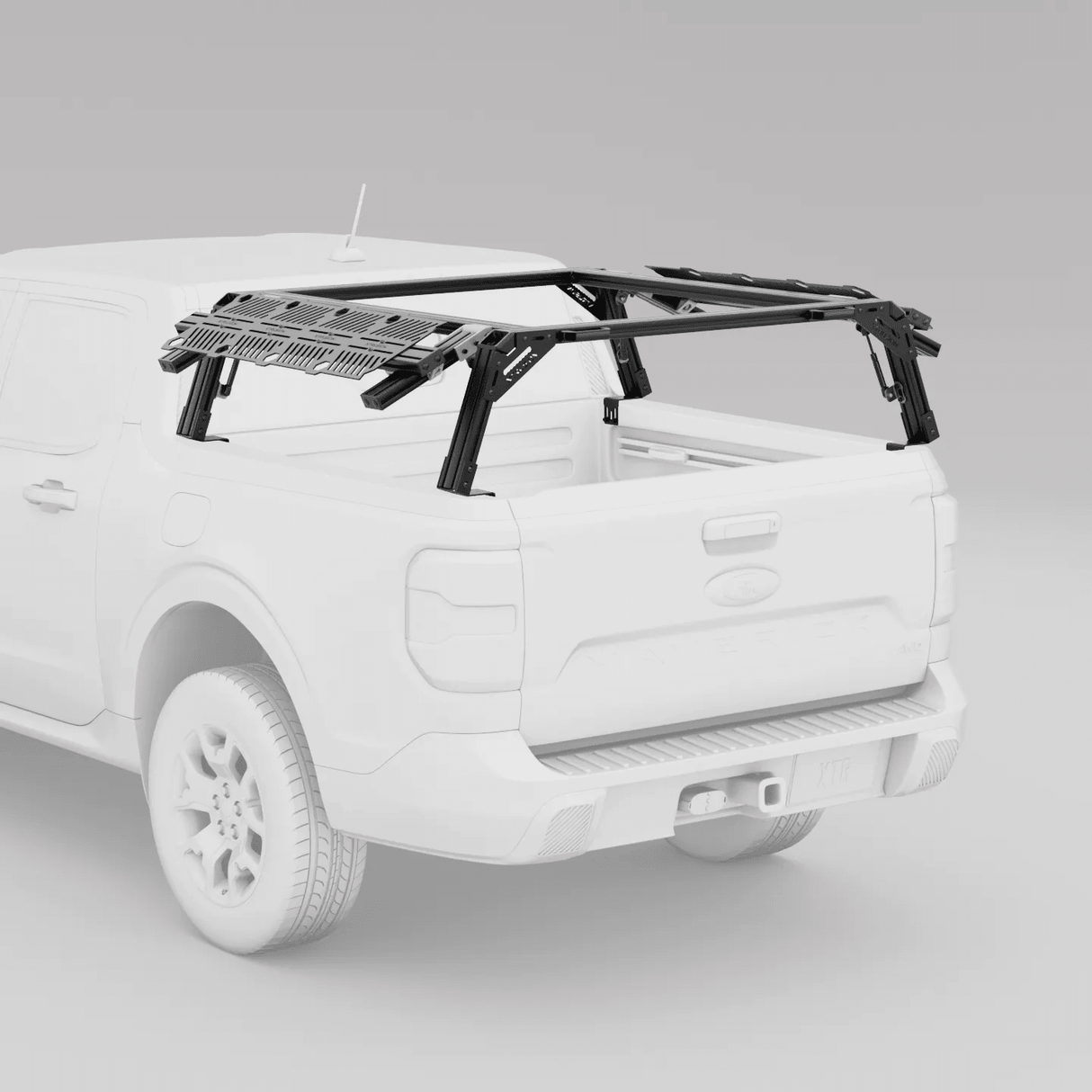

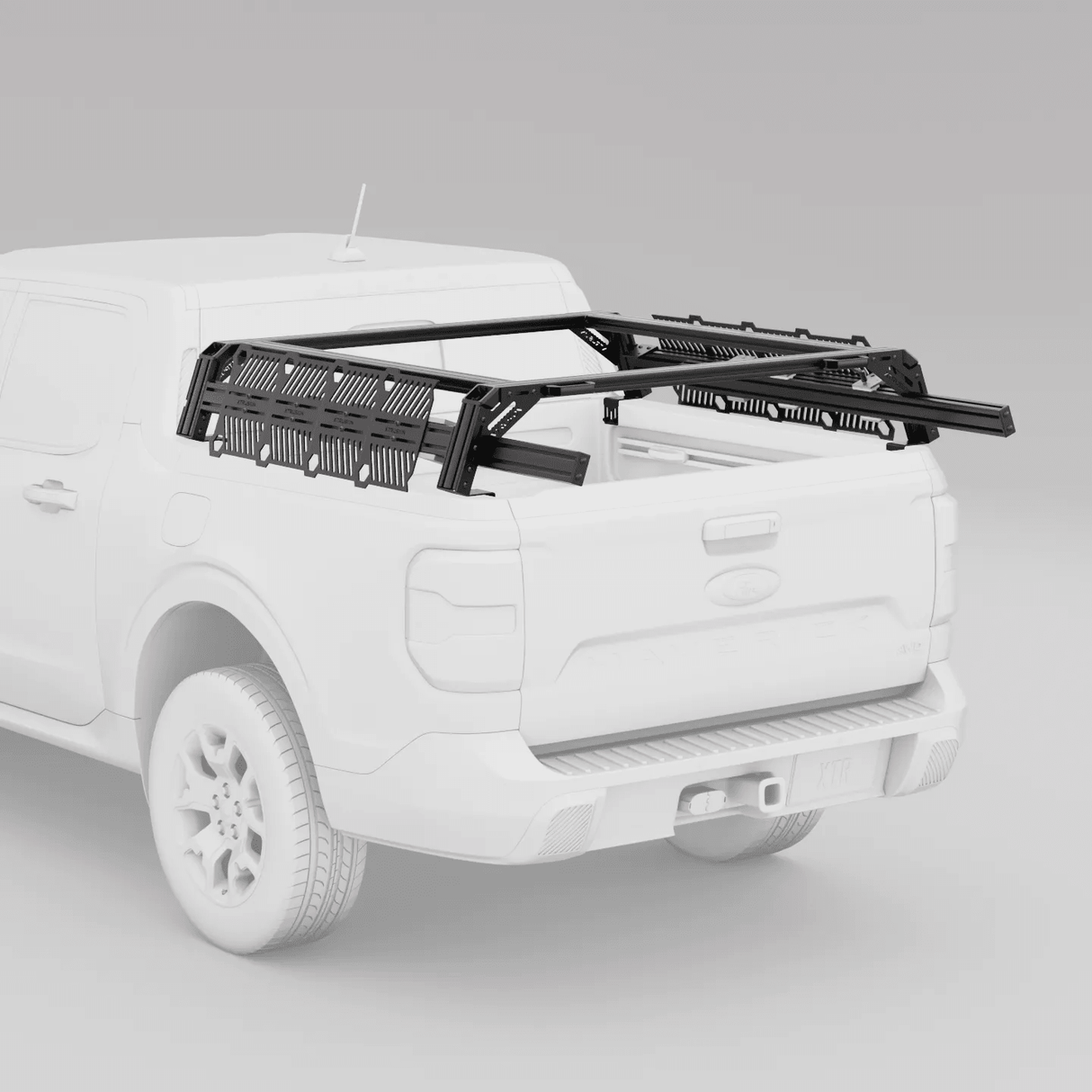

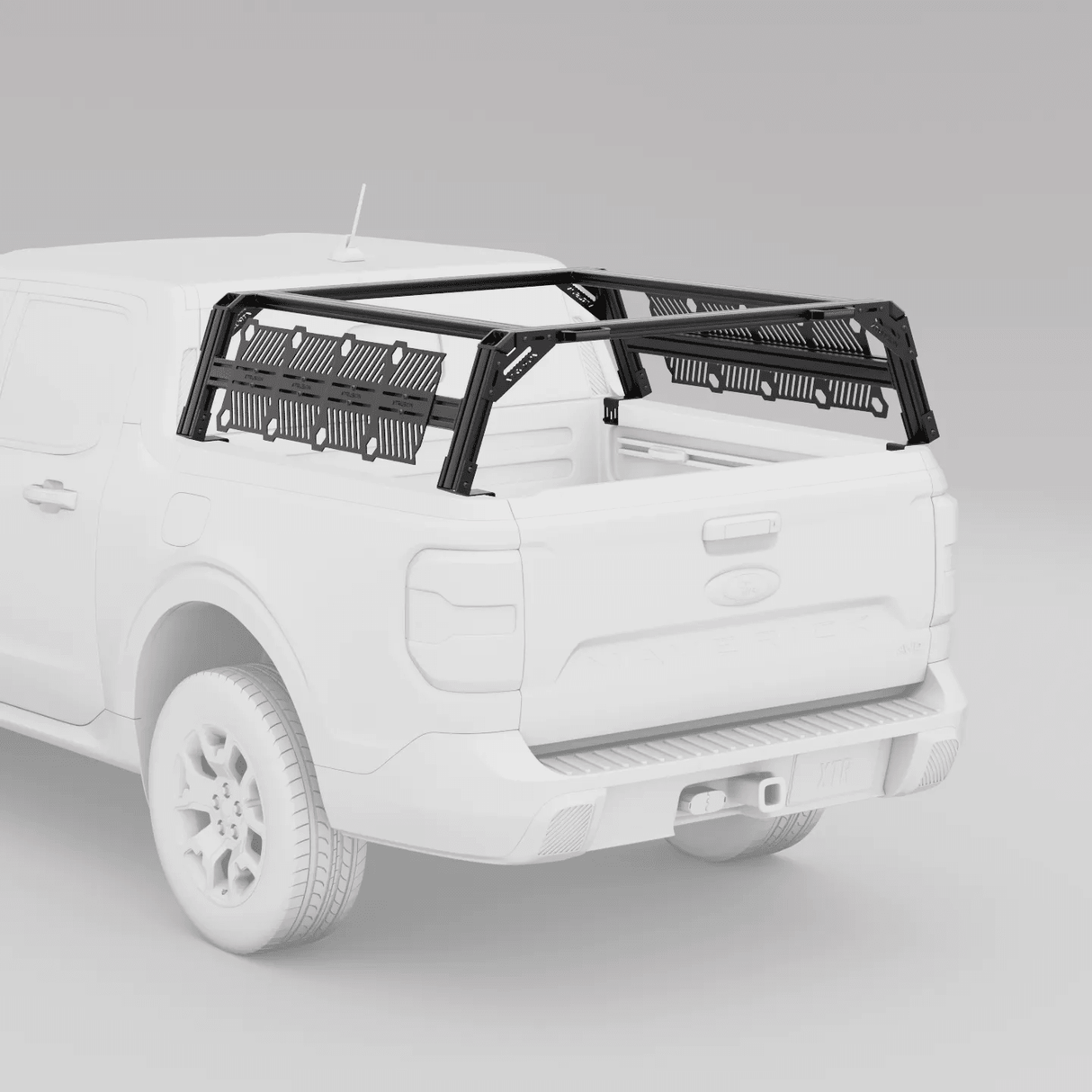

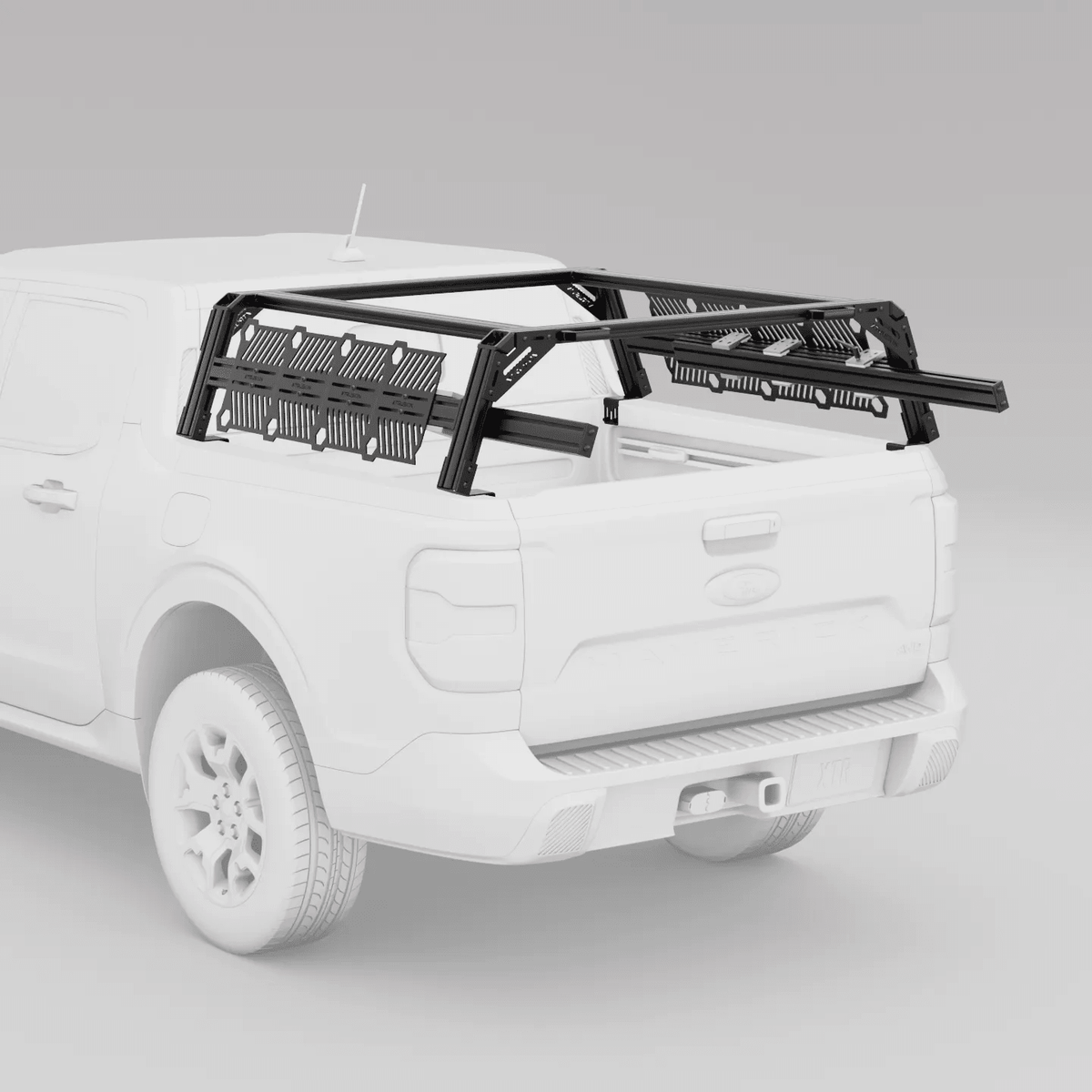

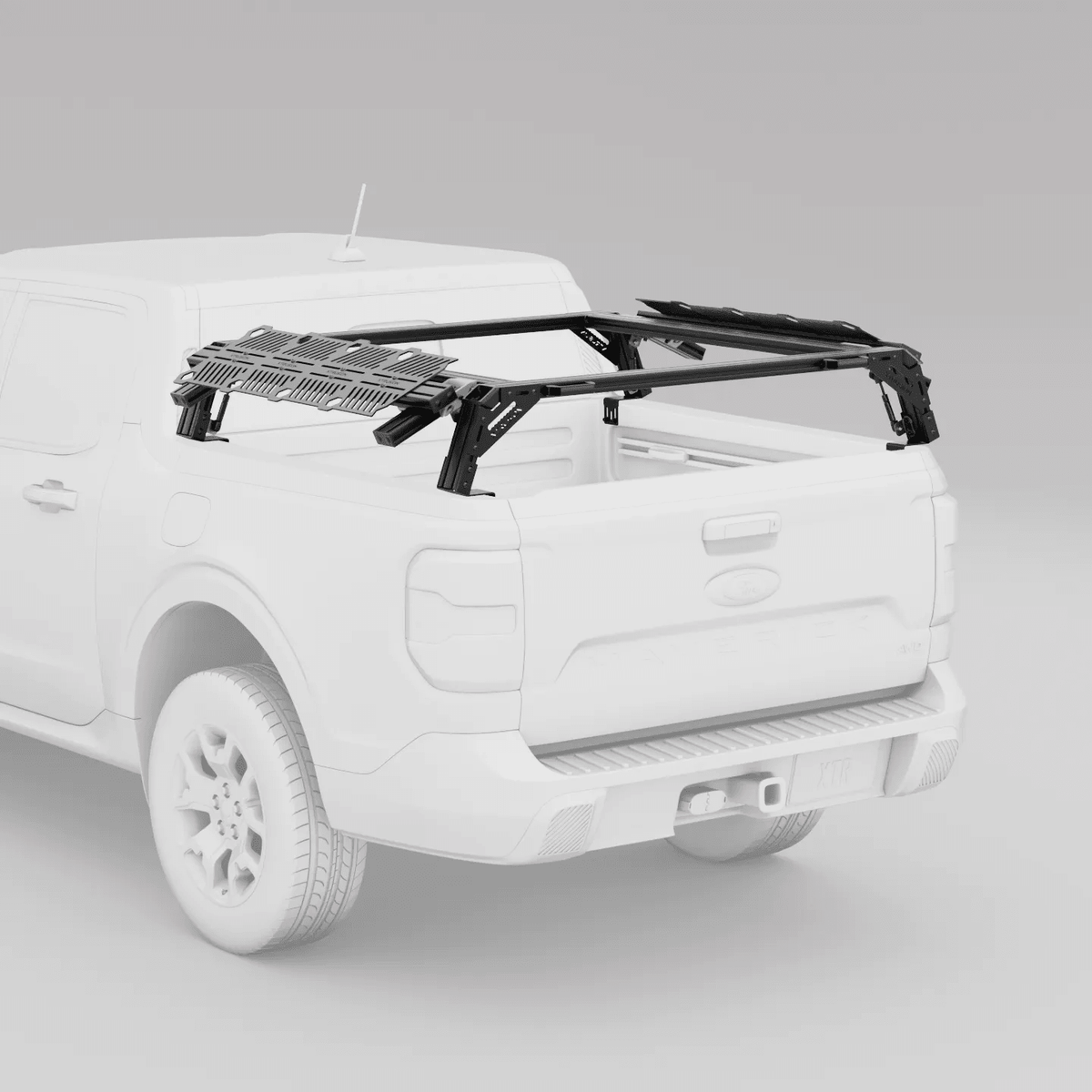

XTR1 Bed Rack for Ford Maverick

Regular price $889.00
/

XTR1 for Ford Maverick

*Some pictures shown with accessories, such as the Off-Road Reinforcement plates (here), and Molle Plates (here).

Main Bedrack includes:
2 Crossbars  (1530 series)
4 Uprights (Columns) (1530 series)
2 Top Braces (1515 series)
2 Side Braces (1530 series)
4 Bedrail Brackets (Connects Uprights to Bedrail)
4 Top Corner Brackets (connects Crossbars and uprights)
All screws and hardware required for assembly.

Rated Capacity (evenly distributed):

 350 pounds dynamic, 1200 pounds static, or OEM Bed Rail capacity, whichever is less.

Contact Us for any questions or requests! support@xtrusiondesigns.com

*See Terms and Conditions for additional product disclaimers.

Customer Reviews

Based on 5 reviews
40%
(2)
40%
(2)
20%
(1)
0%
(0)
0%
(0)
A
Antonio Perez
amazing rack

so the rack itself is amazing i already ordered a few more things to add to it.i would love to get the rear and side doors but i can’t afford then at the moment but its an amazing rack

D
D. Hughes
Decent rack with some issues

Rack was delivered 8 weeks after ordering. Some parts had metal gouges and not just chipped paint. Instructions were not included, instead it was a piece of paper with a QR code that didn’t work for me. Thankfully a google search helped me find the instructions, although a large print out would have been easier than my iPhone. The thread locker they provided, were in individual single use pouches and were hard upon delivery so I had to go and purchase my own. Additionally, the extrusion pieces had metal debris left in the threaded holes and forced me to clean out the debris with a pick in several. The instructions forced you to read ahead to verify what parts were used where because the sizes and types of hardware listed for different models don’t match your vehicle’s rack and it can be difficult to understand. Additionally, the winged support brackets aren’t mentioned in the instructions. Lastly, the dimensions of the extrusions were not always accurate and was too tight at times which caused me the most frustration. The HT T-nuts occasionally would have to be hammered using a rubber mallet and 16” 1/4” extension to be put into place. This created metal shards and curly metal debris, chipping the paint as it was worked into position. I wish their was less gap between the rear window and the rack.

It’s lightweight, feels strong. Time will tell on its reliability and construction/design, but for now I’m disappointed in the assembly/quality portions.

J
Jayce lemmer
Love the modular system

Finally was able to install my rack and soft cover combo. Not intentionally made to work together and it has its kinks I need to work out but with some (I hope) temporary adjustments. I was able to get both installed with the goal I had in mind. I’ll be ordering some additional items to dial in the length of bars and such I need (couldn’t be done ahead of time unfortunately since there isn’t a combo made to match together yet) but over all happy with the product. Only room for improvement was the instruction manual as it wasn’t specific to the Maverick so some parts didn’t say optional and I thought I was missing pieces and the mounts didn’t match so I had to look at the review photos to make sure I was a installing correctly.

M
Michael Carney
Nice Rack! Perfect size and easy to assemble

So far I'm loving the XTR1 rack on my Maverick. It was relatively easy to assemble, looks great, and is the exact size I wanted. I couldn't get the right height anywhere else. I wanted a rack that would sit juuuuuust below the height of the cab to stay out of the wind, but easily let me carry my SUPs and Kayaks with a carrier. I ordered it at 16" high and it's exactly where I wanted it! I'm giving 4.5 stars for two reasons. 1) the top support braces don't match the rest of the rack. They are the "clear" aluminum finish vs the black anodized finish for the rest of the rack. 2) A few of the anodized pieces had very minor blemishes/rubs and one threaded end was not cleared of waste aluminum (I had to completely remove the piece from the rack to figure out why the bolt wasn't inserting, but was able to clear the waste easily enough). The blemishes are tiny, so not visible unless closely inspecting the pieces. I got the wide brackets so I could use my soft rolling tonneau as well. So far it looks like everything will fit fine, but I'll know for sure once I get the cover back on this weekend.

S
Sarah
Great modular bed rack for the Mav!

We have the 13” version of this rack and love it for our RTT/camping setup so far. Highly recommend this bed rack! The Xtrusion team is amazing. It’s great to see more aftermarket accessories coming out for the Maverick & can’t wait to do more with our XTR1.

UNIVERSAL ATTACHMENT POINTS

  • Use of T-Nuts into the Slot means you can attach anything. Anywhere.
  • Capable of expanding structures. (Think Erector Set!)
  • Many Accessories to compliment the design.

TONNEAU COVER COMPATIBLE

With either the standard width brackets, which allow up to 1.4" of clearance for tonneau, or the wide width option that helps with wide tonneau covers and softtopper applications.

*Creates gap between tonneau rails and bedrails. Recommended to use foam strip to seal gap, which is not included in kit. Fitment not guaranteed for all tonneau covers. Contact us for more details.

DID WE SAY PRESSURIZE?

  • The unique center bore on our brackets allows you have access to the center chamber of the Xtrusion Profile. You can then either tap it to create seals or add fittings. Interconnect members, add a holding tank, pressurize for shower outlet's and more!
  • Or you can simply use the center bore to run wiring inside the chambers for a clean accessory installation.

GOING ROUGH ON IT ?

Order your rack with the optional "Off-Road Reinforcement Plates".

These Laser Cut 6061 Aluminum Plates create a more rigid joint between crossbars and columns, helping under extreme off-road situations to keep the structural rigidity intact, and avoid fatigue.

Available in Glossy Natural Aluminum  and Black Textured Powder Coat, to create contrasts with your set.



SECONDARY STRUCTURES

  • The best thing about our BedRack is the endless possibilities of configuration for Height and some Length variations. Additionally, you can create sub-structures below or above the main structure. We continuously create kits to complement the XTR1 with unique product offerings, such as a 2nd level hinged for access or a bottom slide out tray. But if you have an idea, let us know and we can quote it!

STANDARD HARDWARE

Our Bed Racks are compatible with most T-Slot Extrusion type hardware, so you are able to expand or get creative by using off-the-shelf components! Whether you order from us, or the "guy you know" that has a bunch of these from work!

From Roll-In T-Nuts, to solid motion bearings, possibilities are endless.  We do sell Roll-In T-Nut kits for added benefit, and if you want additional Xtrusion to build more things, contact us for a quote! We promise it will be the best price around!



XTRUSION ACCESSORIES

  • From Awning Mounts, Hi-Lift Blocks, or simple brackets, we are getting it all ready for a maximum product compatibility. If we don't offer it, drop us an email. We can make almost anything a reality!
