XTR1 Custom Bed Rack for Chevy Silverado/Sierra
Chevy Silverado Extrusion Overland Bed Rack with traction boards, Rotopax, mountain bike, and roof top tent.
GMC Denali Sierra Xtrusion Overland Bed Rack with RotoPax, and Off-road lights.
Chevrolet Silverado Extrusion Overland Bed Rack with traction boards, Rotopax, mountain bike, and roof top tent.
Chevrolet Silverado Xtrusion Overland Bed Rack with traction boards, and Roam roof top tent set up.
GMC Denali Sierra Extrusion Overland Bed Rack with RotoPax, WeBoost antenna, overlanding gear, and Off-road lights.
GMC Denali Sierra Extrusion Overland Bed Rack with RotoPax, WeBoost antenna, overlanding gear, traction boards, Retrax XR tonneau cover, and Off-road lights.

XTR1 Custom Bed Rack for Chevy Silverado/Sierra

Regular price$999.00
/
**UPDATE: ESTIMATED LEAD TIMES AROUND 6-8 WEEKS**

CONTACT US FOR ANY QUESTIONS REGARDING CUSTOM ORDERING. WE CAN ACCOMMODATE MOST CUSTOM REQUESTS!

support@xtrusiondesigns.com

*Some pictures shown with accessories.

Main Bedrack includes:
2 Crossbars
4 Uprights (Columns)
2 Top Braces
2 Side Braces
4 Bedrail Brackets (Connects Uprights to Bedrail)

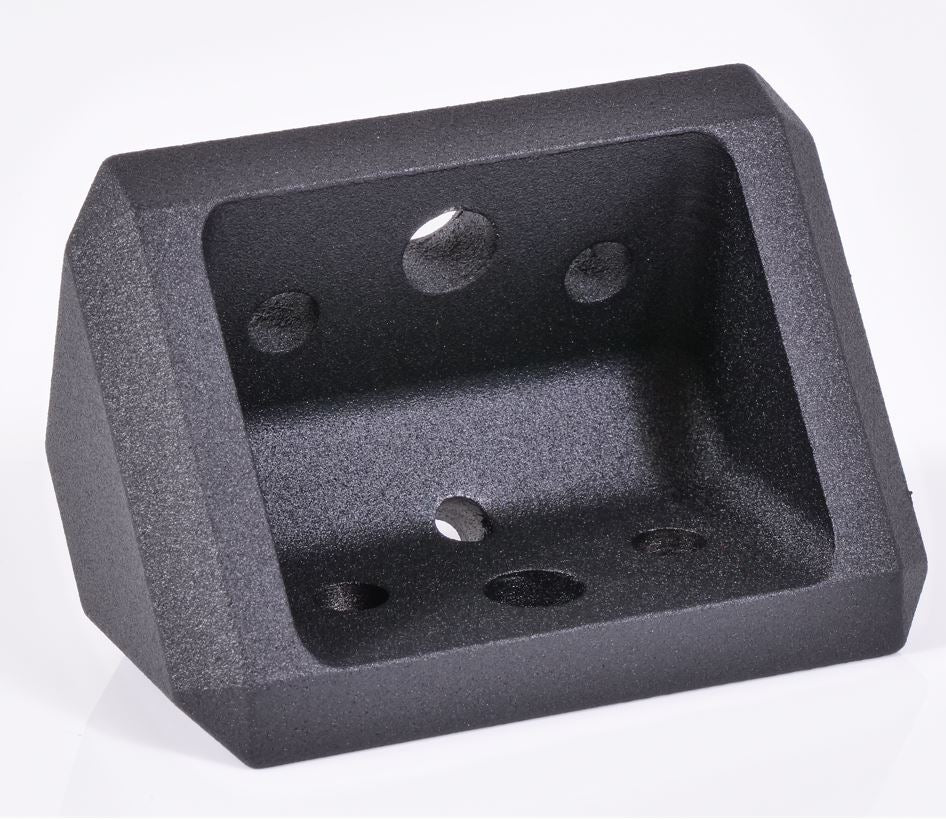

4 Top Corner Brackets (connects Crossbars and uprights)
All screws and hardware are required for assembly.

Rated Capacity (evenly distributed): 400 pounds dynamic off-road, 800 pounds dynamic on-road, and 1500 pounds static, or OEM Bed Rail capacity, whichever is less.

Contact Us for any questions or requests! support@xtrusiondesigns.com

*See Terms and Conditions for additional product disclaimers.



This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Pairs well with

XTR-1 BEDRACK PRODUCT DETAILS & ORDERING

Section
Drop element here!

UNIVERSAL ATTACHMENT POINTS

  • Use of T-Nuts into the Slot means you can attach anything. Anywhere.
  • Capable of expanding structures. (Think Erector Set!)
  • Many Accessories to compliment the design.

TONNEAU COVER COMPATIBLE

With either the standard width brackets, which allow up to 1.4" of clearance for tonneau, or the wide width option that helps with wide tonneau covers and softtopper applications.

*Creates gap between tonneau rails and bedrails. Recommended to use foam strip to seal gap, which is not included in kit. Fitment not guaranteed for all tonneau covers. Contact us for more details.

DID WE SAY PRESSURIZE?

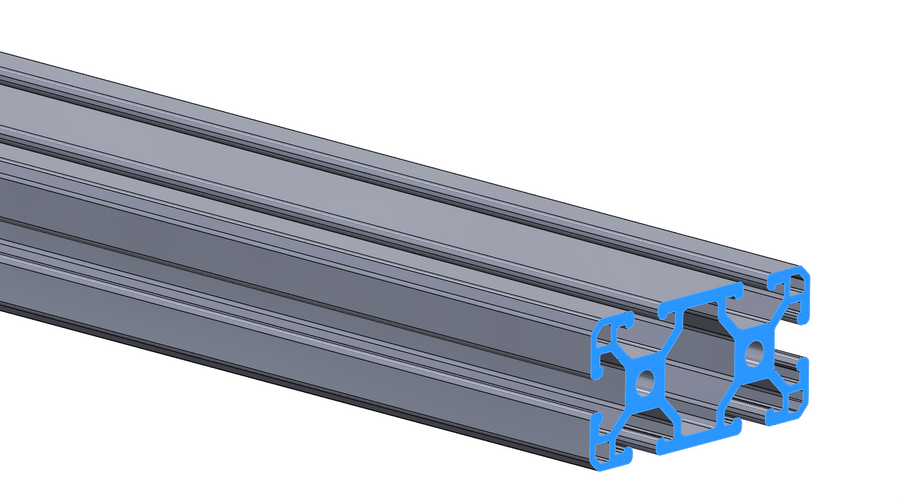

  • The unique center bore on our brackets allows you have access to the center chamber of the Xtrusion Profile. You can then either tap it to create seals or add fittings. Interconnect members, add a holding tank, pressurize for shower outlet's and more!
  • Or you can simply use the center bore to run wiring inside the chambers for a clean accessory installation.

GOING ROUGH ON IT ?

Order your rack with the optional "Off-Road Reinforcement Plates".

These Laser Cut 6061 Aluminum Plates create a more rigid joint between crossbars and columns, helping under extreme off-road situations to keep the structural rigidity intact, and avoid fatigue.

Available in Glossy Natural Aluminum  and Black Textured Powder Coat, to create contrasts with your set.



SECONDARY STRUCTURES

  • The best thing about our BedRack is the endless possibilities of configuration for Height and some Length variations. Additionally, you can create sub-structures below or above the main structure. We continuously create kits to complement the XTR1 with unique product offerings, such as a 2nd level hinged for access or a bottom slide out tray. But if you have an idea, let us know and we can quote it!

STANDARD HARDWARE

Our Bed Racks are compatible with most T-Slot Extrusion type hardware, so you are able to expand or get creative by using off-the-shelf components! Whether you order from us, or the "guy you know" that has a bunch of these from work!

From Roll-In T-Nuts, to solid motion bearings, possibilities are endless.  We do sell Roll-In T-Nut kits for added benefit, and if you want additional Xtrusion to build more things, contact us for a quote! We promise it will be the best price around!



XTRUSION ACCESSORIES

  • From Awning Mounts, Hi-Lift Blocks, or simple brackets, we are getting it all ready for a maximum product compatibility. If we don't offer it, drop us an email. We can make almost anything a reality!
Section
Drop element here!

WHY CHOOSE OUR PRODUCTS

MADE IN USA

Our products are made in the USA with 99% domestic components! Designed and Manufactured in Kansas!

SMALL FAMILY OWNED

We are a small family owned business. Your purchase will help support the fulfillment of the American Dream

100% MONEY BACK GUARANTEE

30 Day Money Back Guarantee. If you do not like the product, send it back for a refund. *Exceptions Apply.
