Jeep Gladiator Bed Racks

• XTR1: four uprights with open sides for easy access to the bed. Rated 450 lb dynamic off-road, 850 lb dynamic on-road, 1,550 lb static.

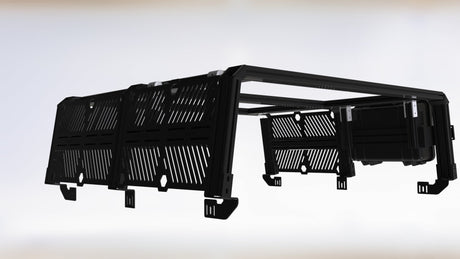

• XTR3: six uprights that split the rack into four independent bays, with our highest rating: 500 / 850 / 1,750 lb. The pick for a rooftop tent plus a full gear load.

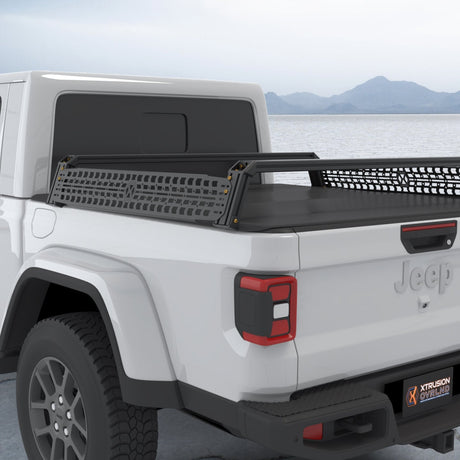

• XBRS bed bars: low-profile bars just above the bed rails that work with most tonneau covers, rated 400 lb off-road, 800 lb on-road and 1,500 lb static, and convertible to a full XTR1 later.

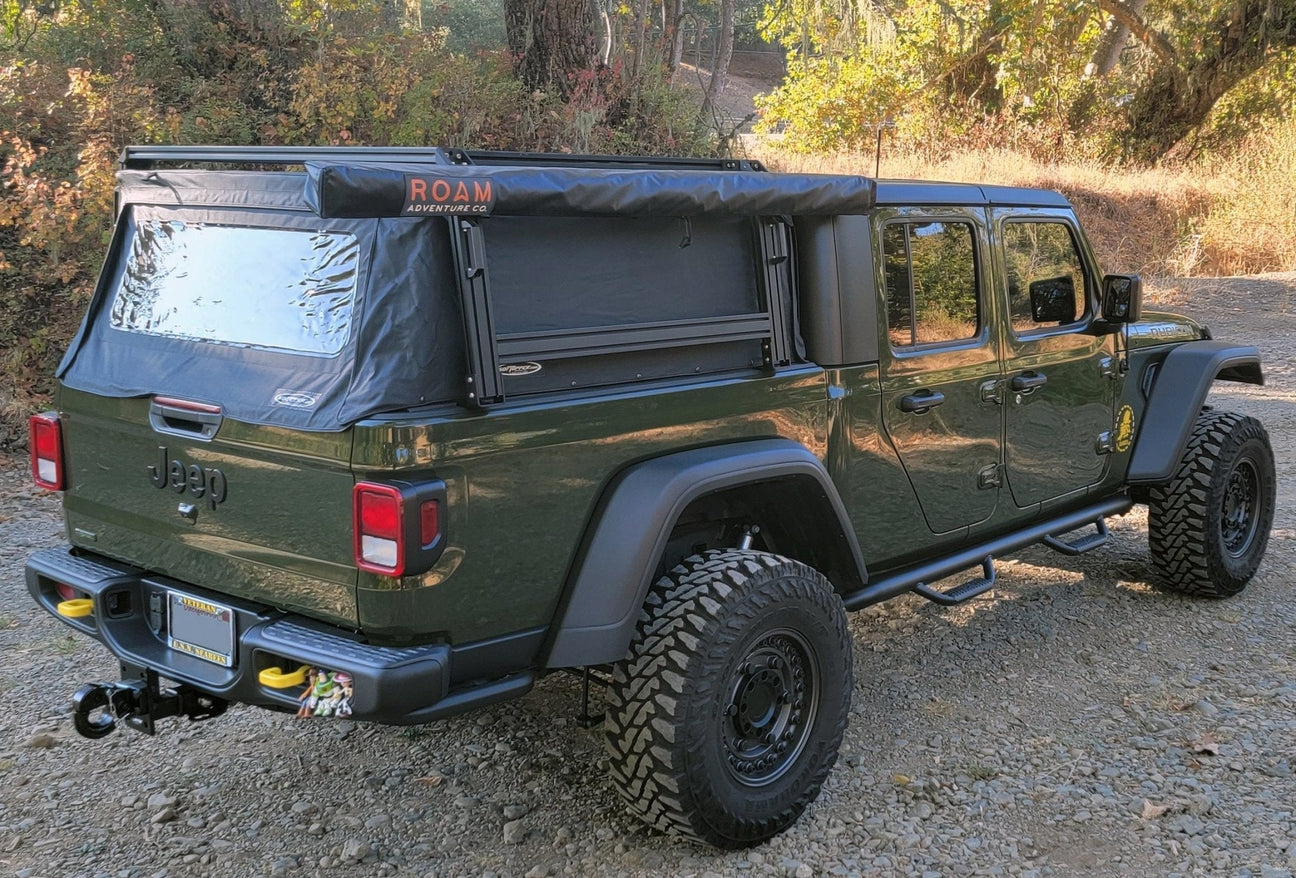

• XO.SKLTN: our modular aluminum topper (camper shell) system for the Gladiator, in mid or full height.

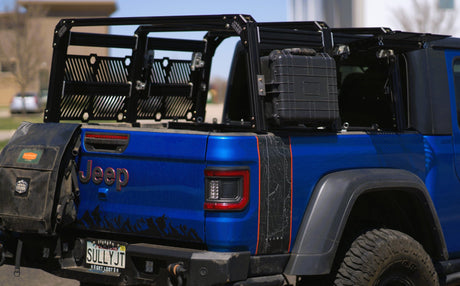

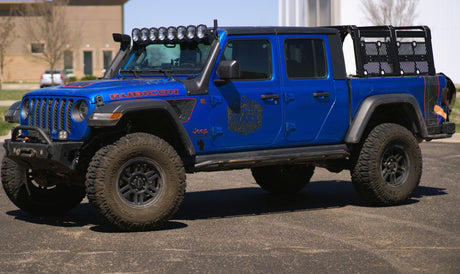

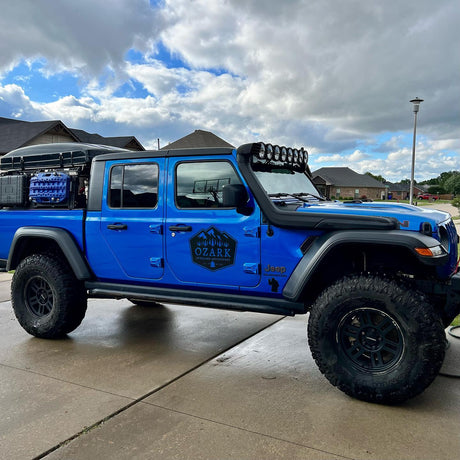

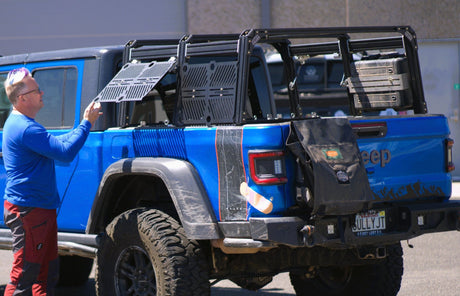

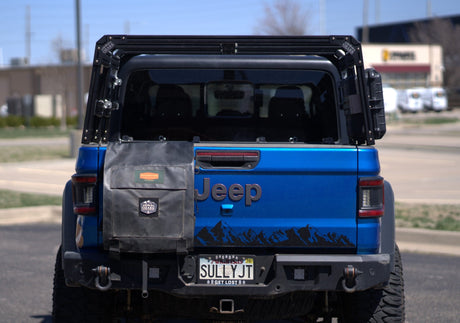

• Ready-made editions: Ozark Overland Adventures, @OffroadFitness and @Arctic.Mojave.

Stage packages bundle the rack with MOLLE plates, AXS side gates and slide-out trays matched to it, for less than buying the parts separately.

Yes. Our XTR racks and XBRS bars mount to the factory Jeep/Mopar Trail Rail cargo management system or the TeraFlex bed rail system. No rails in your bed? Add the TeraFlex Uinta Cargo Bed Rail System first.

• Open bed, soft or roll-up tonneau: pre-configured and Popular Build racks ship on our Wide Width bed rail bracket, which leaves 3" between the bed rail and the rack and clears most soft and roll-up covers.
• BAK Revolver X4s or X4ts: choose the XTR1 for BAK Revolver, which bolts to the cover's T-slot rails.
• Rugged Ridge Armis with MaxTrack rails: choose the XTR1 for Rugged Ridge Armis, which mounts to the cover's T-slot rails.
• Softopper: choose the soft topper version (XTR1 or XTR3), offered at 23" or 24" tall.
• Retrax XR/EQ, EGR or Roll-N-Lock with T-slots: pick that bracket on the custom height XTR1 or XTR3.
• Another cover? Email support@xtrusion-overland.com before you order and we'll confirm the fit.

Yes. Check your tent and gear weight against the dynamic off-road rating (450 lb XTR1, 500 lb XTR3). The static rating (1,550 lb XTR1, 1,750 lb XTR3) applies when the truck is parked, with people in the tent.

Pre-configured and Popular Build racks come in 15" mid height or 23" cab height. Need something else? Our custom height XTR1 and XTR3 Gladiator racks are built to any height from 10" to 26" in 1" steps, and a rack can be converted to another height later.

No drilling. Our Gladiator racks bolt to the bed rails with the included bed rail brackets (cover-mounted versions bolt to the cover's rails instead). Every XTR rack is built to order in Wichita; see current lead times.
