Jeep Gladiator Bed Rack | XTR3 Popular Builds + MOLLE Packages

Name: Jeep Gladiator Bed Rack | XTR3 Popular Builds + MOLLE Packages
Brand: Xtrusion Overland
SKU: X03-XTR3-GLAD-A-WDW-15H-51L-ST1
Availability: InStock
Rating: 5.0 (1 reviews)

$2,049.99 USD

Model

Bed Rack Height

Accessories:

Xtrusion Overland | SKU: X03-XTR3-GLAD-A-WDW-15H-51L-ST1

Lead Times

Current Lead Times:

Please Note That All Lead Times Are Estimations*

XO.SKLTN | 10-12 weeks
XTR1, XTR3 & XBRS Bed Racks | 4-7 weeks
Extrusion Sub-Structures | 3-4 weeks
Xtrusion Branded Accessories | 1-2 weeks

Our posted lead times are only estimations and rely on various factors, many times outside of our control. Historic challenging times within our industry have caused ripples in the supply chain world that have repercussions even on the smallest of components at times. As you would imagine, many companies in our industry are experiencing the same.

Our bed racks are super cool, with the ability to be customized. But this causes a series of challenges due to the thousands of possible combinations regarding compatibility, availability, etc. However, we are constantly aiming at improving our processes, hiring and training our people to achieve a reliable fulfillment process.

If you have additional questions about our lead times, please check our current estimations and reach out to our team if you need additional information. We thank you for your continued support and patience as we improve our processes.

While we would do our best to accommodate a specific need, please do not plan any trips or outings based on the estimated lead times.

THIRD PARTY PRODUCTS

Xtrusion Overland started supplying various brands that go hand in hand with our own products, to provide a complete service and help us grow. This includes products that are drop shipped. Please be advised that availability and lead times of those product are solely impacted by the third-party vendor's schedule. Many products are sold under an open inventory method, as the technology to sync inventories is limited, therefore please reach out if a specific product is needed by a specific date for us to double check with the supplier for you!

Any potential delay that occurs in the sourcing, processing, or drop shipment at the third party level will be communicated to the best of our ability to the customer.

ESTIMATED DATE | LEAD TIMES

The estimated lead time provided when you placed your order is JUST AN ESTIMATE. It is not a guarantee that the product will be shipped on that date. The estimated lead time gives you some sense of what the current times to source, cut, pack and ship takes. Many times the lead time can be shorter, but likewise it can extend, depending on factors such as previous demand and current supply. We manufacture many components in house, but extenuating circumstances such as down time for maintenance or unscheduled downtimes for repairs might impact dates as well as delays related to our sourced components. There is a constant flow of parts and shipments, and sometimes the visibility becomes a challenge to pinpoint exactly when your product will ship.

Feel free to check on your order at any time. Be aware that our customer service team may not be able to give you an exact date for completion but rest assured we are tracking your order and it will be built in the order that it was received.

Xtrusion Overland also reserves the right to cancel items from an order, offer an alternative substitution or issue refund accordingly when product is delayed at an unacceptable time frame or at the request of the customer.

Rack Angle Guide

Overland Rack Angle Compatibility

One Angle.
Every Build.

XTR bed racks use three rack angles — 9°, 13°, and 20° — each matched to specific vehicle setups and accessory families. Find the right angle for your build so every rail, crossbar, and mounting kit lines up perfectly.

Engineered quality

CNC billet strength

We didn't just join the strong extrusions with some sheet metal corner brackets — we put the aluminum where it makes a difference. Every angle variant uses the same 6061-T6 Aerospace grade billet, machined to precision to join all components with exact angular alignment.

✓ All three angles share the same billet standard
✓ 9°, 13°, and 20° brackets machined to exact specs
✓ No sheet metal corners — pure aerospace aluminum

CNC billet corner brackets for XTR bed racks — available in 9°, 13°, and 20° angles

Quick Reference

Angle Compatibility

Rack Angle	Product Line	Compatible Accessories
9°	Gladiator Series	All Gladiator bedracks, Gladiator mounting kits, Gladiator-specific crossbars, including Softopper versions on Gladiator.
13°	Soft Topper Series	Soft Topper bed racks for all truck models (except Gladiator).
20°	Universal / Crossbars	All XTR1, XTR3, XBRS Bed Racks, universal mounting rails, standard rack accessories (except Gladiator or Softopper)

9° angle

Gladiator Series

The 9° angle is dedicated to the Gladiator product line. This angle was engineered specifically for Gladiator rails and their mounting geometry, ensuring a flush, secure connection between your rails and any Xtrusion add-on accessories. This includes Softopper Gladiator Builds

Xo Skeleton Note: The XO.SKLTN Uses a complete different system not to be confused with Gladiator XTR 9 Degree components.

13° angle

Soft Topper Series

The 13° angle serves Soft Topper products. This intermediate angle provides the right compromise between load clearance and low profile when mounting accessories to Soft Topper rails and their compatible hardware.

Crossbars: XTR1 and XTR3 use 13° when mounted on Soft Topper setups.

20-degree universal rack crossbar — XTR universal and crossbar series

20° angle

Universal / Crossbars

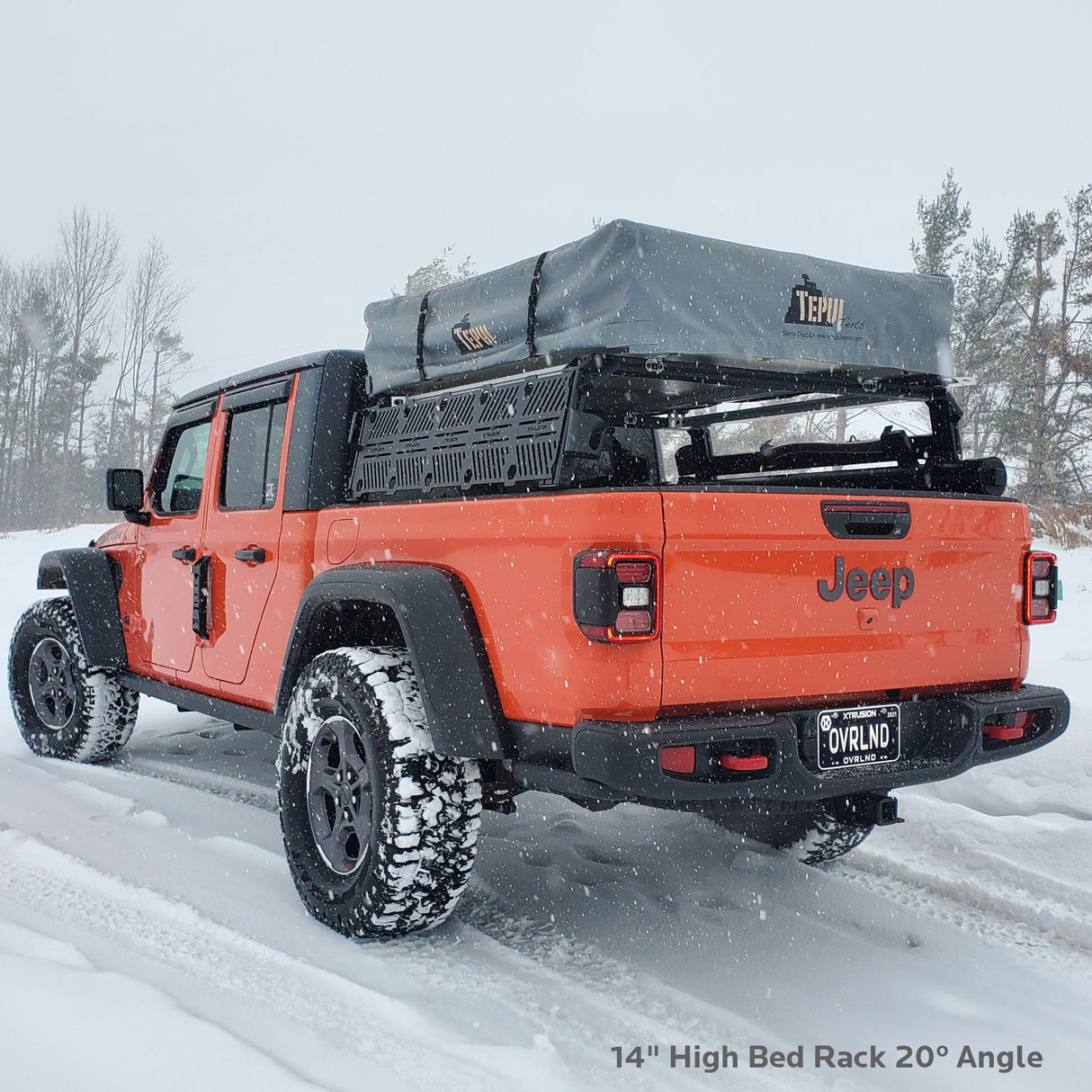

The 20° angle is the default for all other Xtrusion products — universal mounting rails, standard crossbars, and general overland rack accessories. This is the most common angle in the industry and works with the widest range of roof rack and truck bed rack systems.

Exception: XBRS Crossbars use 9 Degree components, in case you decide to upgrade to full rack, so it remains compatible on joints.

Quick Reference

Xo Skeleton — Angle Breakdown

The Xo Skeleton uses two angles Gladiator Specific or Universal. However, some accessories might be compatible with both, because the top rail consolidates both angles into one. Crossbar mounts or awning mounts are compatible with both versions.

9° Angle

XOSKLTN Gladiator

Gladiator rail mounts
Gladiator-specific hardware
Gladiator crossbar slots

13° Angle

XOSKLTN

Soft Topper rail mounts
Soft Topper mounting kits
Soft Topper crossbar slots

Note: The Xo Skeleton never uses the 20° angle.

How To Choose

The Right Rack Angle,
Explained

Every XTR accessory — crossbars, mounting brackets, add-on hardware — is cut for one specific angle. The right angle depends on your primary rail system or vehicle setup. Choosing the matching angle ensures every component in your build aligns correctly and carries load as designed.

Identify your rail system. Gladiator = 9°, Soft Topper = 13°, universal = 20°.
Check your crossbar type. XTR1/XTR3 come in all three — order the one matching your rails.
Stick to one angle per build. Mixing angles creates misalignment and stress points.

What determines the rack angle I need? +

Your rack angle is determined by your primary rail system or vehicle setup. Gladiator rails use 9°, Soft Topper setups use 13°, and universal or standard rack accessories use 20°. Choosing the matching angle ensures every accessory — crossbars, mounting brackets, and add-ons — aligns correctly.

Can I use a 20° crossbar with a Gladiator rail? +

No. Gladiator rails are engineered for 9° accessories. Using a 20° crossbar on a Gladiator rail will result in misalignment and improper load transfer. Always match your crossbar angle to your rail system.

Do Soft Toppers and Gladiator rails use the same angle? +

No. Soft Toppers use a 13° angle while Gladiator rails use a 9° angle. These angles are not interchangeable. If you're building with both types, you'll need separate angle-specific accessory sets.

Are XTR1 and XTR3 crossbars angle-specific? +

XTR1 and XTR3 crossbars come in three angle variants — 9°, 13°, and 20° — to match each rack system. The 20° variant is the default and works with universal racks. The 13° variant is used when paired with Soft Topper setups. Order the angle that matches your primary rail system.

Why do overland racks use different angles? +

Different rack angles exist to accommodate varying vehicle roof geometries, rail profiles, and load requirements. The 9° angle works well with Gladiator-style tubular rails. The 13° angle provides a middle ground for Soft Topper mounting systems. The 20° angle is the industry standard for universal applications and offers maximum load clearance.

Description

Get that rig dialed in just right — order a complete, mission-ready setup built on the most modular bed rack on the market today.

The XTR3 Popular Builds bundle our most popular Jeep Gladiator truck bed rack configurations with the accessories that make them work, so your rig arrives ready to load gear, not waiting on a second order.

The Gladiator is the only open-air, removable-top truck on the market — a born adventure rig built for camping, rooftop tents, and backcountry overlanding. Whether you're loading it out as an overland camp platform or a utility setup that earns its keep on the jobsite, these builds get you there in one purchase.

Why order a Stages package?

Bundle & save — buying your rack and accessories together as a Stage costs less than piecing them in one at a time.
Most popular configurations — these are the setups our customers reach for most, dialed in and ready to go.
Mission-ready out of the box — MOLLE panels, AXS gates, and slide-outs arrive matched to your rack, no guesswork on fitment.
One purchase, fully outfitted — spend less time sourcing parts and more time on the trail or the jobsite.

Accessory Stages — Outfit Your Bed Rack Now and Save Big

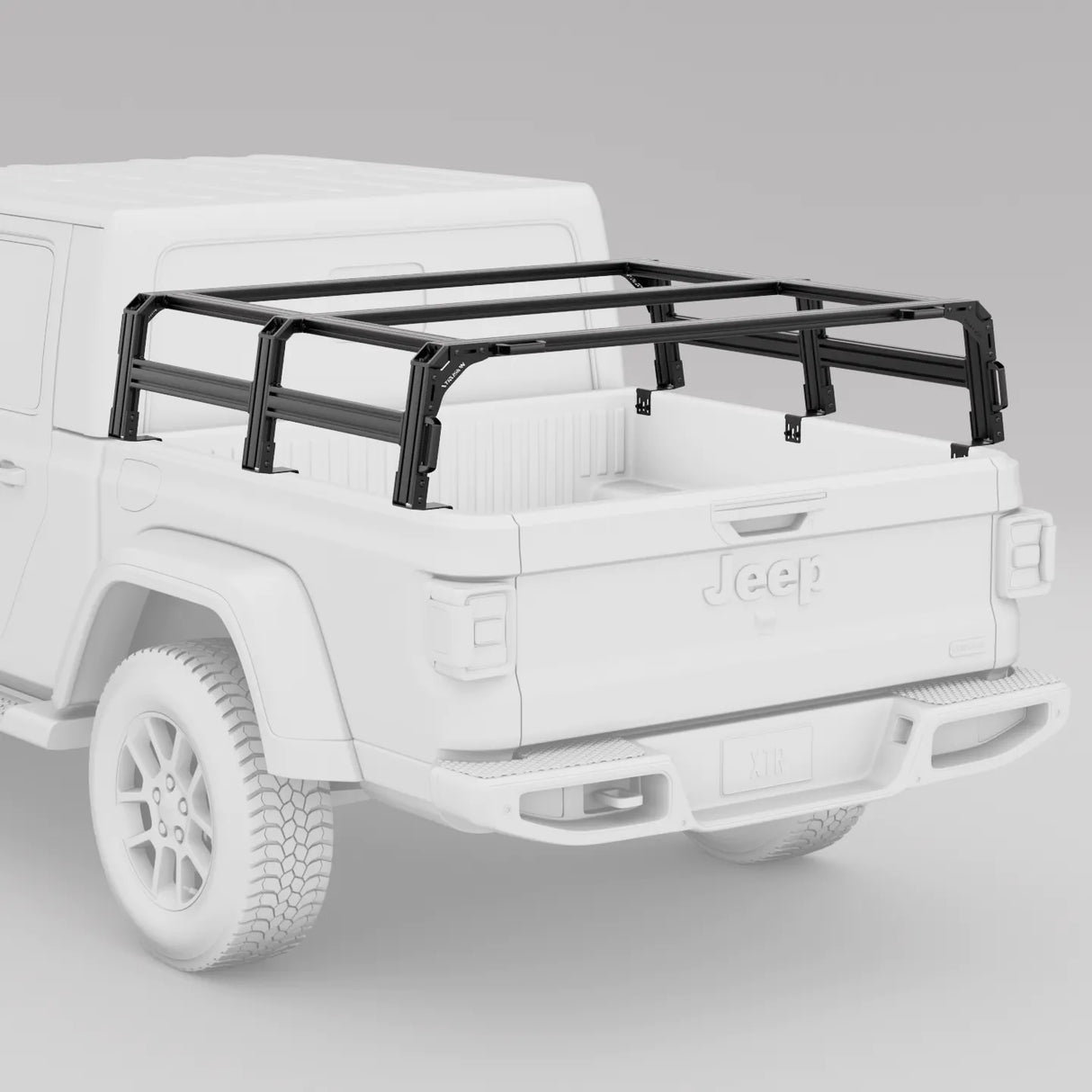

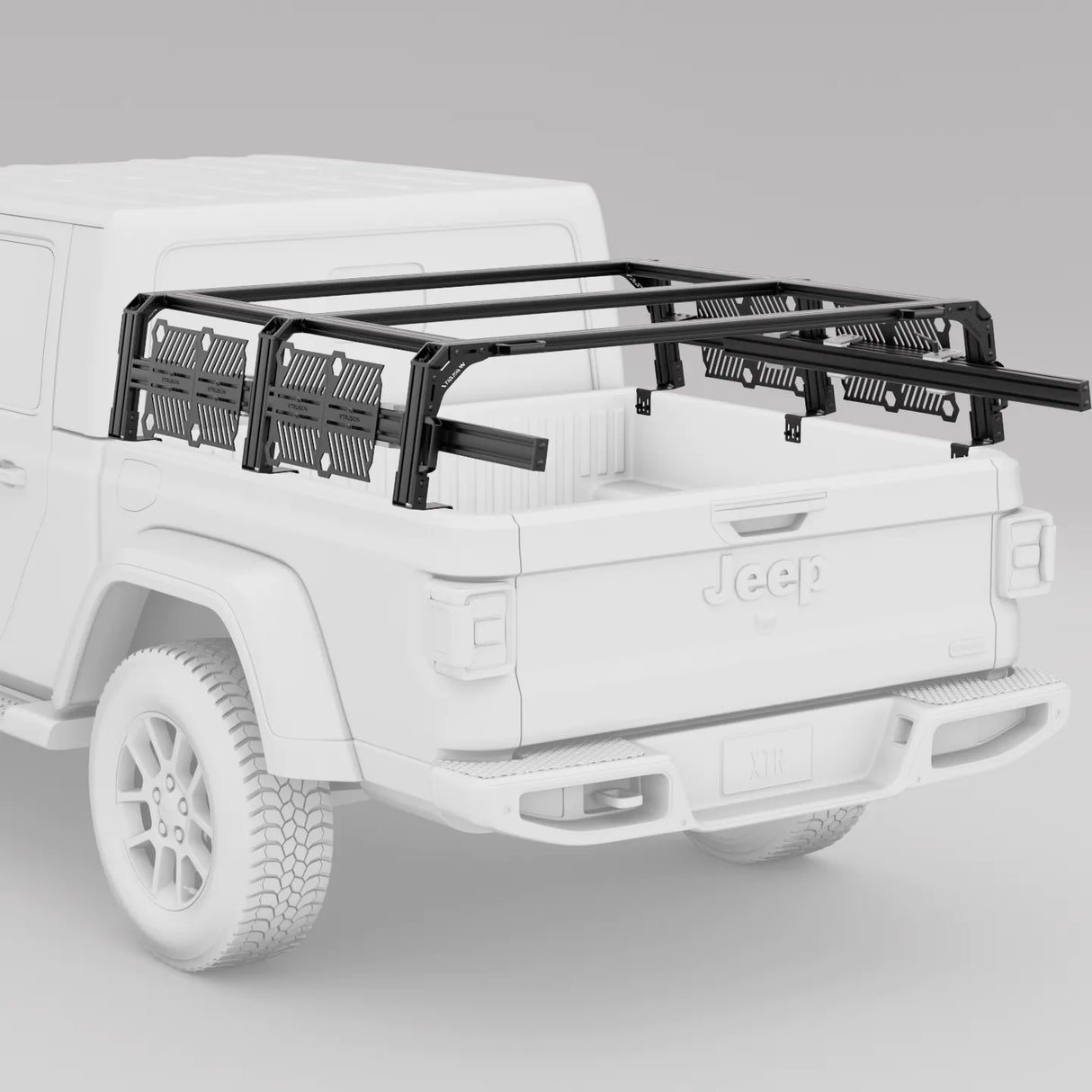

Stage 1: Bed Rack only

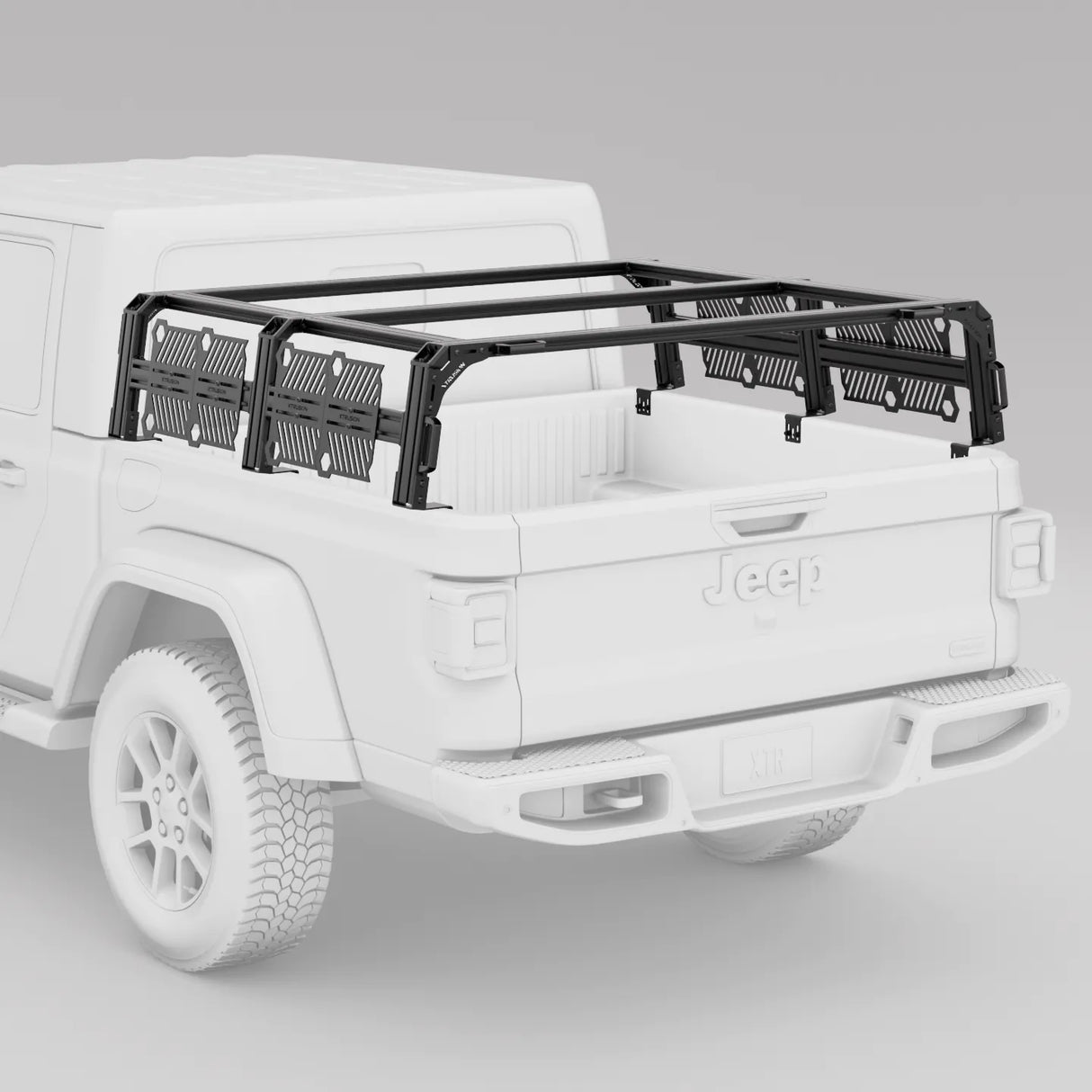

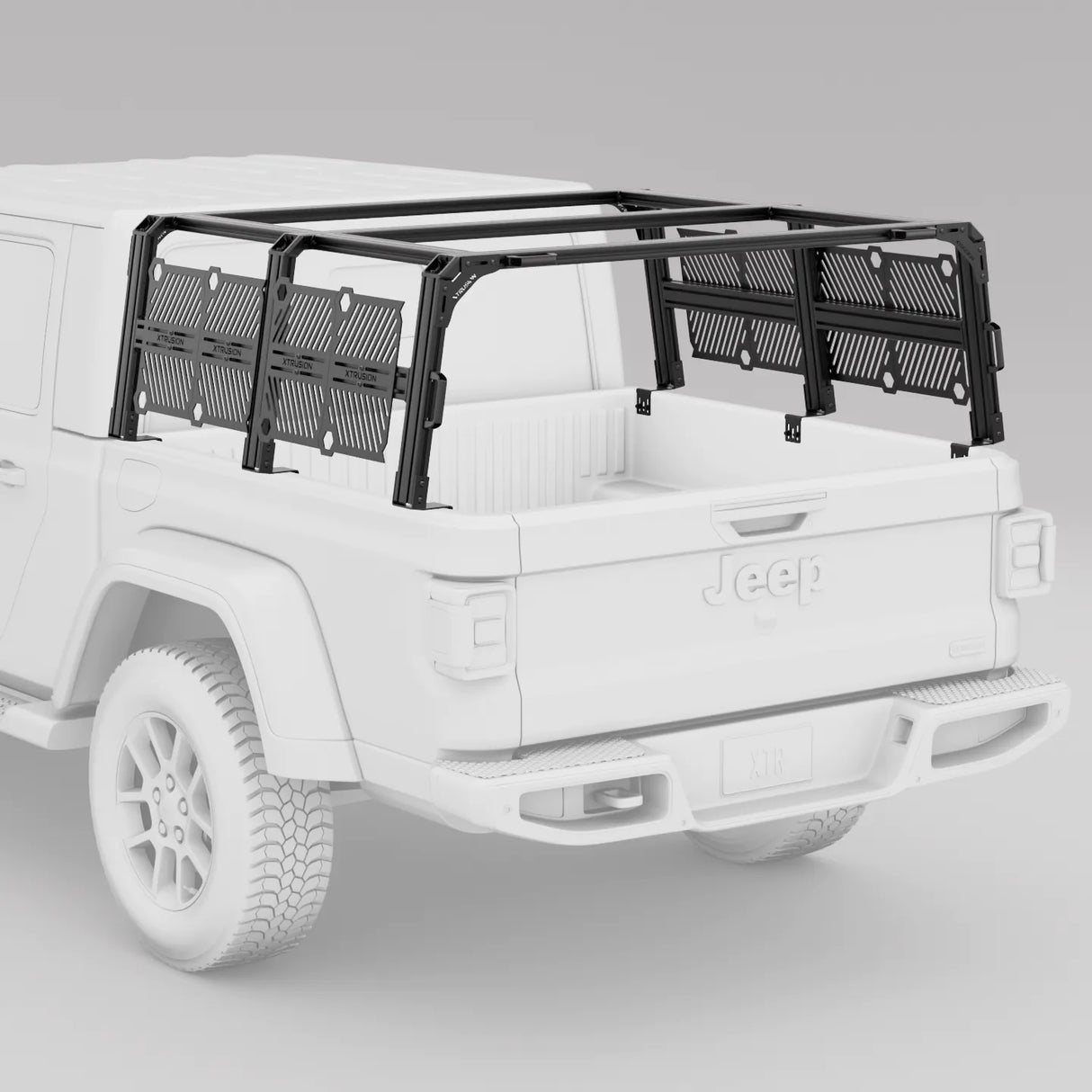

Stage 2: Bed Rack + 8 MOLLE Plates (12x9 Plates for Mid Height Racks & 16x11 Plates for Cab Height Racks)

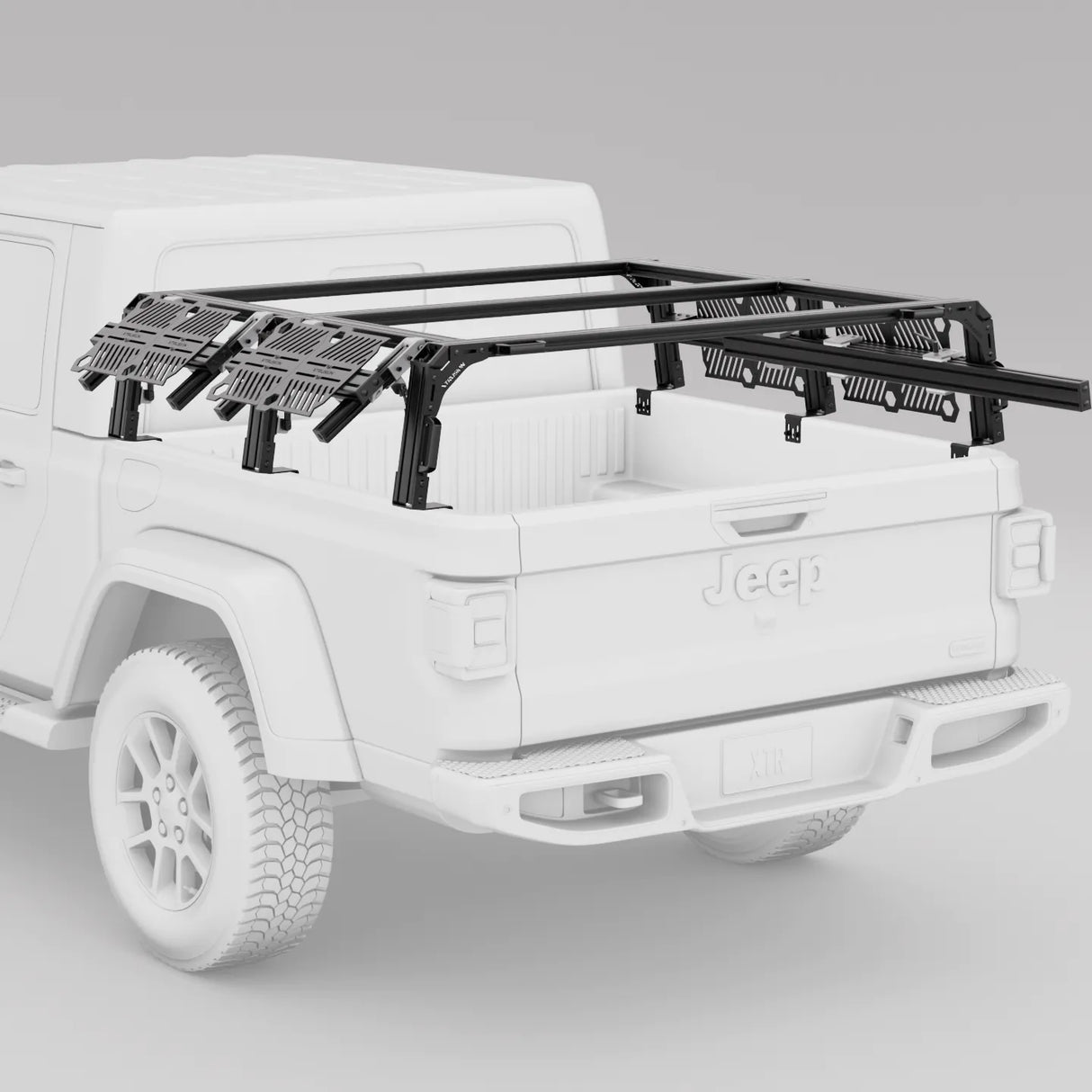

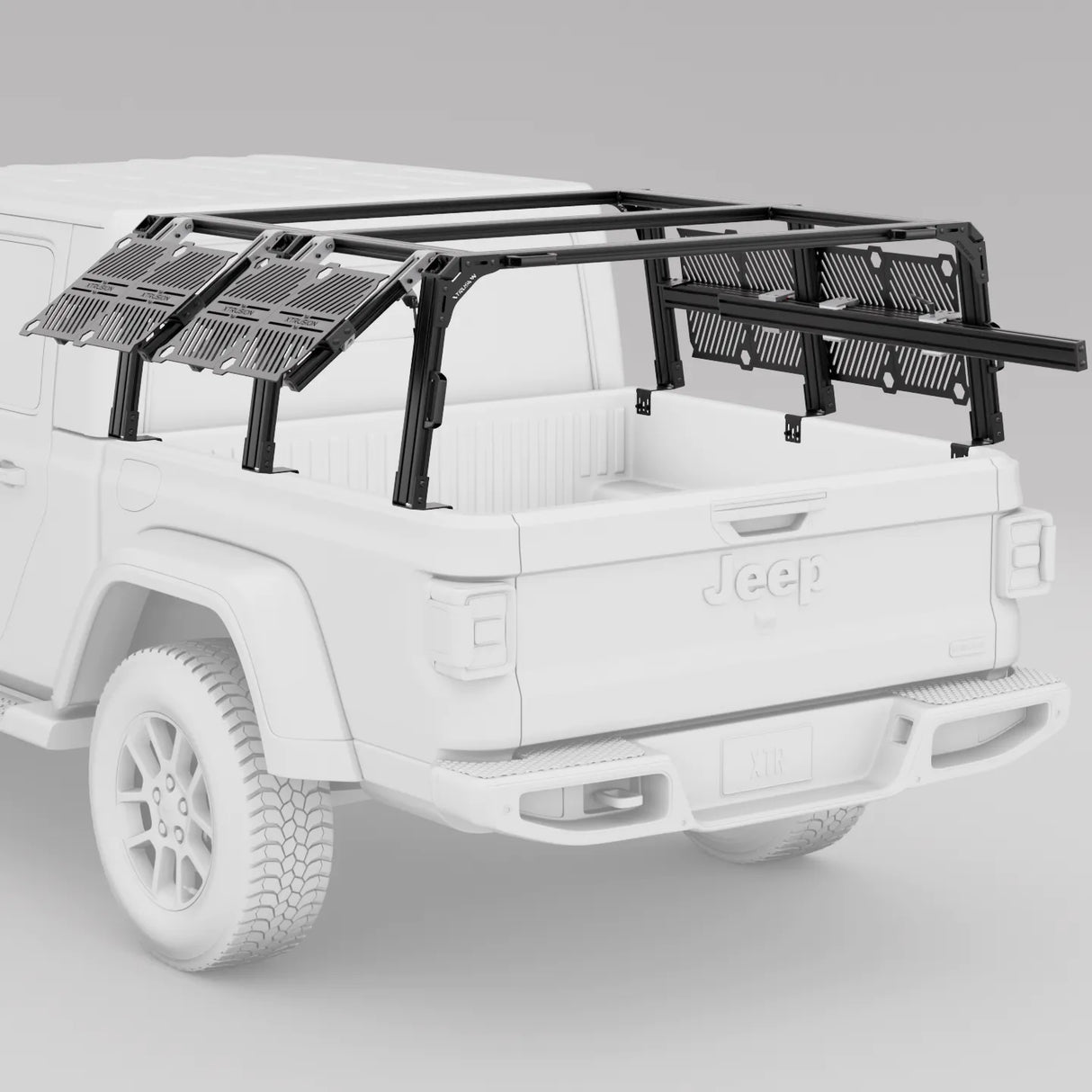

Stage 3A: Bed Rack + 8 MOLLE Plates + 1x AXS Gate Kit + 1x Slide Out
Stage 3B: Bed Rack + 8 MOLLE Plates + 2x AXS Gate Kits

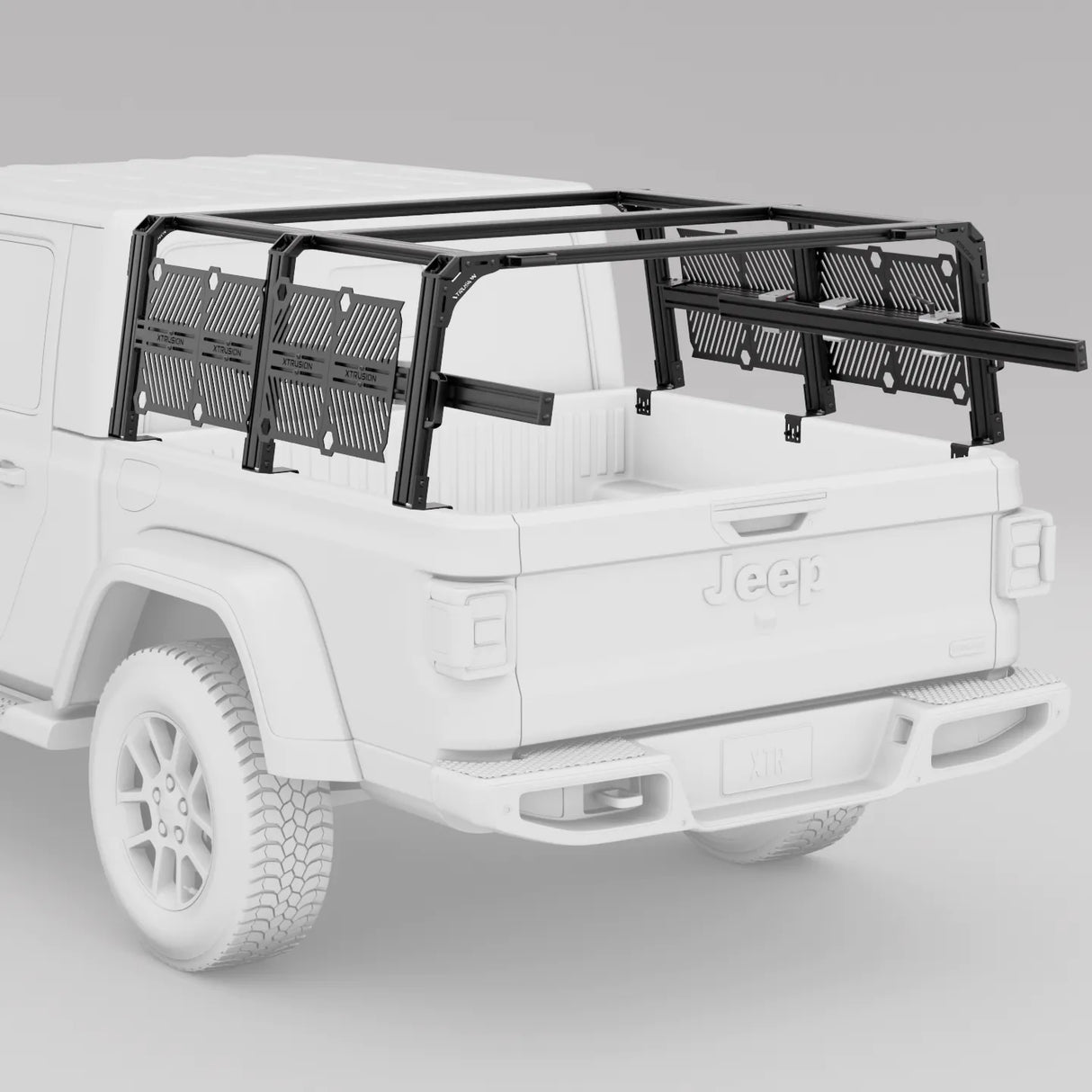

Stage 3C: Bed Rack + 8 MOLLE Plates + 2x Slide Out Kits

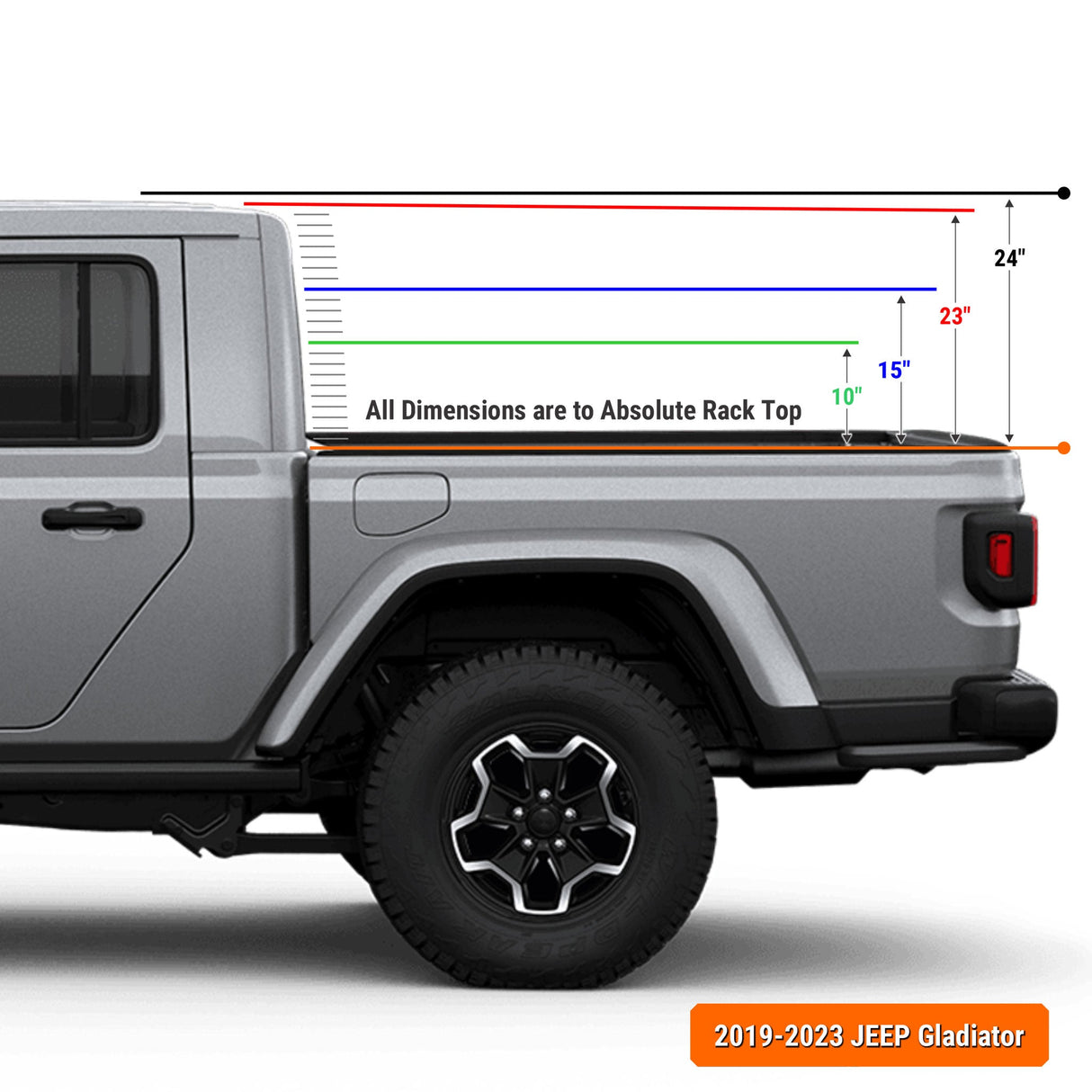

Need a height or configuration that's not listed here? Build it your way with the fully custom XTR3 Custom Height Bed Rack — set your exact height in 1" increments. Shop the Custom Height rack →

The XTR3 is the newest variant of our rack. It essentially divides the rack into 4 equal quadrants, giving you 4 independently adjustable side braces — so you can mount a rooftop tent, traction boards, and fuel cans on one side while keeping the other open for oversized cargo, pipe, or tools. It comes with 6 uprights, 4 side braces, 3 top crossbars, and 4 top support braces.

Our XTR3 racks are made from the strongest, lightest, and most modular materials on the market — without sacrificing any features. Unlike traditional sheet-metal and tube-steel bed racks, the XTR3 is built from solid aluminum extrusion, which keeps it lightweight while making it dramatically stronger and more rigid — and it won't rust like steel. Best of all, there's a T-slot channel on every linear surface — the same channel our MOLLE panels bolt straight onto — giving you near-infinite mounting points to attach gear anywhere along the rack, then reconfigure it in minutes as your needs change. Use it as a bed rack or cargo rack for hauling oversized loads, a mounting platform for your rooftop tent and camp setup, or a jobsite workhorse — our preconfigured builds come in our most popular sizes (low, mid, full, and soft-top height) so you get a mission-ready rack system equally at home on an overland adventure or a commercial jobsite.

Bed Bracket — Wide Width, Universal Fit

Every XTR3 Build ships on our Wide Width bracket — the most universal mount we make. It adds 1.65" of clearance to clear most soft and roll-up tonneau covers, and it takes the guesswork out of fitment for the vast majority of setups. (Tri-fold covers are compatible, but cannot open fully due to the geometry of the rack.)

Please note: The Wide Width bracket included with these pre-selected Builds works with most tonneau covers. Covers with built-in T-slot rail systems (such as the Roll-n-Lock XT Series or Pace Edwards UltraGroove) and the BAK Revolver X4S hard roll-up require a different configuration. If your Gladiator runs one of those covers, email [email protected] and our team will dial in the right fit for you.

Running a soft topper? Our soft-topper-compatible XTR3 Build is configured with components set at different angles to provide better clearance around the fabric of your soft topper, so the rack sits clean without binding or rubbing the material. If a soft topper is part of your setup, order that Build instead of this one.

Why choose the XTR3 Popular Builds for your Jeep Gladiator?

Bundled savings — rack + accessories cost less ordered together as a Stage
Solid aluminum extrusion — stronger, more rigid, and far lighter than sheet-metal or steel racks, with no rust
T-slot on every surface — MOLLE panels and gear mount anywhere, then reconfigure in minutes

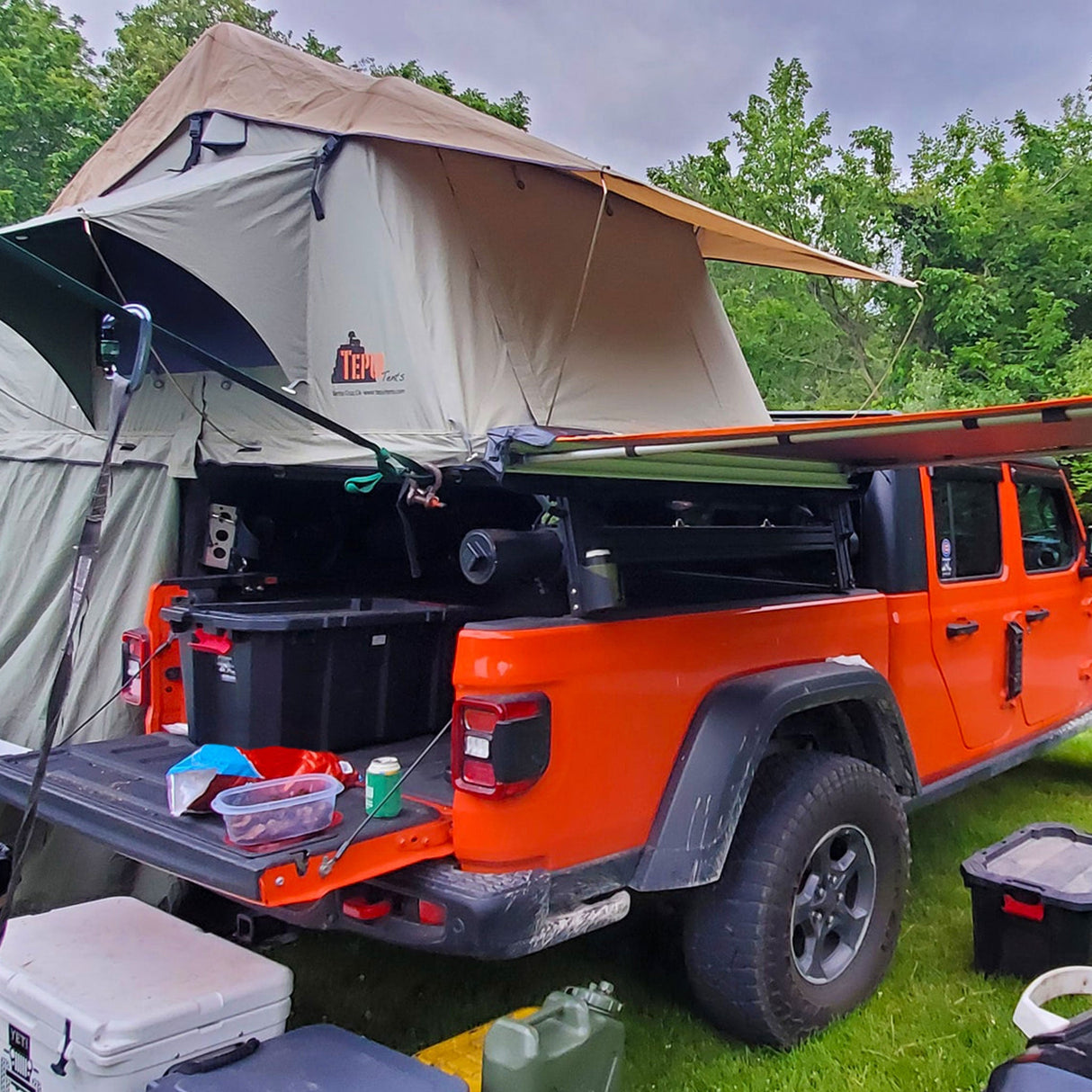

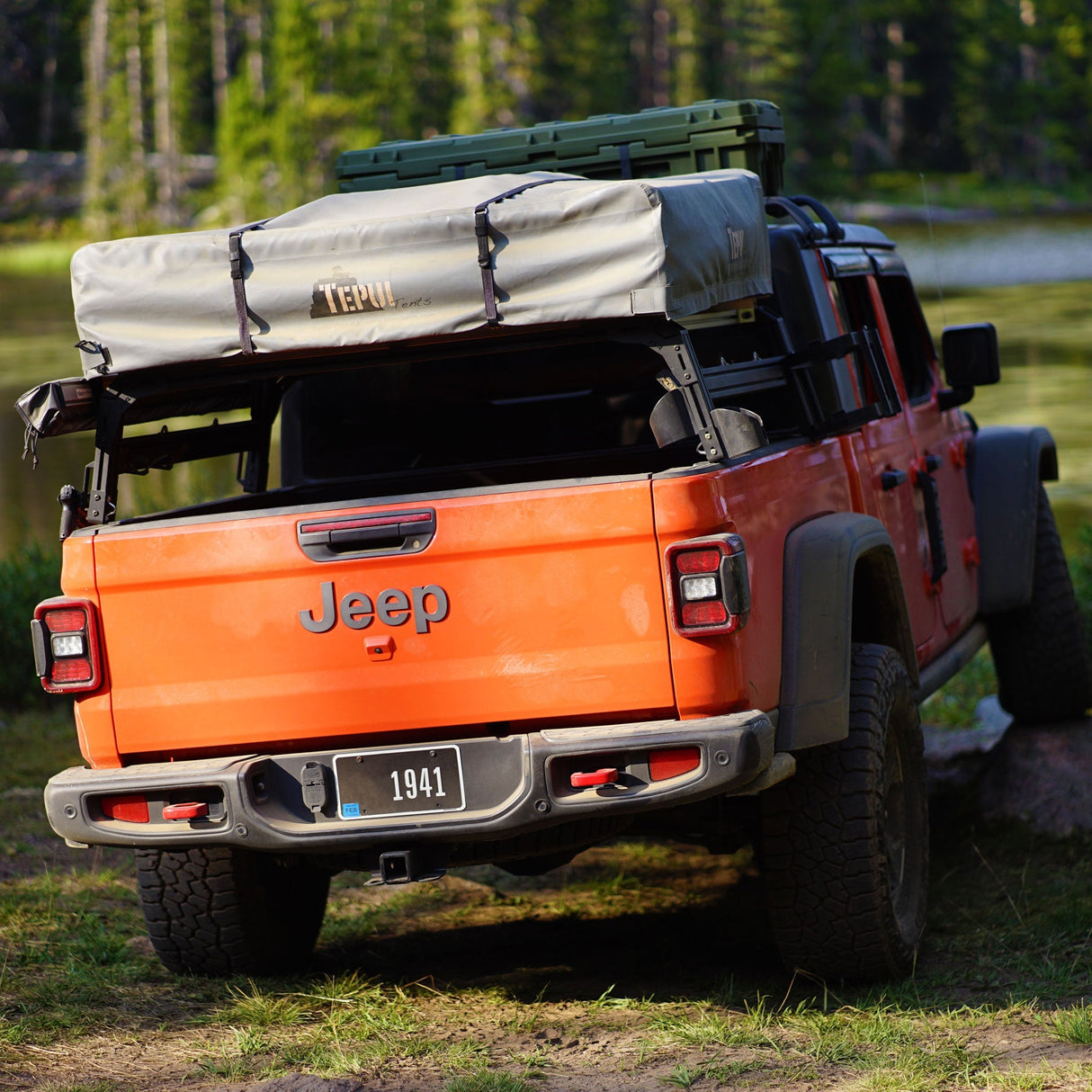

Camp-ready — a stable platform for rooftop tents, awnings, and your full overland camp setup
Fully modular — 4 independently adjustable quadrants adapt to any load
Overland + utility ready — rooftop tents and recovery gear, or ladders, pipe, and jobsite tools
No-drill install — bolts to your OEM bed rails and includes all hardware

As an added bonus, your XTR3 Bed Rack includes some of our most popular accessories and mounting hardware — everything you need to start mounting accessories and brackets to your new rack right away. Check them out below!

Pictures shown with additional accessories that are sold separately unless included in your selected Stage.

XTR3 Bed Rack Includes

3 Top Crossbars
6 Uprights (Columns)
4 Top Support Braces (1530 Black)
4 Side Braces (1530 Black)
6 Bedrail Brackets (connects uprights to bedrail)
4 Top Corner Brackets (connects crossbars and uprights)
All screws and hardware required for assembly
Set of Black XTR Off-Road Reinforcement Plates ($110 value)
Metal Handle Kit – Set of 4 ($40 value)
16 pcs Drop-In T-Nuts – 5/16-8 ($12 value)
16 pcs Button Head Screws – 5/16-8 x 5/8" ($8.80 value)

Rated Capacity (evenly distributed): 450 lbs dynamic off-road, 850 lbs dynamic on-road, and 1,550 lbs static — or OEM bed rail capacity, whichever is less.
